Description

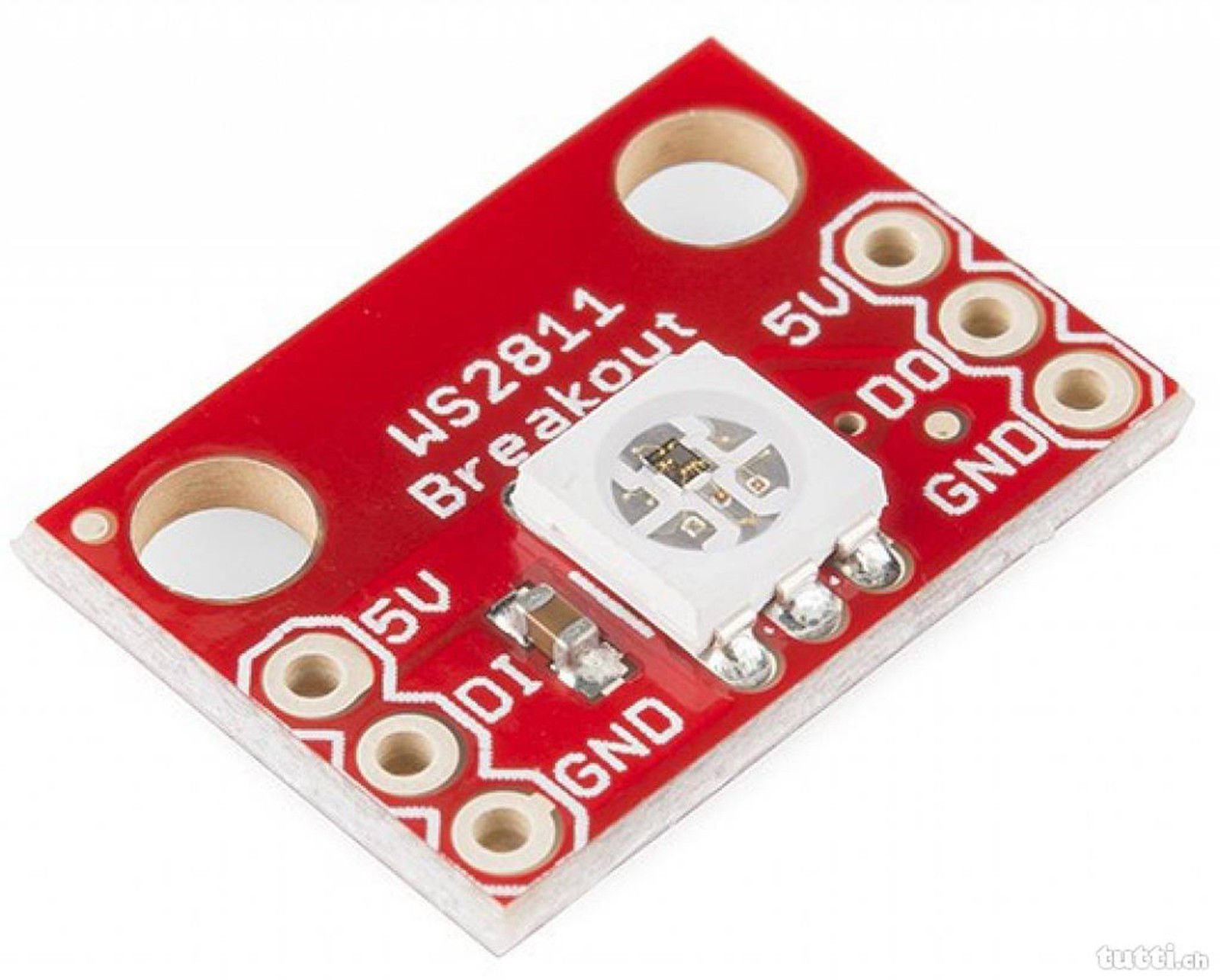

This compact WS2812B RGB 5050 LED Breakout Board Module features an intelligent RGB LED with an integrated WS2811 controller, making it ideal for individually addressable LED projects.
Perfect for use with Arduino, Raspberry Pi, or microcontroller-based displays, these modules can be daisy chained to build stunning visual effects for wearables, signage, or ambient lighting systems.
- LED Type: WS2812B 5050 RGB LED (WS2811 IC Built-In)
- Voltage: 5V DC
- Header Spacing: 2.54mm (0.1″) – Breadboard Friendly

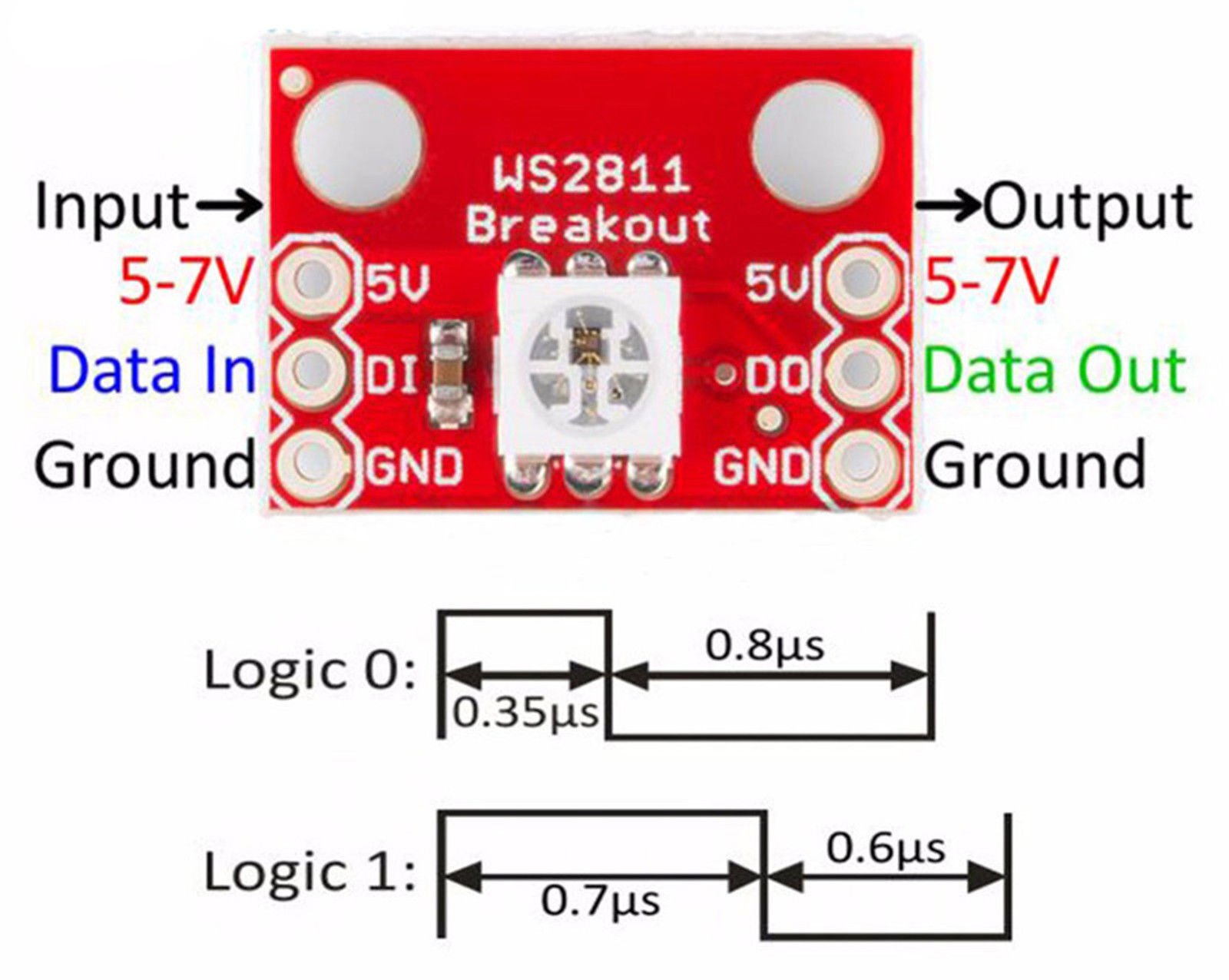

- Control: Individually Addressable via Single Data Line

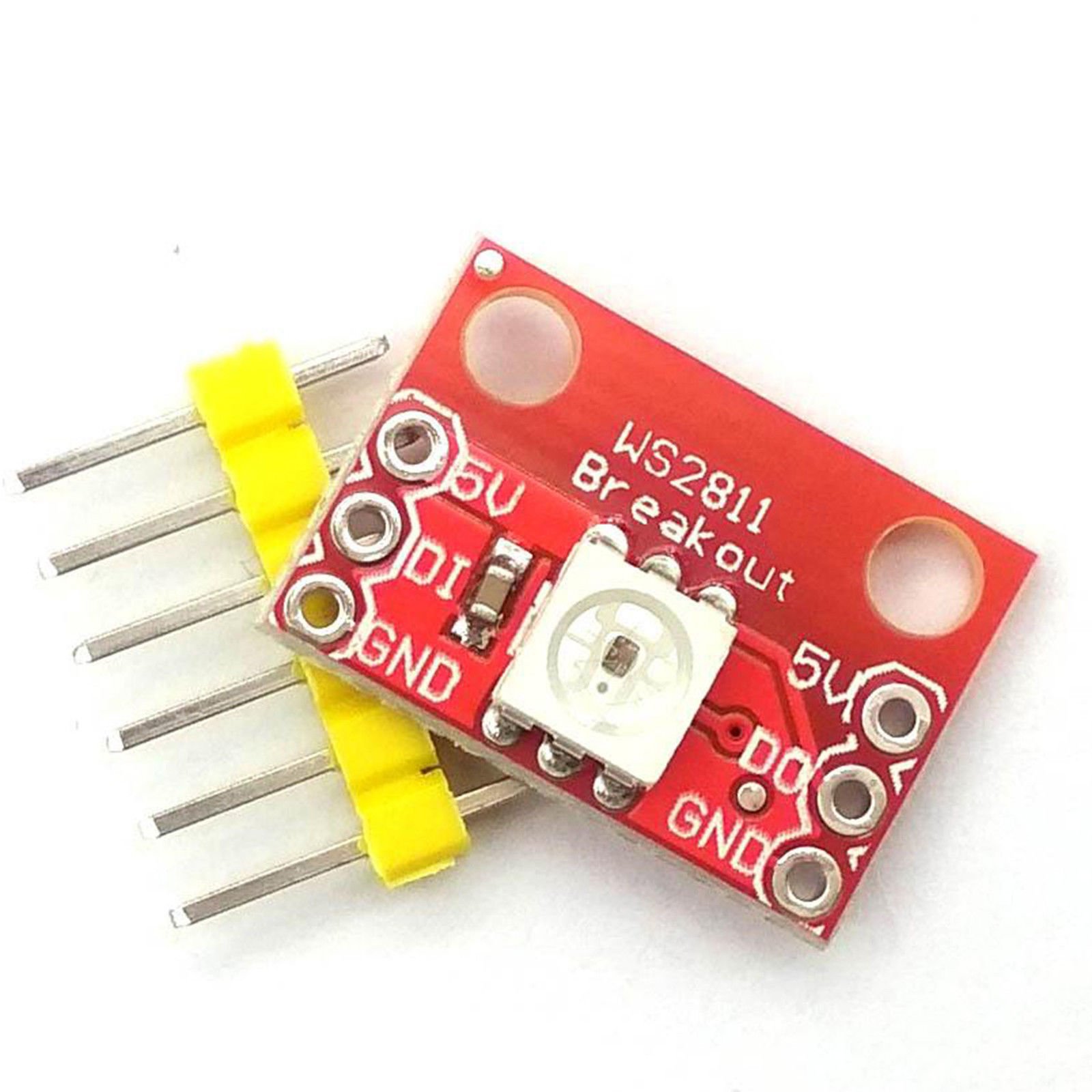

- Form Factor: Compact PCB with breakout headers
- Microcontroller Compatible: Arduino, Raspberry Pi, ESP8266, and more
What’s Included:

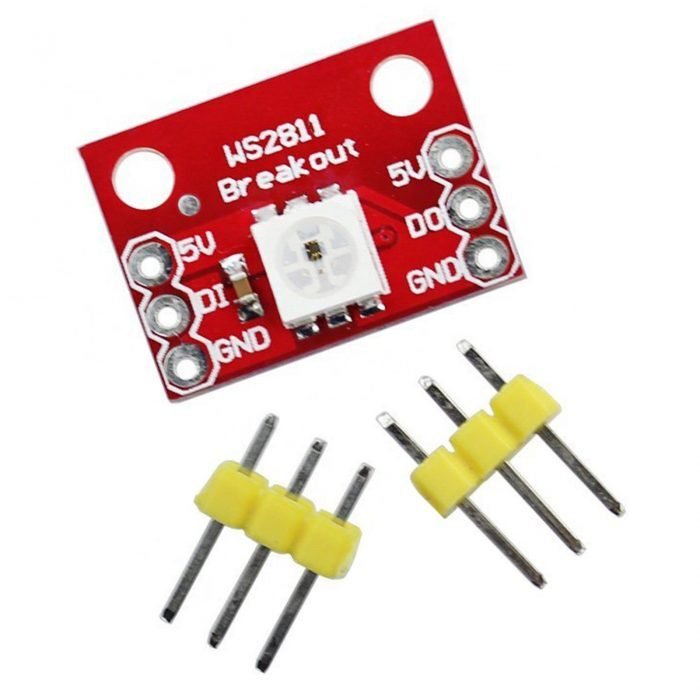

- 1 x WS2812B RGB 5050 LED Breakout Board Module
Great For:
- Addressable LED displays
- Wearables and smart fashion
- DIY lighting effects and decorations
- Arduino and Raspberry Pi projects
- Teaching digital control of LEDs
Usage Tips:
- Connect multiple modules in series for a chainable LED array
- Use libraries like FastLED or NeoPixel for easy programming
- Supply a regulated 5V power source for optimal performance
- Include a resistor (~330Ω) on the data line and a capacitor (100µF) across power rails for stability
