Description

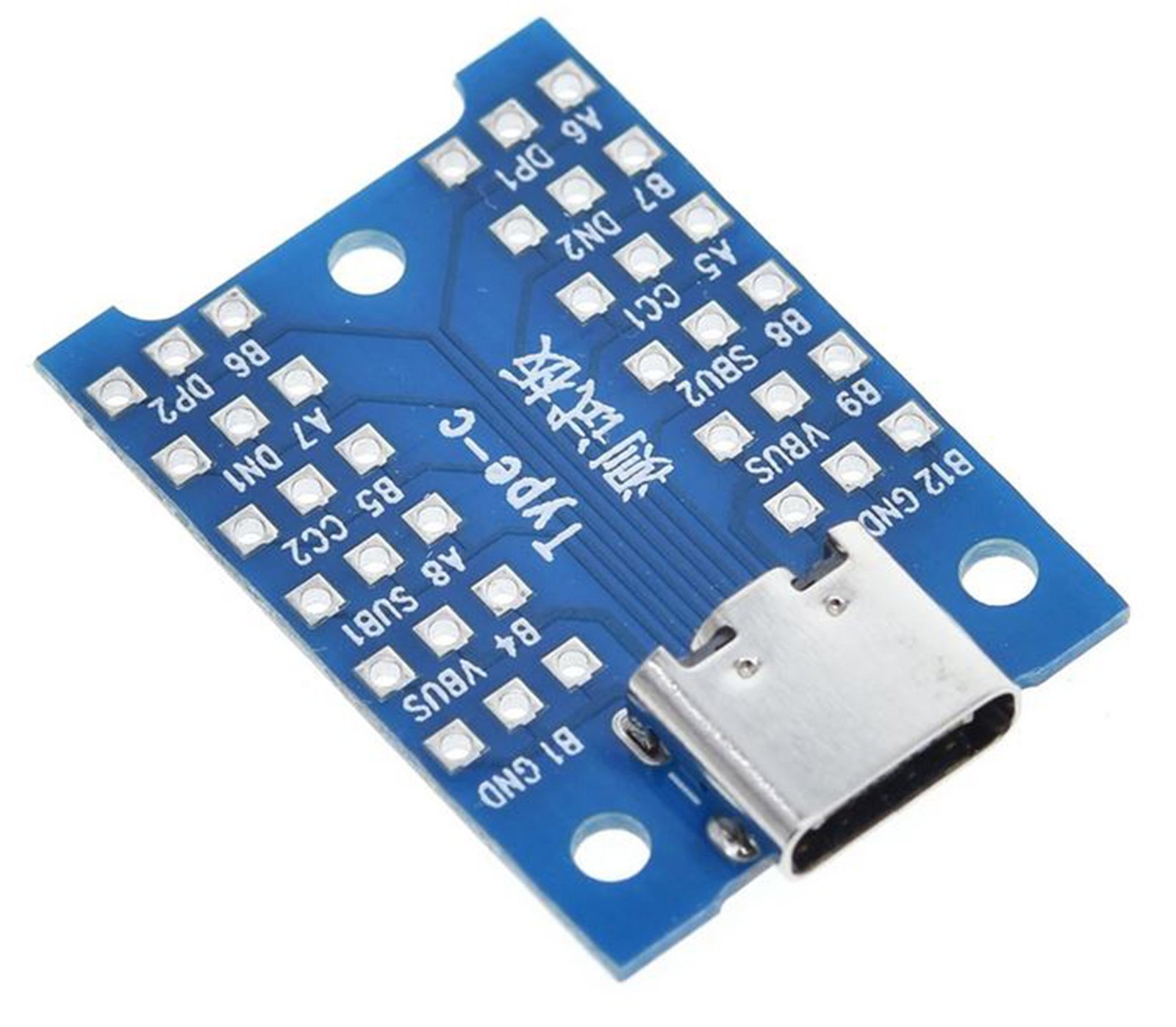

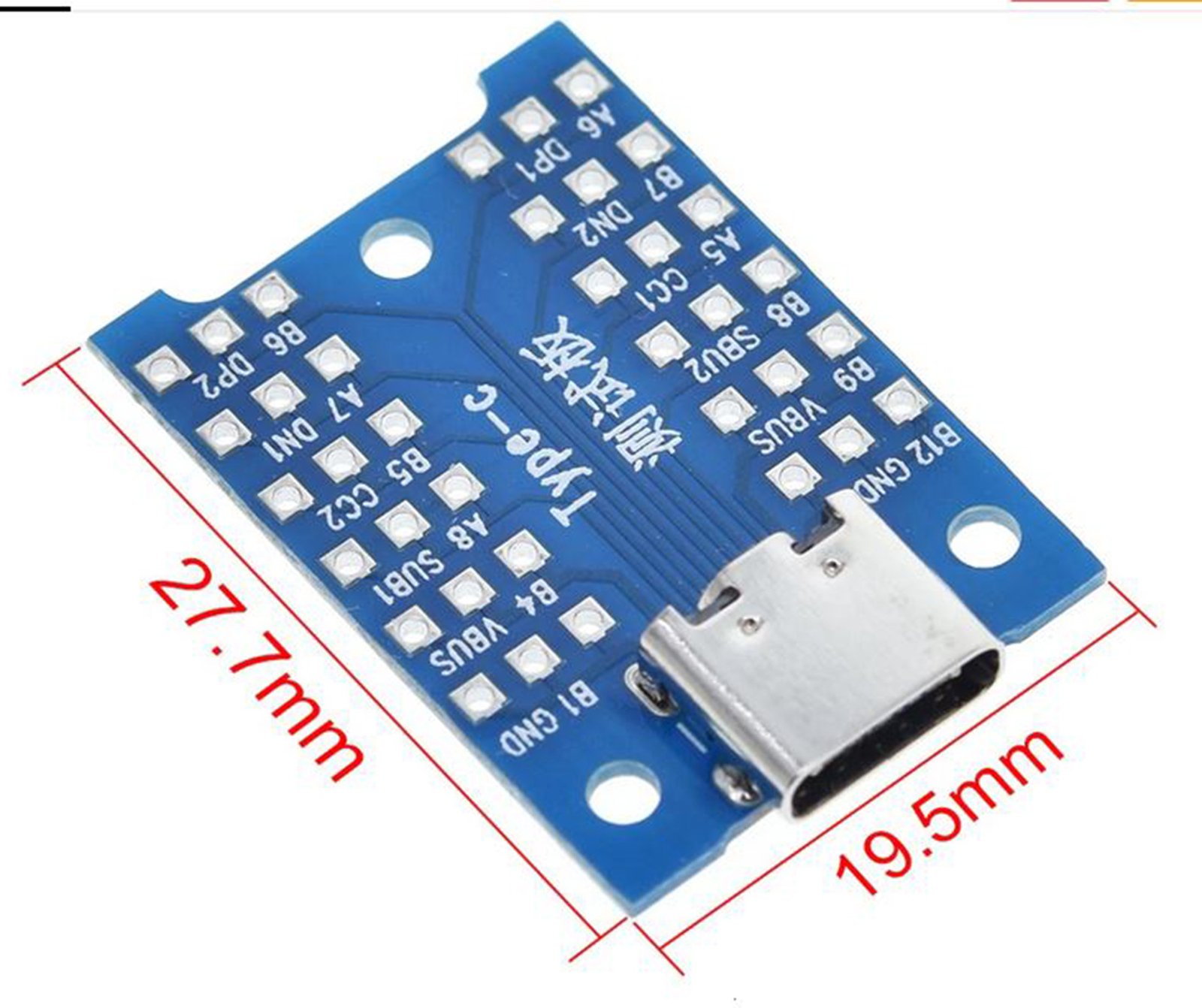

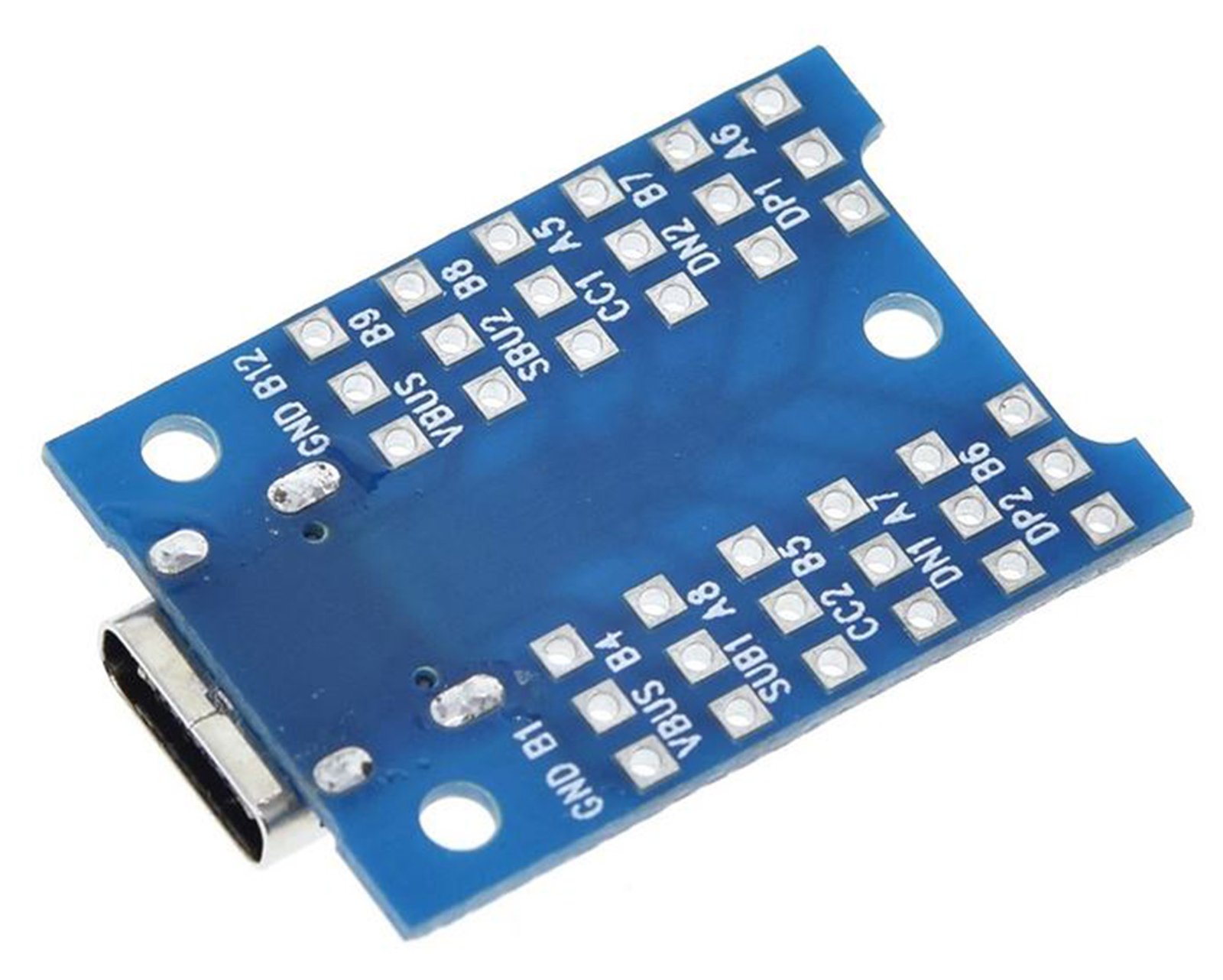

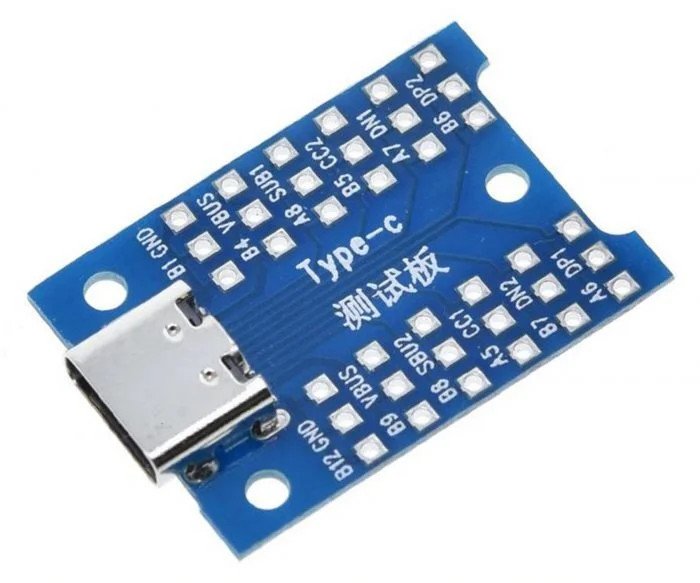

This simple yet essential breakout board features a USB C Female Socket with 12 pins conveniently broken out to 2.54mm DIP headers, making it ideal for prototyping and DIY electronics projects.
Perfect for connecting USB C cables to breadboards or microcontroller boards like Arduino, Raspberry Pi, ESP32, and more, this adapter allows easy access to USB C power and data lines for custom USB-enabled designs.
- Type: USB C Breakout Board Adapter
- Connector: USB Type C Female Socket
- Breakout: 12-pin to 2.54mm DIP Header
- Header Pitch: 2.54mm (0.1″) standard spacing – breadboard compatible
- Board Colour: Blue
- Material: FR4 PCB with gold-plated contacts
- Mounting: Through-hole DIP headers for stable breadboard or PCB integration
- Compatibility: USB C power and data lines, great for microcontroller development
- Pin Labels: Clearly marked for quick identification
What’s Included:
- 1x USB-C Female Socket to DIP 2.54mm Header Breakout Board (Blue)
Great For:
- Connecting USB-C cables to breadboards
- Arduino, ESP32, Raspberry Pi, STM32 USB interfacing
- USB-C power or data line tapping
- Rapid prototyping and debugging
- DIY electronics and hobbyist projects
- STEM education and electronics learning kits
Usage Tips:
- Use with a microcontroller that supports USB for communication or charging
- Solder header pins for stable connection to a breadboard or PCB
- Breaks out VBUS, GND, CC1/CC2, D+/D− and other relevant USB-C lines
- Ideal for quick testing of USB-C connections or building custom USB-C devices
