Description

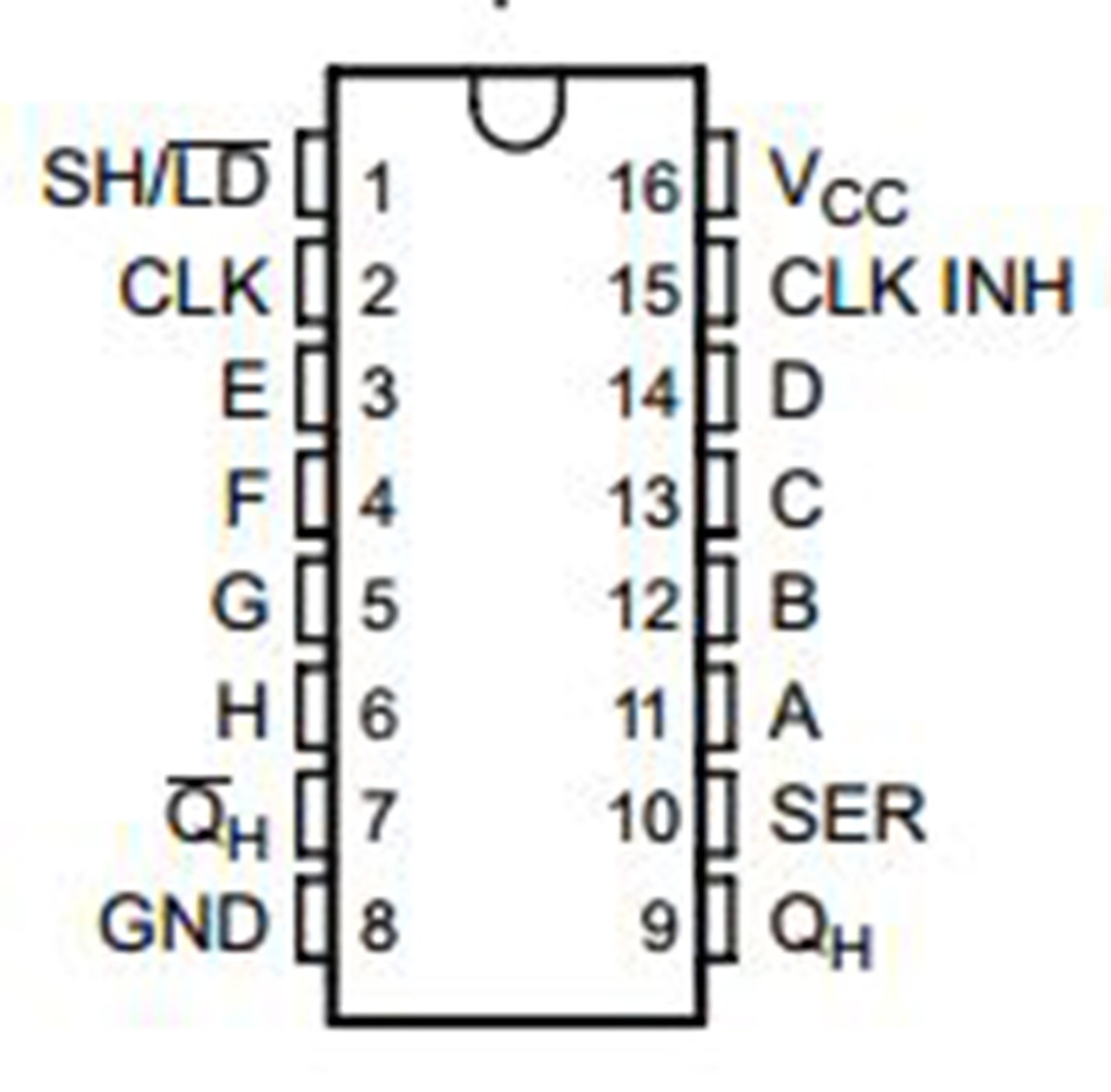

The SN74HC165 SOP16 device is an 8-bit parallel-load shift register designed for rapid parallel-to-serial data conversion.
With eight direct data inputs (A–H) enabled via the shift/load (SH/LD) pin and complementary serial output (QH), this IC allows flexible data capture and shifting with ease.
Ideal for applications requiring efficient parallel data acquisition and serial communication, the SN74HC165 offers features such as an optional clock-inhibit function and gated clock inputs.
Its versatile clocking with interchangeable CLK and CLK INH functions ensures precise timing control in your digital systems.
- Model: SN74HC165
- Type: 8-Bit Parallel-Load Shift Register
- Package: SOP16 Surface Mount
- Operating Voltage: 2V to 6V
- Parallel Inputs: 8 individual data lines (A–H)
- Control Inputs: SH/LD for parallel load, CLK/CLK INH for shifting
- Output: Complementary serial (QH)
Performance:
- Typical propagation delay: 13 ns
- Low power consumption: 80 µA maximum
- Output drive: ±4 mA at 5V
- Low input current: 1 µA maximum
Additional Features:
- Direct overriding load for data inputs
- Gated clock inputs for controlled data shifting
- Capable of driving up to 10 LSTTL loads
What’s Included:
- 1x SN74HC165 SOP16 Surface Mount 8-Bit Shift Register
Great For:
- Parallel-to-Serial Data Conversion
- Microcontroller & Digital Logic Projects
- Data Acquisition and Input Expansion
- Embedded System Design
- Breadboarding and Prototype Development
- Educational Electronics & STEM Projects
Usage Tips:
- Use the SH/LD pin to enable parallel loading of data inputs when held low.
- Ensure proper clocking by maintaining SH/LD high during serial data shifting with CLK/CLK INH control.
- Consider proper decoupling and PCB layout techniques to minimise noise and improve performance.
- Ideal for extending input capabilities in microcontroller applications or interfacing with digital sensors.
