Description

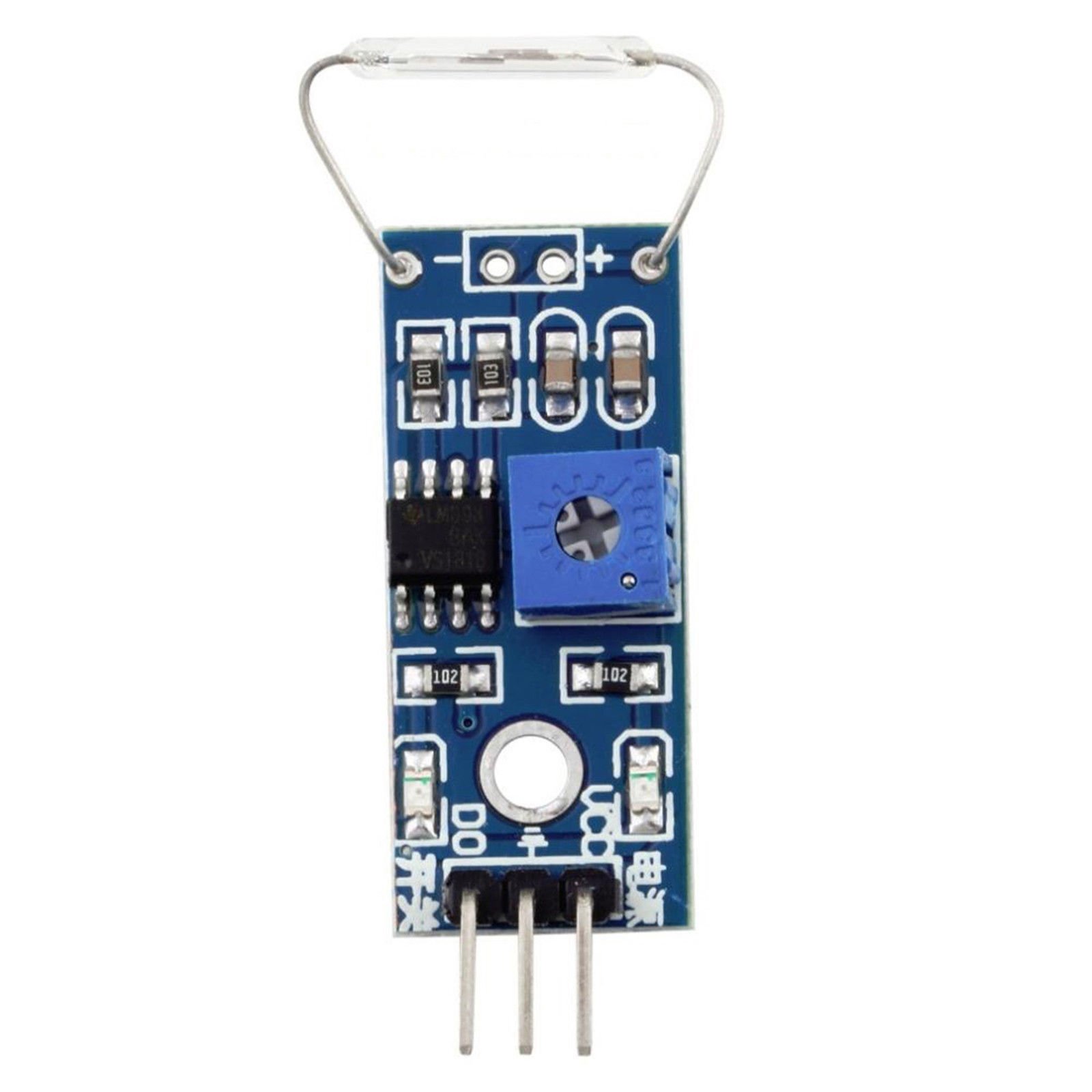

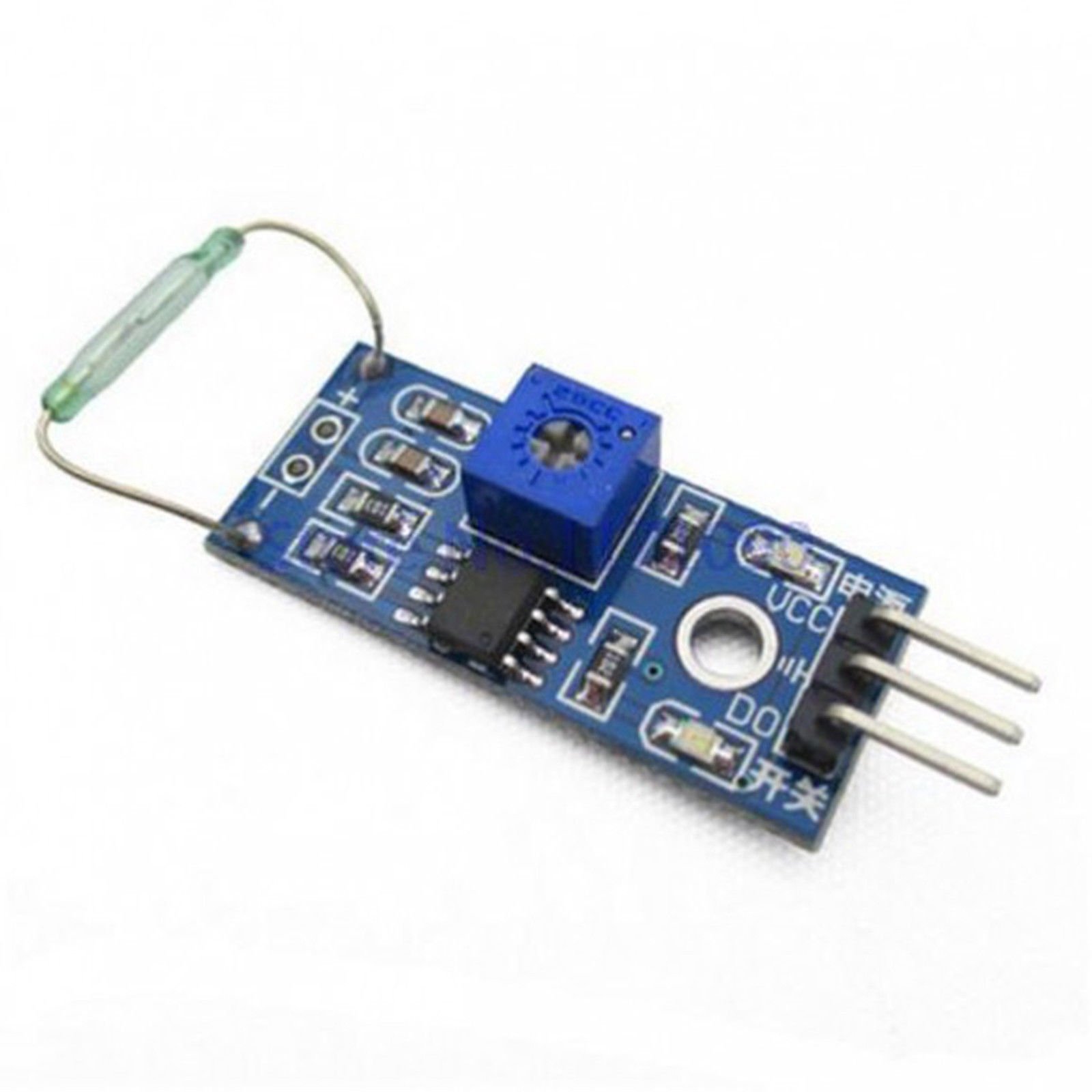

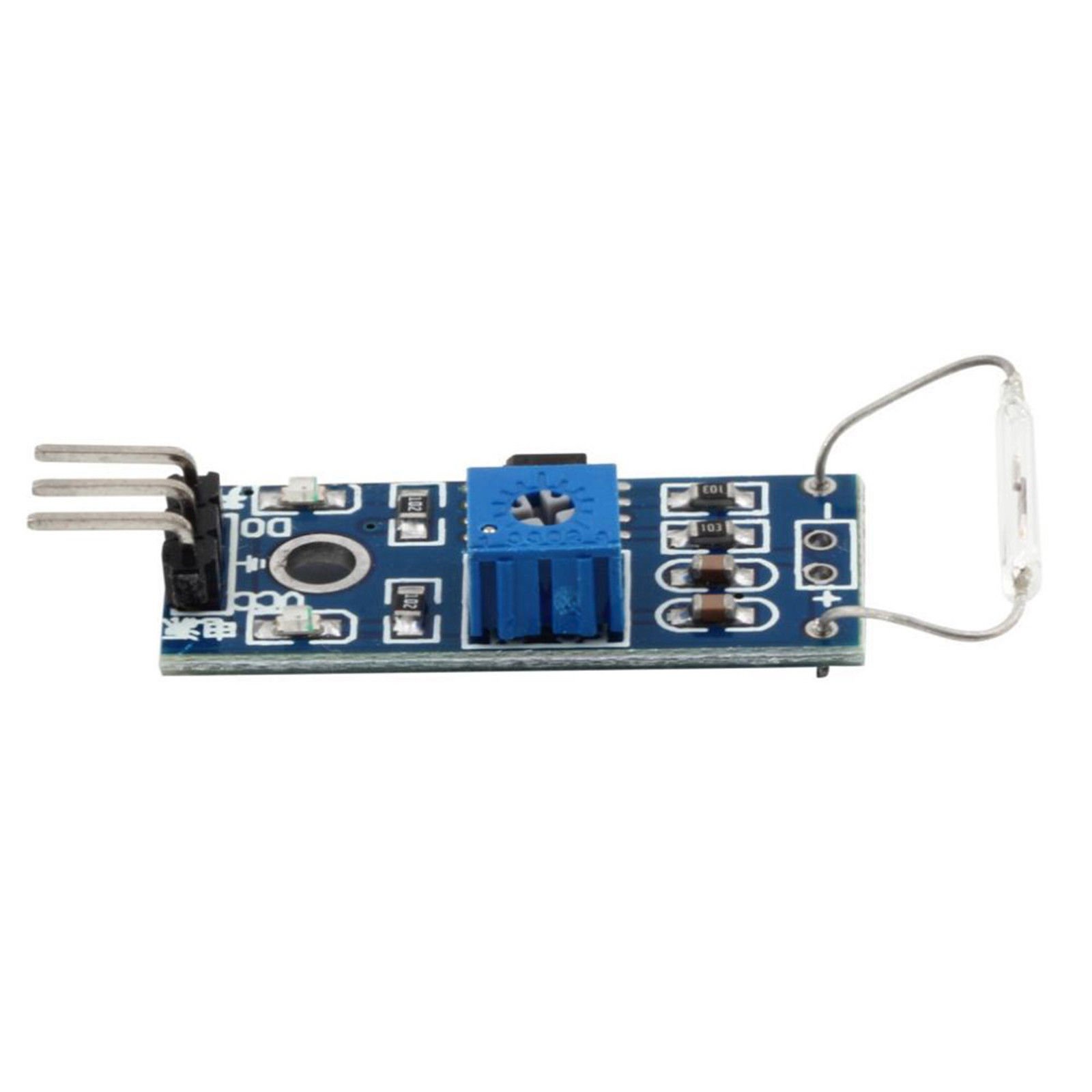

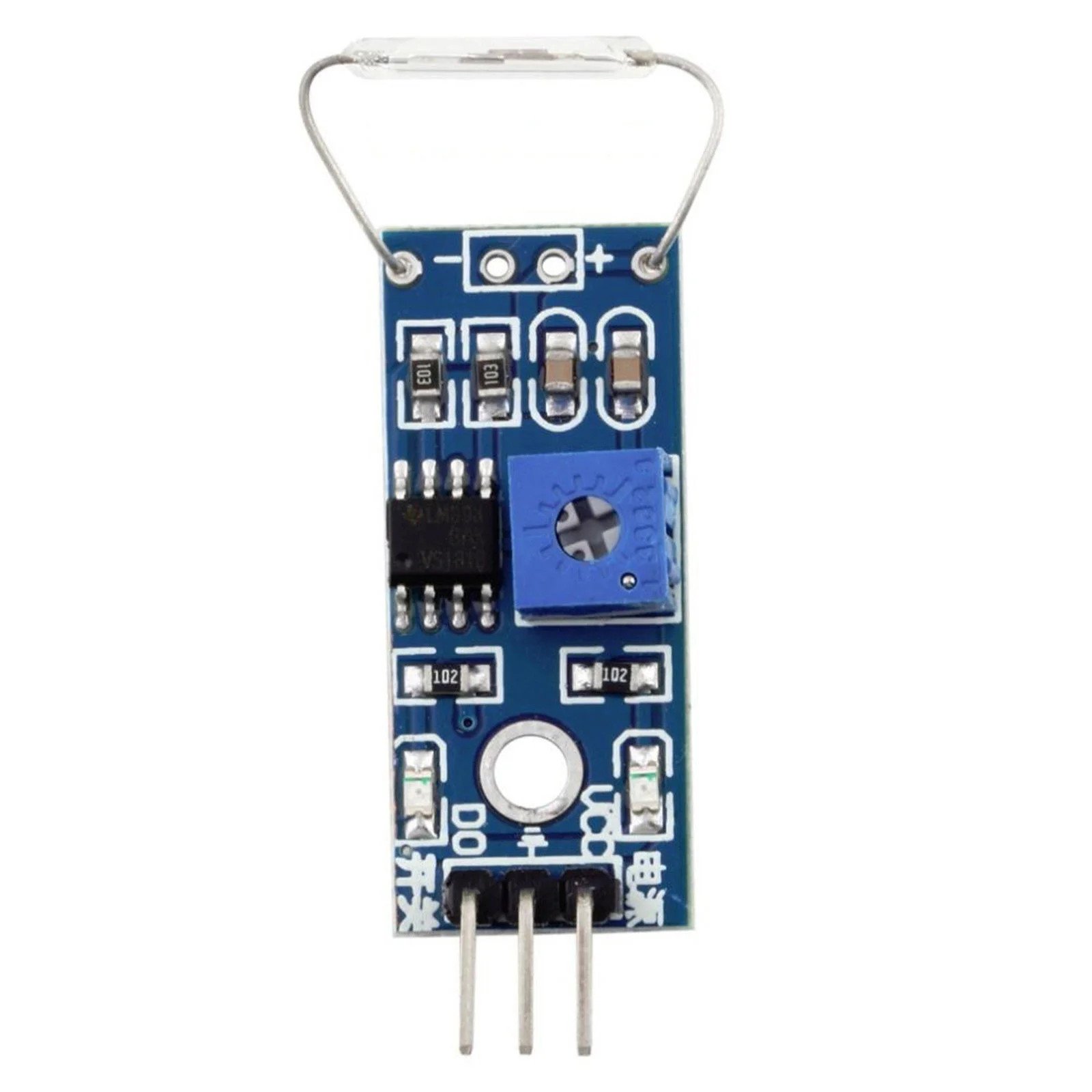

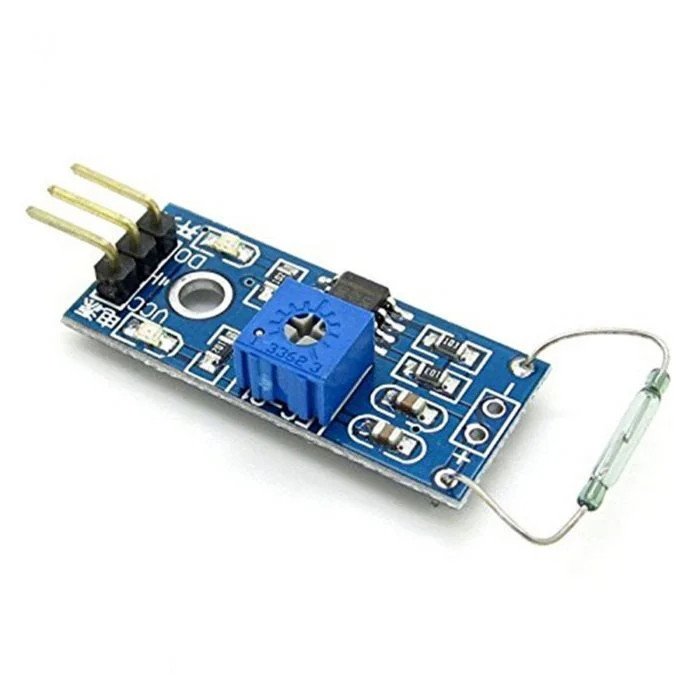

This reed sensor module is a magnetic switch designed for detecting the presence of a magnetic field.
Normally open by default, the sensor closes the circuit when exposed to a magnetic field triggering a digital output signal.
Equipped with an LM393 comparator and an adjustable onboard potentiometer, this module allows you to fine tune the sensitivity to suit a variety of applications.
Perfect for Arduino, AVR, and Raspberry Pi projects where magnetic proximity detection is needed.
- Product: Reed Magnetic Sensor Module – LM393 Comparator
- Type: Normally Open Reed Switch with Digital Output
- Voltage: 3.3V – 5V
- Working Distance: Up to 15mm
- Output Type: Digital (0 or 1)
- Comparator: LM393
- PCB Size: 32mm x 14mm
- Quantity: 1 Module
Key Features:
- Normally open magnetic reed sensor
- Detects presence of magnetic fields up to 15mm
- LM393 comparator for stable digital output
- Onboard potentiometer to adjust sensitivity
- Compact design – easy to integrate into DIY circuits
What’s Included:
- 1 x Reed Magnetic Switch Module with LM393 Comparator
Great For:
- Arduino, AVR, and Raspberry Pi projects
- Magnetic proximity detection
- Door/window open sensors
- Robotics and automation systems
- Educational electronics experiments
Usage Tips:
- Connect to a digital input pin on your microcontroller
- Adjust the potentiometer to set detection sensitivity
- Test with a small magnet to verify switching behavior
- Use in security or automation setups where magnetic triggers are needed
