Description

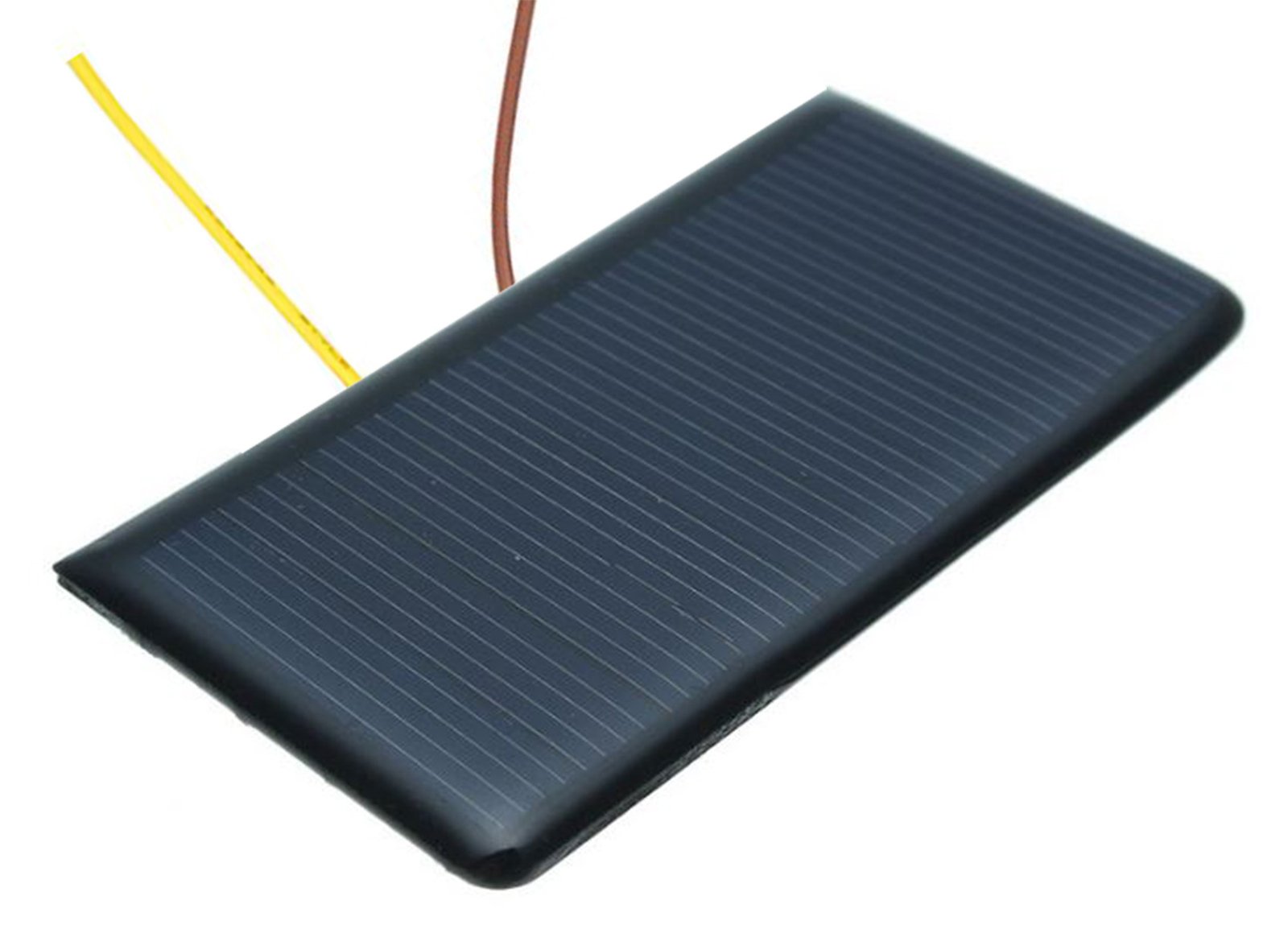

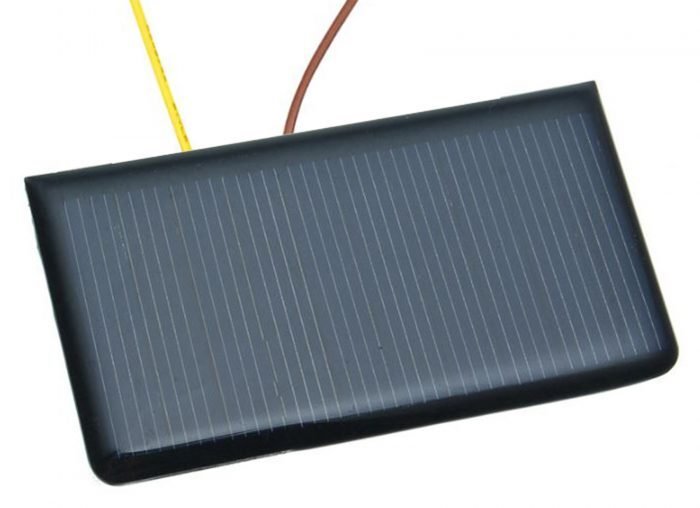

This 5V 60mA Polycrystalline Solar Cell is a compact, high-efficiency photovoltaic panel designed to convert sunlight directly into electricity.
Perfect for powering small electronics, sensors, and renewable energy prototypes.
A rectangle panel measuring 68mm x 37mm, it’s ideal for Arduino, Raspberry Pi, and other microcontroller projects where portable, off-grid power is needed.
- Product: Polycrystalline Solar Cell Panel
- Operating Voltage: 5V
- Working Current: 60mA
- Peak Power: 0.3W
- Material: Polycrystalline Silicon
- Panel Size: 68mm x 37mm x 3mm
- Radiation: 1000W/m²
- 1.5 times the spectrum
- Component Test temperature 25 degrees Celsius

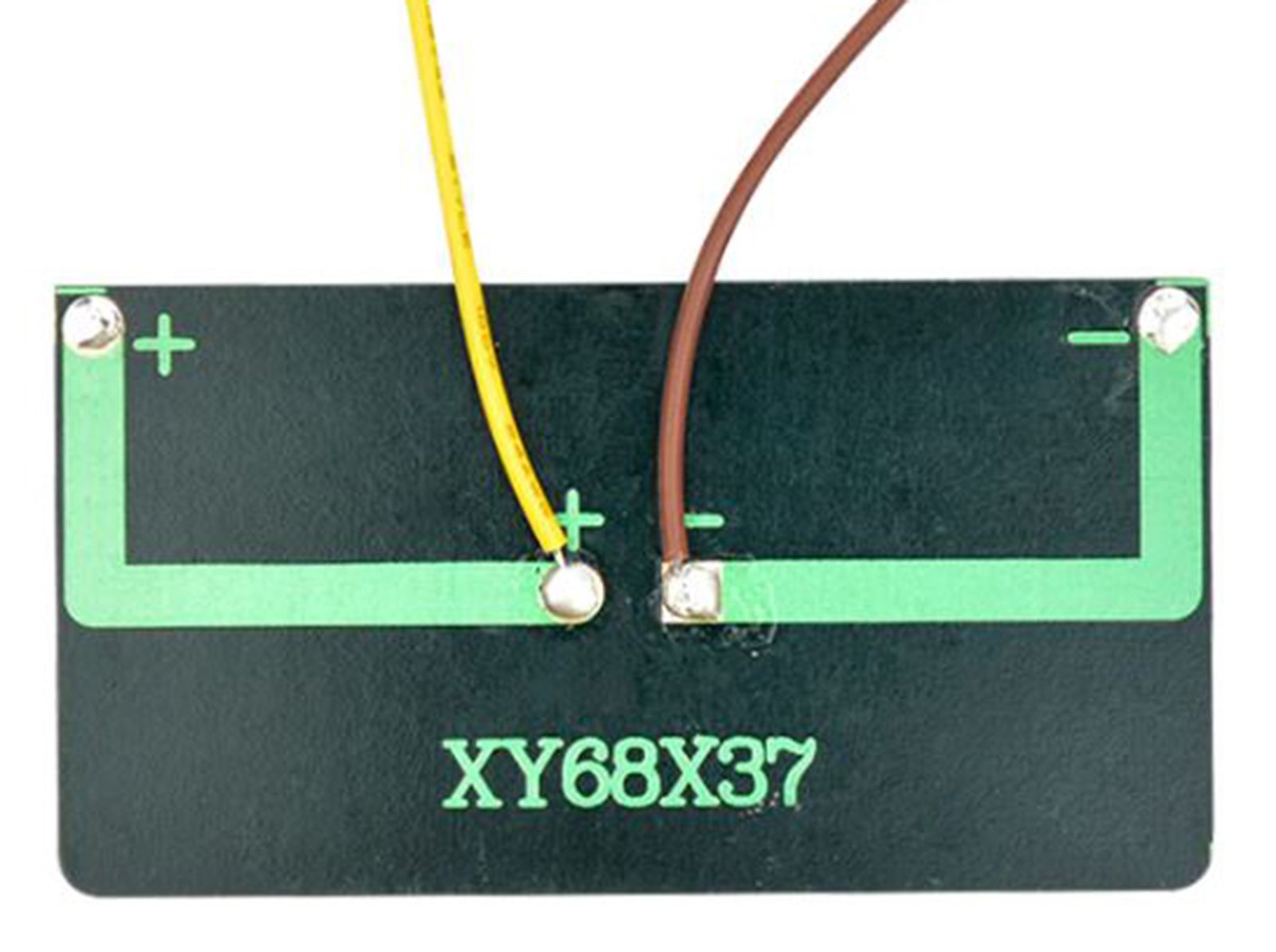

- Pre-soldered Wires: Yes
Key Features:
- Converts sunlight into electrical energy via photovoltaic effect
- Rated at 5V 60mA, ideal for low-power microcontroller projects
- Peak power output: 0.3W
- Compact and durable polycrystalline construction
- Lightweight and easy to mount
- Tested under STC (Standard Test Conditions):
What’s Included:
- 1x 5V 60mA Polycrystalline Solar Panel (68mm x 37mm)
Great For:
- Solar-powered Arduino/Raspberry Pi projects
- DIY IoT and remote sensor nodes
- Portable and wearable solar applications
- STEM education and solar experiments
- Off-grid energy kits
- Charging small rechargeable batteries
Usage Tips:
- Connect to a TP4056 charger or supercapacitor for energy storage
- Use a blocking diode to prevent reverse current flow at night
- Mount facing direct sunlight for optimal performance
- Can be wired in series/parallel for custom voltage/current setups
