Description

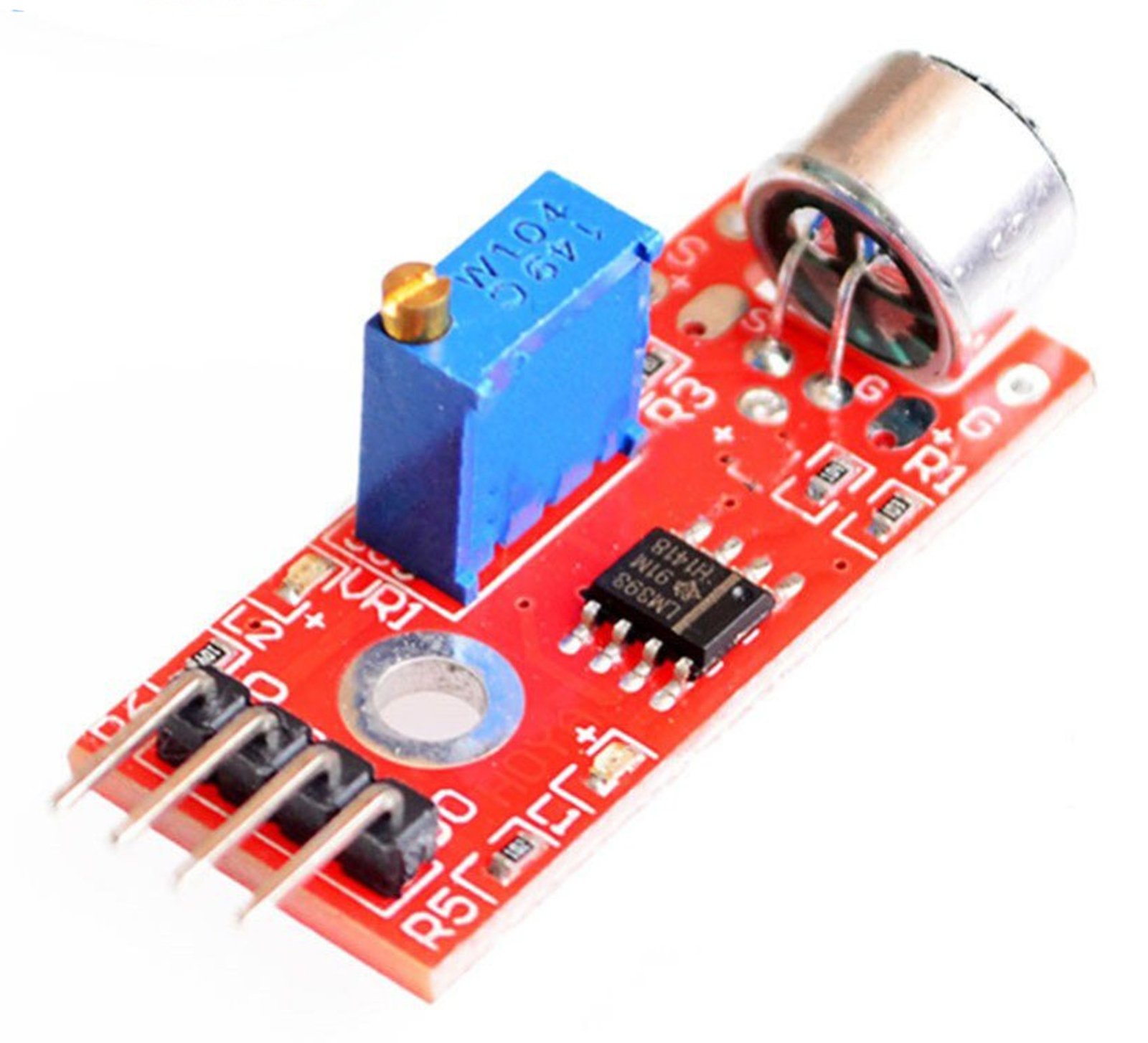

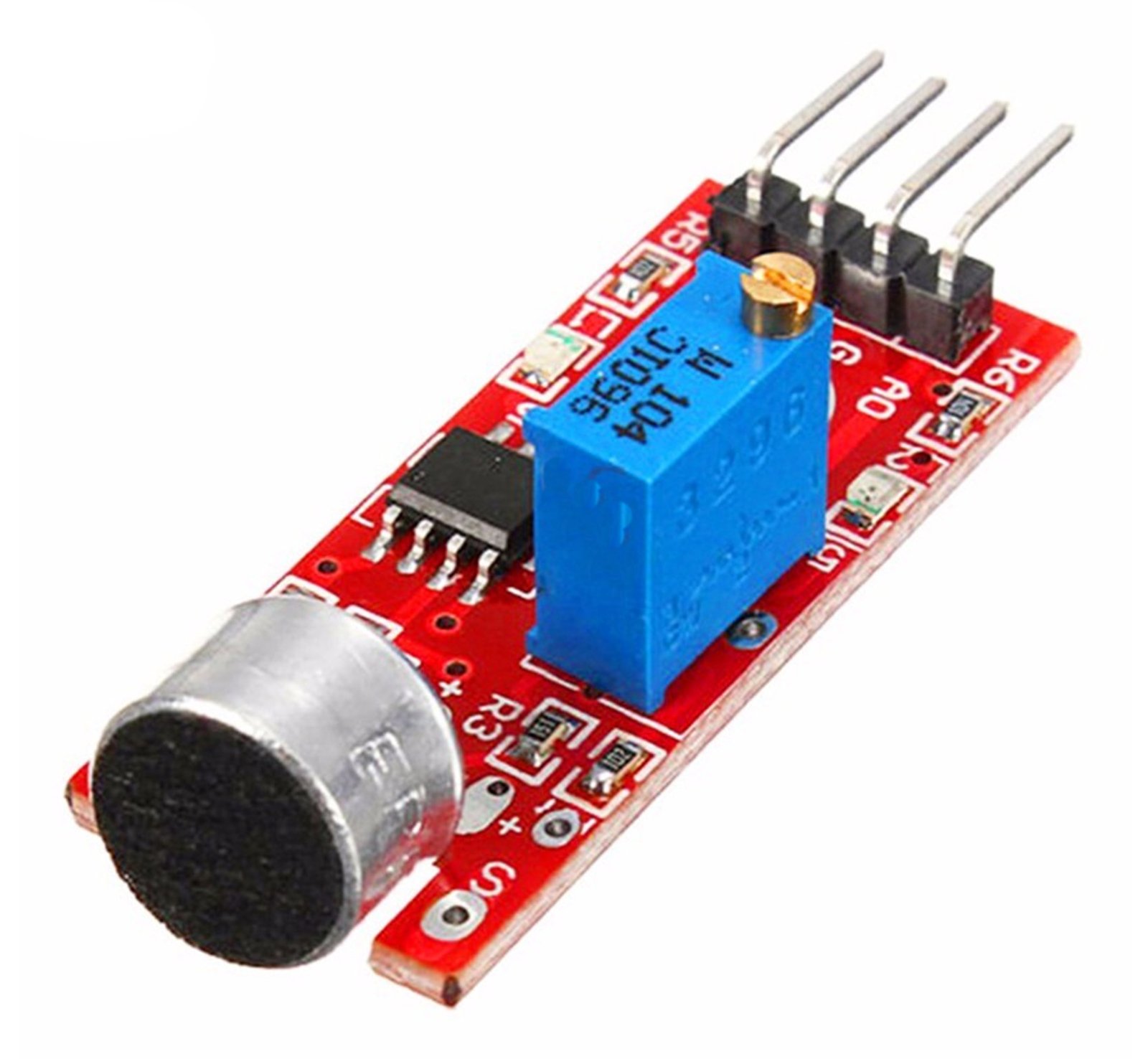

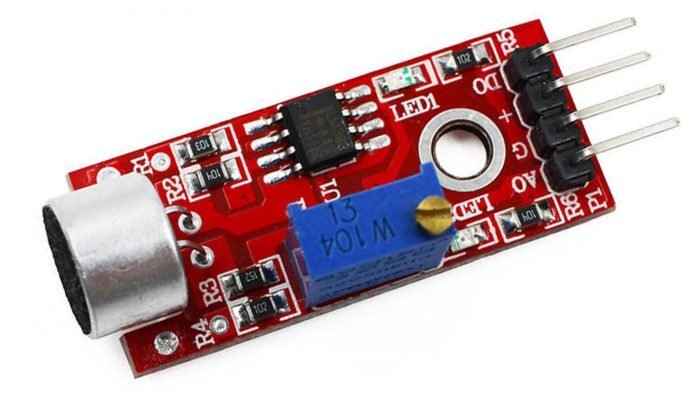

The KY-037 High Sensitivity Sound Sensor Module detects sound levels in the environment and outputs both analog and digital signals. Ideal for Arduino, Raspberry Pi, and microcontroller projects that react to sound or voice input.
This module features a high-sensitivity condenser microphone and is perfect for building noise-activated devices, sound-triggered events, or interactive audio-based systems.
- Module: KY-037
- Function: Sound level detection using a condenser microphone
- Output Type: Analog (AO) & Digital (DO)
- Operating Voltage: 3.3V – 5V
- 4-Pin Interface: VCC, GND, AO (analog), DO (digital)
- Sensitivity: Adjustable via onboard potentiometer
- Module Size: Approx. 44mm x 15mm x 14mm
Key Features:
- Module: KY-037
- Function: Detects sound with adjustable sensitivity
- Outputs:
- Analog for real-time sound level
- Digital when sound exceeds set threshold
- Voltage: 3.3V – 5V
- Interface: VCC, GND, AO, DO
- Built-in potentiometer for digital sensitivity adjustment
- Compatible with Arduino, Raspberry Pi, ESP32, etc.
What’s Included:
- 1x KY-037 High Sensitivity Sound Sensor Module
Great For:
- Sound-activated alarms or lights
- Voice-triggered projects
- Noise level monitoring
- Clap or noise detection systems
- STEM learning kits
- Audio-reactive electronics
Usage Tips:
- Use analogRead() on AO for precise sound level monitoring
- Use digitalRead() on DO for threshold-based detection
- Adjust the onboard potentiometer to fine-tune sensitivity
- Combine with LEDs, buzzers, or relays for responsive systems
- Best placed away from constant noise sources for accurate readings
