Description

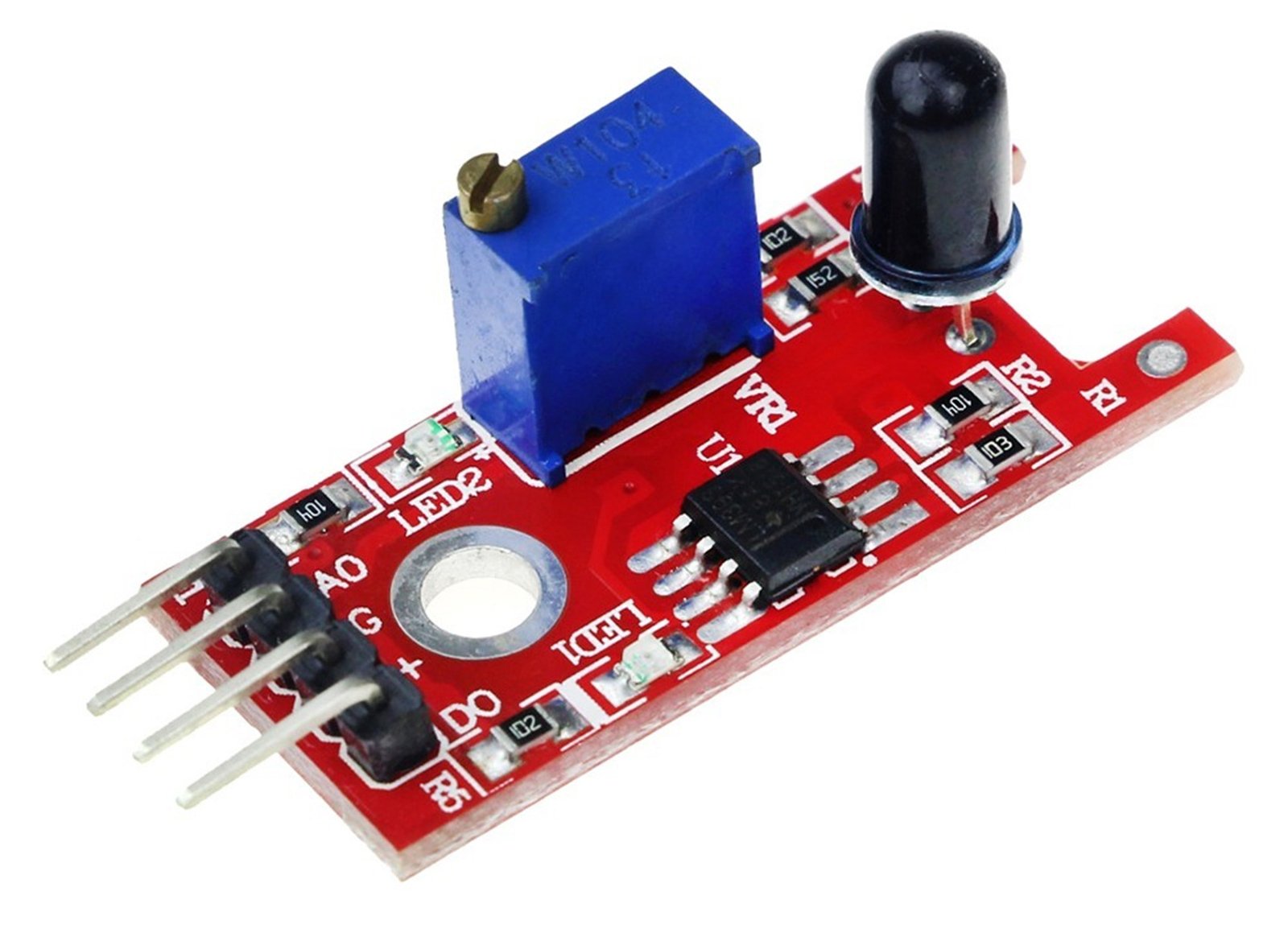

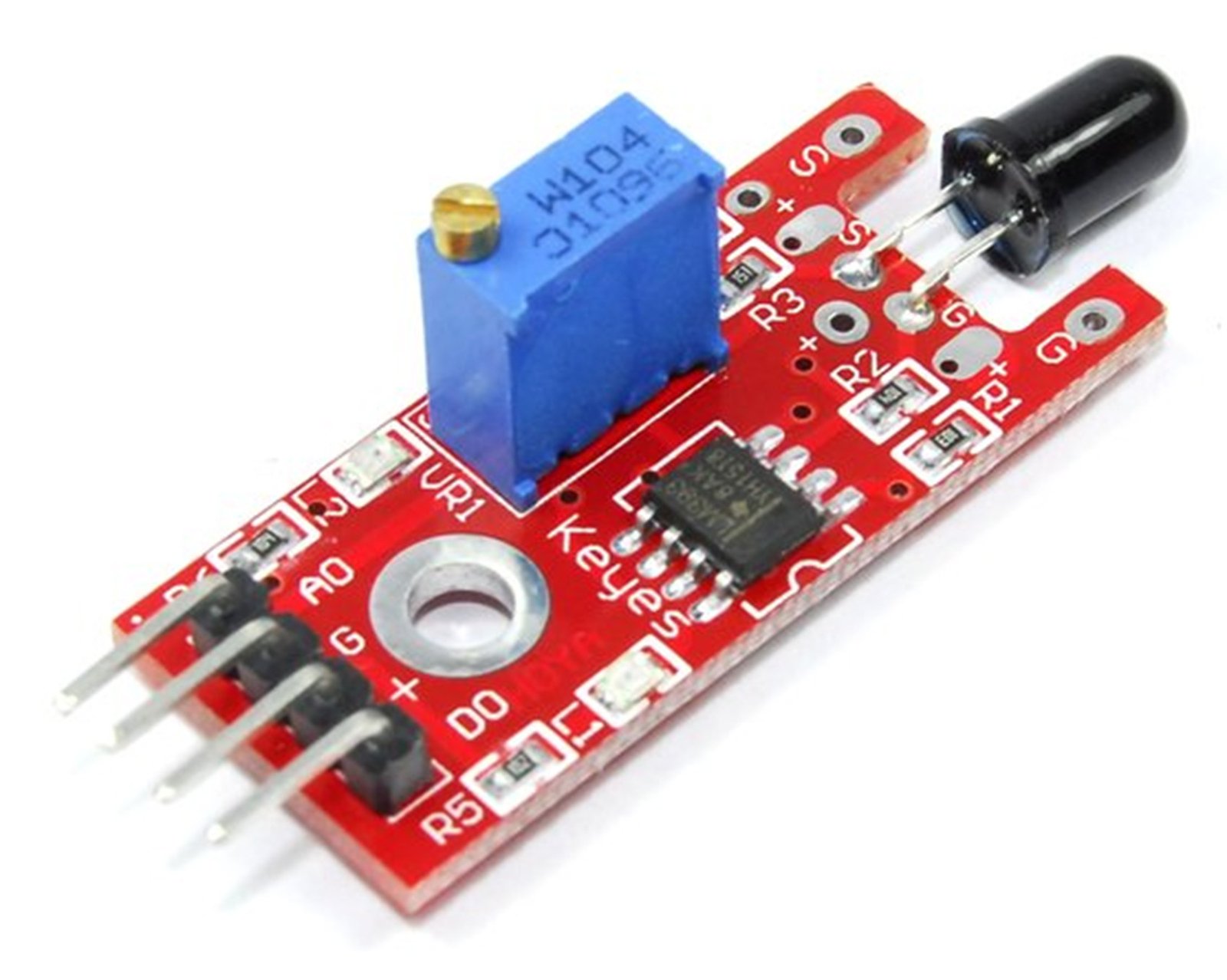

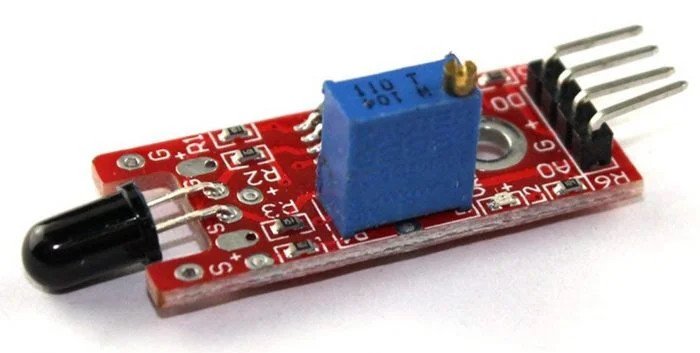

The KY-026 Flame Sensor Module is an infrared light sensor designed to detect fire or flames within the 760nm–1100nm wavelength range. Ideal for Arduino, Raspberry Pi, and microcontroller projects requiring flame or light-based detection.
This module outputs both analogue and digital signals. The analogue output reflects the intensity of the detected flame, while the digital output activates when the signal passes a user-defined threshold (adjustable via an onboard potentiometer). The sensor is particularly useful in fire alarm systems, safety monitoring, and robotic fire detection.
- Module: KY-026
- Sensor Type: Infrared Flame Sensor
- Function: Detects flame/light in the 760nm–1100nm IR range
- Output Type: Analogue (A0) & Digital (D0)
- Operating Voltage: 3.3V – 5V
- Interface: VCC, GND, A0, D0
- Adjustable Sensitivity: Via onboard potentiometer
- Detection Distance: Up to ~100cm (depends on flame size)
- Module Size: Approx. 36mm x 15mm x 15mm
Key Features:
- Module: KY-026
- Function: Detects flame or IR light sources
- Dual Output:
- A0 – Analogue voltage (light intensity)
- D0 – Digital output when threshold is exceeded
- IR Detection Wavelength: 760nm–1100nm
- Onboard potentiometer to adjust digital trigger sensitivity
- Status LED for digital output
- Operating Voltage: 3.3V – 5V
- Compatible with Arduino, Raspberry Pi, ESP32, etc.
What’s Included:
- 1x KY-026 Infrared Flame Sensor Module
Great For:
- Fire/Flame Detection Projects
- Safety Monitoring & Fire Alarms
- Autonomous Robots & Fire-Fighting Bots
- Heat/IR Source Detection
- Educational STEM Kits
- Home Automation Safety Systems
Usage Tips:
- Use analogRead() to measure flame intensity from A0
- Use digitalRead() to detect threshold event from D0
- Adjust sensitivity with the onboard potentiometer
- Best results in low-light environments
- Avoid direct sunlight or IR-heavy environments for accurate readings
