Description

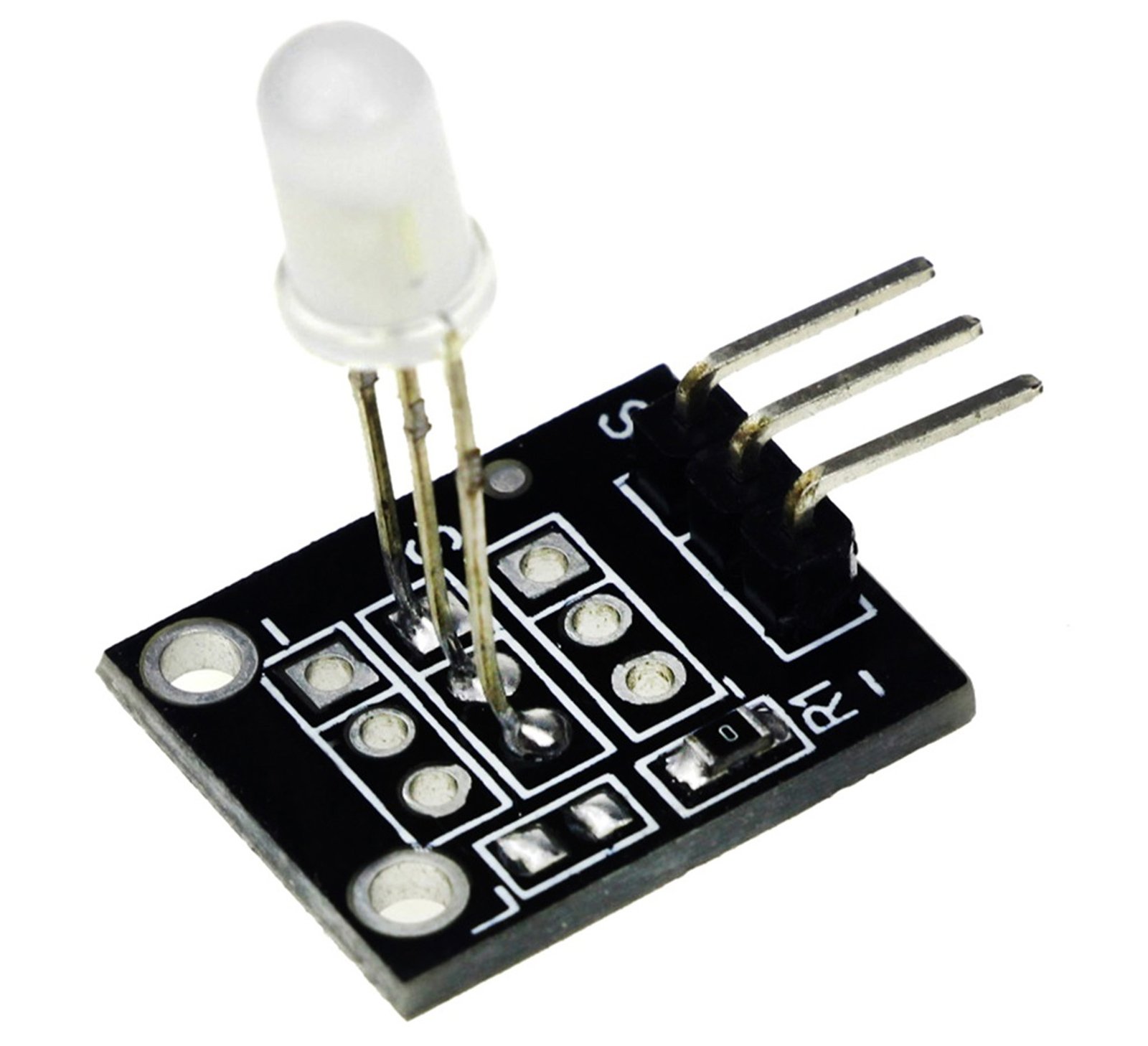

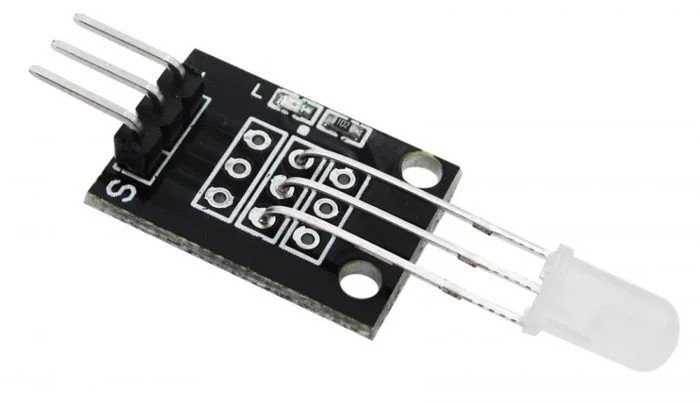

The KY-011 Bi-Colour LED Module features a red/green dual-colour LED that’s ideal for simple visual indicators in Arduino, Raspberry Pi, or other microcontroller-based projects.
This compact module includes a common cathode dual LED, allowing you to light either red, green, or a combination of both (to create an amber/orange hue) depending on your project’s needs.
This module is ideally suited for applications such as status indicators, signal lights, traffic light simulations, and simple user feedback systems.
Thanks to its small size and 3-pin interface, it’s perfect for breadboard prototyping or integration into compact electronic builds.
- Module: KY-011
- Function: Dual-Colour (Red & Green) LED Indicator
- Output Type: Digital (individual HIGH signals to control colour)
- Operating Voltage: 3.3V – 5V
- 3-Pin Interface: Red (R), Green (G), Cathode (GND)
- LED Type: Common cathode red/green LED
- Colours: Red, Green, Amber (red + green)
- Module Size: 19mm x 15mm
Key Features:
- Module: KY-011
- Function: Bi-Colour LED Output
- Output: Digital HIGH on Red or Green pin to illuminate
- Dual LED (Red & Green) in a single 5mm package
- Control both pins for amber colour blend
- Voltage: 3.3V – 5V
- 3-Pin Interface: Red, Green, GND
- Compatible with Arduino, Raspberry Pi, etc.
- Compact and breadboard-friendly
What’s Included:
- 1x KY-011 Bi-Colour LED Module
Great For:
- Red/Green Status Indicators
- Power/Connection Status Lights
- Traffic Light Simulation Projects
- Visual Feedback in Electronics
- Educational STEM Kits & Prototyping
Usage Tips:
- Connect Red and Green pins to digital output pins
- Send HIGH to Red or Green pin to activate that colour
- Send HIGH to both pins for mixed (amber/orange) light
- Use digitalWrite() in Arduino for control
- Consider adding resistors if not already on your board
