KY-005 Infrared LED Module Transmitter IR 5mm Remote Arduino PI Pic ARM

Description

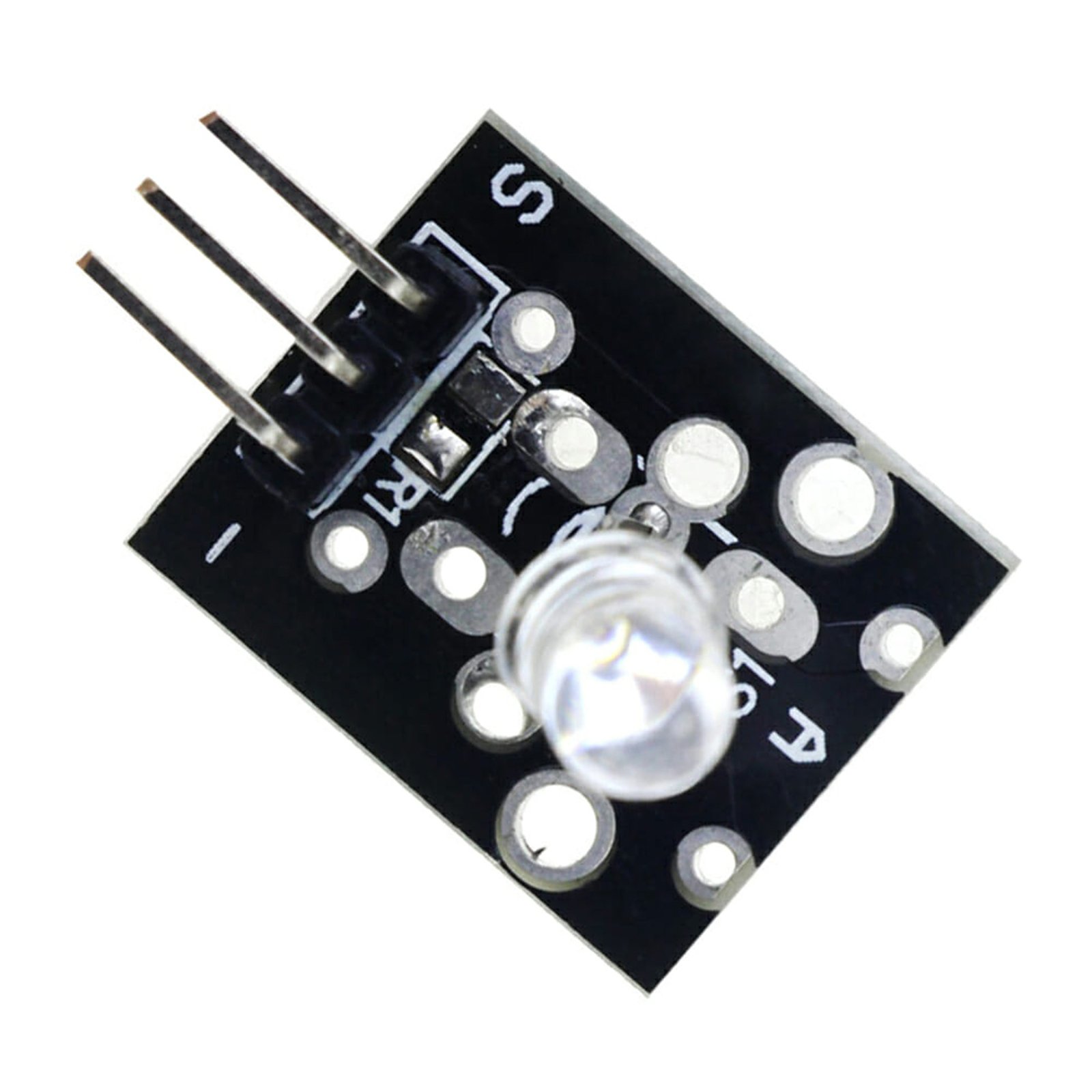

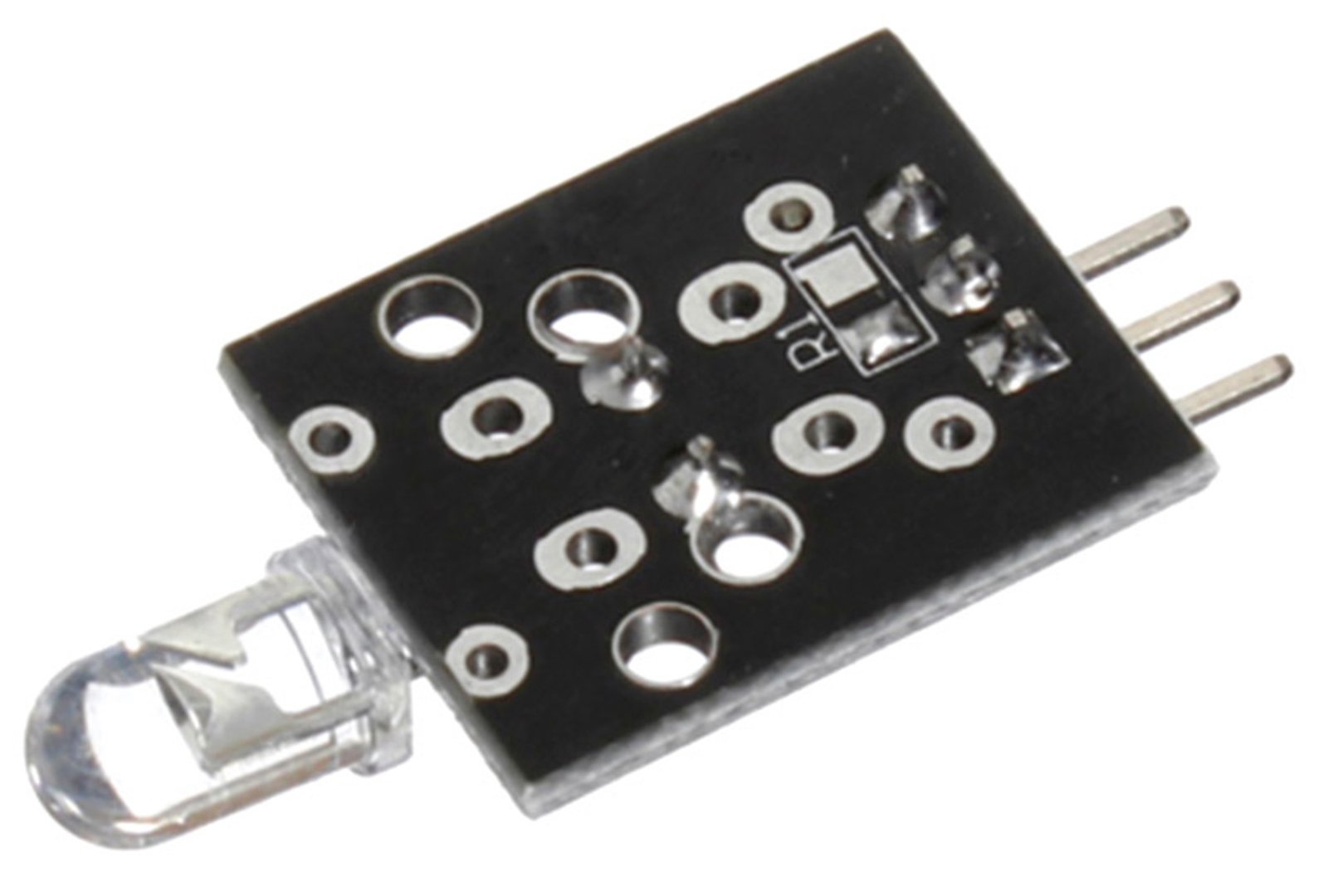

The KY-005 infrared transmitter module consists of a 5mm IR LED which can be used for many applications such as wireless data transmission.

The KY-005 IR Transmitter Module is the perfect solution for sending infrared signals in your electronics projects.

Whether you’re automating your home, building a robot, or experimenting with remote control functions, this compact module is an ideal component for Arduino and Raspberry Pi setups.

This is a bare soldered LED and is not current limited,which makes it EXTREMELY likely to burn out if a resistor is not used in series with the source voltage we recommend a 220 Ohm 1/4w resistor.

It works well with the KY-022 IR receiver module.

Compatible with popular electronics platforms like Arduino, Teensy, Raspberry Pi and ESP8266.

• Model KY-005 (5mm IR LED)
• LED voltage: 1.1v to 1.4v
• Forward Current : 30 ~ 60 mA
• Power Consumption : 90mW
• Operating Temp: -40°C to 85°C
• Size : 19 x 15 mm
• Working Voltage: 5V DC
• Transmission Distance: Up to 5 meters (depending on environment and receiver)
• Pin Configuration: Signal (S), VCC (+), GND (–)
• Emission Wavelength: 940nm (typical)

Key Features:

• Function: IR Signal Transmitter
• Interface: VCC, GND, Signal (3-Pin)
• Wavelength: 940nm
• Compact size, breadboard friendly
• Compatible with Arduino & Raspberry Pi
• Use with IRremote or similar libraries

What’s Included:

• 1x KY-005 Infrared Transmitter Module

Great For:

• Arduino & Raspberry Pi IR Projects
• Custom IR Remote Control Systems
• Home Automation Prototyping
• Wireless Communication Between Devices
• STEM Education & Electronics Learning Kits

Usage Tips:

• Use with IRremote.h in Arduino IDE for easy setup
• Ensure line-of-sight to IR receiver for best performance
• Requires external power (3.3V or 5V)
• Best used with matching IR Receiver (e.g., KY-022)
