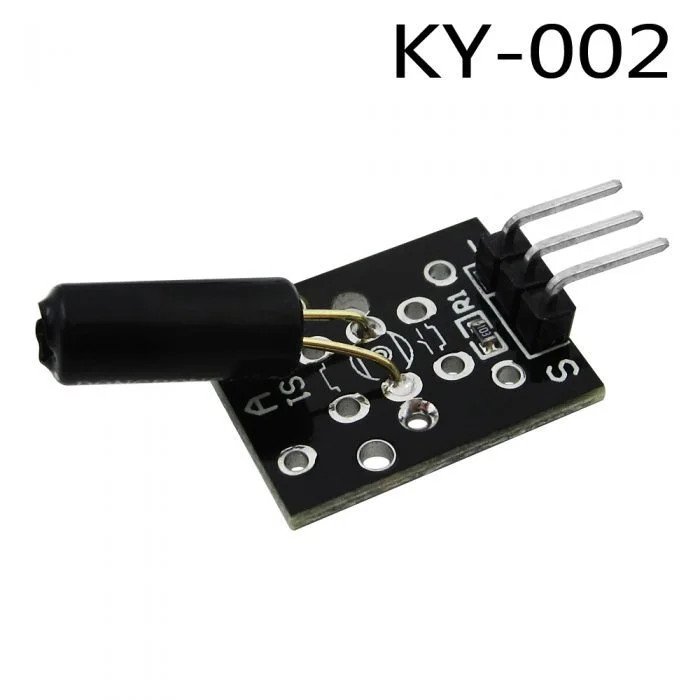

KY-002 Vibration Tilt Sensor Module Motion Detection Switch for Arduino Pi

Description

The KY-002 Vibration Tilt Sensor Module is a compact, lightweight sensor perfect for detecting vibrations or tilts in your electronics projects.

It’s an excellent choice for motion sensing, anti-theft systems, and interactive DIY builds using Arduino, Raspberry Pi, and other microcontrollers.

This is a knock detection module which can detect a percussion based event to trigger a switch like response.

The vibration switch consists of a fine spring within a metal cylinder when the module is vibrated to a sufficient amount, the spring will touch the walls completing the circuit.

Once connected a LOW signal will be returned on the S pin.

• Model: KY-002
• Function: Detects tilt and vibration
• Sensor Type: Spring-based mechanical switch Knock (captive spring) sensor
• Digital Output: High or Low (0/1)
• Voltage : 3v to 5v
• Operating Temp : -40°C to 85°C
• Output : Digital
• Size : 15mm x 19mm

Package Includes:

• 1x KY-002 Vibration Tilt Sensor Module

Applications:

• Motion & Tilt Alarms
• Anti-theft Systems
• DIY Game Controllers
• Robotics & Automation Projects
• STEM & Electronics Education Kits

Helpful Info:

• Easy to connect to Arduino, ESP32, Raspberry Pi, STM32, and more
• Outputs LOW signal when tilted/vibrated
• Simple to integrate with digitalRead() function in Arduino IDE
