Description

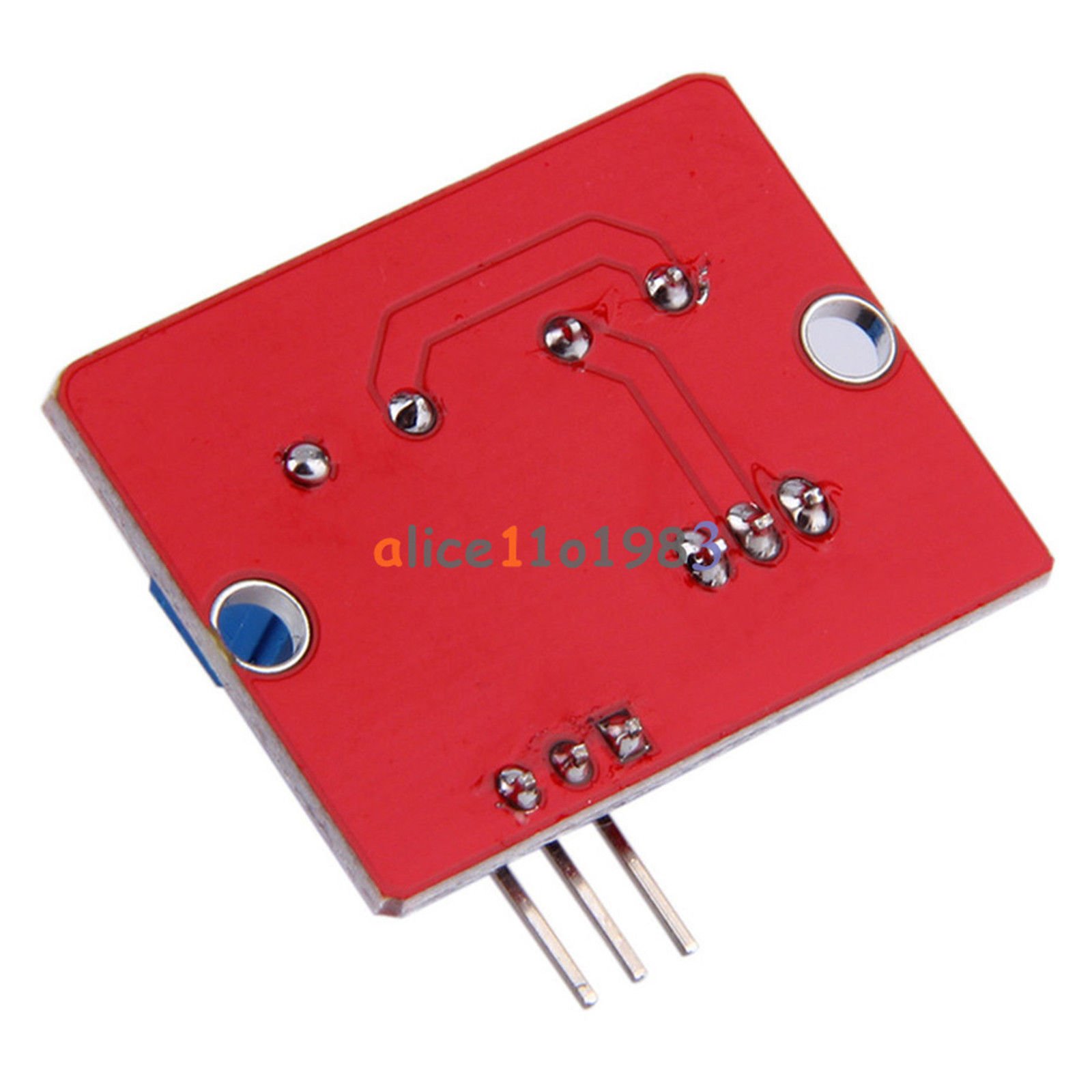

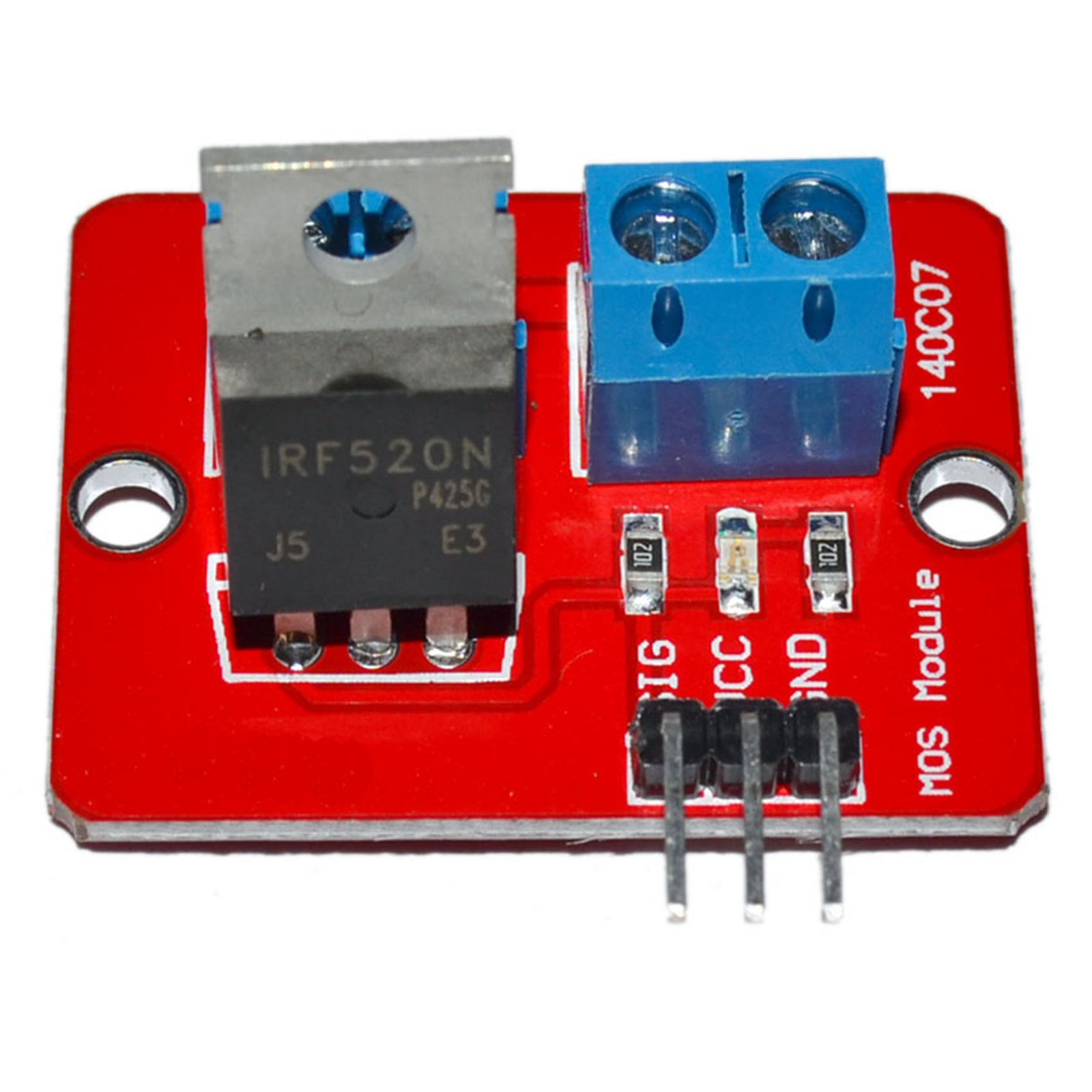

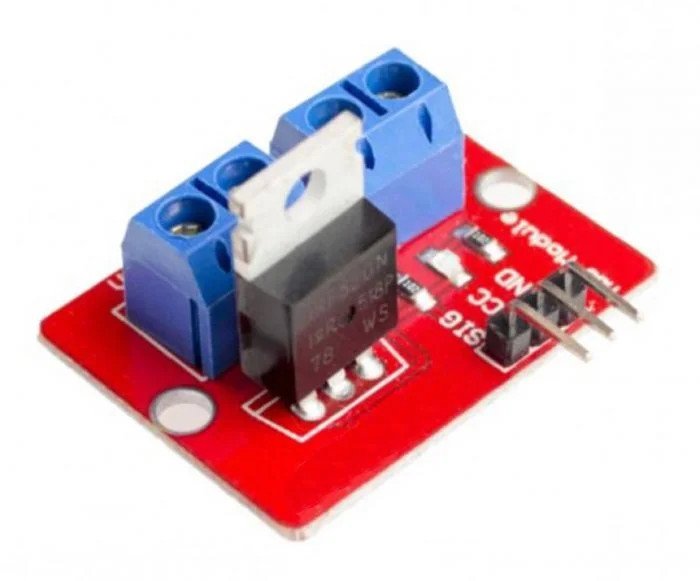

The IRF520 MOSFET Driver Breakout Board Module is designed to switch heavy DC loads using a single digital pin from your Arduino, Raspberry Pi, or other microcontrollers.
Perfect for driving DC motors, LED lights, pumps, solenoid valves, and other high current devices, this module offers a simple and cost effective solution for controlling loads up to 24V.
Equipped with screw terminals for easy wiring and an LED indicator to show load status, it’s ideal for robotics, automation, and DIY electronics projects.
- Product: IRF520 MOSFET Driver Breakout Board Module
- Type: IRF520N MOSFET Switch, PWM Control
- Quantity: 1 x Module
- Output load voltage range: 0 to 24V DC
- Input control voltage: 5V (logic level)
- Max load current (drain): up to 5A (use heat sink for >1A)
- Easy screw terminal connections for load and power
- Onboard LED indicator for load switching status
- Compact size: 33.5mm x 25.5mm
- Compatible with Arduino, Raspberry Pi, and other microcontrollers
- Ideal for PWM speed control and ON/OFF switching
What’s Included:
- 1 x IRF520 MOSFET Driver Breakout Board Module
Great For:
- Controlling DC motors and fans
- Switching LED strips and lights
- Operating pumps, solenoids, and valves
- Robotics and automation projects
- PWM speed and power control applications
Usage Tips:
- Use regulated 5V logic input from microcontrollers
- Connect load and external power via screw terminals
- Add heat sinks for currents above 1A to prevent overheating
- Use proper wiring and fusing for high-current loads
- Test connections on a breadboard before final installation
