Description

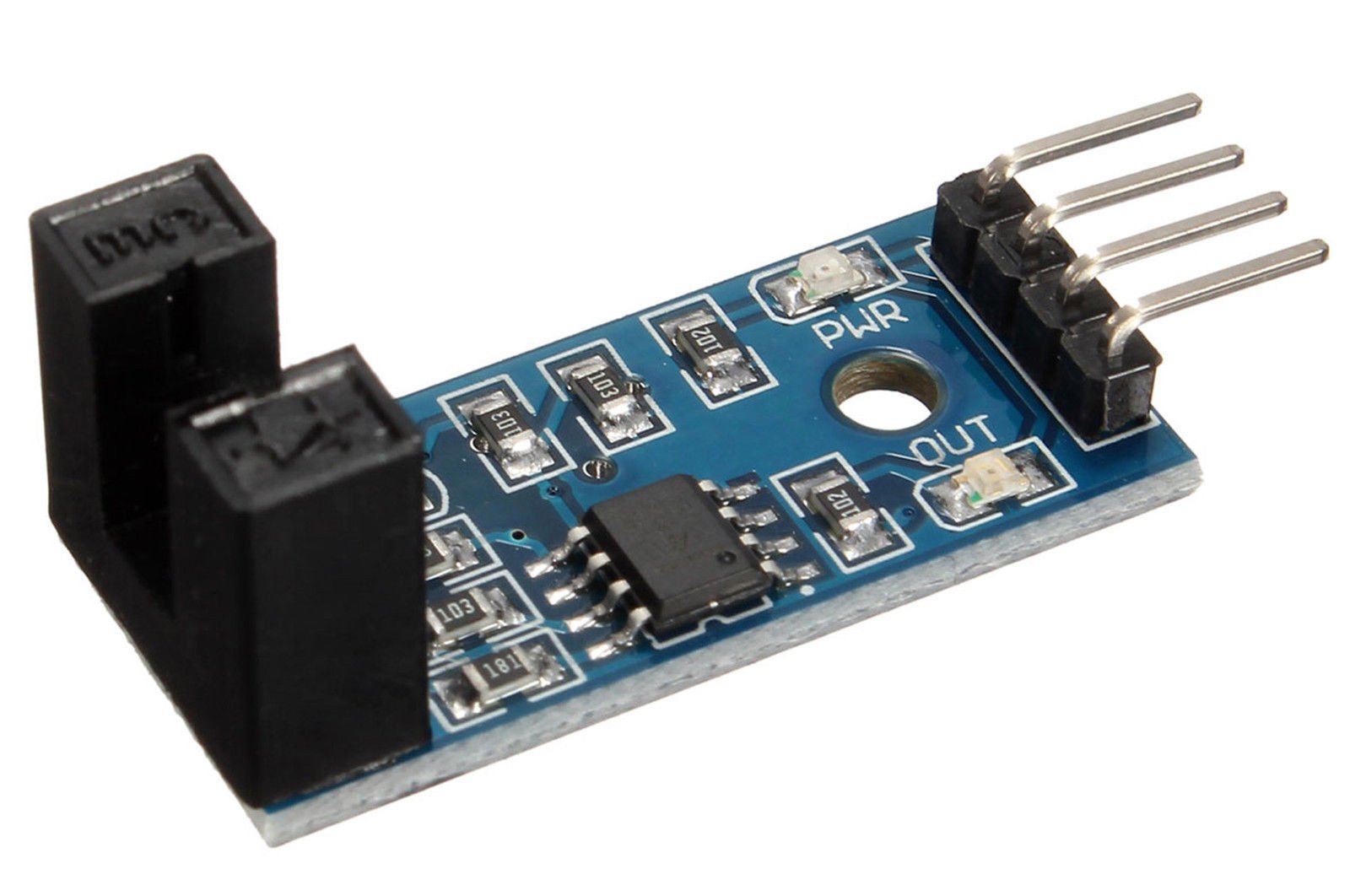

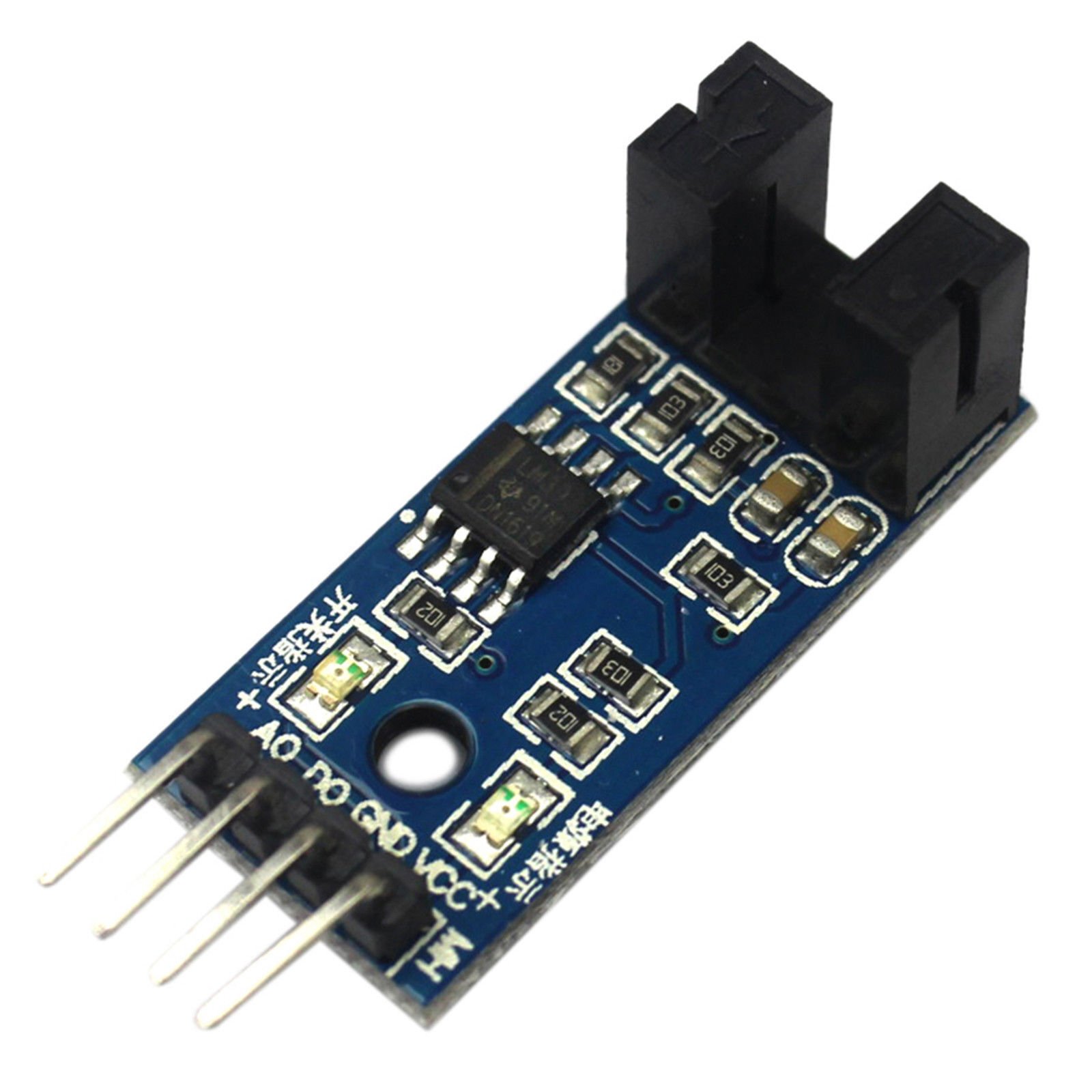

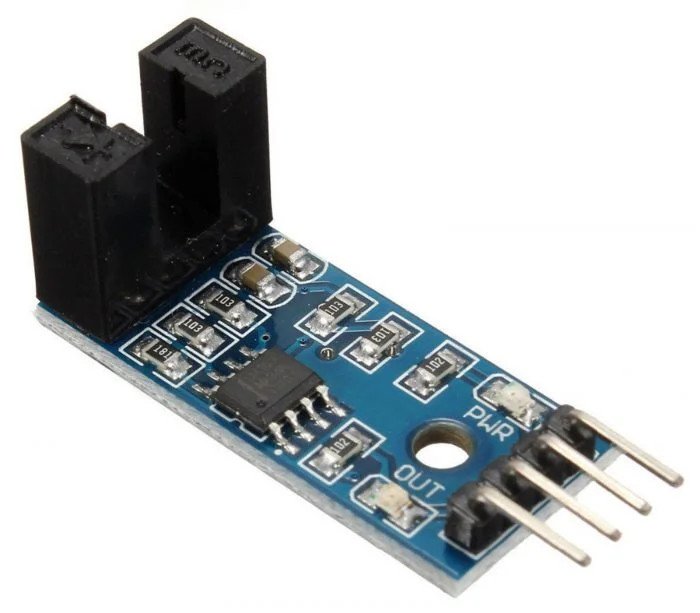

This Infrared Slotted Speed Sensor Module is perfect for adding precise speed measurement and motion detection to your Arduino, Raspberry Pi, or other microcontroller projects.
Powered by 3.3V or 5V, it uses an LM393 comparator to provide a clean digital output signal when motion is detected through a slotted disc.
Ideal for projects requiring motion feedback, rotation counting, or speed sensing.
- Product: Infrared Slotted Speed Sensor Module
- Working Voltage: 3.3V to 5V DC
- Output Type: Digital Output (0 or 1)
- Connector: 4-Pin (2.54mm Pitch)
- Comparator: LM393
- Mounting Holes: M2 (15mm apart)
- Size: 32mm x 14mm (1.26″ x 0.55″)
- Infrared slotted photoelectric speed sensor
- LM393 comparator for stable digital output
- Works with 3.3V to 5V power supply

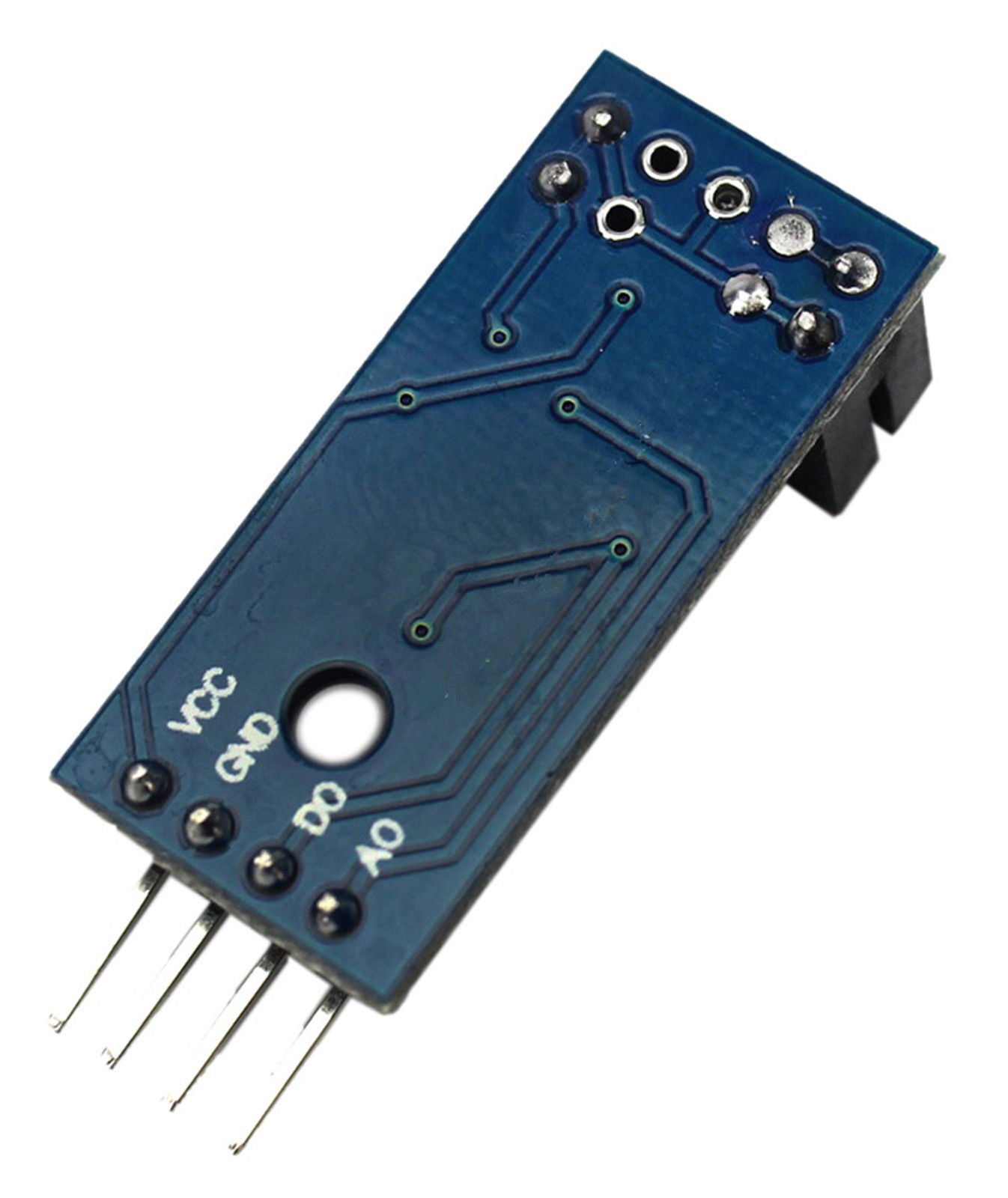

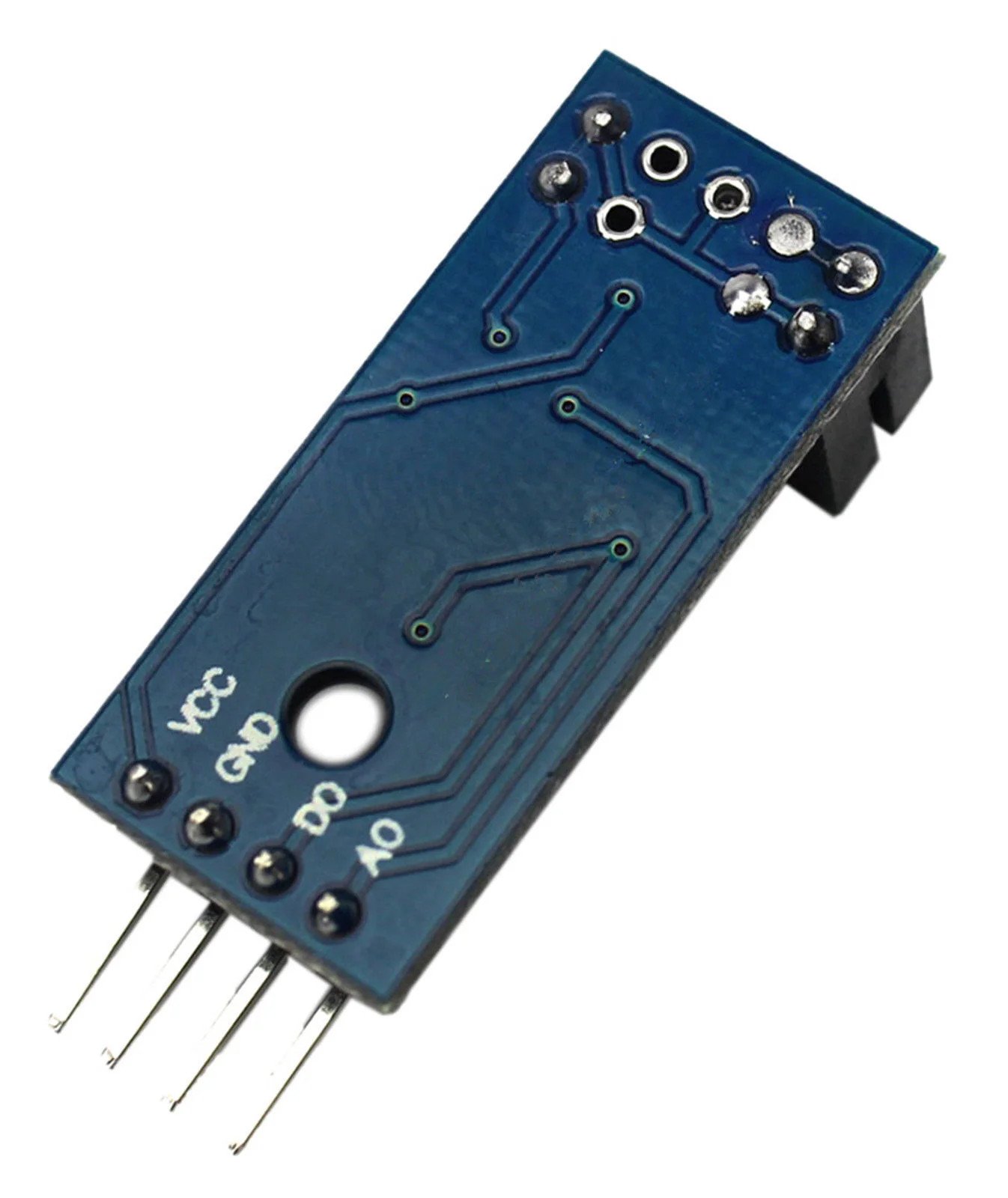

- Easy 4-pin connection (VCC, GND, DO, AO – AO not connected)
- LED indicator shows sensor status (LED off = output HIGH, LED on = output LOW)
- M2 mounting holes for easy installation
What’s Included:
- 1 x Infrared Slotted Speed Sensor Module (4-pin)
Great For:
- Speed and rotation sensing with slotted discs
- Motion detection and feedback systems
- Arduino, Raspberry Pi, and microcontroller projects
- Robotics, automation, and control applications
Usage Tips:
- Connect VCC to 3.3-5V power supply positive and GND to negative
- Use digital output (DO) for reading sensor status via microcontroller input
- Ensure slotted disc interrupts the IR beam for accurate sensing
- Mount securely using M2 screws through the provided holes
