Description
The Infrared Obstacle Avoidance Sensor Module uses infrared reflection technology to detect nearby obstacles quickly and reliably.
When no object is present, the IR receiver detects no signal. When an object appears within range, the reflected infrared light triggers the sensor, changing the output state.
With adjustable detection distance and simple digital output, this module is ideal for Arduino, Raspberry Pi, and other microcontroller projects involving obstacle avoidance and object detection.

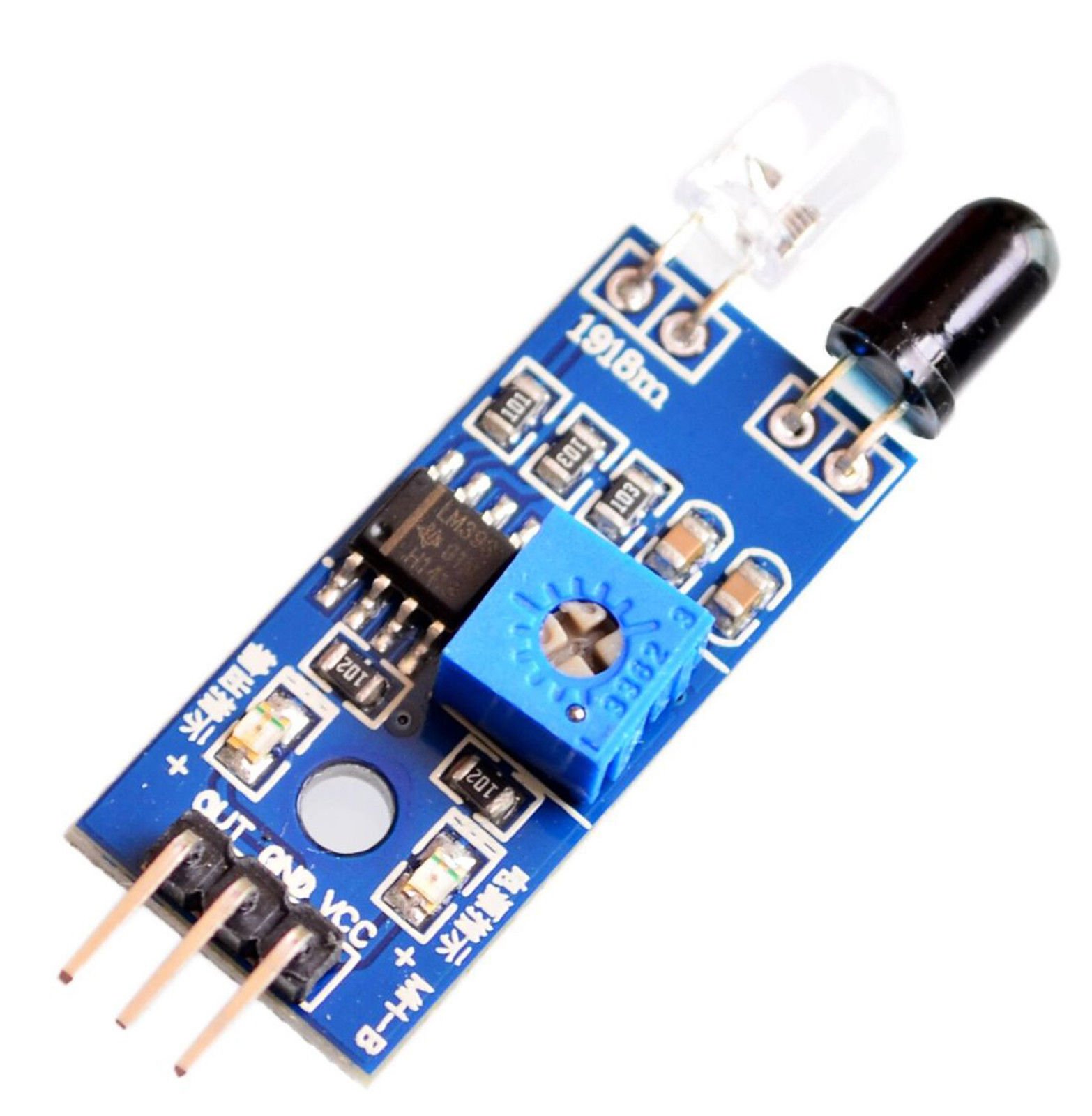

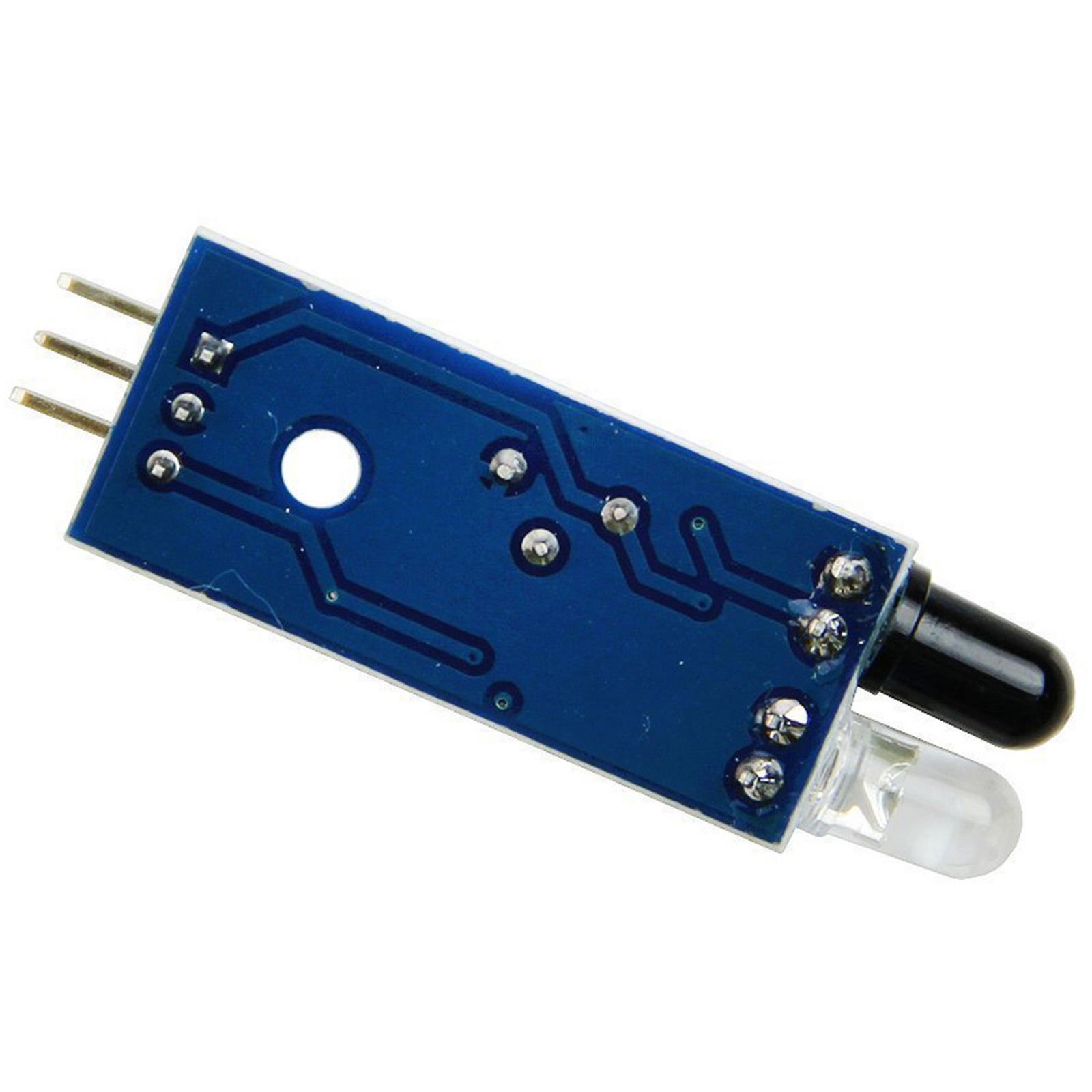

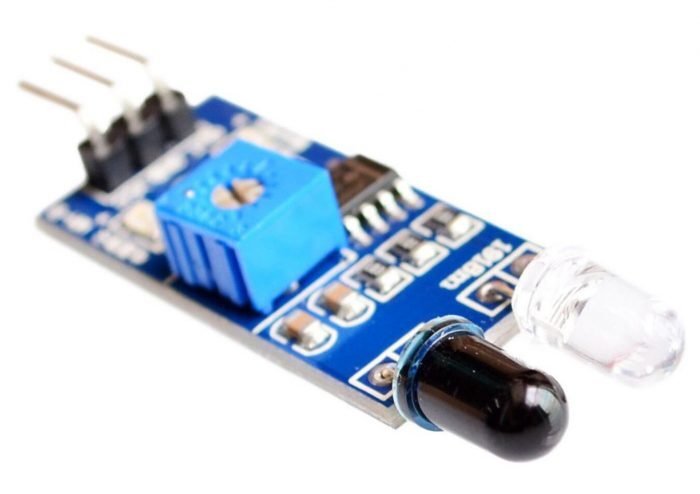

- Product: Infrared Obstacle Avoidance Sensor Module
- Type: Reflection IR Photoelectric Sensor with LM393 Comparator
- Quantity: 1 x Sensor Module
- Operating voltage: 3.3V to 5V DC
- Detection range adjustable via onboard potentiometer: 2cm to 30cm
- LM393 voltage comparator for stable digital output
- Digital output (0 or 1) compatible with microcontroller IO pins
- Simple 3-pin interface: VCC, GND, and Digital OUT
- Can directly drive 5V relays or microcontroller inputs
- Compact and easy to integrate with Arduino, Raspberry Pi, MCU, etc.
What’s Included:
- 1 x Infrared Obstacle Avoidance Sensor Module
Great For:
- Robotics obstacle detection and avoidance
- Line following and proximity sensing projects
- DIY automation and interactive electronics
- Arduino, Raspberry Pi, and other microcontroller applications
- Object detection and security systems
Usage Tips:
- Power module with regulated 3.3V–5V DC supply
- Connect digital output directly to microcontroller digital input pins
- Adjust detection distance with the onboard potentiometer for your specific application
- Ensure sensor faces clear path for accurate reflection detection
- Use with relay modules for switching external devices based on obstacle detection
