Description

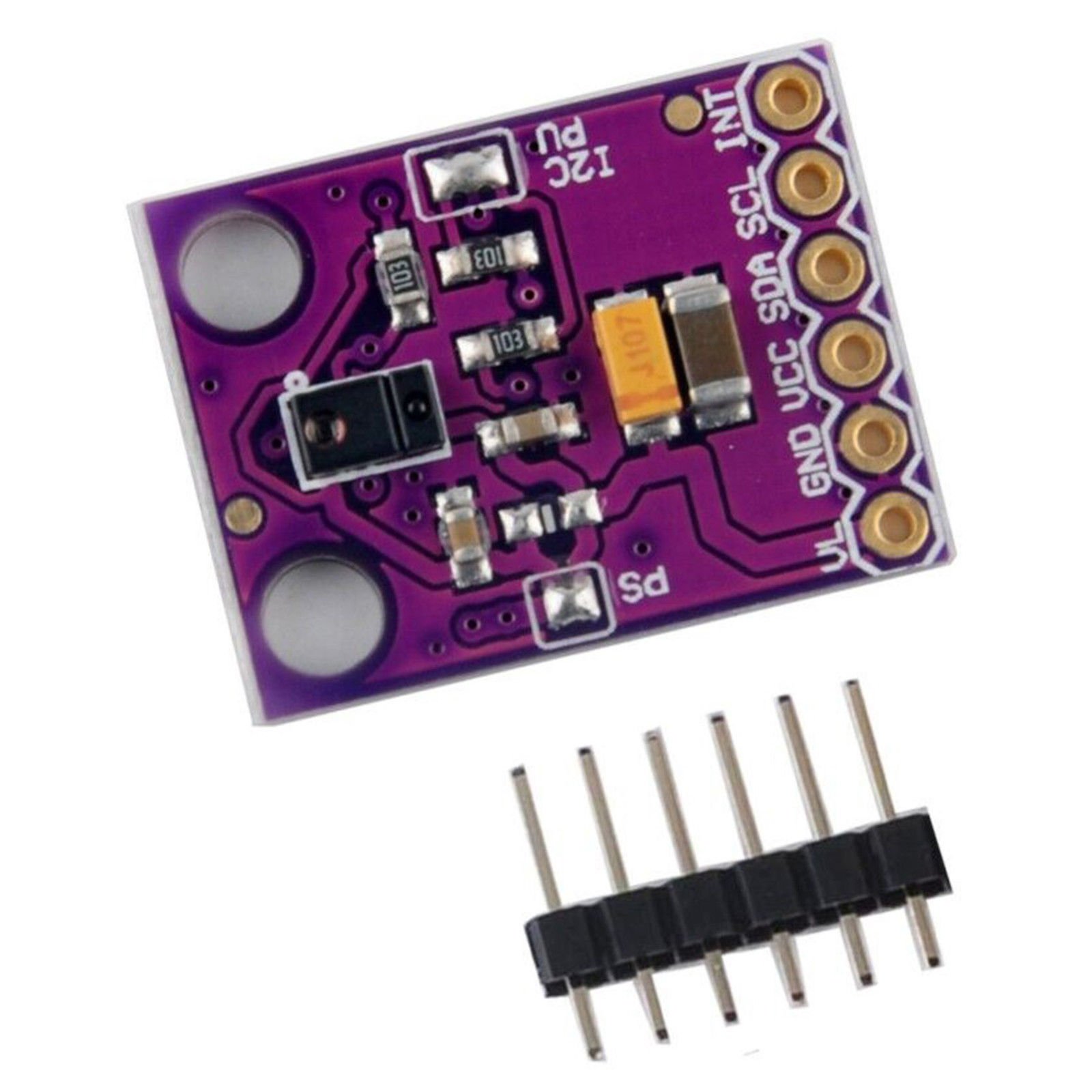

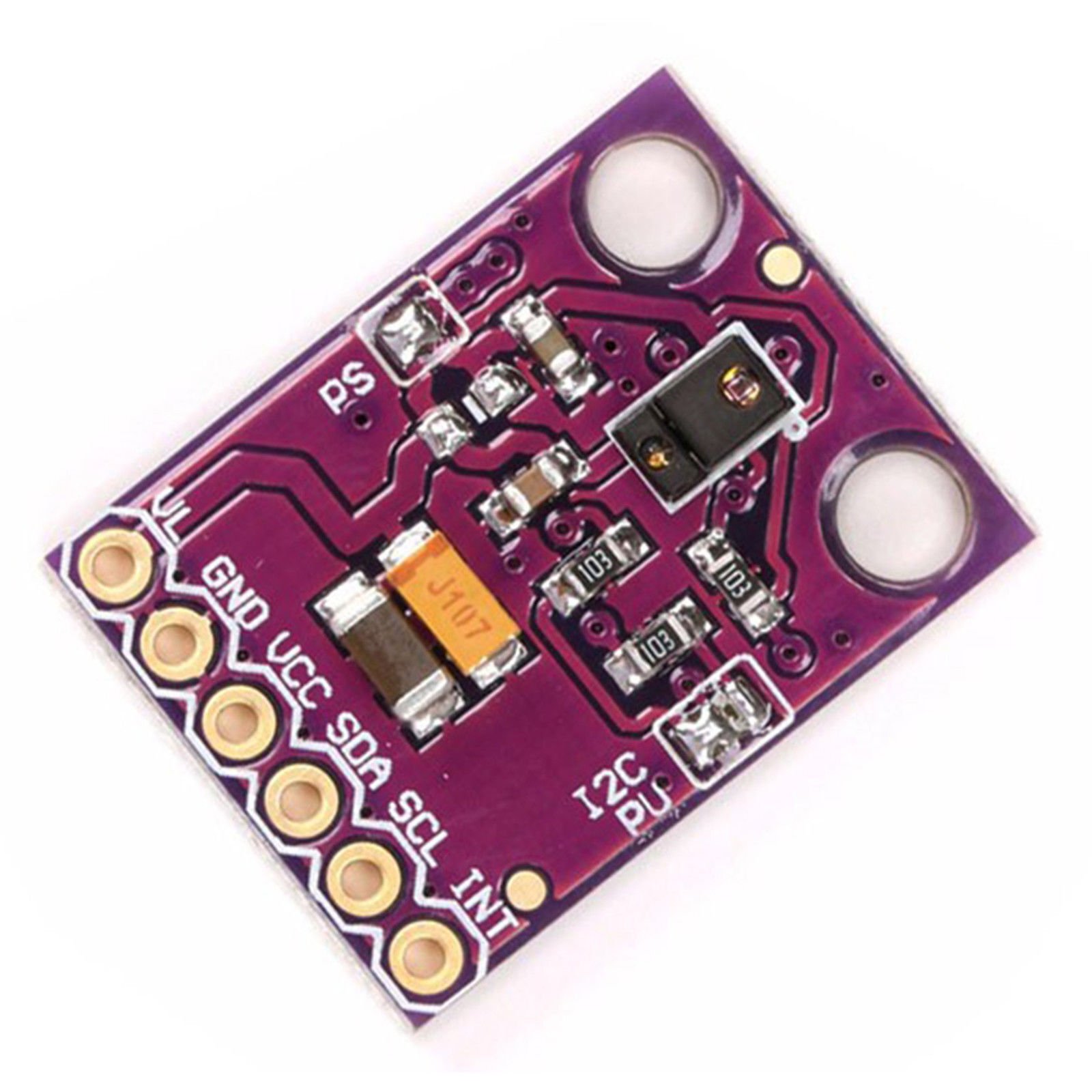

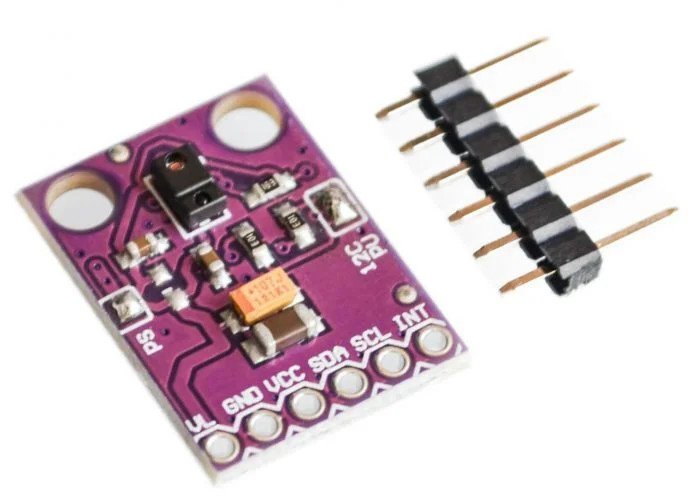

Add intuitive gesture and colour sensing to your project with the GY-9960 APDS-9960 RGB & Gesture Detection Sensor Module.
This compact module integrates ambient light sensing, RGB colour detection, proximity sensing, and gesture control all in one advanced breakout board.
Used in devices like the Samsung Galaxy S5, the APDS-9960 sensor is ideal for hands free control of microcontrollers, robots, smart lighting, and more.
With a detection range of 10–20 cm (4–8 inches) and built-in IR/UV filters, it delivers reliable performance in various lighting conditions.
- Sensor Chip: Avago APDS-9960
- Operating Voltage: 3.3V DC
- Detection Range: 4 – 8 inches (10 – 20 cm)
Functions:
- RGB Colour Detection (Red, Green, Blue, Clear)
- Ambient Light Sensing
- Proximity Sensing
- Gesture Detection (Swipe-based input)
- Interface: I2C (I2C Address: 0x39)
Built-in Features:
- IR and UV blocking filters
- Four-directional diode layout for accurate gesture sensing
- Interrupt pin for efficient data handling

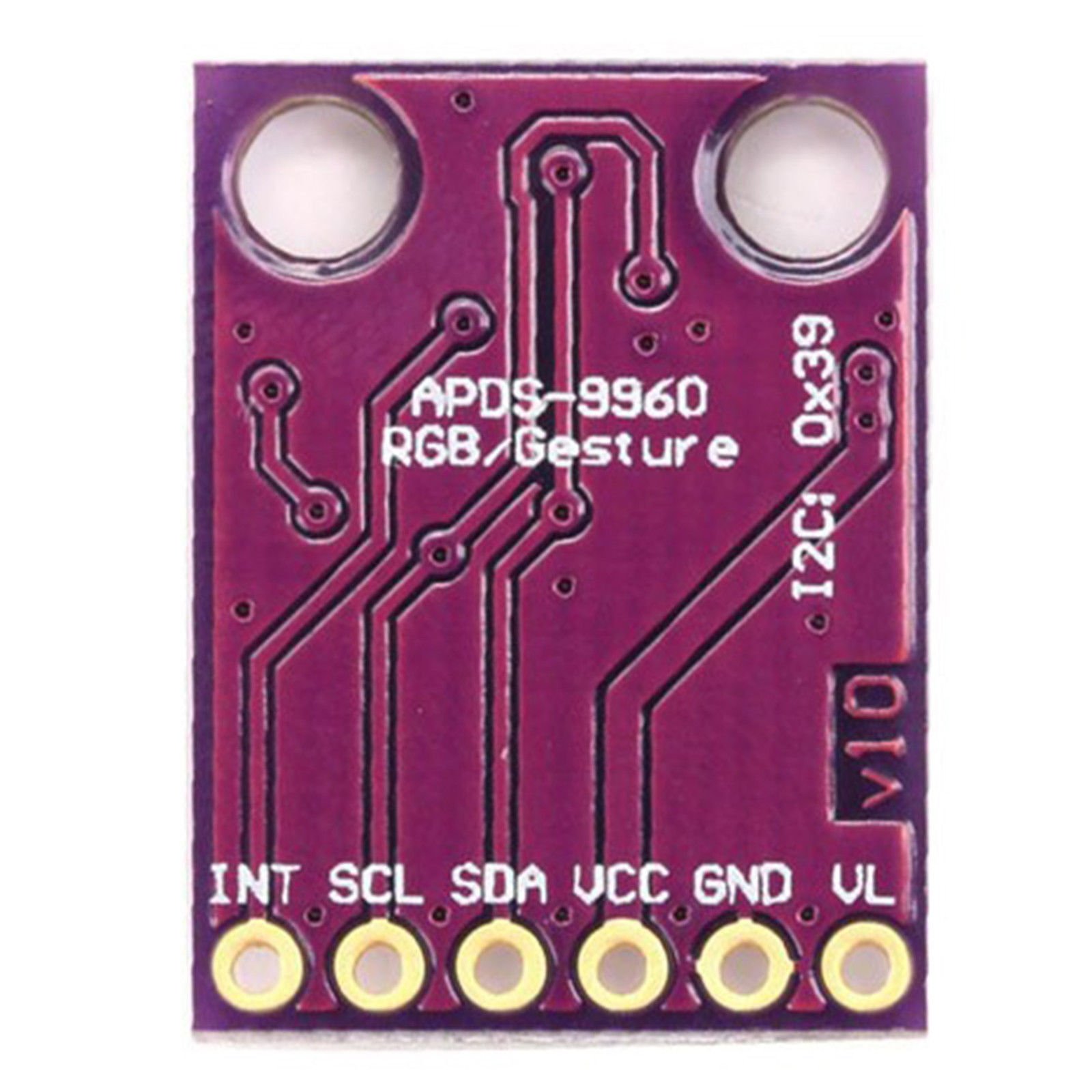

- Pinout:
- VL: Optional power for IR LED
- GND: Ground
- VCC: 3.3V Power Supply
- SDA: I2C Data
- SCL: I2C Clock
- INT: Interrupt Output
What’s Included:
- 1 x GY-9960 APDS-9960 Gesture & RGB Sensor Module
Great For:
- Gesture-based control systems
- Interactive robotics
- Colour and light-sensing projects
- Proximity-aware lighting
- Arduino, ESP32, Raspberry Pi, and other microcontrollers
Usage Tips:
- Connect to a 3.3V I2C-compatible controller
- Use with gesture libraries to quickly implement swipe and hover detection
- Ensure the sensor is exposed and not obstructed for accurate readings
