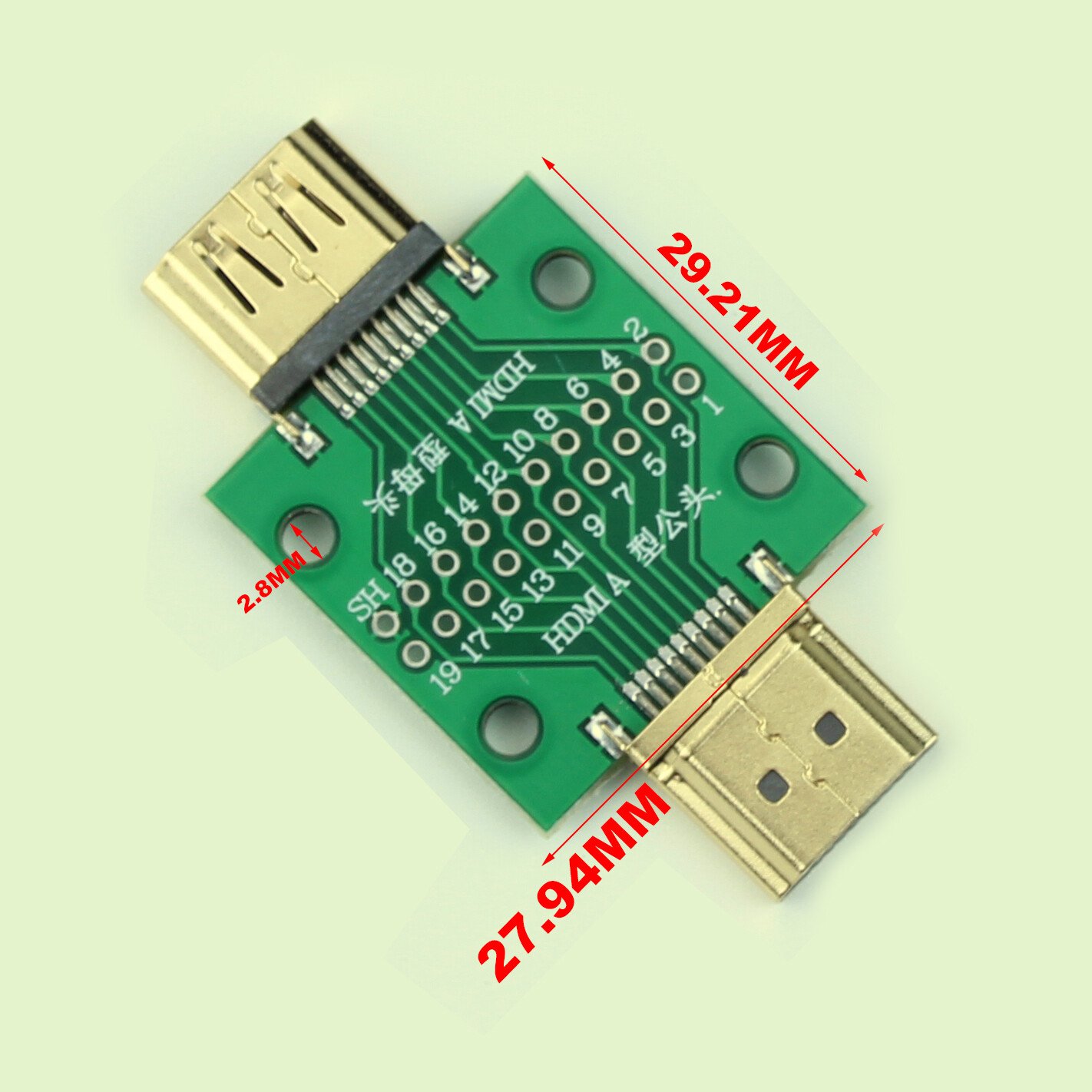

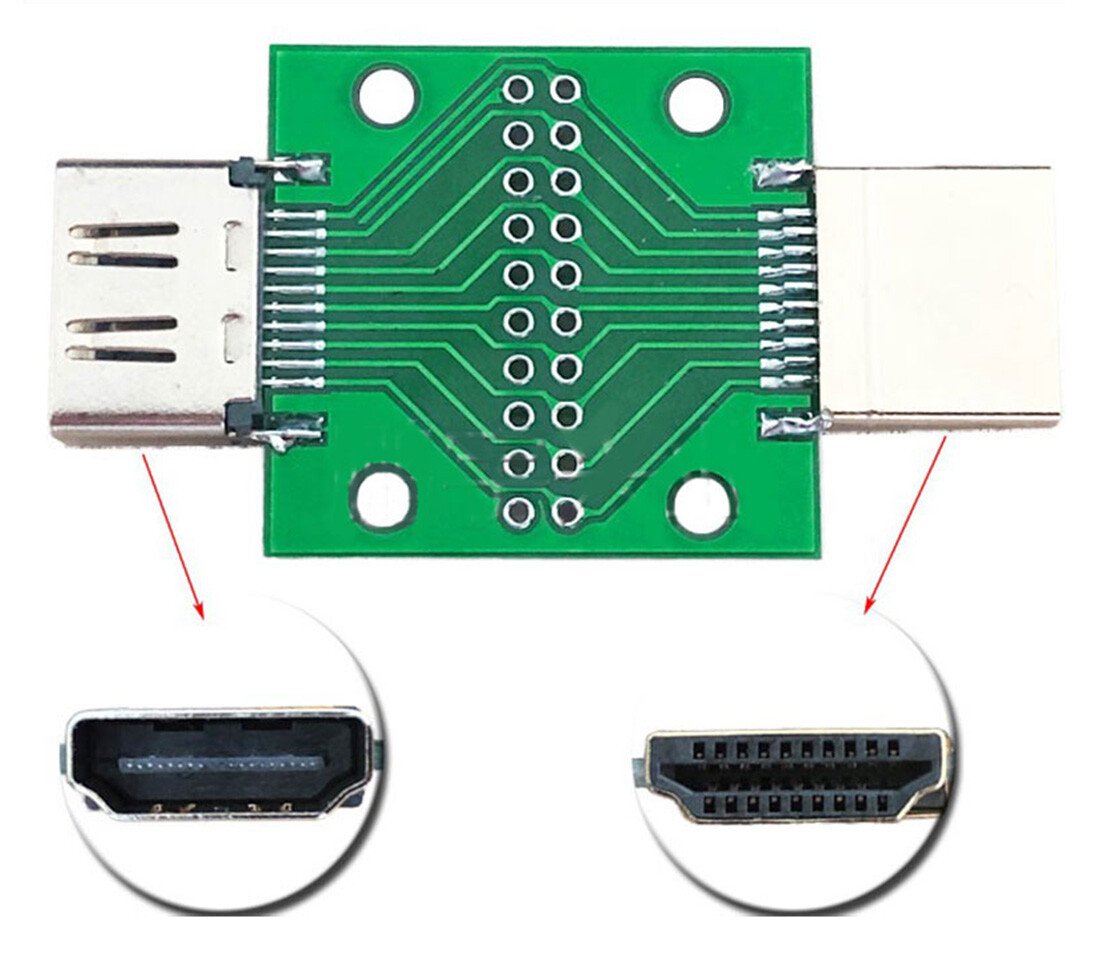

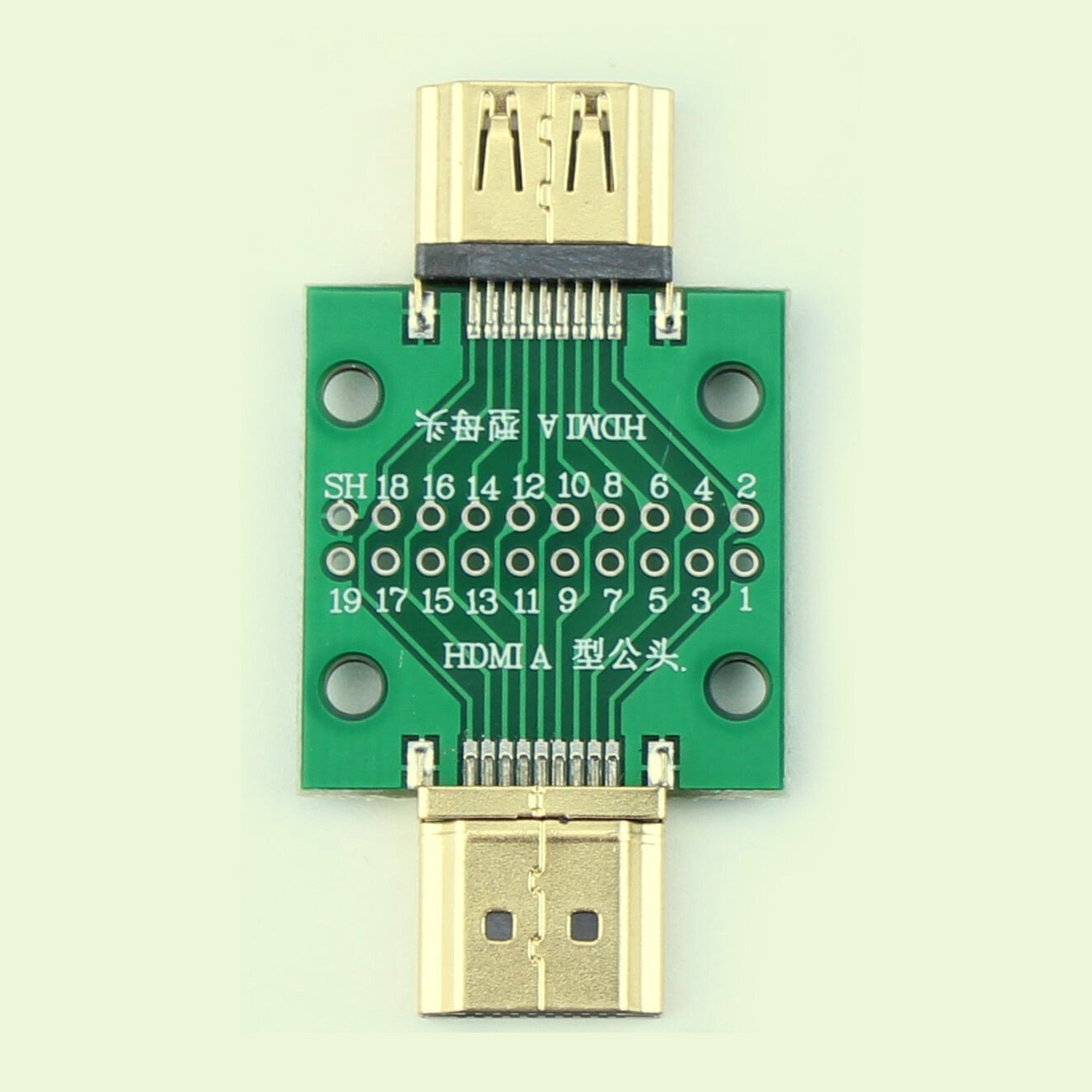

A handy HDMI breakout board with both male and female connectors and all 19 pins brought out to 2.54mm headers perfect for test bench use, repair work, or prototyping.

Ideal for engineers, developers, and electronics enthusiasts working with HDMI signal diagnostics or custom interface projects.

• Product: HDMI Male to Female Breakout Board
• Type: 19-Pin HDMI Connector with 2.54mm Header
• Quantity: 1 x Breakout Board

Key Features:

• HDMI Male to Female adapter with breakout
• All 19 pins individually accessible via 2.54mm headers
• Gold-plated connectors for reliable signal transmission
• Ideal for diagnostics, testing, and custom HDMI interfacing
• Compact and easy to integrate into a test setup

What’s Included:

• 1 x HDMI Male to Female Breakout Board with 19 Pins

Great For:

• HDMI signal testing and diagnostics
• Repair and fault finding on HDMI devices
• Custom HDMI cable builds and modifications
• Learning or experimenting with HDMI pinouts
• Embedded development and prototyping

Usage Tips:

• Connect to a breadboard or test jig using standard jumper wires
• Ideal for testing continuity or mapping HDMI signals
• Handle with care to avoid short circuits between breakout pins
• Can be used in both development and repair settings
