Description

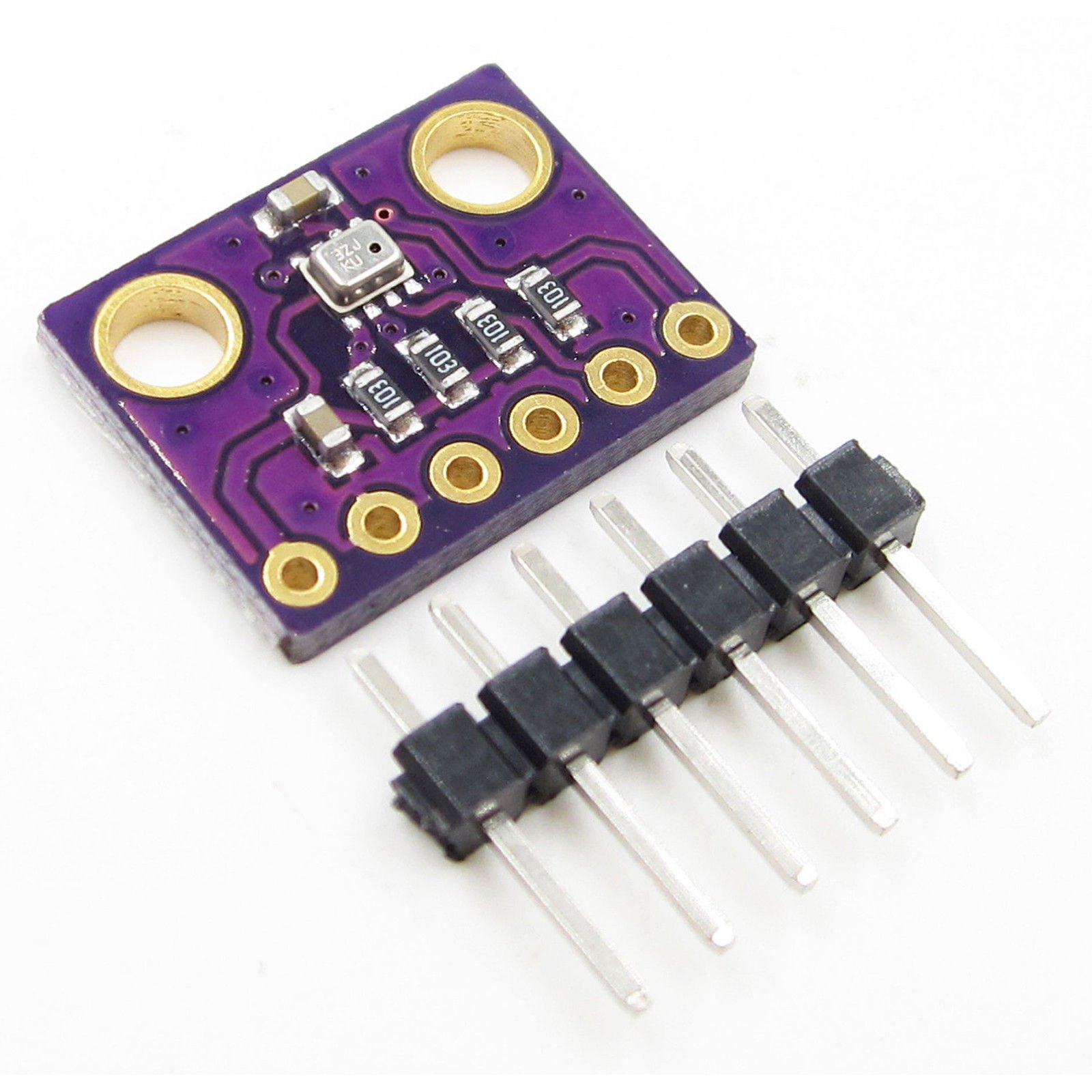

This breakout board features the Bosch BMP280 sensor, a high precision combined barometric pressure and temperature sensor.
Designed for easy interfacing with Arduino, Raspberry Pi, ESP8266, and other microcontrollers via I2C or SPI, it provides accurate environmental data with minimal power consumption.
The BMP280 offers ±1 hPa accuracy for pressure and ±1.0°C accuracy for temperature measurements.
Its precision makes it ideal not only for weather monitoring but also for altitude sensing with ±1 meter accuracy.
- Bosch BMP280 sensor: barometric pressure & temperature combined
- Operating voltage: 1.8V to 3.6V DC (compatible with 3.3V systems)
- Low power consumption: 1.1mA working current, 0.003mA sleep current
- Interfaces: I2C and SPI for flexible connectivity
- Temperature range: -40°C to 80°C with ±1.0°C accuracy
- Pressure range: 30,000 Pa to 110,000 Pa (300 hPa to 1100 hPa)
- Pressure accuracy: ±12 Pa with 0.18 Pa resolution
- Temperature resolution: 0.01°C
- Compact, ready-to-use breakout board
- Supply voltage: 1.8V to 3.6V DC
- Current consumption: 1.1mA active, 3µA sleep
- Temperature sensor range: -40°C to 80°C
- Pressure sensor range: 30,000 Pa to 110,000 Pa
- Communication: I2C (default) or SPI
- Dimensions: Small breakout board ideal for prototyping and embedded projects
What’s Included:
- 1 x BMP280 Precision Barometric Pressure and Temperature Sensor Module
Ideal For:
- Weather stations and environmental monitoring
- Altitude measurement for drones, robots, and wearable devices
- IoT projects requiring pressure and temperature sensing
- Arduino, Raspberry Pi, ESP8266, and other MCU based applications
Notes:
- Ensure connection to a 3.3V power source (not 5V) to avoid damage
- Easily integrate with libraries available for Arduino and Raspberry Pi
- Compact design makes it perfect for space-constrained projects
