Description

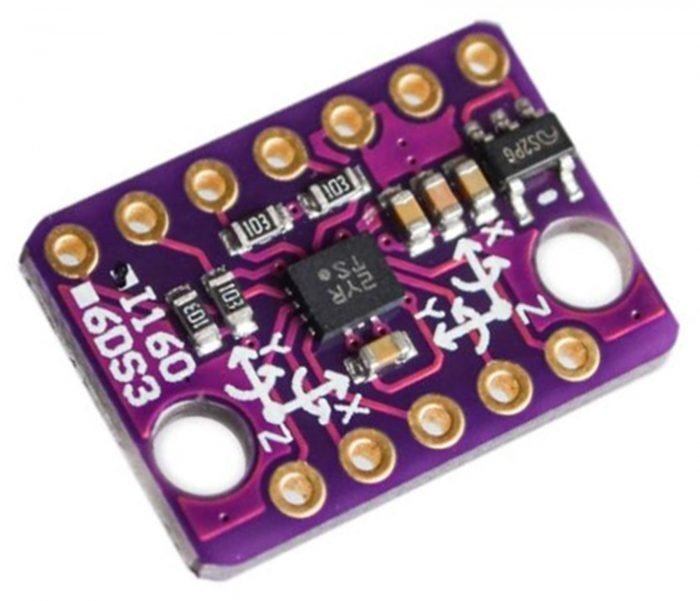

The BMI160 sensor module is a compact, high-performance 6 axis inertial measurement unit (IMU) combining a 3 axis gyroscope and 3 axis accelerometer in a single low power package.
Designed for motion sensing applications such as indoor navigation, gesture recognition, augmented reality, and robotics, the BMI160 delivers 16 bit real time acceleration and rotation data with exceptional accuracy and low power consumption perfect for battery-powered and always on systems.
This module supports both I2C and SPI communication protocols, making it easy to integrate into a wide range of microcontroller platforms like Arduino, Raspberry Pi, STM32, and PIC.
- Model: BMI160
- Function: 6DOF IMU – 3-axis Gyroscope + 3-axis Accelerometer
- Communication: I2C / SPI compatible
- Voltage Range: 3V to 5V DC
- Gyroscope Range: ±125 / ±250 / ±500 / ±1000 / ±2000 °/s
- Accelerometer Range: ±2g / ±4g / ±8g / ±16g
- Resolution: 16-bit AD converter (16-bit data output)
- Power Consumption: ~950µA (typical full operation)

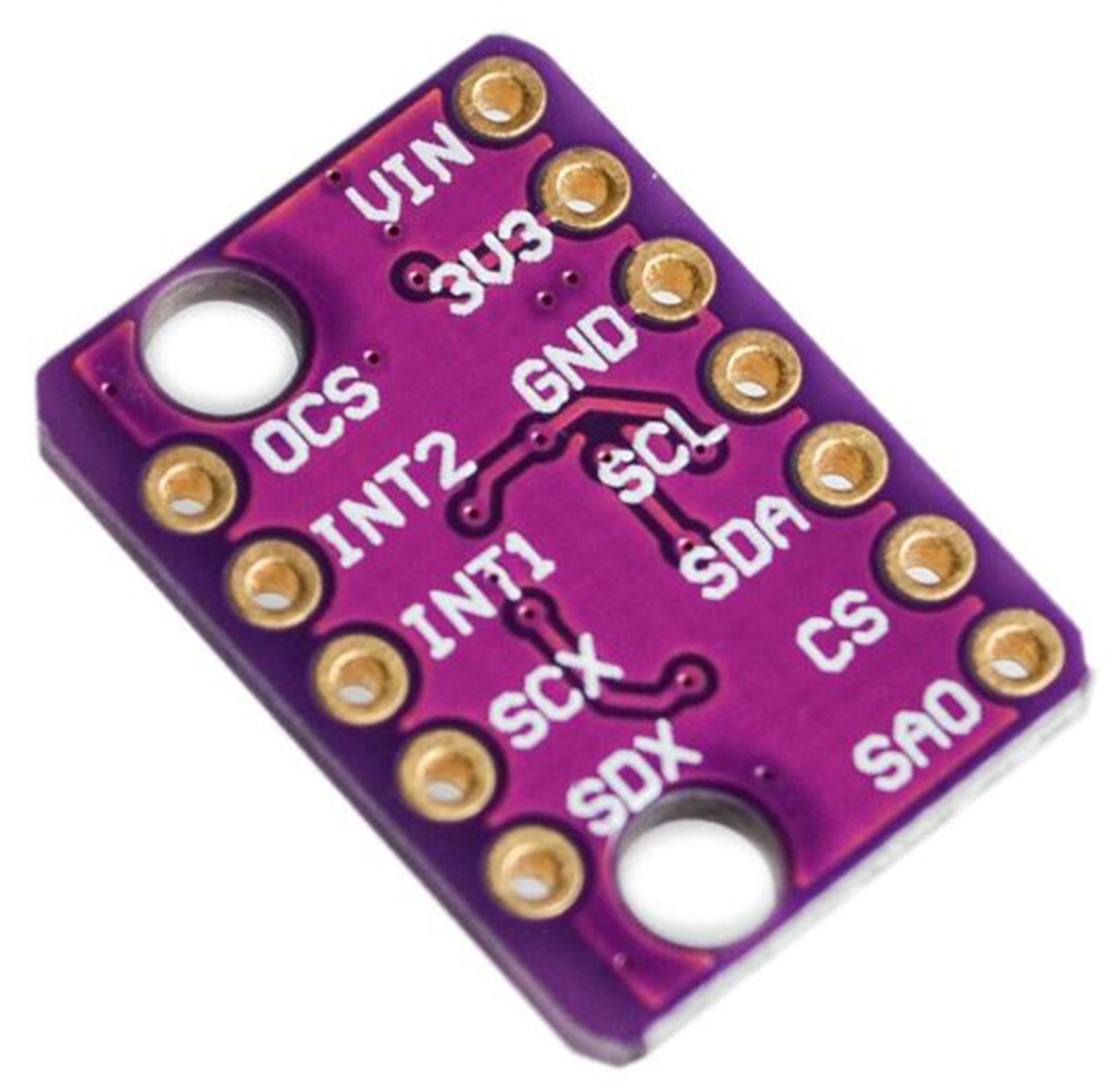

- Pin Pitch: 2.54mm (Breadboard-friendly)
- Board Size: 13mm x 18mm
What’s Included:

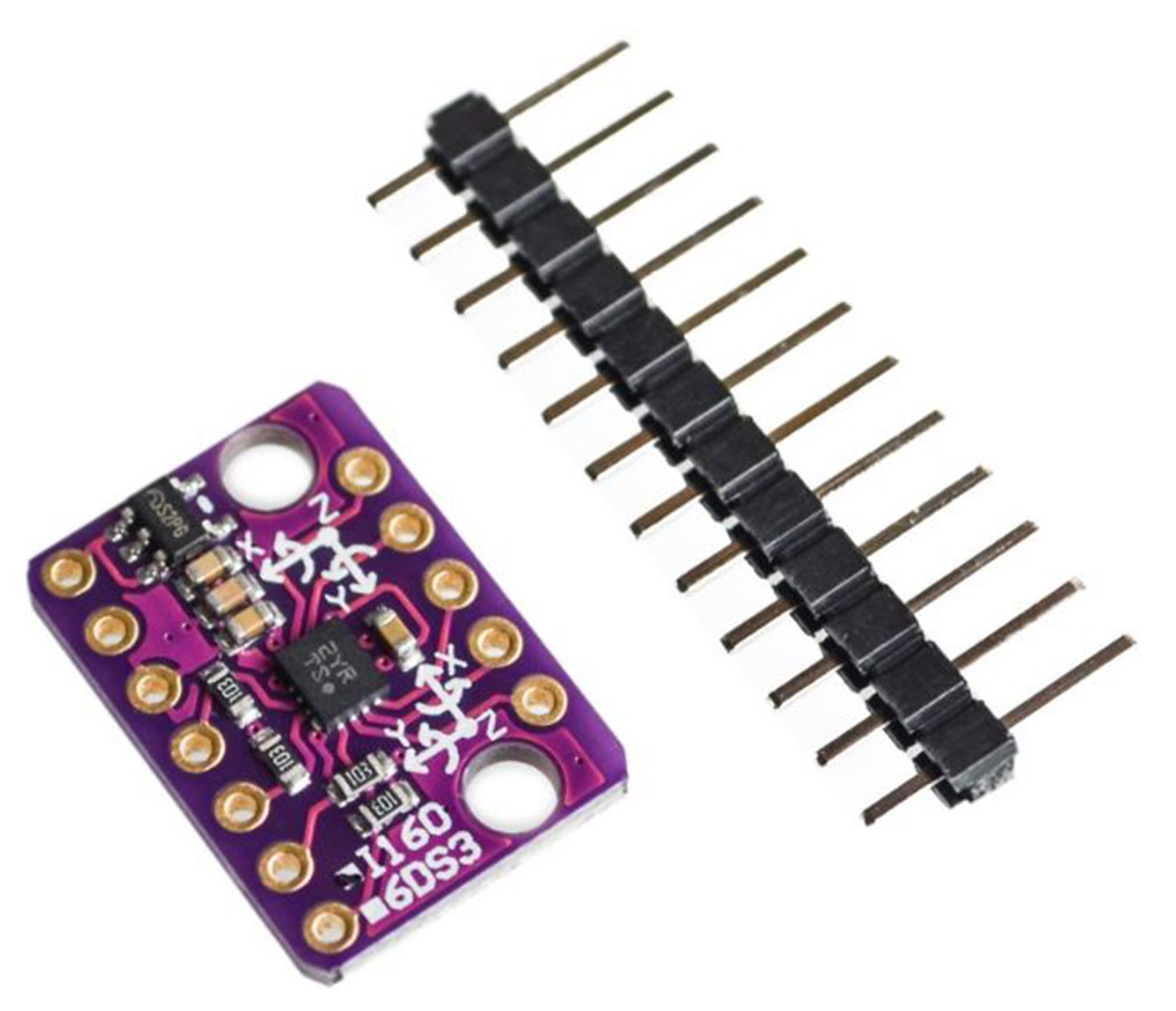

- 1x BMI160 6DOF Sensor Module (3-Axis Gyro + 3-Axis Accel)
Great For:
- Gesture & Motion Detection
- Indoor Navigation Systems
- Augmented Reality / Virtual Reality
- Robotics & Drones
- Mobile Device Motion Sensing
- Arduino & Raspberry Pi Projects
- STEM Education & Prototyping
Usage Tips:
- Compatible with libraries like Adafruit_BMI160 or BMI160_Arduino for quick setup
- Choose I2C or SPI depending on your MCU and available pins
- For precise readings, ensure minimal vibration and use digital filtering if needed
- Use with 3.3V or 5V logic – built-in regulator allows flexible integration
