Active Crystal Oscillator 4 Pin DIP Quartz Clock Module 5V 1MHz to 50MHz

Description

This high precision Active Crystal Oscillator is ideal for use in timing, frequency generation, and clock circuits across a wide range of electronics applications.

With selectable frequencies from 1MHz to 50MHz, you can choose the value required via the drop down menu to match your project’s specific timing needs.

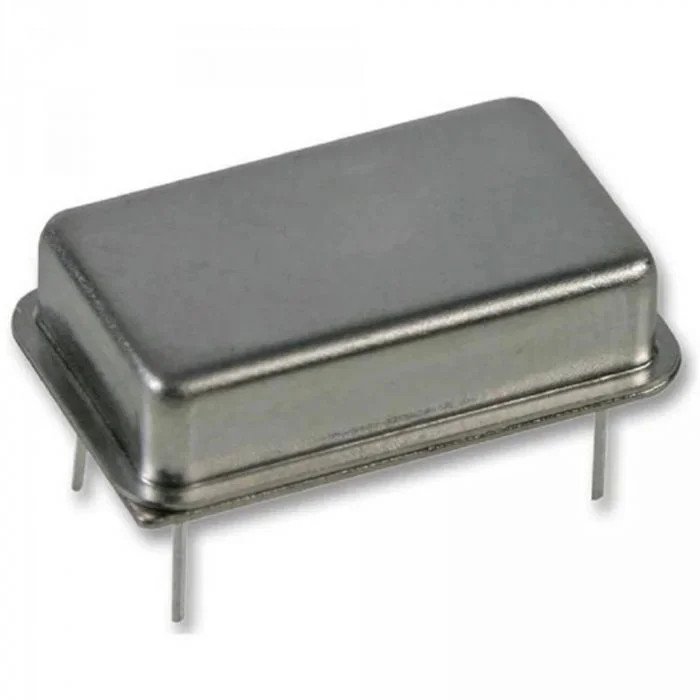

The robust metal 4-pin DIP package makes it suitable for through-hole PCB mounting and ensures stable performance with a 5V DC supply.

• Frequency Options: 1MHz, 8MHz, 10MHz, 11.0592MHz, 16MHz, 50MHz (select from dropdown)
• Supply Voltage: 5V DC
• Output Type: Square Wave (TTL Compatible)

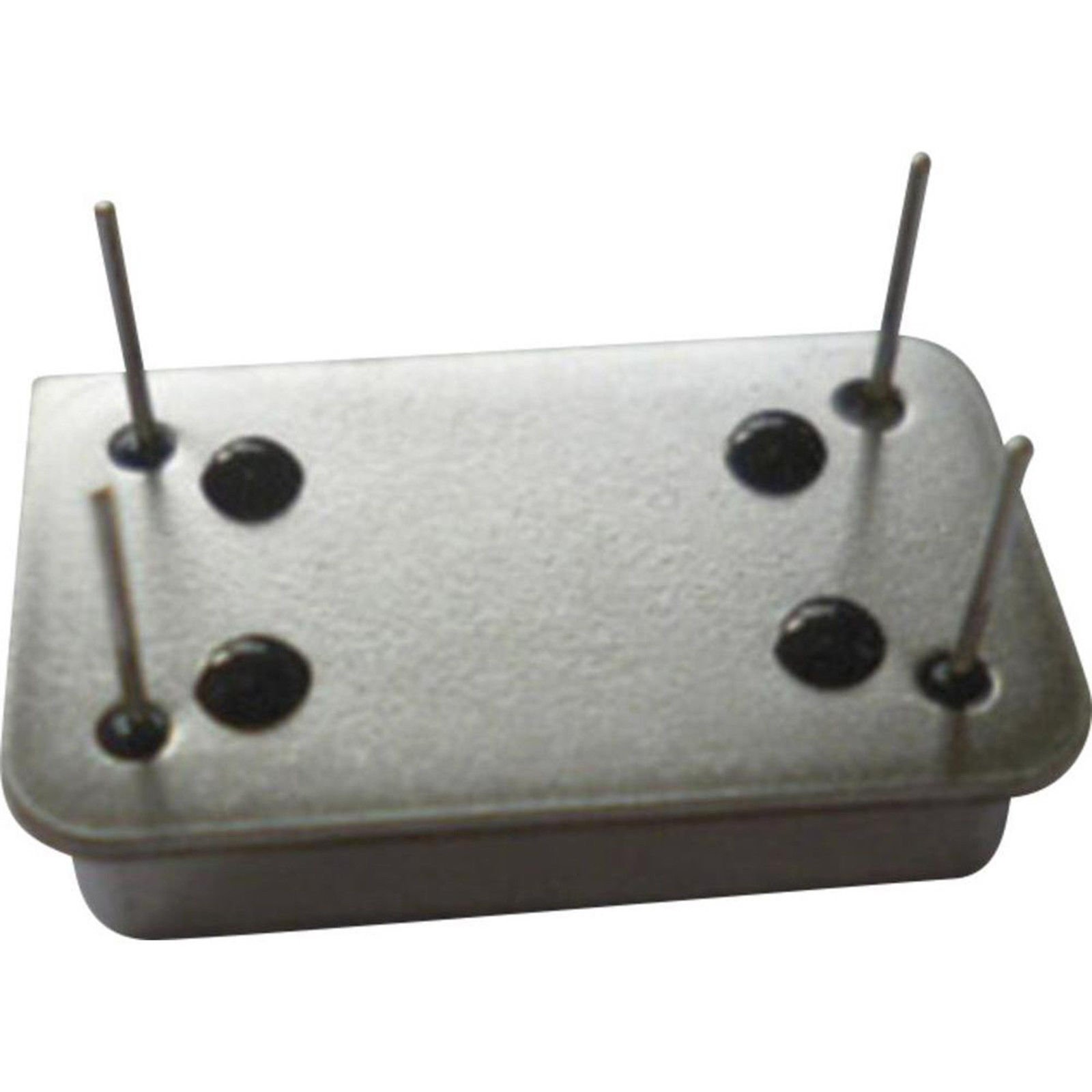

• Package: 4 Pin Metal DIP (Through Hole)
• Operating Temperature: -20°C to +70°C
• High Stability & Low Jitter

What’s Included:

• 1x Active Quartz Crystal Oscillator (frequency as selected)

Great For:

• Microcontroller Clock Circuits
• UART Baud Rate Matching (e.g., 11.0592MHz)
• Timing & Frequency Applications
• DIY Electronics, Embedded Systems & Prototyping
• Arduino, PIC, AVR, STM32 Projects

Usage Tips:

• Ensure correct pinout alignment on your PCB (typically: GND, Output, VCC, NC)
• Compatible with 5V logic circuits
• Ideal for frequency-critical applications and UART timing accuracy
• Solder securely for vibration-resistant operation
