Description
The TIP42C is a PNP power transistor, ideal for a wide range of audio, linear, and switching applications.
This set of 5 transistors is perfect for DIY electronics, amplifier repairs, or general-purpose power control.
Packaged in the standard TO-220 form, the TIP42C offers high performance and easy heat sinking, making it a favourite for both hobbyists and professionals.
- Component: TIP42C Transistor
- Type: PNP Power Transistor

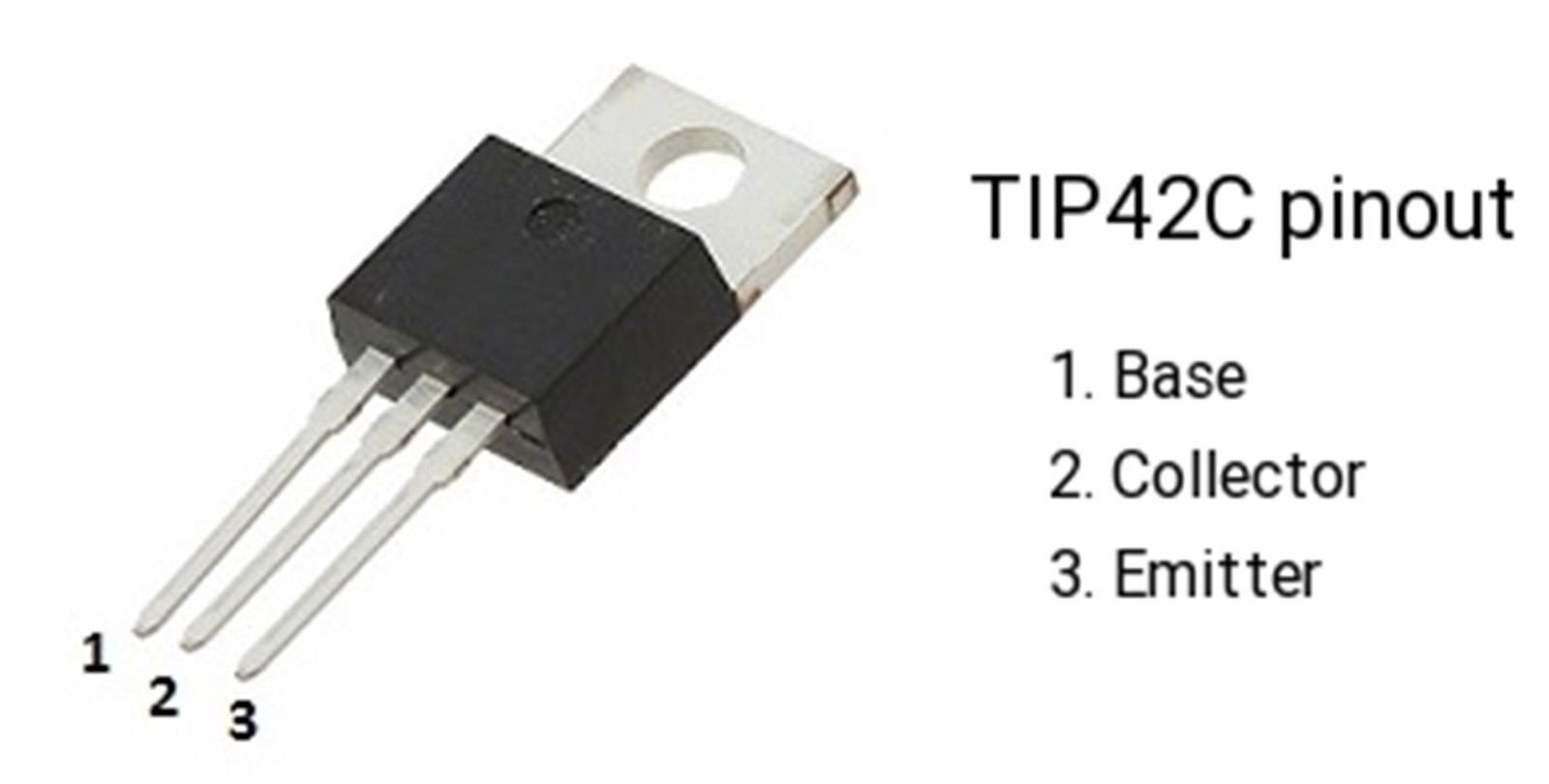

- Package: TO-220

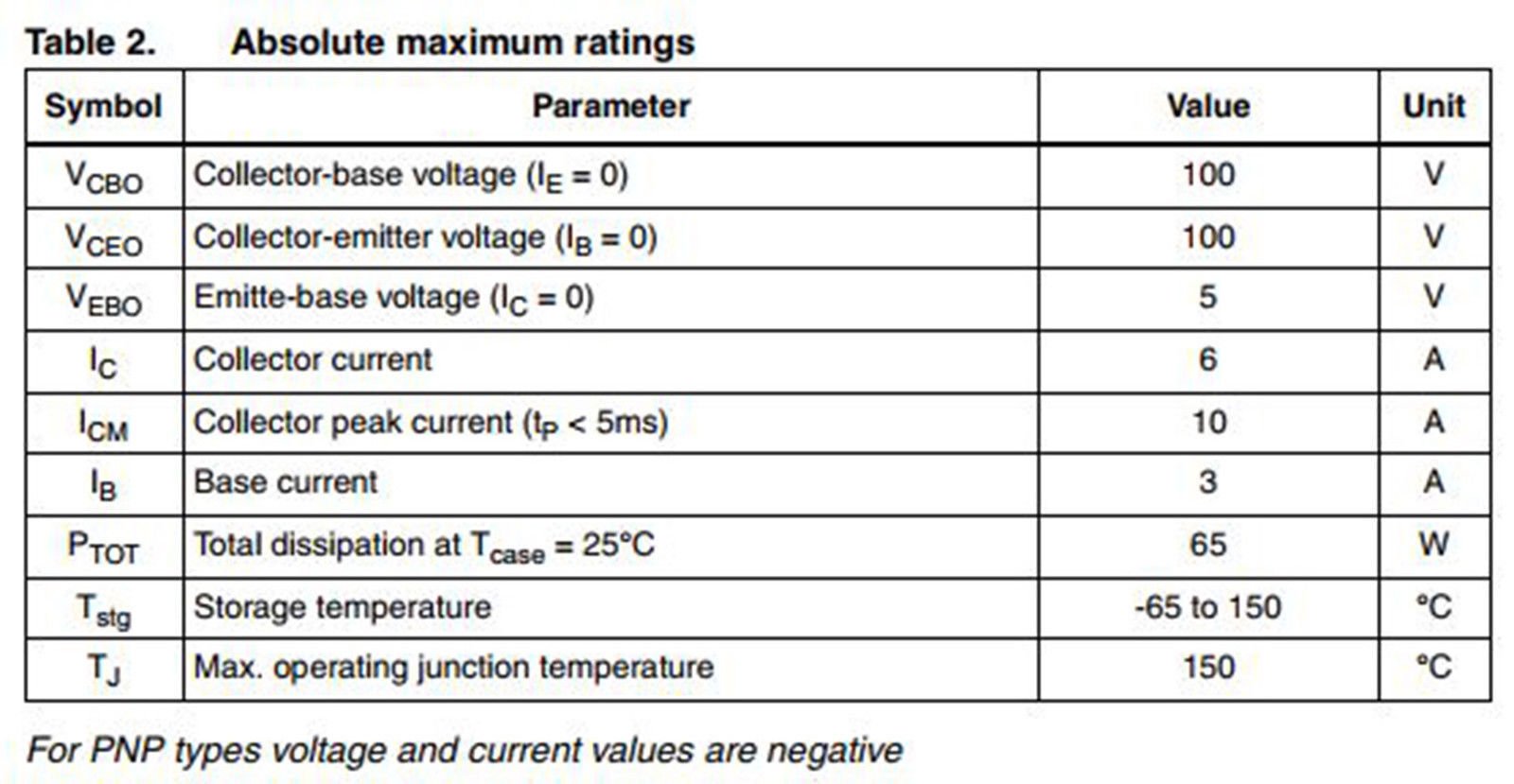

- Collector Current (IC): 6A
- Collector-Emitter Voltage (Vce): 100V
- Power Dissipation: 65W (with proper heat sinking)
- Gain (hFE): 15–75
- Material: Silicon (Base island technology)
- Quantity: 5 pieces per pack
Key Features:
- PNP silicon power transistor
- TO-220 package for easy mounting and heat dissipation
- Suitable for audio amplification, switching, and linear regulation
- Collector Current: 6A
- Voltage Rating: 100V
- High gain and reliable performance
- Widely used in power supplies, amplifiers, and motor control
What’s Included:

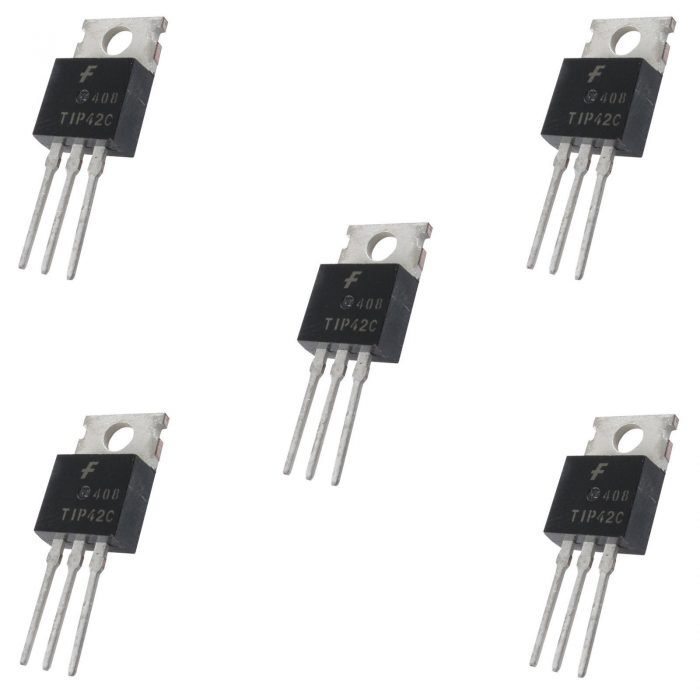

- 5x TIP42C PNP Power Transistors (TO-220 package)
Great For:
- Audio amplifier builds and repairs
- Linear voltage regulation circuits
- General-purpose switching applications
- Power electronics and control projects
- STEM and electronics education kits
- Arduino and microcontroller interfacing (via supporting circuitry)
Usage Tips:
- Requires appropriate heat sinking for high-power use
- Can be paired with TIP41C (NPN) for complementary push-pull amplifier stages
- Ensure correct orientation and biasing in circuits
- Always check datasheet for maximum ratings when designing power circuits
