Description
These high performance CD4053BC multiplexer/demultiplexer ICs are ideal for routing both analog and digital signals in electronic projects, signal switching circuits, and prototyping applications.
Each chip features three independent SPDT (Single Pole Double Throw) switches, controlled via dedicated digital inputs (A, B, and C), plus an inhibit pin for full control flexibility.
With a wide signal voltage range, low ON resistance, and minimal leakage, they’re perfect for precision signal routing and low-power design.
- Type: Triple 2-Channel Analogue/Digital Multiplexer / Demultiplexer
- Part Number: CD4053BC
- Package: DIP16 (Through-Hole)

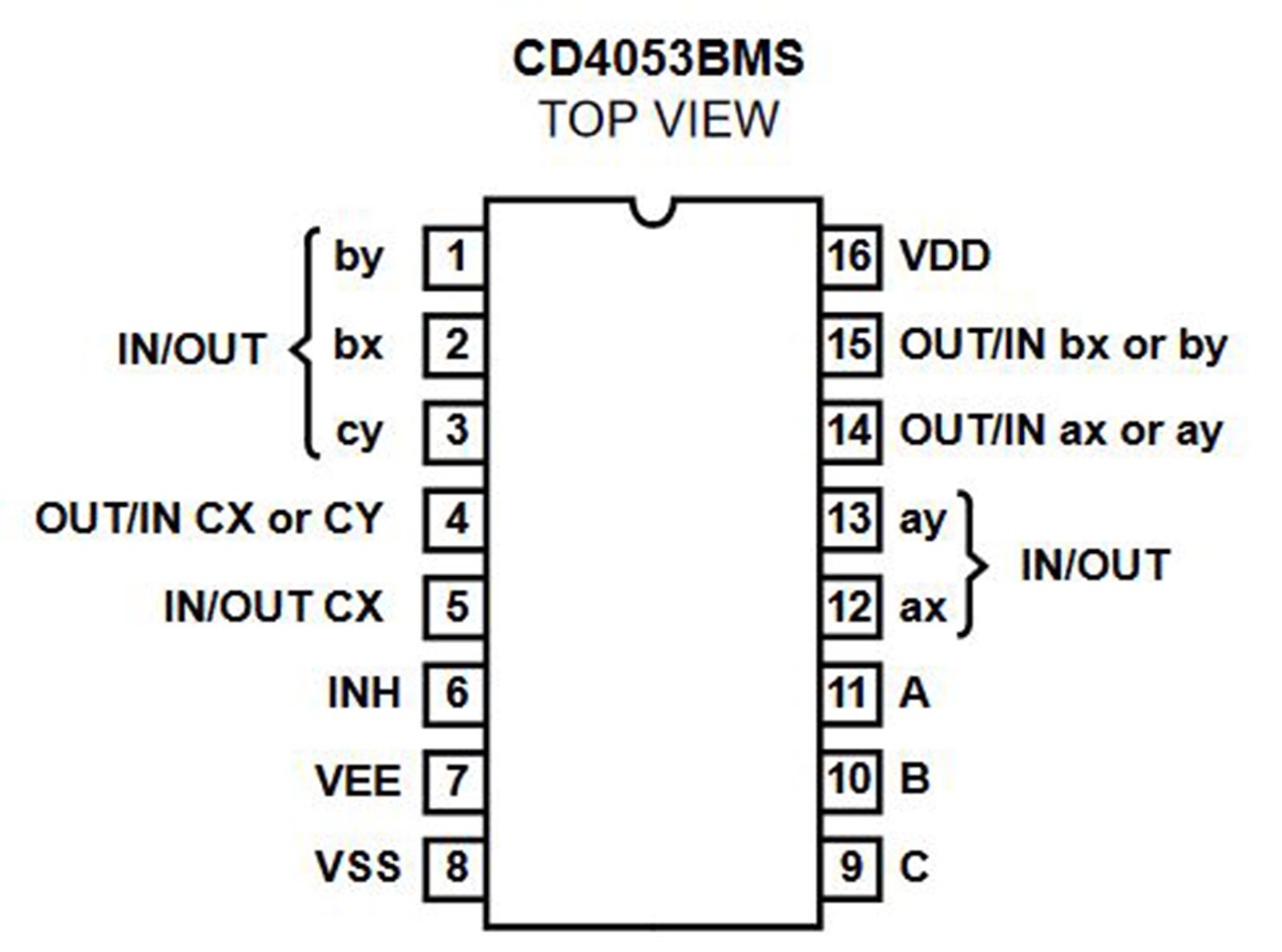

- Control Inputs: A, B, C + Inhibit
- Configuration: SPDT per channel (3x 2-channel switches)
- Digital Voltage Range: 3V – 15V
- Analog Signal Range: Up to 15Vp-p
- Typical ON Resistance: 80Ω (VDD–VEE = 15V)
- OFF Leakage Current: ±10pA typical (VDD–VEE = 10V)
- Onboard Binary Address Decoding: Yes
- Polarity Protection: Not included (ensure correct connections)
What’s Included:
- 5 x CD4053 DIP16 CMOS Triple 2-Channel Multiplexer / Demultiplexer ICs
Great For:
- Signal Routing in Analog or Digital Circuits
- Audio and Data Switching
- Microcontroller Projects
- Logic-Level Routing
- DIY Electronics & STEM Education
Usage Tips:
- Ensure supply voltages are within specified limits
- Use in low-leakage or low-noise switching applications
- Breadboard-friendly DIP16 package for easy prototyping
- Control lines can be driven by standard logic or microcontroller GPIOs
