Description

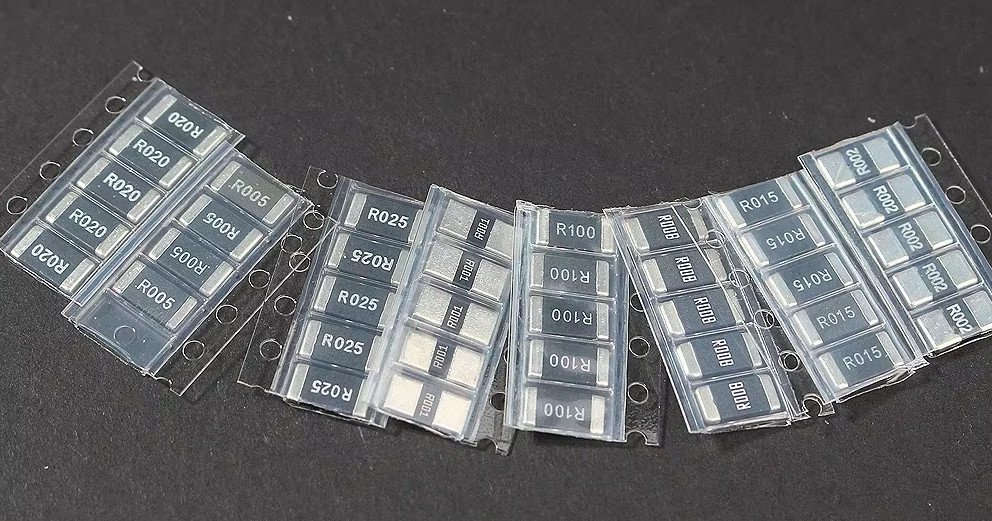

A set of 50 x 2512 SMD precision alloy resistors, supplied in 10 different low-resistance values with 5 pieces of each value.
These high-precision 1% chip resistors are ideal for current sensing, power electronics, battery management, amplifiers, power supplies and other applications requiring accurate low-value resistance.
The 2512 package provides a larger footprint than smaller SMD resistor sizes, making these resistors suitable for higher-power applications and easier PCB handling.
- Product: 2512 SMD Precision Alloy Resistor Kit
- Type: Low Resistance Current Sense / Shunt Resistors
- Tolerance: ±1%
- Wattage: 1w
- Package Size: 2512 SMD
- Quantity: 50 Pieces
- Values: 10 different resistance values
5 pieces of each valueResistor Values Included:
- R001 – 0.001Ω – 5pcs
- R002 – 0.002Ω – 5pcs
- R005 – 0.005Ω – 5pcs
- R008 – 0.008Ω – 5pcs
- R010 – 0.010Ω – 5pcs
- R015 – 0.015Ω – 5pcs
- R020 – 0.020Ω – 5pcs
- R025 – 0.025Ω – 5pcs
- R050 – 0.050Ω – 5pcs
- R100 – 0.100Ω – 5pcs
Key Features:
- Precision 1% tolerance for accurate resistance values
- 2512 SMD chip resistor package
- Low-resistance alloy construction
- Ideal for current sensing and shunt applications
- Suitable for high-current circuit monitoring
- Compact surface-mount design
- 10 popular low-resistance values supplied
- 5 pieces of each value – 50 pieces totalExcellent for electronics repair, prototyping and DIY projects
Great For:
- Current sensing circuits
- Power supply current monitoring
- Battery management systems
- DC-DC converters
- Motor controllers
- Amplifiers and audio equipment
- Electronic test equipment
- Power electronics
- PCB repairs and modifications
- DIY electronics and prototyping
Usage Tips:
- Check the required resistance value before installation.
- Ensure the PCB pads are clean and correctly sized for the 2512 package.
- Use suitable soldering temperatures and techniques for SMD components.
- For current-sense applications, ensure the resistor’s power rating is suitable for the expected current.
- Keep resistance and PCB track connections as short and low-resistance as practical for accurate current measurement.
