Description

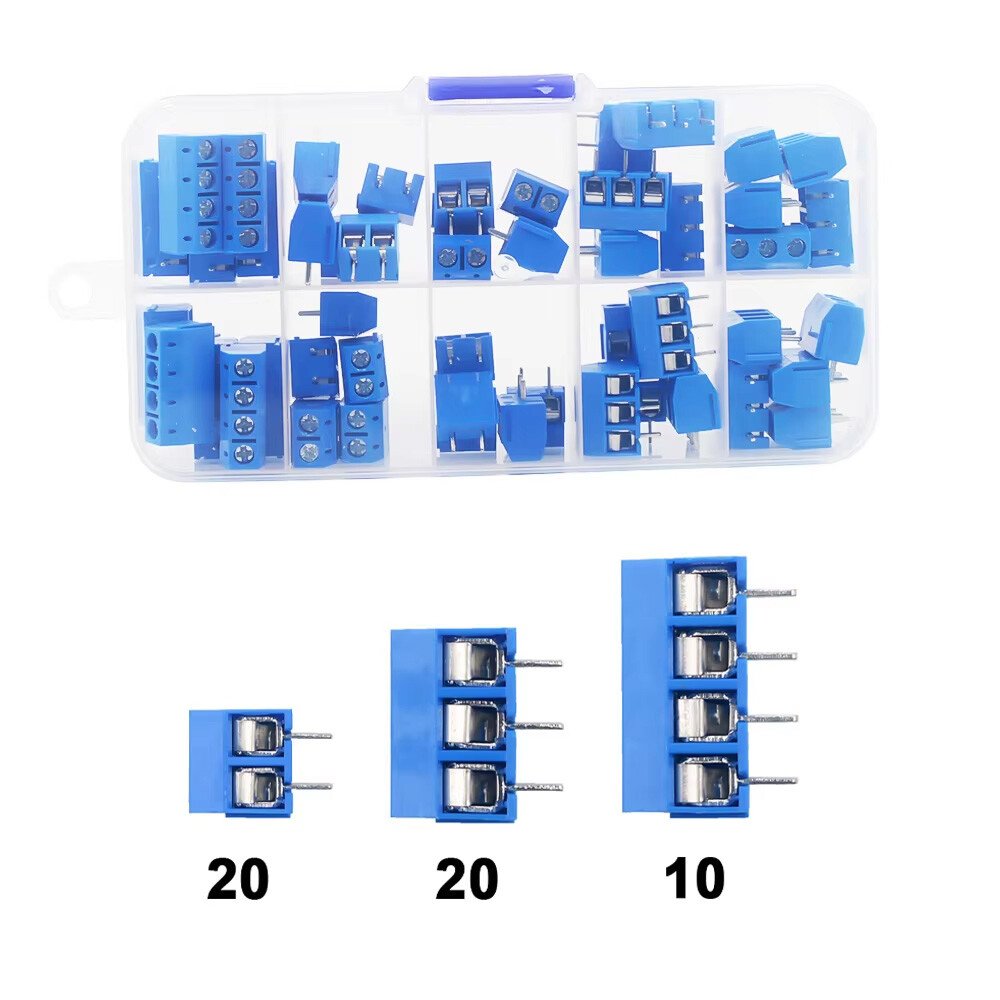

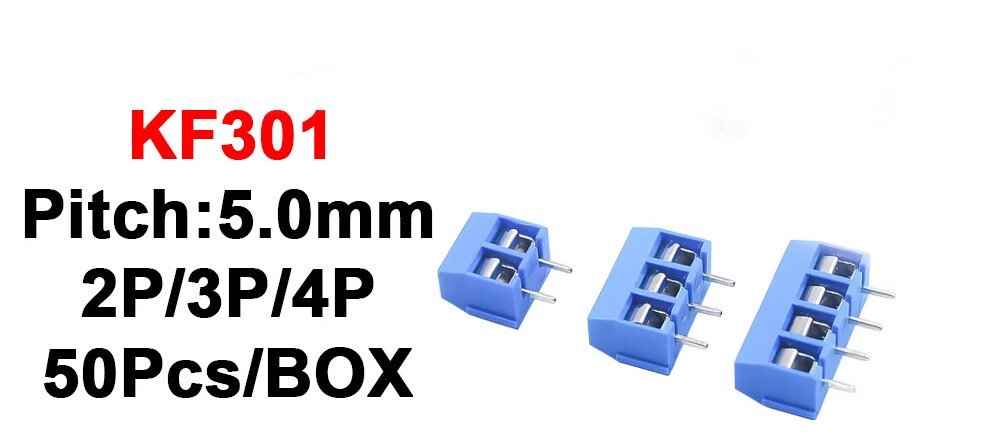

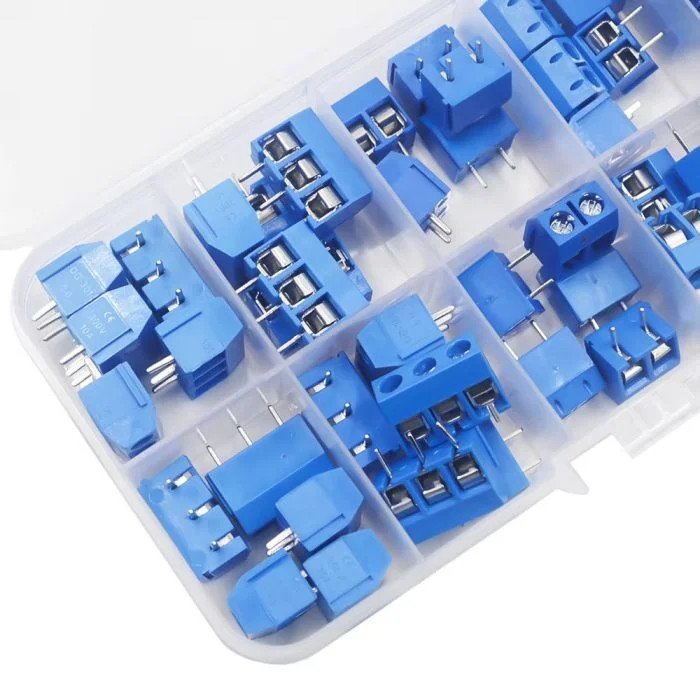

A handy mixed set of 50pcs Blue PCB Screw Terminal Block Connectors in 2-pin and 3-pin variants with a 5.0mm pitch.
These high-quality connectors are ideal for secure and modular connections on PCBs in electronics, automation, or DIY prototyping.
Designed for 22–14 AWG wire with a rated voltage of 300V and current up to 16A, these blocks are reliable for low to medium power applications.
- Product: Screw Terminal Block Connector Set (50pcs – 2P / 3P Mix)
- Pitch: 5.0mm
- Pins: 2-Pin and 3-Pin
Key Features:
- Mixed set of 2P & 3P terminal blocks – 5.0mm pitch
- Rated 300V / 16A ideal for medium-power projects
- Screw terminals accept 22 to 14 AWG wires
- Secure clamping with M2.5 steel zinc-plated screws
- Housing made from flame-retardant PBT UL94V-0
- Reliable phosphor bronze / stainless contacts
- Excellent electrical insulation & mechanical stability
- Operating temperature: -30°C to +120°C
What’s Included:
- 50 x Screw Terminal Block Connectors (Mix of 2-Pin and 3-Pin)
Technical Specs:
- Contact Resistance: ≤ 20mΩ
- Insulation Resistance: ≥ 5000MΩ at 1000V
- Withstand Voltage: AC1500V for 1 minute
- Max Solder Temp: 250°C for 5 seconds
- Torque: 0.5Nm (3.6 lb.in)
- Strip Length: 4.5–5mm
Great For:
- Power supply connections
- Prototyping & DIY electronics
- Industrial automation systems
- Repairing or modifying PCBs
- Maker and STEM projects
