Description

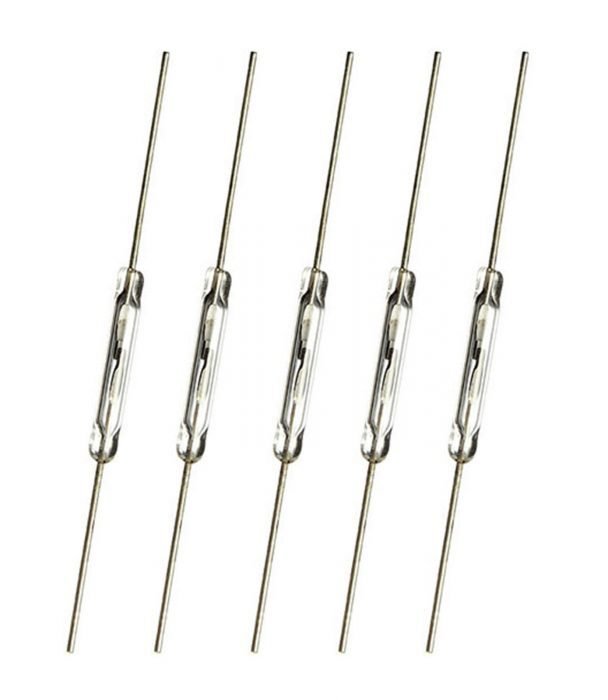

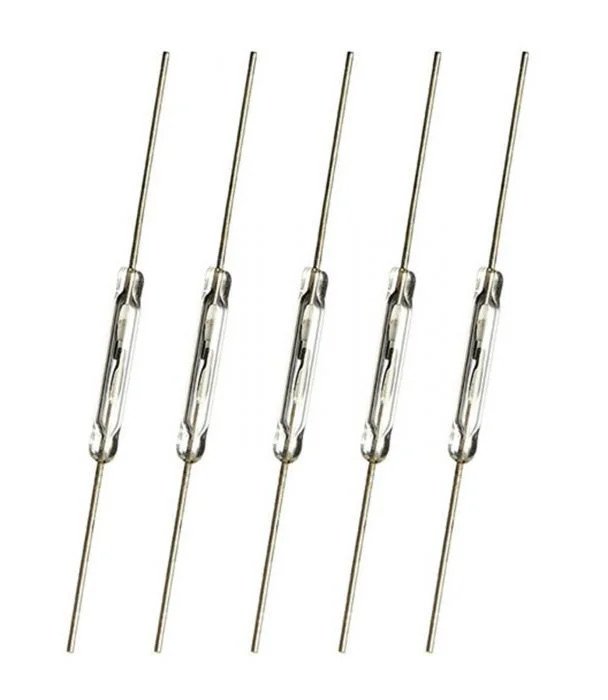

A pack of 5 high quality Y213 magnetic reed switches with normally open (NO) contacts, ideal for use in sensing, switching, and automation projects.
These reed switches are hermetically sealed in gas-filled glass tubes, making them reliable, fast-acting, and highly durable.
The switches can be actuated using a magnet or electromagnetic coil, providing a versatile solution for applications such as security systems, robotics, and contactless switching.
- Product: Y213 Reed Switch – Normally Open
- Type: Magnetic Induction Dry-Reed Switch
- Quantity: 5 Pieces
- Hermetically sealed in glass for long life and reliability
- Normally Open (SPST-NO) dry contact
- Maximum Switching Voltage: 300 VDC
- Maximum Contact Rating: 10W
- Maximum Switching Current: 0.55 A
- Fast Response: 0.45 ms operate time
- Glass Body Size: 14mm (L) x 2mm (Ø)
- Total Length (incl. leads): 45mm
- Pull-In Range: 20–70 AT
- Low Contact Capacitance: 0.5 pF
What’s Included:
- 5 x Y213 Normally Open Magnetic Reed Switches
Great For:
- Security alarm magnetic sensors
- Magnetic proximity switches
- Robotics and automation triggers
- Contactless switching circuits
- Hobby electronics and school projects
Usage Tips:
- Actuate using a magnet or coil with current
- Handle leads carefully to avoid breaking the glass seal
- Use with current-limiting resistors to prevent overload
- Mount away from sources of vibration for optimal reliability
