Description
This pack of five ULN2003A SOP16 Surface Mount Darlington Arrays is perfect for controlling high voltage, high current loads from TTL or CMOS logic systems.

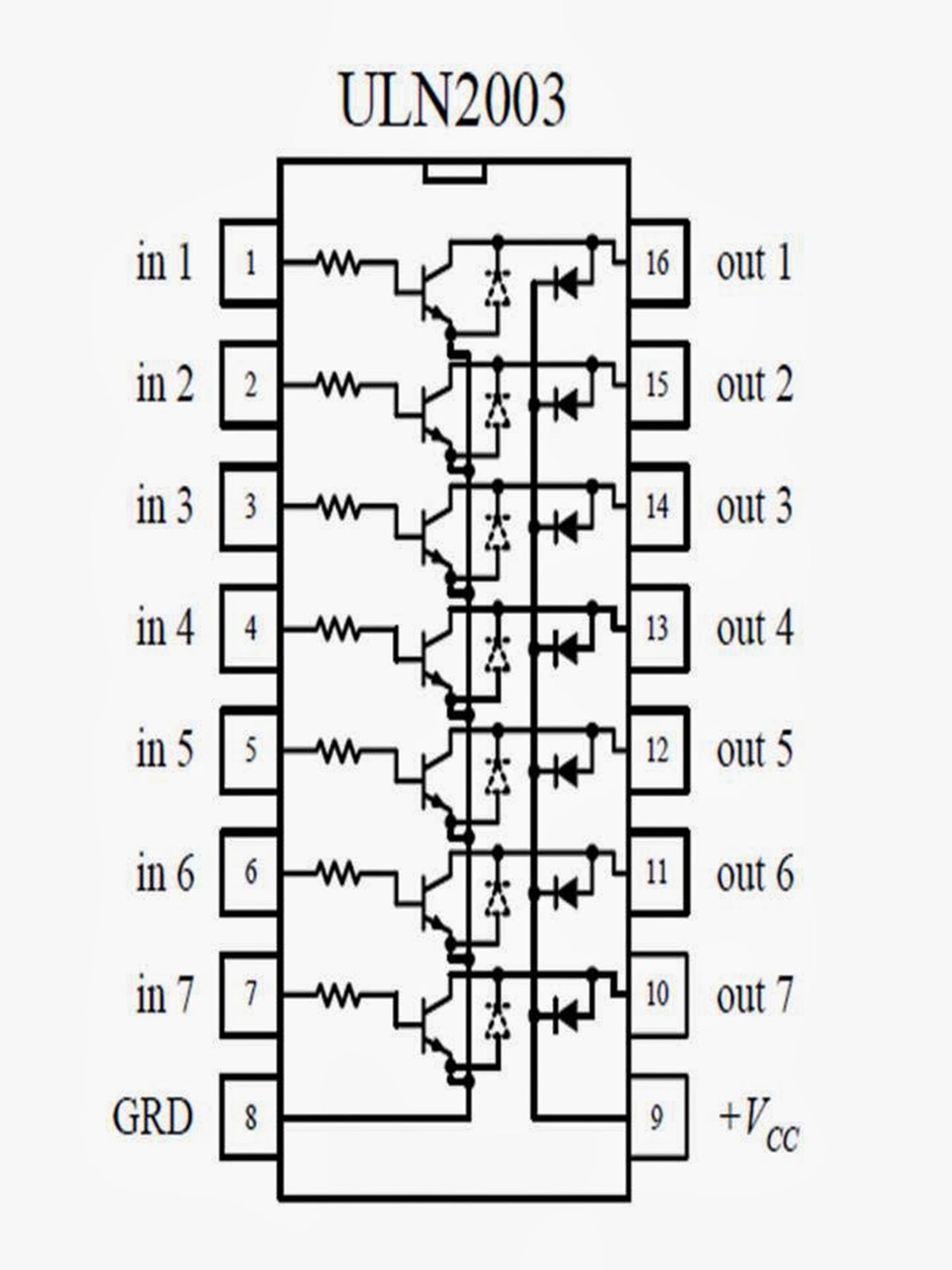

Each IC contains seven Darlington pairs with open collector outputs and integrated suppression diodes for safe operation with inductive loads.
Designed for ease of PCB layout, the ULN2003A features inputs and outputs pinned opposite one another. These versatile driver ICs are ideal for driving relays, stepper motors, solenoids, LEDs, and other power devices in embedded and control applications.
- Type: Darlington Transistor Array IC
- Package: SOP16 (Surface Mount)
- Number of Channels: 7 Darlington Drivers per IC
- Output Current: 500mA per Channel (600mA Peak)
- Output Voltage: Up to 50V
- Protection: Built-in Suppression Diodes for Inductive Loads
- Input Compatibility: TTL, CMOS, PMOS, DTL
- Input/Output Layout: Inputs on one side, Outputs on the other
- Paralleling: Outputs can be paralleled for higher current drive
What’s Included:
- 5 x ULN2003A SOP16 Surface Mount Darlington Transistor Arrays
Great For:
- Relay & Solenoid Driving
- DC Motor Control
- Stepper Motor Interface Circuits
- LED Displays & Indicators
- Thermal Printhead Control
- General Power Buffer Applications
- Robotics, Automation, and Embedded Projects
Usage Tips:
- Use with microcontrollers or logic outputs to drive higher current loads
- Add heatsinking or parallel outputs for heavier current demands
- Suitable for switching inductive loads with onboard suppression
- Compact SOP16 SMD footprint for space-saving designs
