Description
This listing is for 5 TIP31C high performance NPN power transistors in TO-220 packages, designed for a wide range of general-purpose linear amplification and switching applications.
The TIP31C is ideal for use in audio amplifiers, motor drivers, power regulation, and other medium to high-power circuits.
- Product: TIP31C NPN Power Transistor

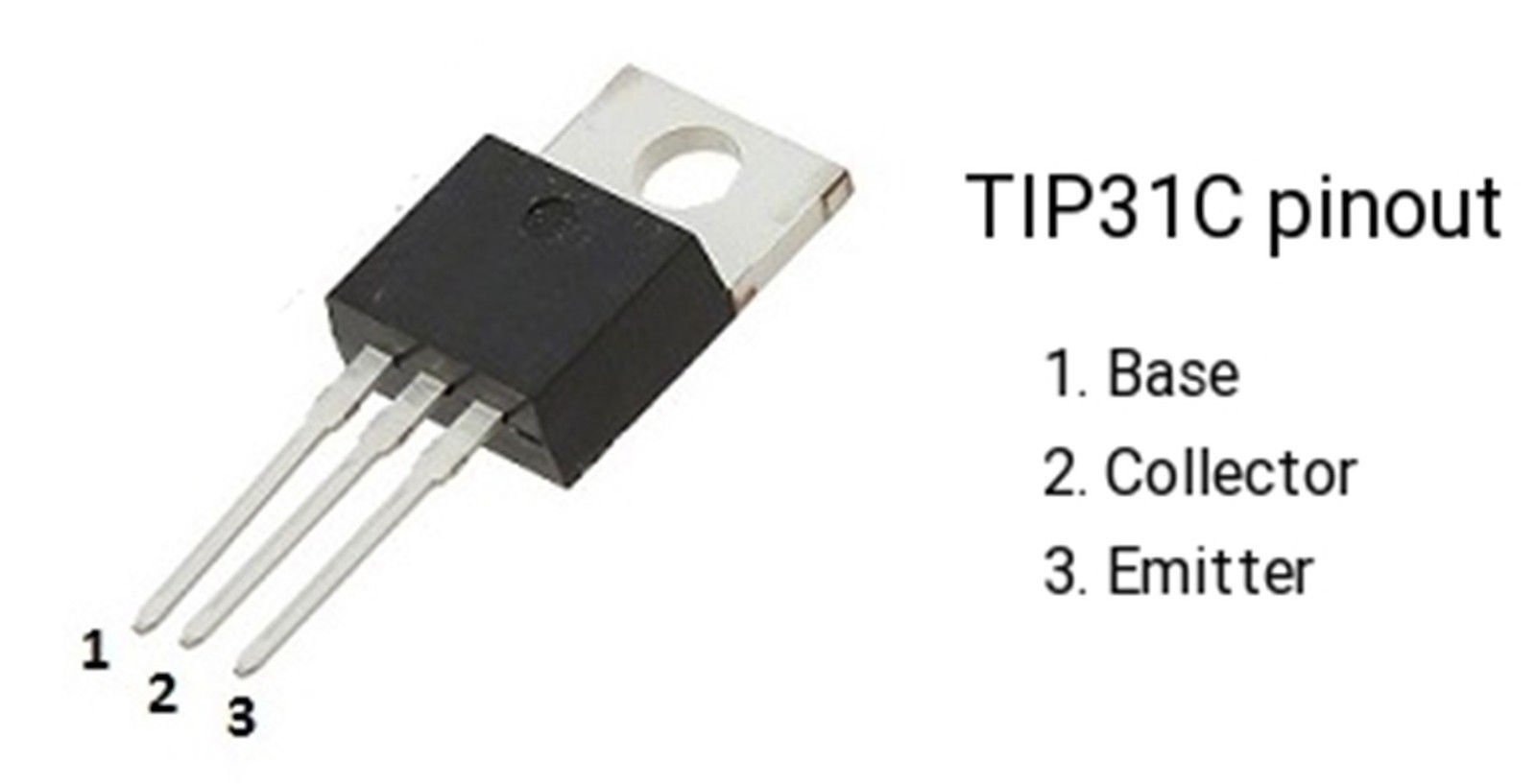

- Package Type: TO-220 Through Hole
- Polarity: NPN

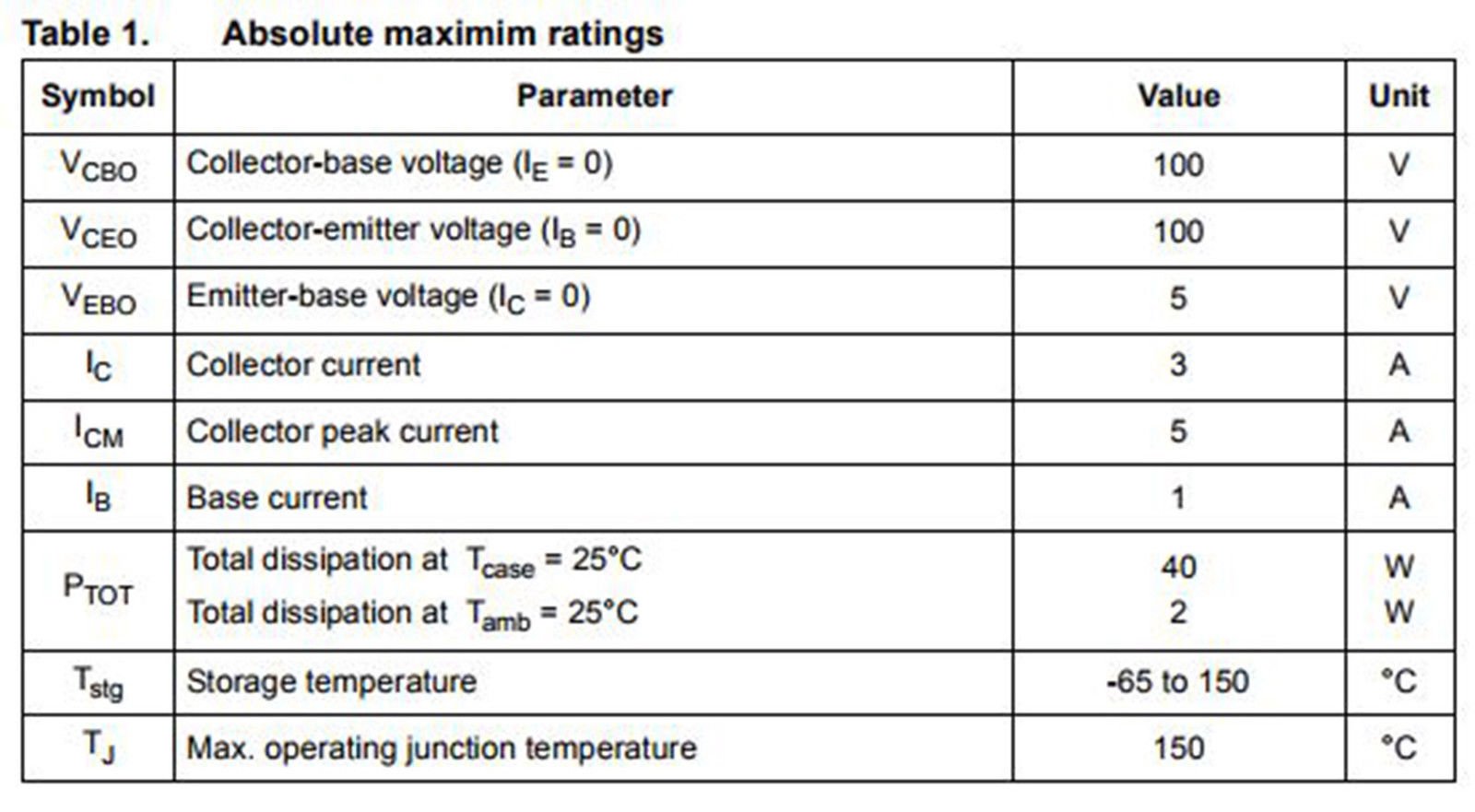

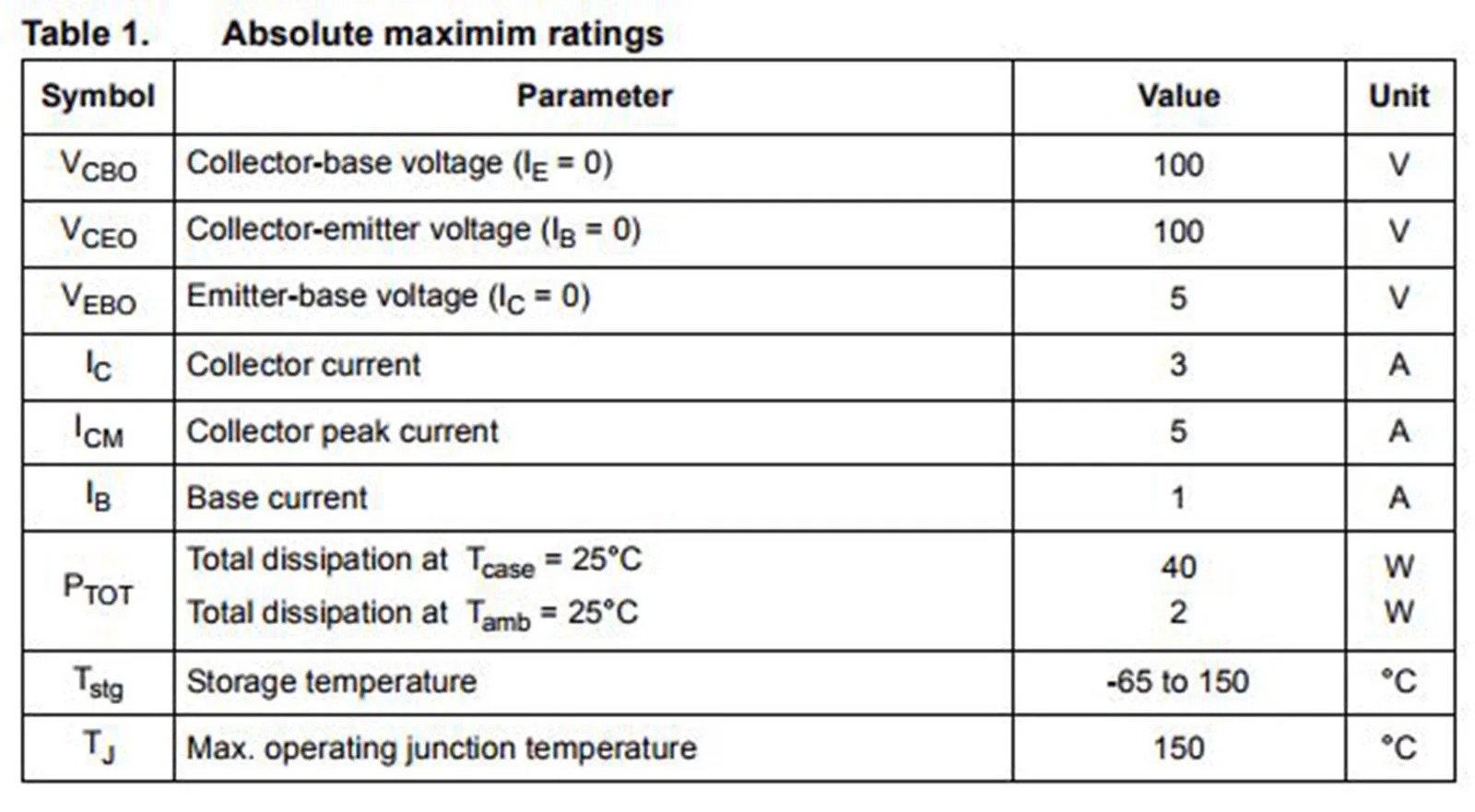

- Collector-Emitter Voltage (Vce): 100V
- Collector Current (Ic): 3A
- Power Dissipation: 40W
- DC Current Gain (hFE): 10 to 50
- Transition Frequency (fT): 3 MHz (typical)
- Collector-Base Voltage (Vcb): 100V
- Emitter-Base Voltage (Veb): 5V
- Case Style: TO-220
- Complementary To: TIP32C
What’s Included:

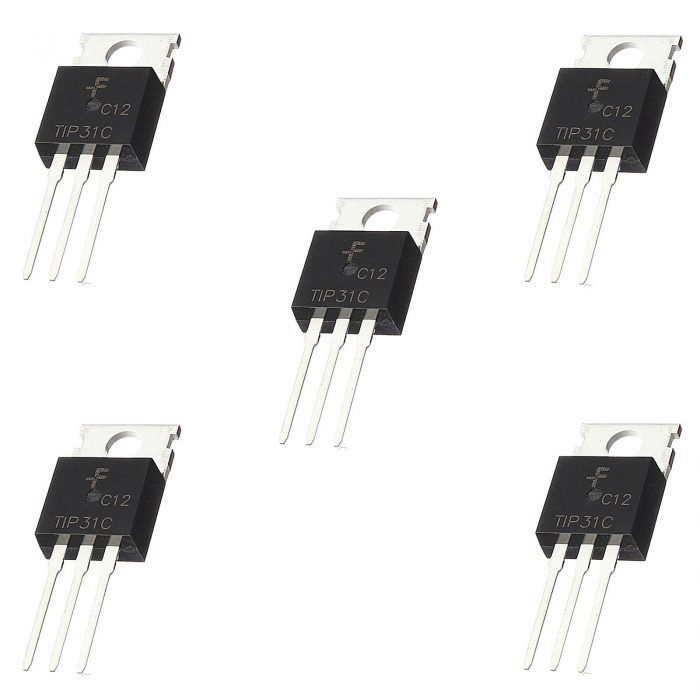

- 5 x TIP31C NPN Power Transistors (TO-220)
Ideal For:
- General-purpose power amplification
- Medium power switching
- Audio amplifier circuits
- Relay drivers
- Hobbyist and prototyping projects
Features:
- High collector-emitter voltage
- Medium power dissipation
- Suitable for linear and switching circuits
- TO-220 package for easy heat sink mounting
