Description
A pack of 5 x TIP120 NPN Darlington power transistors ideal for medium to high-power control applications such as motors, solenoids, high-power LEDs, and more.
The TIP120 is a versatile and popular general-purpose amplifier and switching transistor in a TO-220 package.
Featuring high gain and the ability to switch up to 60V and handle continuous currents up to 5A (8A peak), it’s perfect for DIY electronics and embedded control systems like Arduino or Raspberry Pi projects.

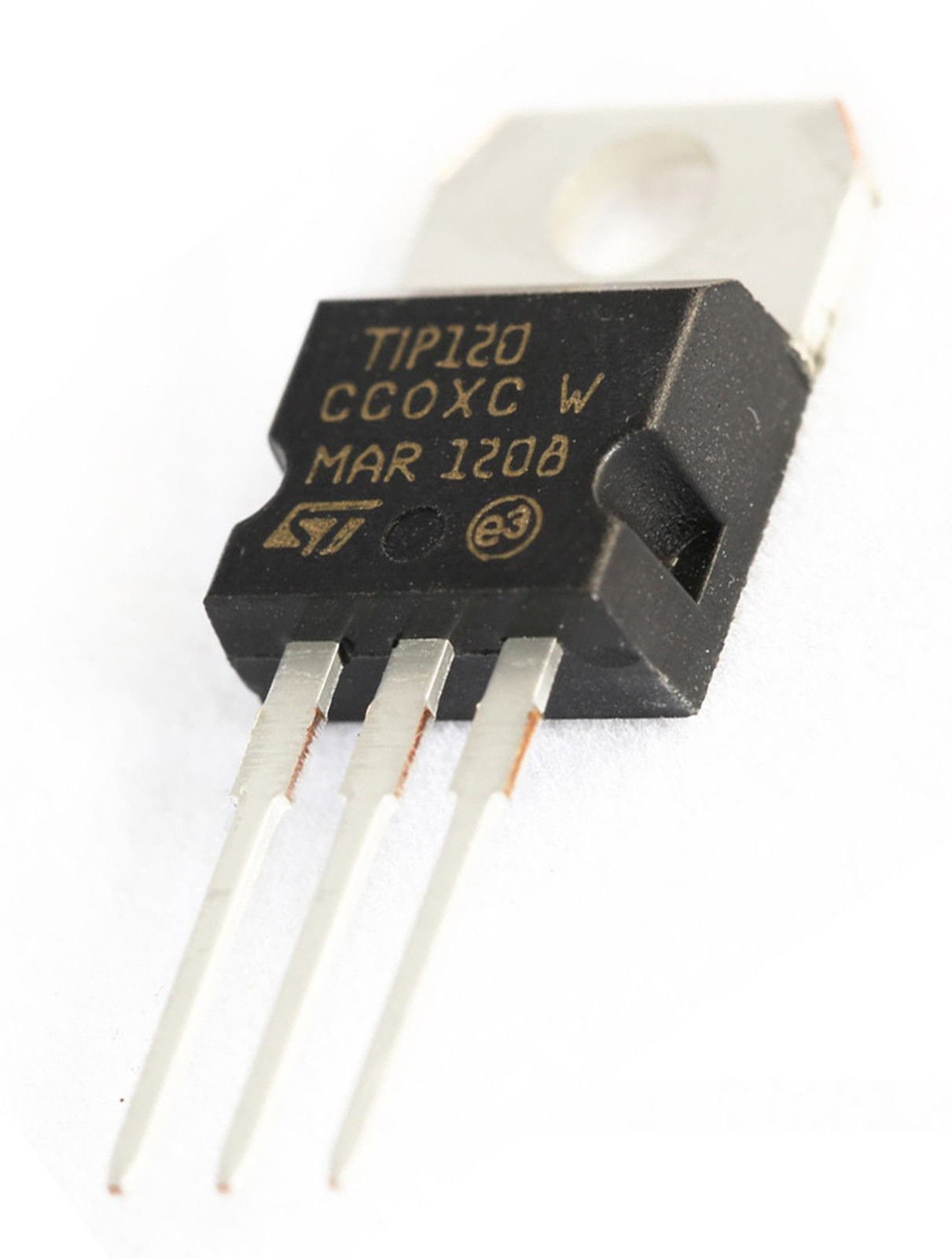

- Product: TIP120 NPN Power Darlington Transistor
- Package: TO-220 (Through Hole)
- Quantity: 5 Pieces
- Polarity: NPN

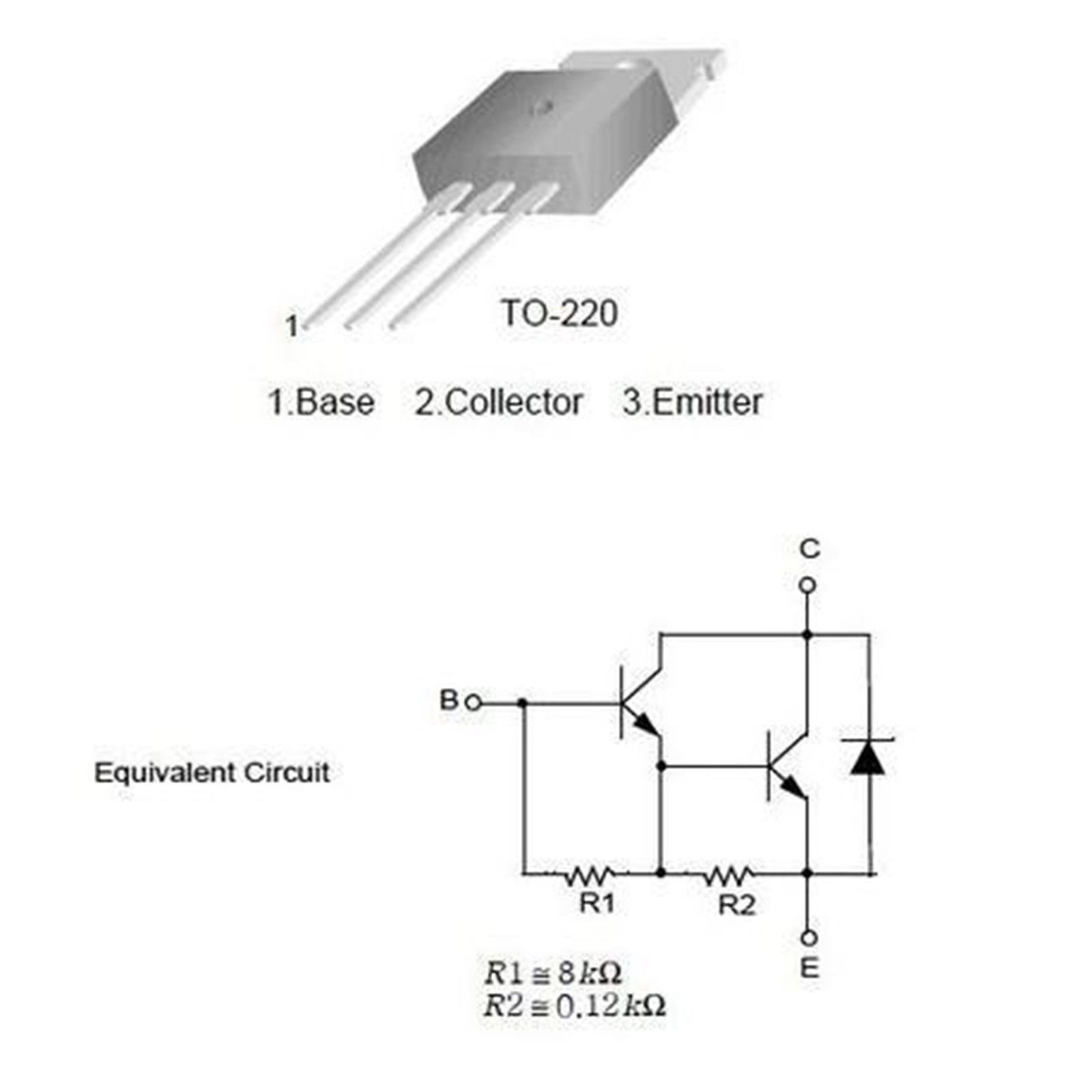

- Pinout: B – Base, C – Collector, E – Emitter

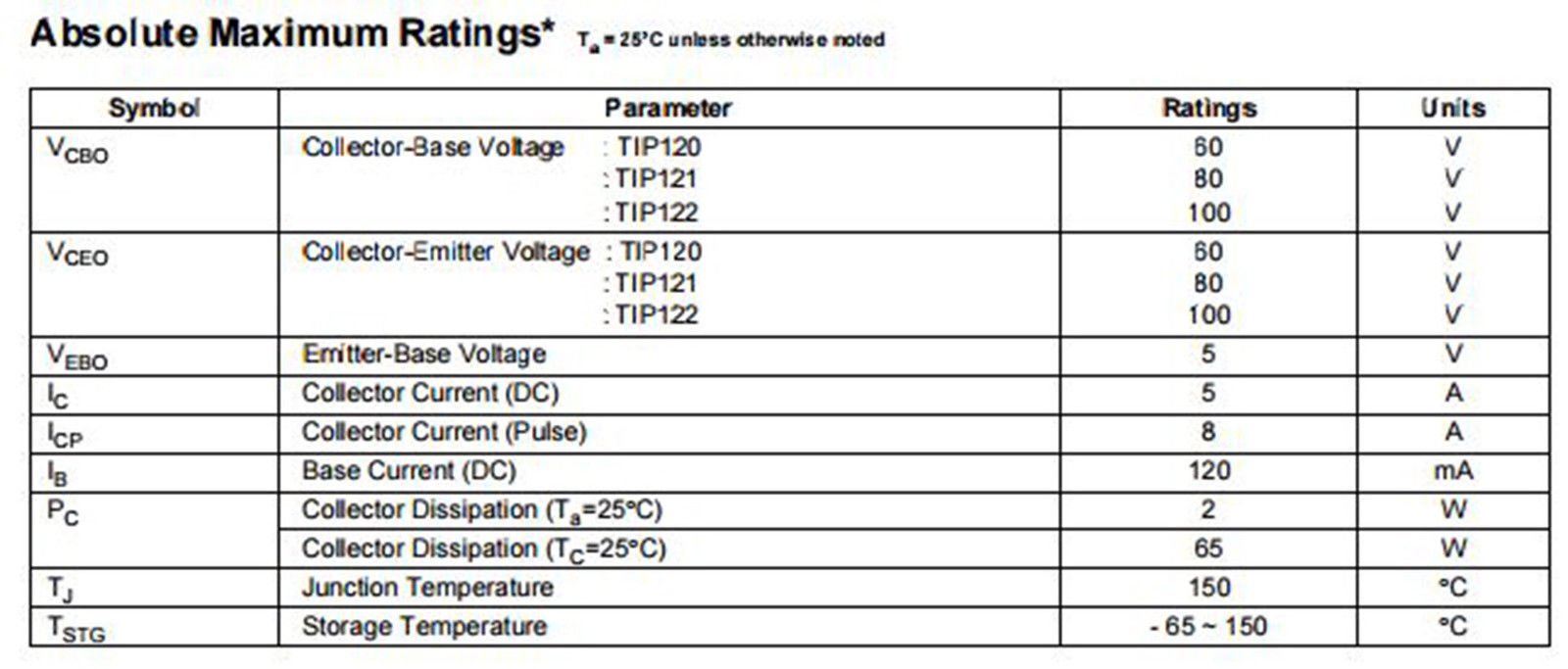

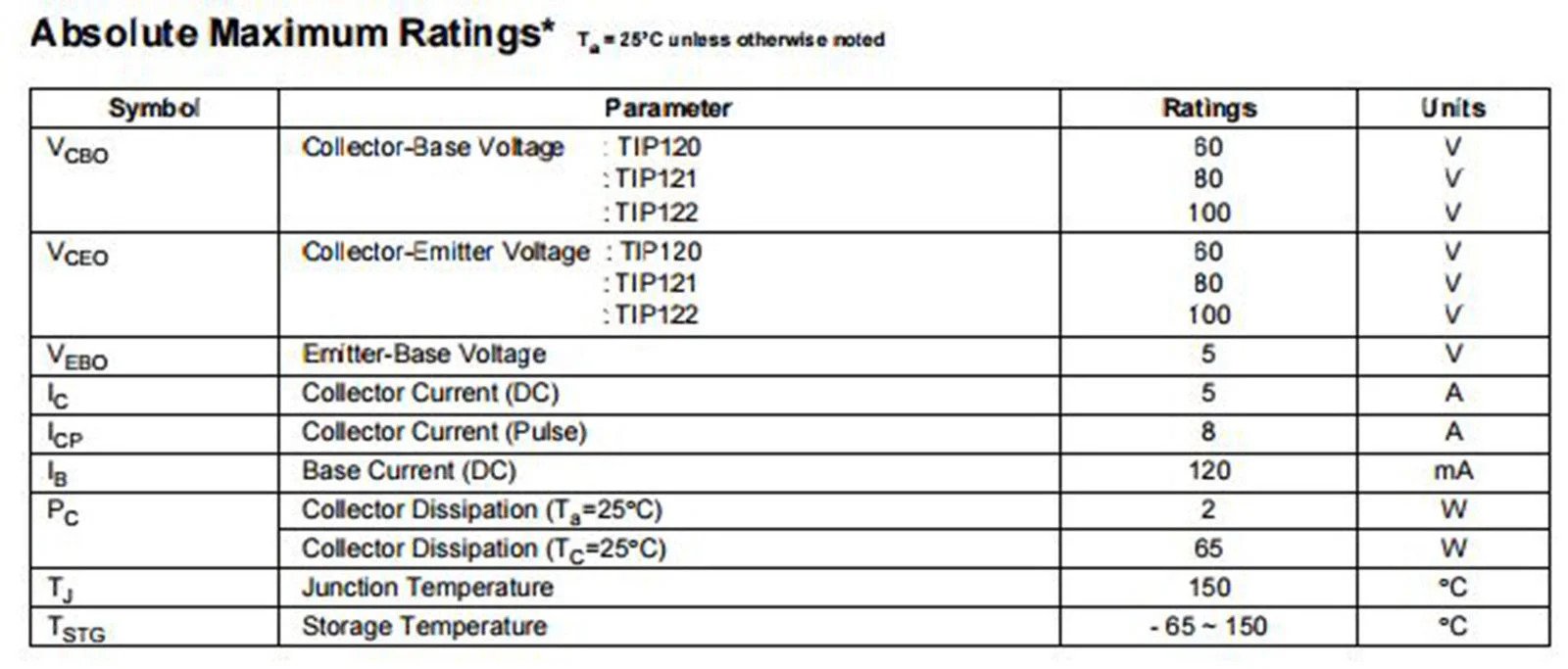

Specifications:
- Collector-Emitter Voltage (Vce): 60V
- Collector Current (Ic): 5A continuous, 8A peak
- DC Current Gain (hFE): ~1000
- Power Dissipation: 65W (max)
- Package Type: TO-220
- Mounting: Through hole
What’s Included:

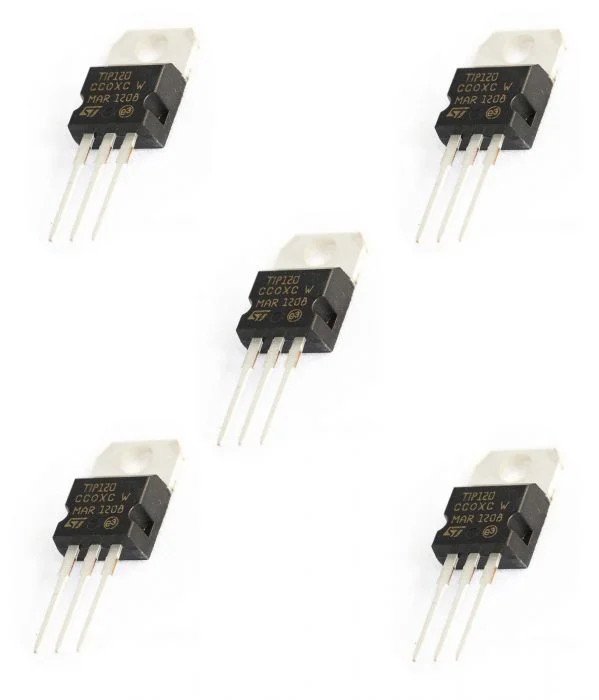

- 5 x TIP120 NPN Darlington Power Transistors
Great For:
- Motor and solenoid control
- Driving high-power LEDs (1W+)
- Signal amplification
- DIY electronics and hobbyist projects
- Arduino / Raspberry Pi interfacing
- Switching power supplies
Usage Tips:
- Use a base resistor when interfacing with microcontrollers
- Ideal for high current switching and amplification
- Requires heatsink for high power use
