Description
At some point, you might run out of GPIO pins on your Arduino or microcontroller this is where the SN74HC595N 8-bit Shift Register comes in handy.
These DIP16 through hole ICs let you control 8 outputs using just a few microcontroller pins.
You can chain multiple registers to extend your outputs for LEDs, displays, and other projects.
The SN74HC595 is a high speed, low power device with high current 3 state outputs, ideal for a wide range of digital electronics applications.
- Product: SN74HC595N 8-bit Shift Register
- Type: DIP16 Through Hole
- Quantity: Pack of 5 ICs
- 8-bit serial-in, serial or parallel-out shift register with output latches
- 16-pin DIP through-hole package for easy prototyping and soldering
- High-current 3-state outputs can drive up to 15 LSTTL loads
- Low power consumption for efficient operation
- Operating voltage range: 2V to 6V (typical 2.5V / 3.3V / 5V)
- Fast propagation delay: 285ns
- Operating temperature range: -55°C to 125°C
- Suitable for extending microcontroller output pins
- Compatible with Arduino, Raspberry Pi, and most microcontrollers
What’s Included:

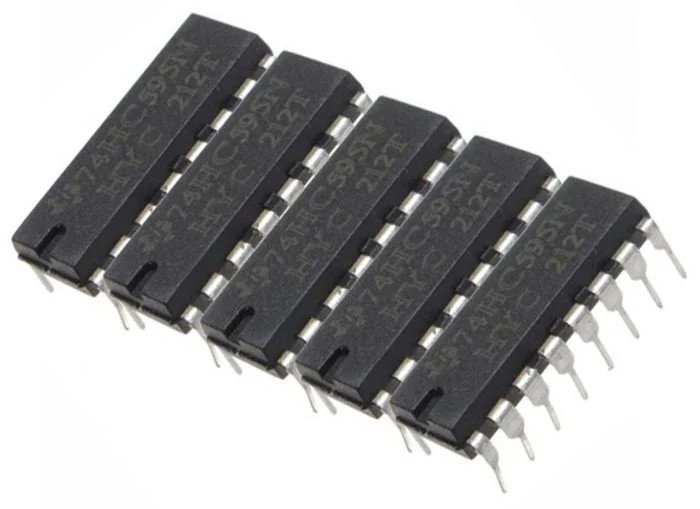

- 5 x SN74HC595N 8-bit Shift Register ICs (DIP16 Through Hole)
Great For:
- Extending digital output pins on Arduino and microcontrollers
- Driving LED matrices, 7-segment displays, and relays
- DIY electronics, robotics, and automation projects
- Efficient control of multiple outputs with minimal pins
- Educational projects and prototyping
Usage Tips:
- Chain multiple ICs for more outputs by connecting serial data and clock pins
- Use appropriate pull-up/pull-down resistors as required in your circuit
- Supply IC with 2V to 6V regulated power source for reliable operation
- Refer to datasheets for timing and latch control details
- Ideal for breadboard prototyping or PCB soldering
