Description

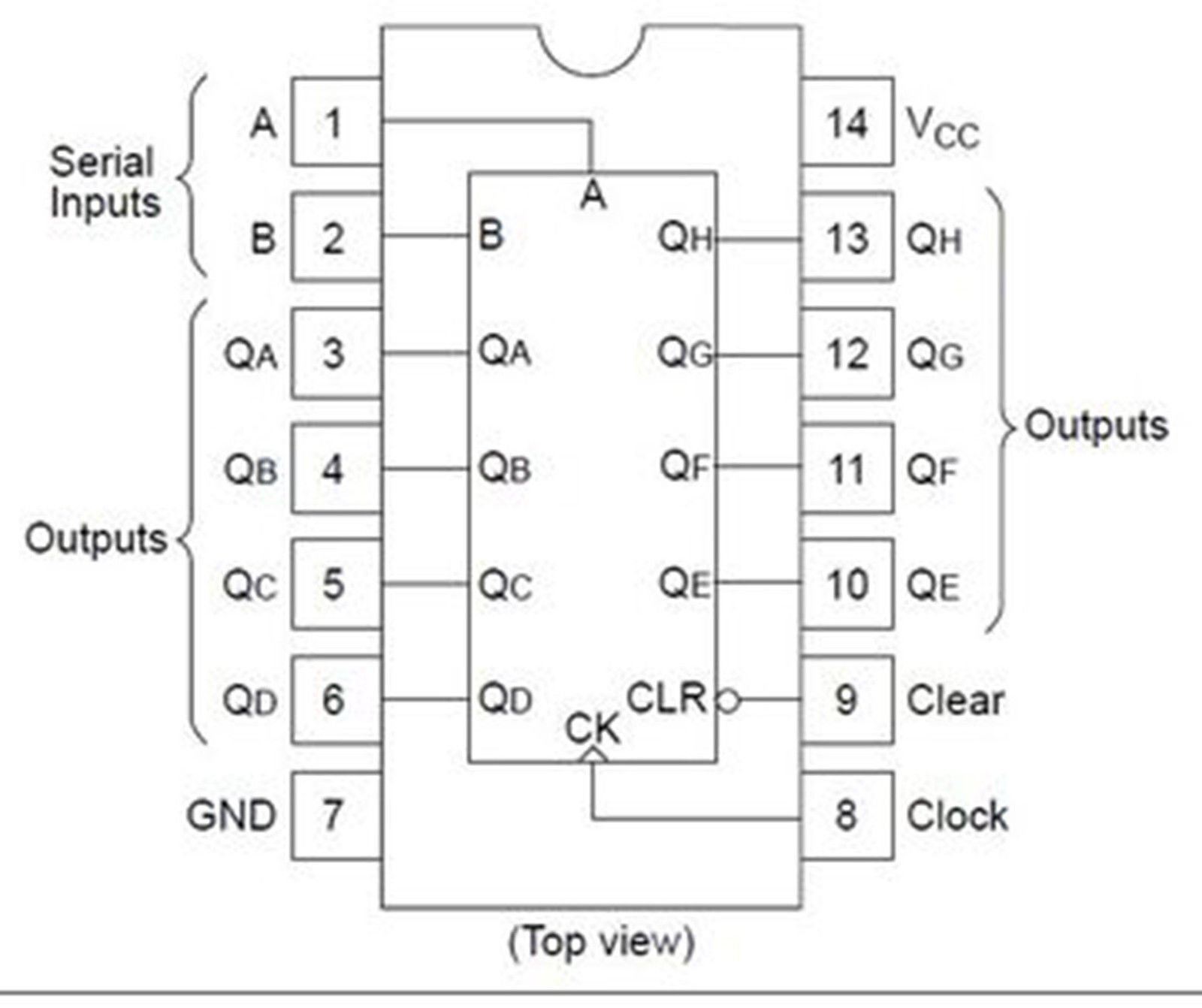

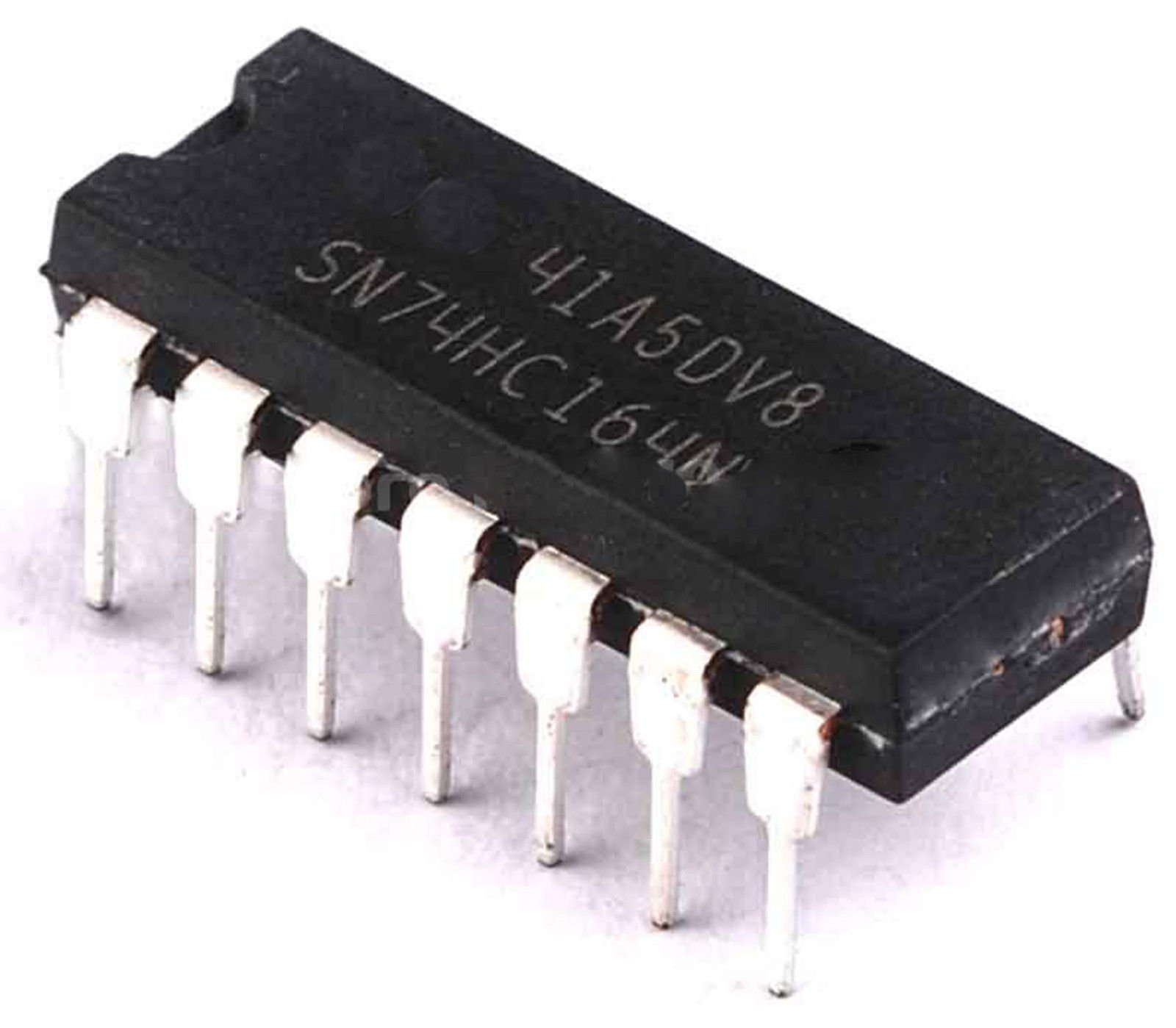

The SN74HC164 DIP14 Through Hole ICs are 8 bit serial in, parallel out shift registers featuring AND gated serial inputs and an asynchronous clear (CLR) input.
These shift registers provide precise control over serial data entry with gated inputs, making them ideal for digital data handling and expansion in microcontroller and logic projects.
- 8-bit serial-in, parallel-out shift register
- AND-gated serial inputs (A and B) for full control of incoming data
- Asynchronous clear (CLR) input for immediate reset
- Clocking on low-to-high transition of CLK
- Data inputs can change while CLK is high or low (with proper setup time)
- Wide operating voltage range: 2V to 6V
- Outputs capable of driving up to 10 LSTTL loads
- Low power consumption: max 80µA
- Fast typical propagation delay: 20ns
- Low input current: max 1µA
- Fully buffered clock and serial inputs
- Package: DIP14 Through Hole
- Technical Specifications:
- Operating Voltage: 2 V to 6 V
- Max Output Drive: ±4mA at 5 V
- Package Type: DIP14 Through Hole
- Low Power Consumption and High-Speed Operation
What’s Included:
- 5 x SN74HC164N 8-bit Serial In / Parallel Out Shift Register ICs (DIP14)
Ideal For:
- Serial-to-parallel data conversion
- Microcontroller interface and I/O expansion
- LED display drivers
- Digital data manipulation in robotics and automation
- Prototyping and educational electronics projects
Usage Tips:
- Use with microcontrollers like Arduino, PIC, or ARM for expanding output pins
- Ensure proper timing of serial inputs and clock for stable operation
- Use CLR input to reset registers instantly in your circuit
- Combine with other shift registers for complex data processing
