Description

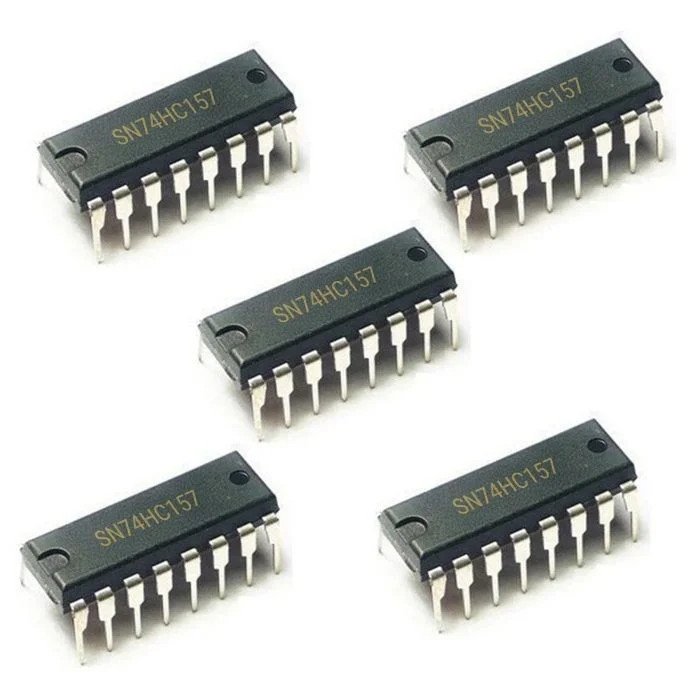

A set of 5 x SN74HC157N High-Speed CMOS Quad Data Selector / Multiplexer ICs in DIP-16 package, ideal for digital logic, data routing, and control applications.
The SN74HC157N contains four independent 2-line to 1-line data selectors, all controlled by a shared address select (A/B) input and strobe (G) input. When the strobe is HIGH, all outputs are forced LOW.
Perfect for repairs, prototyping, education, and DIY electronics projects.
- Product: SN74HC157N Quad Data Selector / Multiplexer IC
- Type: Quadruple 2-Line to 1-Line Multiplexer
- Package: DIP-16 (Through-Hole)
- Logic Family: HC (High-Speed CMOS)
- Quantity: Pack of 5 ICs
Features:
- Standard SN74HC157N logic IC
- Four independent 2:1 data selectors
- Common address select (A/B) input for all channels
- Strobe (G) input to enable or disable outputs
- Strobe HIGH forces all outputs LOW
- Wide operating voltage range: 2V to 6V
- Low power consumption – 80µA max ICC
- Typical propagation delay: 11ns
- ±6mA output drive at 5V
- Outputs can drive up to 15 LSTTL loads
- Low input current – 1µA max
What’s Included:
- 5 x SN74HC157N DIP-16 Quad Data Selector / Multiplexer ICs
Great For:
- Data routing and selection circuits
- Multiplexing parallel data lines
- Digital logic and control systems
- Microcontroller and processor interfacing
- Repairs, replacements, and upgrades
- Educational and training use
Usage Tips:
- Ensure strobe (G) is LOW for normal operation
- All channels share the same select and strobe inputs
- Observe correct IC orientation when installing
- Refer to the SN74HC157N datasheet for full electrical and timing details
