Description

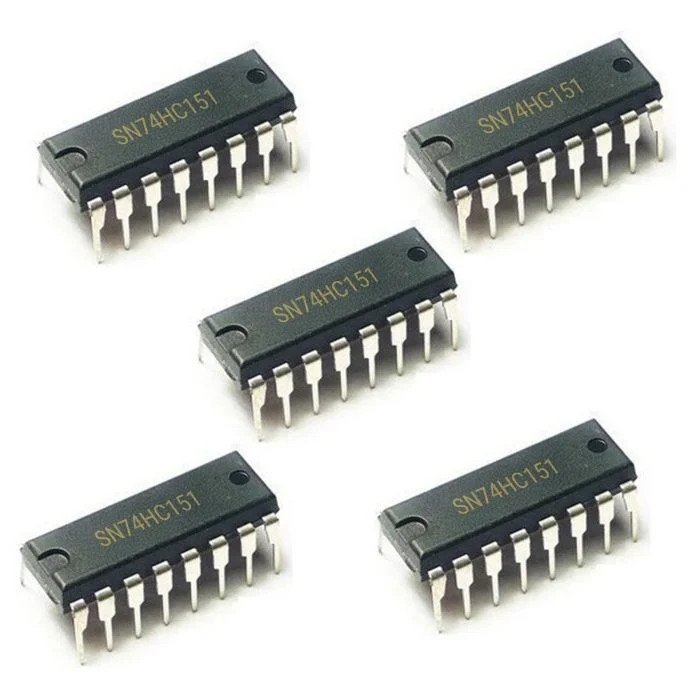

A set of 5 x SN74HC151N High-Speed CMOS Data Selector / Multiplexer ICs in DIP-16 package, ideal for digital logic, data routing, and control applications.
The SN74HC151N provides full binary decoding to select one of eight data inputs. A strobe (G) input enables or disables the device — when G is LOW, the selected input is passed through; when G is HIGH, the standard output (Y) is forced LOW and the inverted output (W) is forced HIGH.
Perfect for repairs, prototyping, education, and DIY electronics projects.
- Product: SN74HC151N Data Selector / Multiplexer IC
- Type: 8-Line to 1-Line Multiplexer
- Package: DIP-16 (Through-Hole)
- Logic Family: HC (High-Speed CMOS)
- Quantity: Pack of 5 ICs
Features:
- Standard SN74HC151N logic IC
- 8 data inputs with 1 selected output
- Full binary decoding of input select lines
- Strobe (G) input for device enable/disable
- Standard output (Y) and inverted output (W)
- Wide operating voltage range: 2V to 6V
- Low power consumption – 80µA max ICC
- Typical propagation delay: 13ns
- ±6mA output drive at 5V
- Outputs can drive up to 10 LSTTL loads
- Low input current – 1µA max
What’s Included:
- 5 x SN74HC151N DIP-16 Data Selector / Multiplexer ICs
Great For:
- Data source selection
- Boolean-function generation
- Parallel-to-serial conversion
- Digital logic and control circuits
- Microcontroller and processor interfacing
- Repairs, replacements, and educational use
Usage Tips:
- Ensure strobe (G) is LOW to enable normal operation
- Use pull-up resistors where required
- Observe correct IC orientation when installing
- Refer to the SN74HC151N datasheet for full timing and electrical specifications
