Description
5 x SN74HC139 Dual 2-Line to 4-Line Decoder/Demultiplexer IC in DIP-16 package, designed for digital logic, address decoding, and general-purpose electronics projects.
The SN74HC139 contains two independent 2-to-4 decoders, each with an active LOW enable (strobe) input. When the strobe input disables a channel, all outputs are forced HIGH. When enabled, only the selected output goes LOW while the remaining outputs stay HIGH.
Ideal for logic expansion, memory addressing, and DIY electronics builds.
- Product: SN74HC139 Dual 2-to-4 Line Decoder/Demultiplexer IC
- Type: CMOS Logic IC – DIP-16 Through-Hole
- Quantity: 1 IC
- Standard SN74HC139 logic IC
- Dual 2-line to 4-line decoding / demultiplexing
- Two independent decoder channels
- Active LOW outputs
- Active LOW enable (strobe) input per channel
- DIP-16 package – breadboard friendly
- High-speed CMOS logic
- Low power consumption
- Compatible with 5V logic systems
What’s Included:

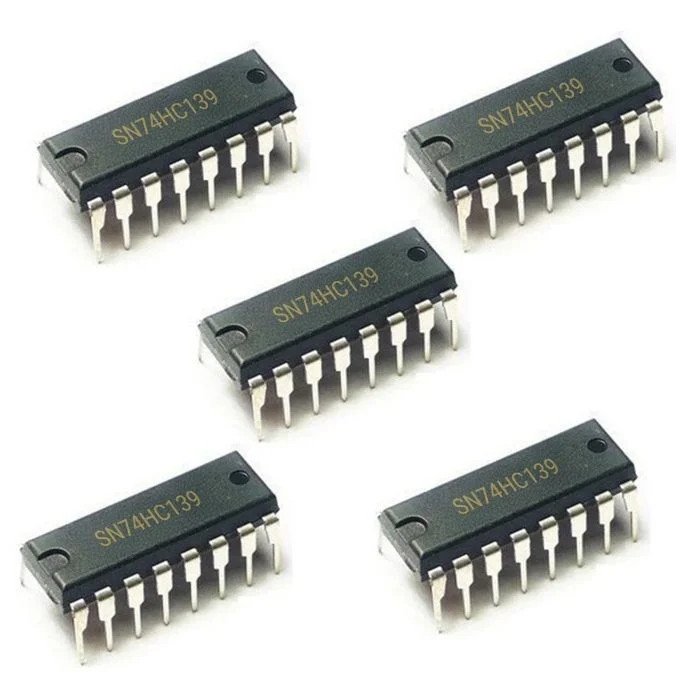

- 5 x SN74HC139 DIP-16 Dual Decoder/Demultiplexer IC
Great For:
- Address decoding in microcontroller systems
- Digital logic and TTL/CMOS circuits
- Memory and I/O expansion
- Arduino, Raspberry Pi, and MCU projects
- Electronics repair and prototyping
- DIY and educational electronics
Usage Tips:
- Designed for 5V logic applications
- Observe correct pin orientation when installing
- Use decoupling capacitors for stable operation
- Ideal for breadboards and PCB designs
