Description
The SN74HC08N contains four independent 2-input AND gates.
Each gate performs the Boolean logic function Y = A • B (logical AND) and is ideal for a wide range of digital electronics projects.
These robust DIP14 ICs are perfect for prototyping with breadboards or integrating into through hole PCBs for reliable logic-level control.
- Logic Function: Quad 2 Input AND Gates
- IC Model: SN74HC08N

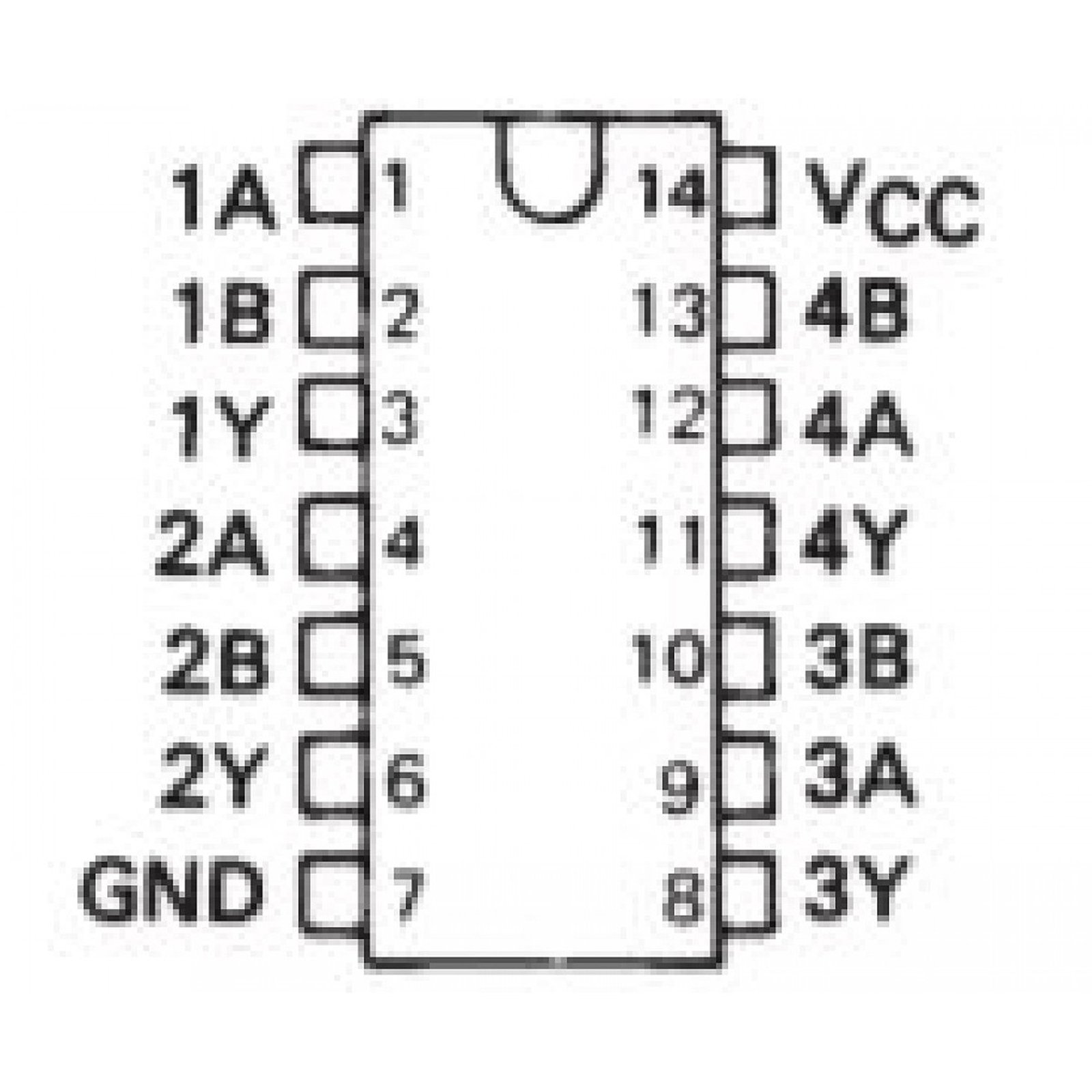

- Package Type: DIP14 – Dual In-Line Through Hole
- Operating Voltage Range: 2V to 6V
- Fast Switching: Typical Propagation Delay ~8 ns
- Low Power Consumption: Max ICC = 20 µA
- High Fan-Out: Supports 10 LSTTL Loads
- Output Drive Capability: ±4 mA at 5V
- Low Input Leakage Current: Max 1 µA
- Standard 2.54mm Pin Pitch – Breadboard Friendly

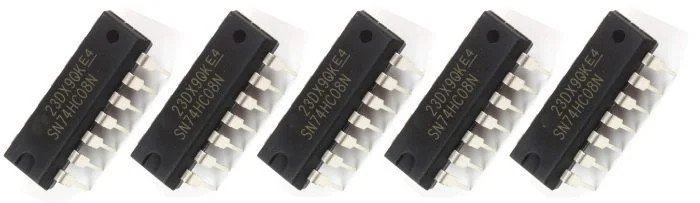

- Quantity: 5 x ICs per pack
What’s Included:
- 5 x SN74HC08N Logic Gate ICs – DIP14
Ideal For:
- Digital Logic Projects
- Microcontroller & Arduino Interfaces
- Signal Processing & Control Logic
- DIY Electronics & Circuit Design
- Educational STEM Kits & Prototyping
Usage Tips:
- Ideal for use in 3.3V or 5V logic systems
- Can be used to condition digital inputs or generate logic level outputs
- Compatible with breadboards and stripboards
- Combine with other logic ICs for complex digital designs
