Description
This pack of five NE5532 SOP8 surface mount operational amplifiers delivers excellent audio performance with ultra low noise and distortion.
Designed for high fidelity applications, these dual op amps are ideal for preamps, EQs, filters, headphone amps, and professional audio gear.
With a typical equivalent input noise voltage of just 5 nV/√Hz at 1kHz, the NE5532 ensures clean, low noise amplification across the audio spectrum.
Its high slew rate, wide bandwidth, and robust output drive capability make it suitable for both AC and DC coupled designs.
- Type: Dual Low-Noise Operational Amplifier
- Package: SOP8 Surface Mount
- Unity-Gain Bandwidth: 10 MHz (Typ)
- Input Noise Voltage: 5 nV/√Hz (Typ @ 1kHz)
- DC Voltage Gain: 100 V/mV (Typ)
- CMRR (Common-Mode Rejection Ratio): 100 dB (Typ)
- Slew Rate: 9 V/μs (Typ)
- Output Swing: 26V P-P (Typ with ±15V Supply, 600Ω Load)
- Protection: Input protection diodes & output short-circuit protection
- Internal Compensation: Yes – stable for unity gain
What’s Included:

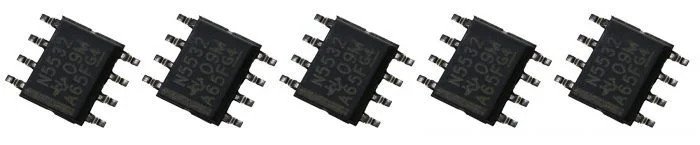

- 5 x NE5532 SOP8 Dual Low-Noise Audio Operational Amplifier ICs
Great For:
- Audio Preamplifiers & Mixers
- Headphone Amplifiers
- Active Filters & Equalisers
- Signal Buffers & Audio Interfaces
- DIY Hi-Fi & Studio Equipment
- Instrumentation & Analog Signal Processing
Usage Tips:
- Use a well-regulated ±15V supply for full output swing
- Add bypass capacitors close to supply pins for stability
- Suitable for dual or single-supply operation (with virtual ground)
- Match with low-noise resistors and layout for best audio performance
