Description
The MAX485CPA is a low power, high speed transceiver for RS-485 and RS-422 communication.
Designed for reliable data transmission over long distances and in noisy environments, this IC is perfect for industrial networks, Modbus systems, and multi device serial communication.
Compact and easy to integrate, this DIP8 through hole package is ideal for breadboard prototyping and DIY electronics projects.
- Model: MAX485CPA
- Function: RS-485 / RS-422 Transceiver
- Package: DIP-8 – Dual In-Line Package (Through Hole)
- Low Power Consumption: 300 µA (typical)
- Data Rate: Up to 2.5 Mbps
- Supply Voltage: 5V DC
- Receiver/Driver Enable Pins for Easy Control
- Receiver Input Range: -7V to +12V
- Common-mode Range: -7V to +12V
- Fail-safe Receiver Design
- Short-Circuit Protection on Driver Outputs
- Breadboard & Stripboard Friendly (2.54mm Pitch)
- Quantity: 5 x ICs
What’s Included:

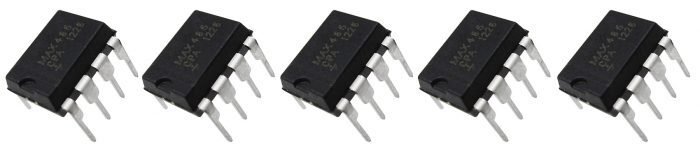

- 5 x MAX485CPA RS-485/RS-422 Transceiver ICs (DIP8)
Great For:
- RS-485 / RS-422 Communication Projects
- Arduino, ESP32, Raspberry Pi Serial Networks
- Modbus & Industrial Automation Systems
- Long-Distance Data Transmission
- Master/Slave Device Communication
- DIY Projects & Electronics Learning
Usage Tips:
- Connect to microcontrollers for multi-drop serial networks
- Use with twisted pair cable for robust communication
- Ideal for environments with electrical noise
- Can be used to connect multiple Arduino boards over RS-485
