Description
A pack of 5 low profile IC sockets designed for dual-in-line (DIL) ICs with a standard 0.1″ pin spacing and 0.3″ (7.62mm) row separation.

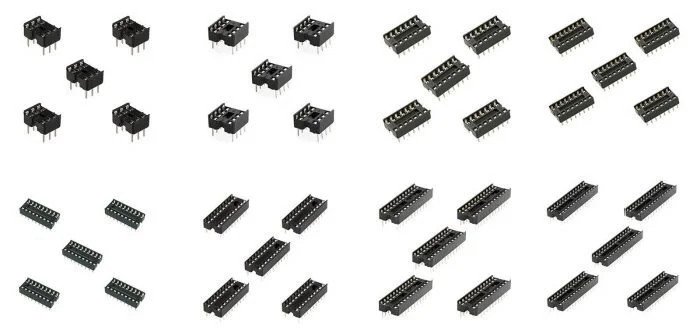

Available in a range of sizes (6, 8, 14, 16, 18, 20, 24, and 28 pin), these sockets are ideal for prototyping, circuit protection, and repair work.
- Product: PCB Low Profile DIL IC Socket
- Type: Dual-In-Line (DIL), 0.3″ Narrow Body
- Pitch: 2.54mm (0.1″)
- Row Spacing: 7.62mm (0.3″)
- Quantity: Set of 5 (Choose Pin Count)
- Tin-plated copper alloy leaf spring contacts
- Black thermoplastic insulator body
- Chamfered side walls for easy insertion
- Indented end for correct polarity alignment
- Low profile – only 4.8mm height above PCB
- Suitable for stacking or extending uncommon IC sizes
- PCB hole required: 0.6mm diameter
What’s Included:

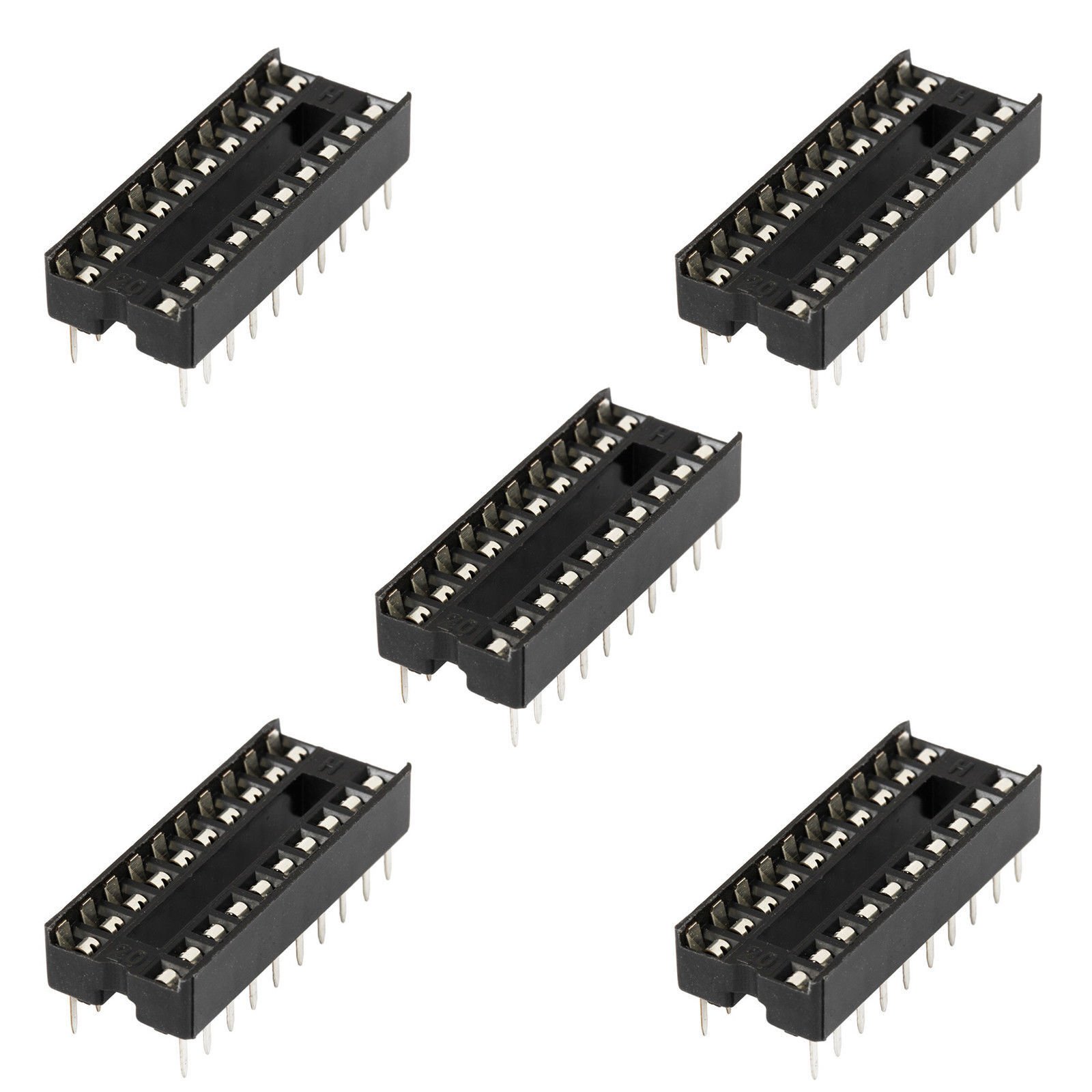

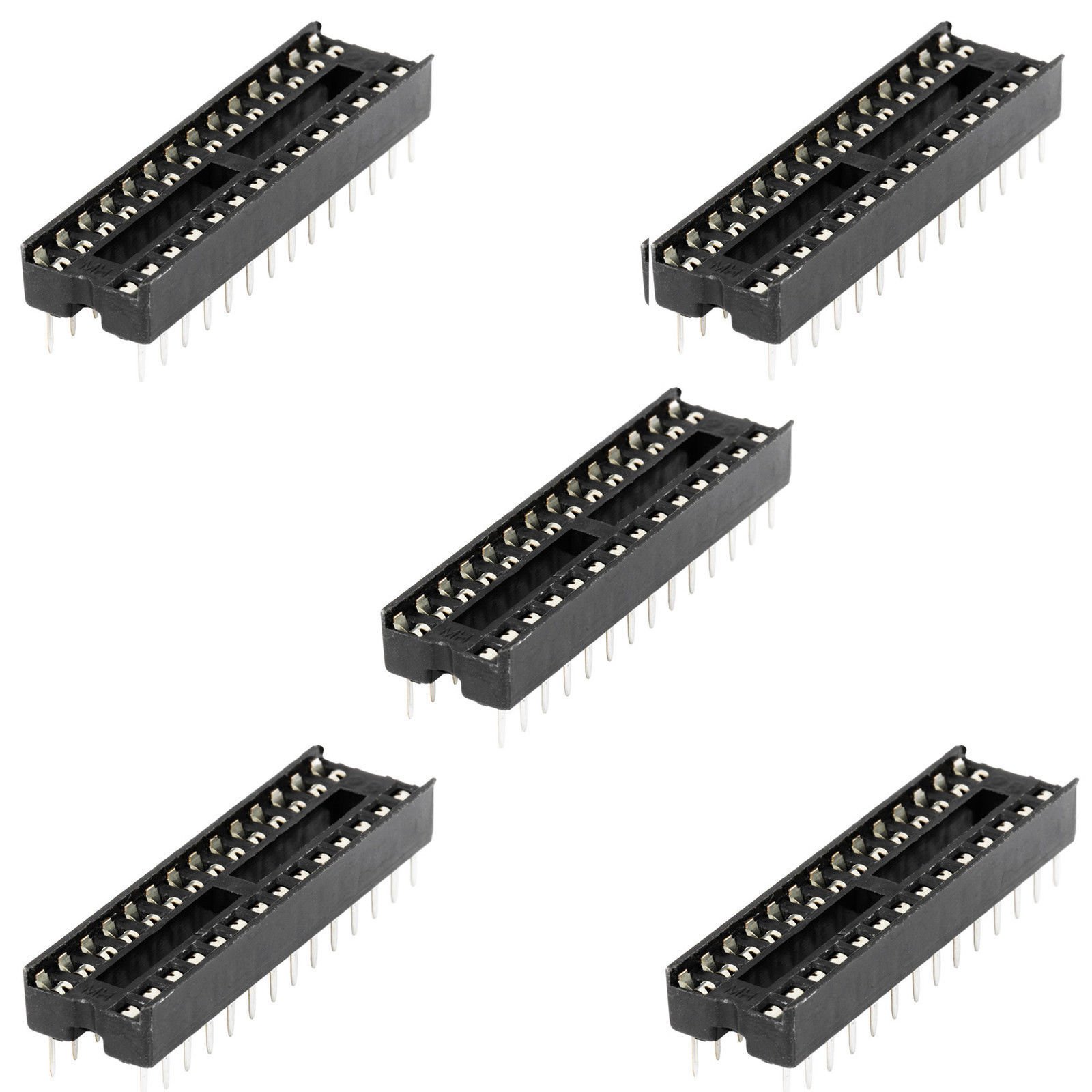

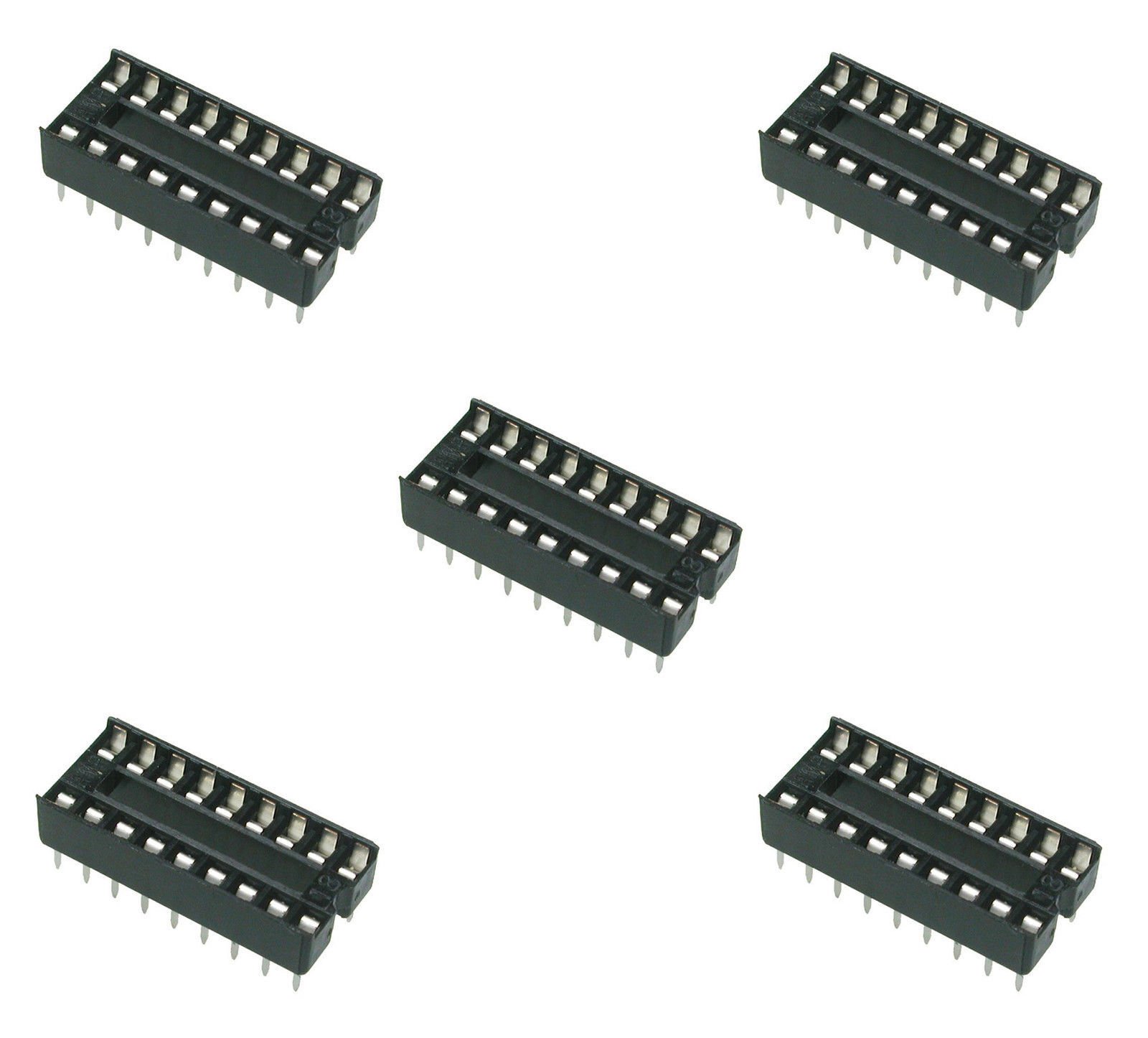

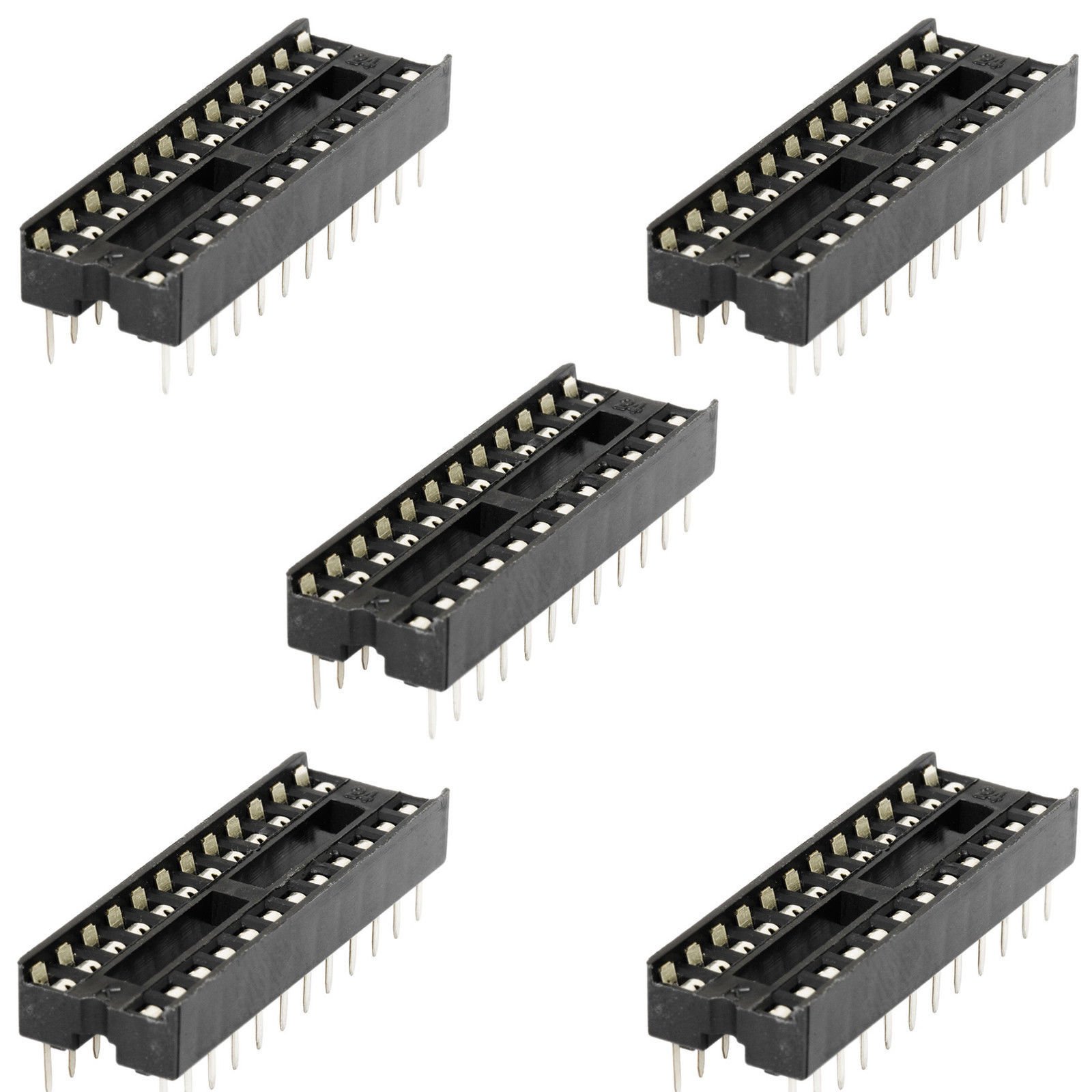

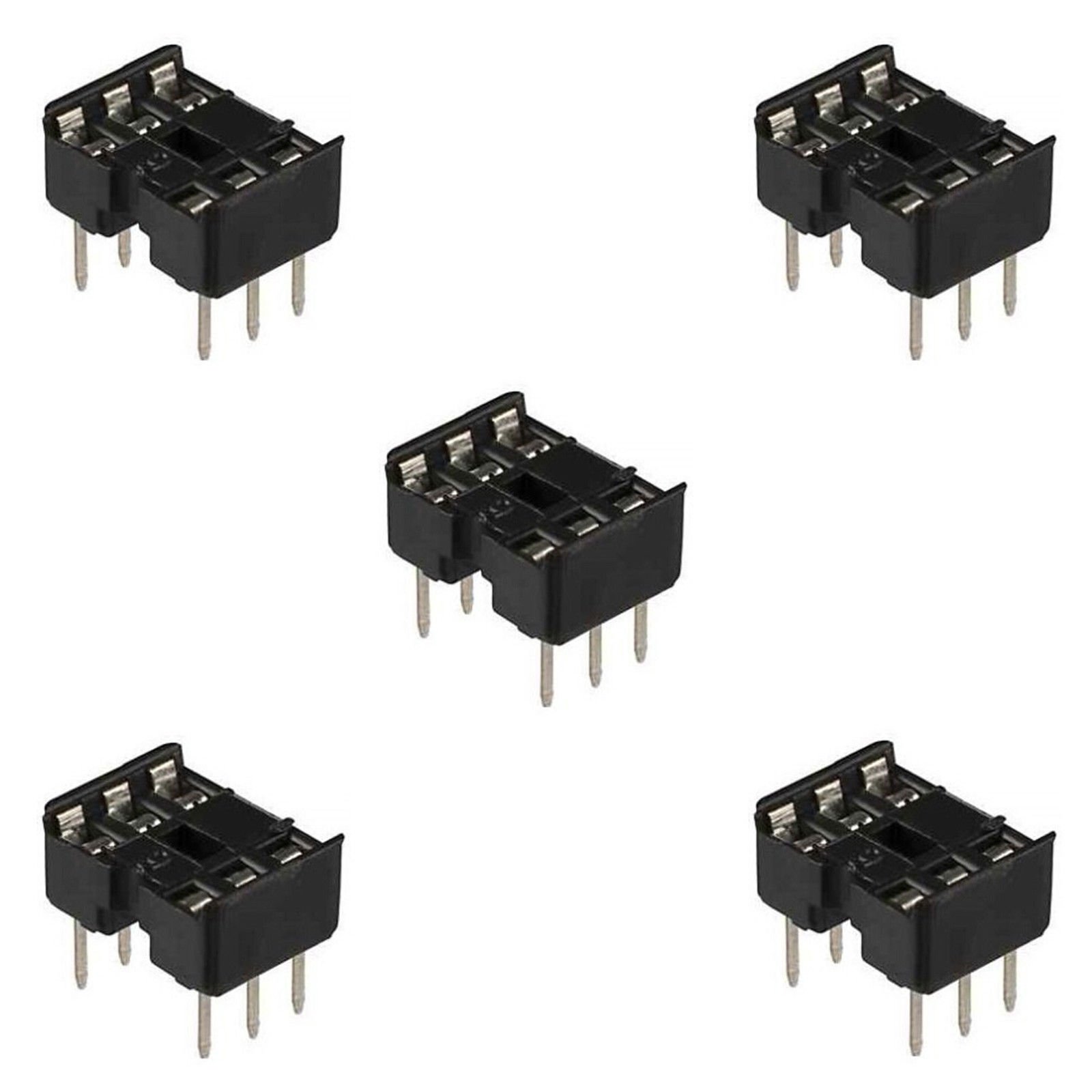

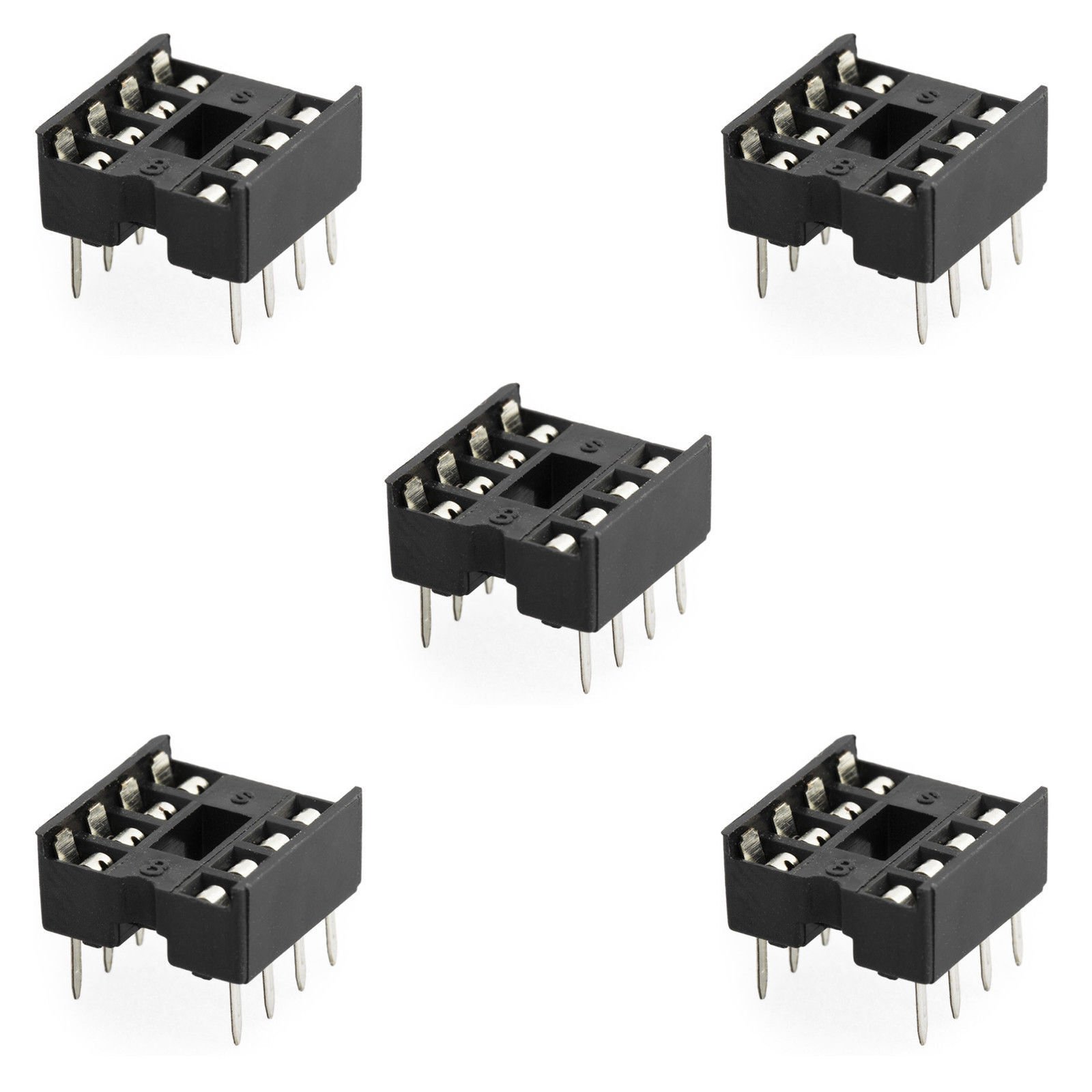

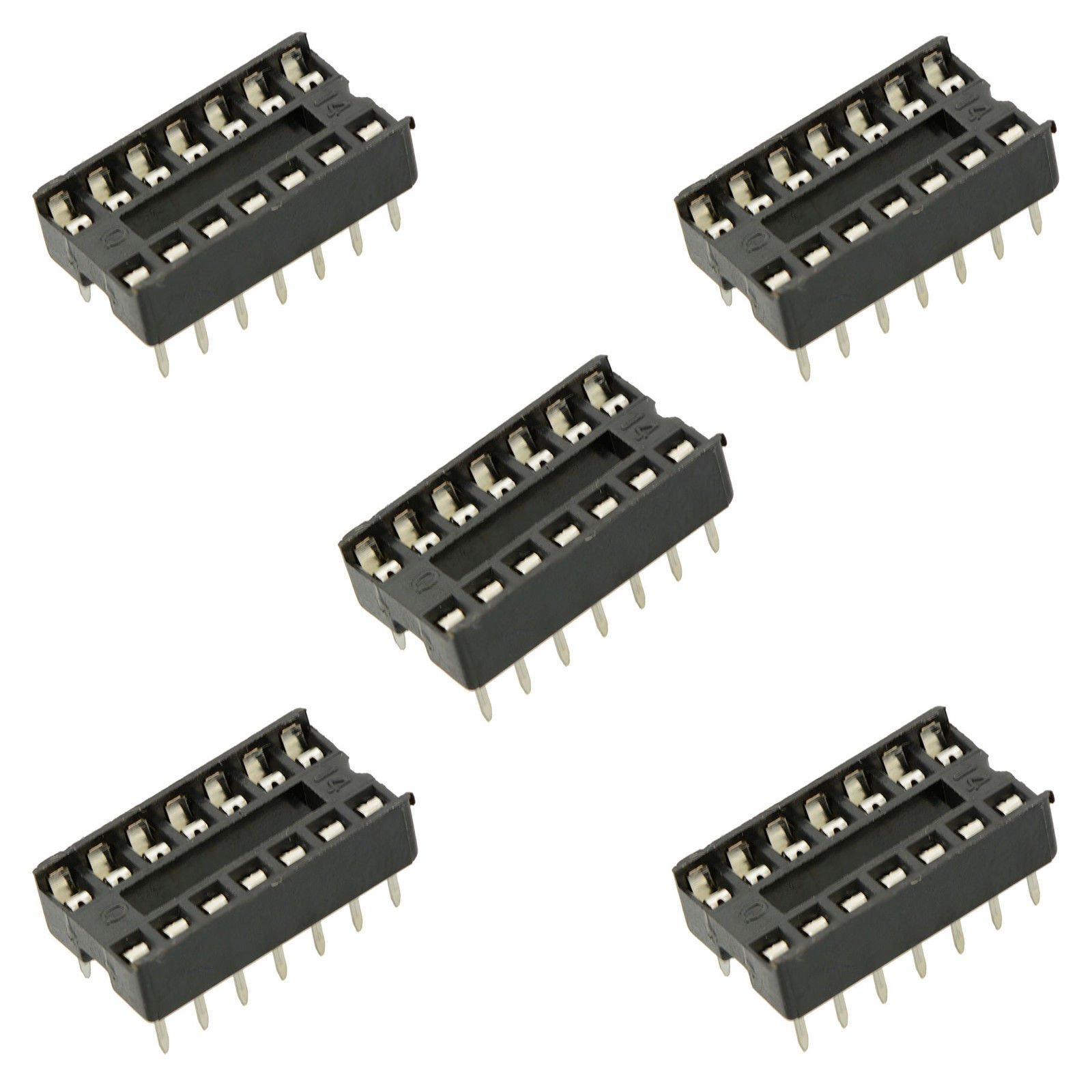

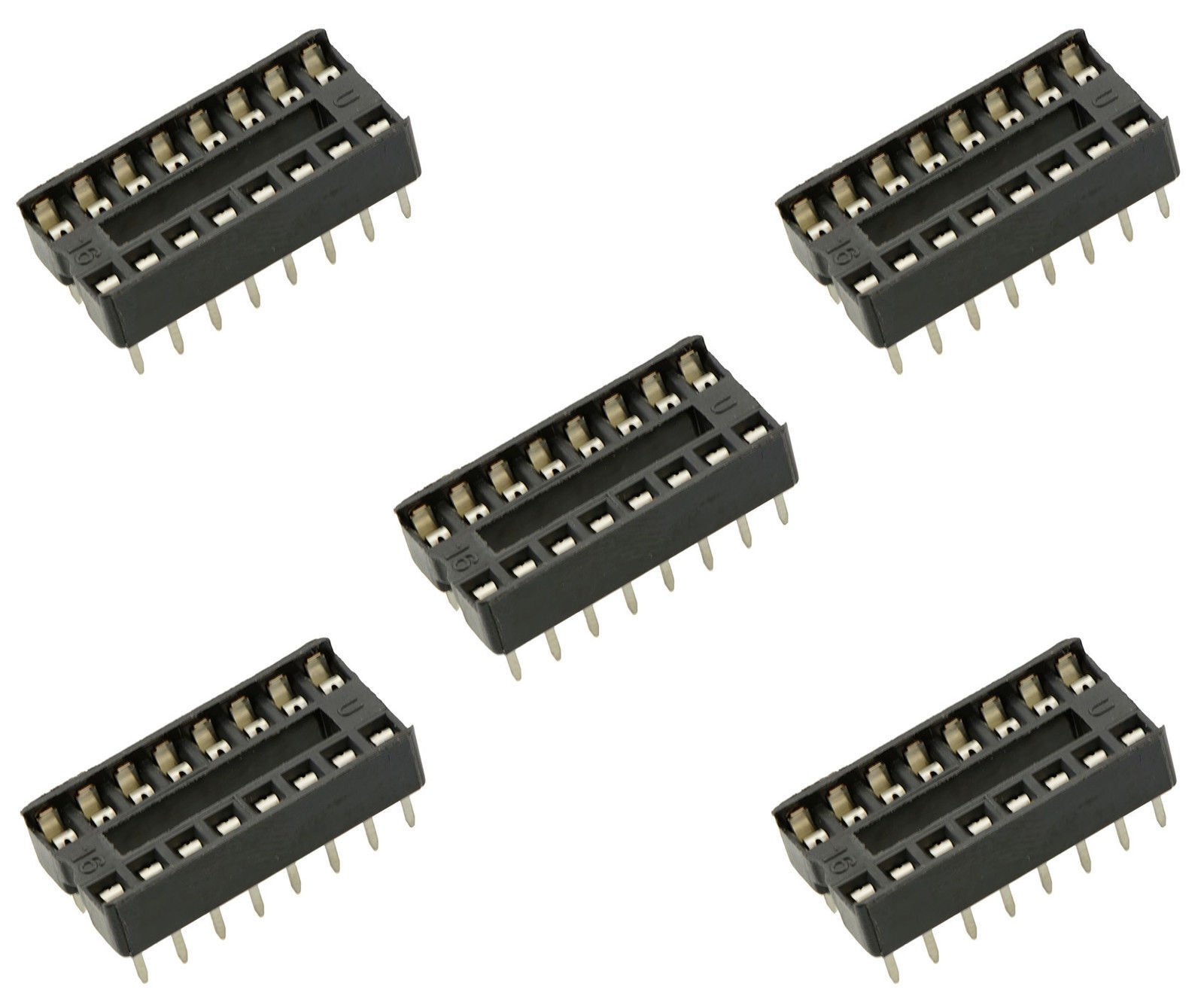

- 5 x Low Profile DIL IC Sockets (Choose from 6, 8, 14, 16, 18, 20, 24, or 28 Pin)
Great For:
- Protecting ICs from heat during soldering
- Easy IC replacement and swapping
- Repairing or restoring vintage electronics
- Custom PCB and prototyping builds
Usage Tips:
- Align indented end with IC pin 1
- Ensure correct spacing and polarity
- Stack end-to-end to build custom lengths
