Description

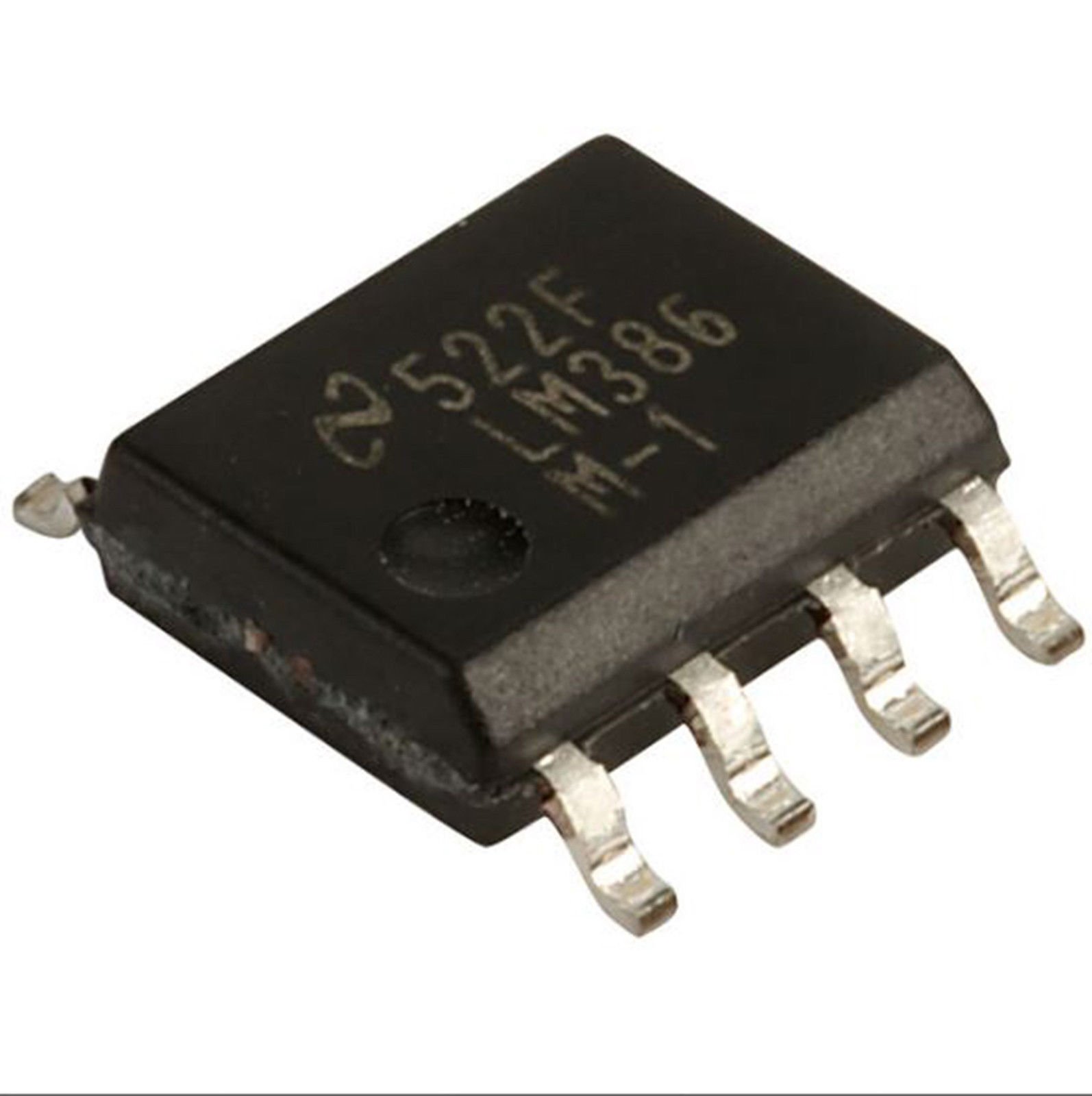

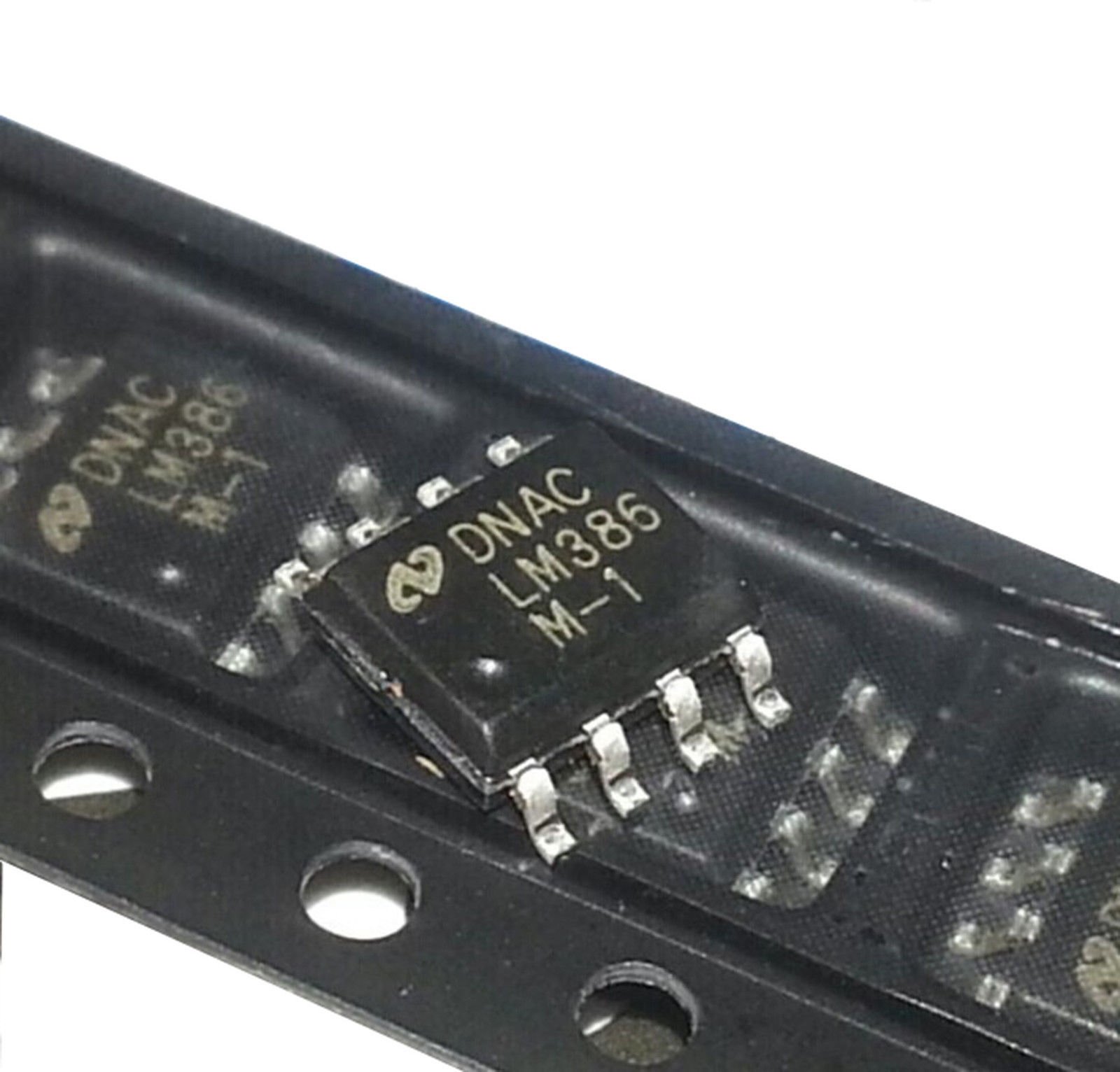

A pack of 5 x LM386M SOP8 surface mount audio power amplifier ICs, perfect for compact and low voltage audio applications.
These reliable ICs are ideal for use in AM/FM radios, intercoms, portable audio systems, and DIY sound projects.
With up to 325mW output power, the LM386M operates on a supply voltage range from 4V to 12V, making it perfect for battery-powered and embedded systems.
- Product: LM386M Audio Amplifier IC
- Package Type: SOP8 (Surface Mount)
- Output Power: 325mW @ 8Ω load
- Supply Voltage Range: 4V to 12V
- Quantity: 5 Pieces
- Low voltage audio power amplifier IC
- Output power: 325mW with 8-ohm load
- Wide supply voltage: 4V to 12V
- Compact SOP8 (SOIC-8) surface mount package
- Low total harmonic distortion
- Operates in temperature range: 0°C to +70°C
- Minimal external components required
What’s Included:

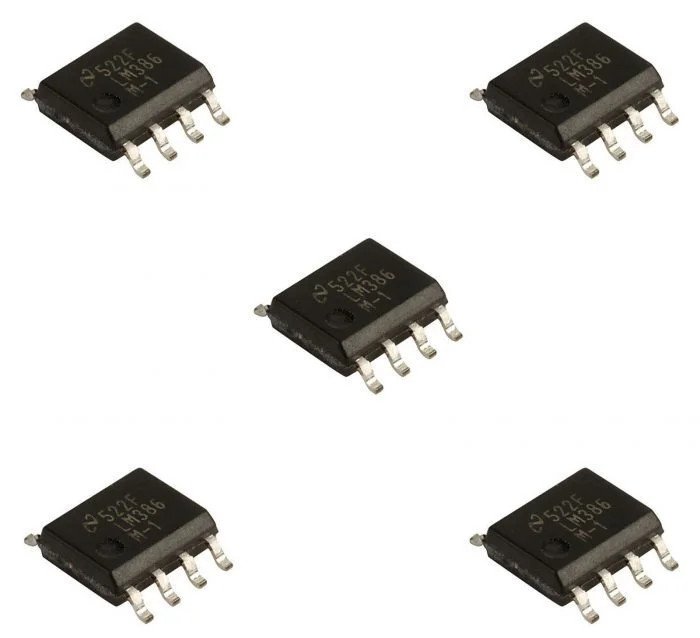

- 5 x LM386M SOP8 Surface Mount Audio Amplifier ICs
Great For:
- AM/FM radios and portable audio players
- Intercom systems and DIY audio amps
- Line drivers and ultrasonic drivers
- Sound output in embedded electronics projects
- Compact amplifier modules and audio experiments
Usage Tips:
- Ideal for surface mount PCBs and compact circuit designs
- Requires minimal external components for operation
- Ensure proper heat dissipation for consistent performance
- Suitable for both audio signal boost and small speaker driving
