Description

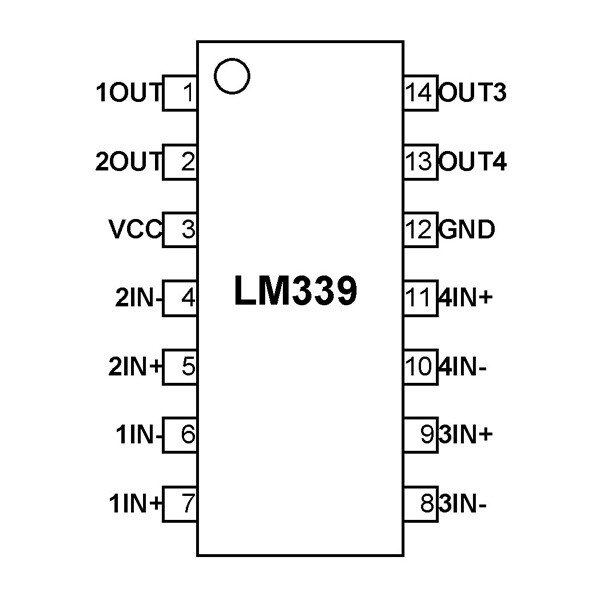

The LM339 SOP14 surface mount device features four independent voltage comparators designed to operate from a single power supply over a wide voltage range.
Ideal for precision voltage comparison tasks, the LM339 offers low power consumption and versatile output compatibility.
- Package: SOP14 Surface Mount
- Number of Comparators: 4 (Quad)
- Single Supply Voltage: 2 V to 36 V
- Dual Supply Voltage: ±1 V to ±18 V
- Low Input Bias Current: 25 nA (Typical)
- Low Input Offset Current: 3 nA
- Low Input Offset Voltage: 2 mV
- Low Output Saturation Voltage
- Output Compatibility: TTL, MOS, and CMOS
What’s Included:
- 5x LM339 SOP14 Quad Differential Comparator ICs
Great For:
- Precision voltage comparison in circuits
- Sensor interfacing and signal conditioning
- Analog-to-digital conversion support
- Threshold detection and level sensing
- Use in microcontroller and embedded system projects
Usage Tips:
- Operates efficiently from a single power supply for simplicity
- Outputs can be wired together for logic AND configurations
- Suitable for a wide range of voltage levels and logic families
- Ideal for DIY electronics, robotics, and industrial applications
