Description

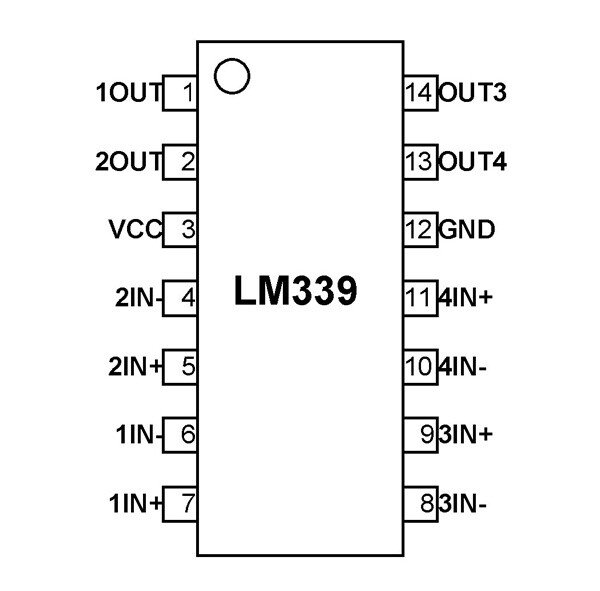

The LM339 DIP14 through hole device contains four independent voltage comparators designed to operate from a single power supply across a wide voltage range.
Known for low power consumption and flexible output configurations, this comparator IC is perfect for various analog signal processing applications.
- Package: DIP14 Through Hole
- Number of Comparators: 4 (Quad)
- Single Supply Voltage: 2 V to 36 V
- Dual Supply Voltage: ±1 V to ±18 V
- Low Input Bias Current: 25 nA (Typical)
- Low Input Offset Current: 3 nA
- Low Input Offset Voltage: 2 mV
- Low Output Saturation Voltage
- Output Compatibility: TTL, MOS, and CMOS
Includes:

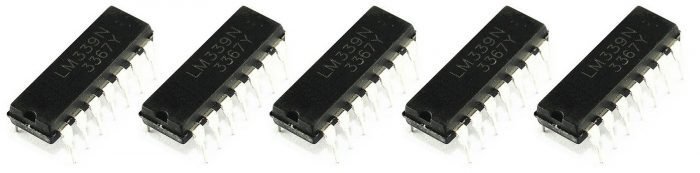

- 5x LM339 DIP14 Quad Differential Comparator ICs
Ideal For:
- Voltage comparison and threshold detection
- Sensor signal conditioning
- Analog-to-digital interface circuits
- Logic AND wiring using open collector outputs
- Embedded system and DIY electronics projects
Notes:
- Can operate from a single supply for simplified designs
- Open-collector outputs allow wired-AND connections
- Suitable for use with a broad range of logic families
- Through hole package for easy breadboarding and prototyping
