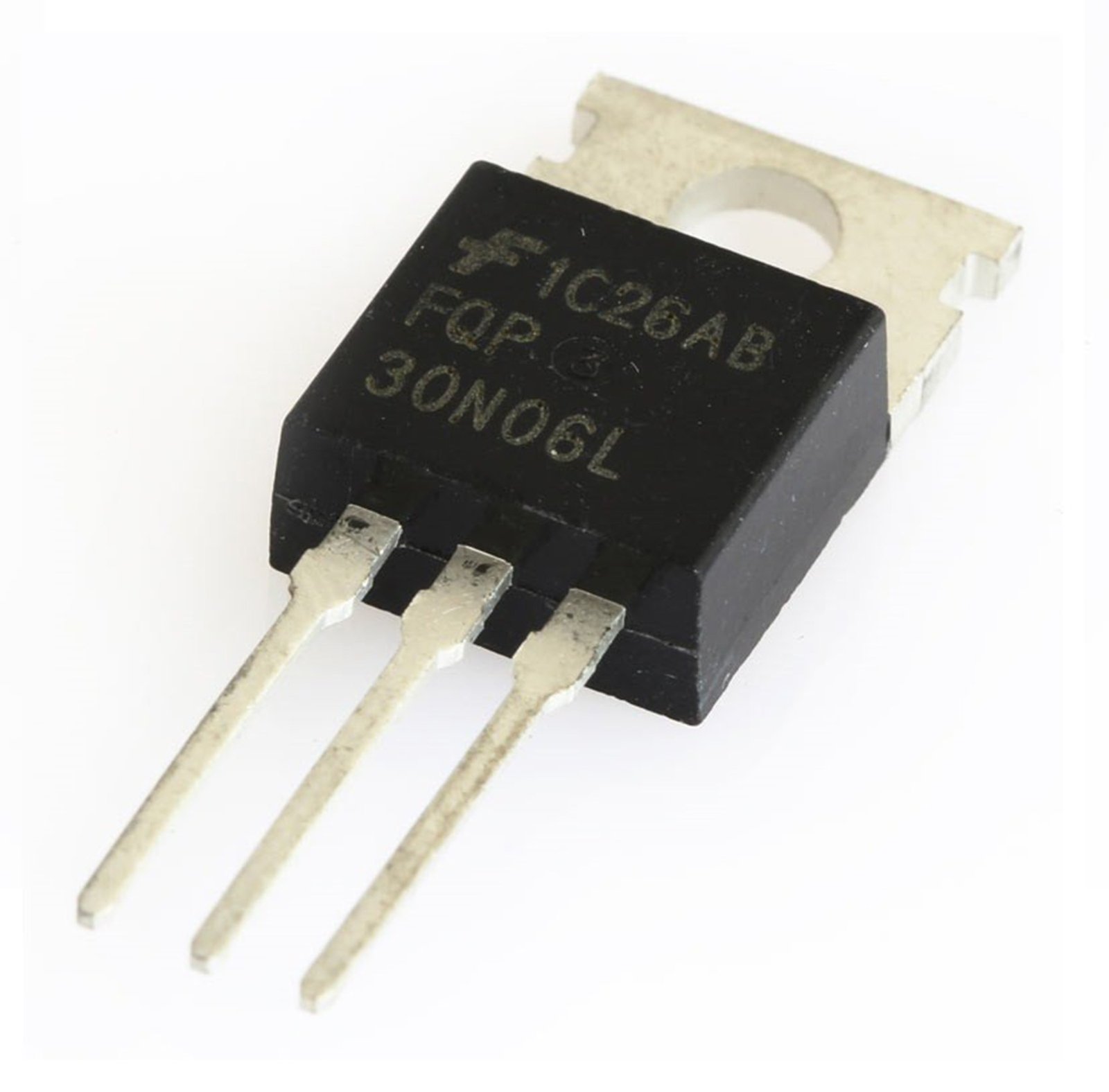

5 x FQP30N06L 60V Logic Level N-Channel Power MOSFET TO-220 Transistors

Description

These FQP30N06L logic-level N-Channel enhancement mode MOSFETs are ideal for switching and amplification tasks in DIY electronics, automation, and power control circuits.

With gate voltages in the 3 to 5V range, they can be fully switched on directly by microcontrollers such as Arduino, ESP32, Raspberry Pi, and other logic-level devices no external driver needed.

Built using advanced planar stripe and DMOS technology, these power MOSFETs offer low RDS(on), fast switching, and high avalanche energy capability.

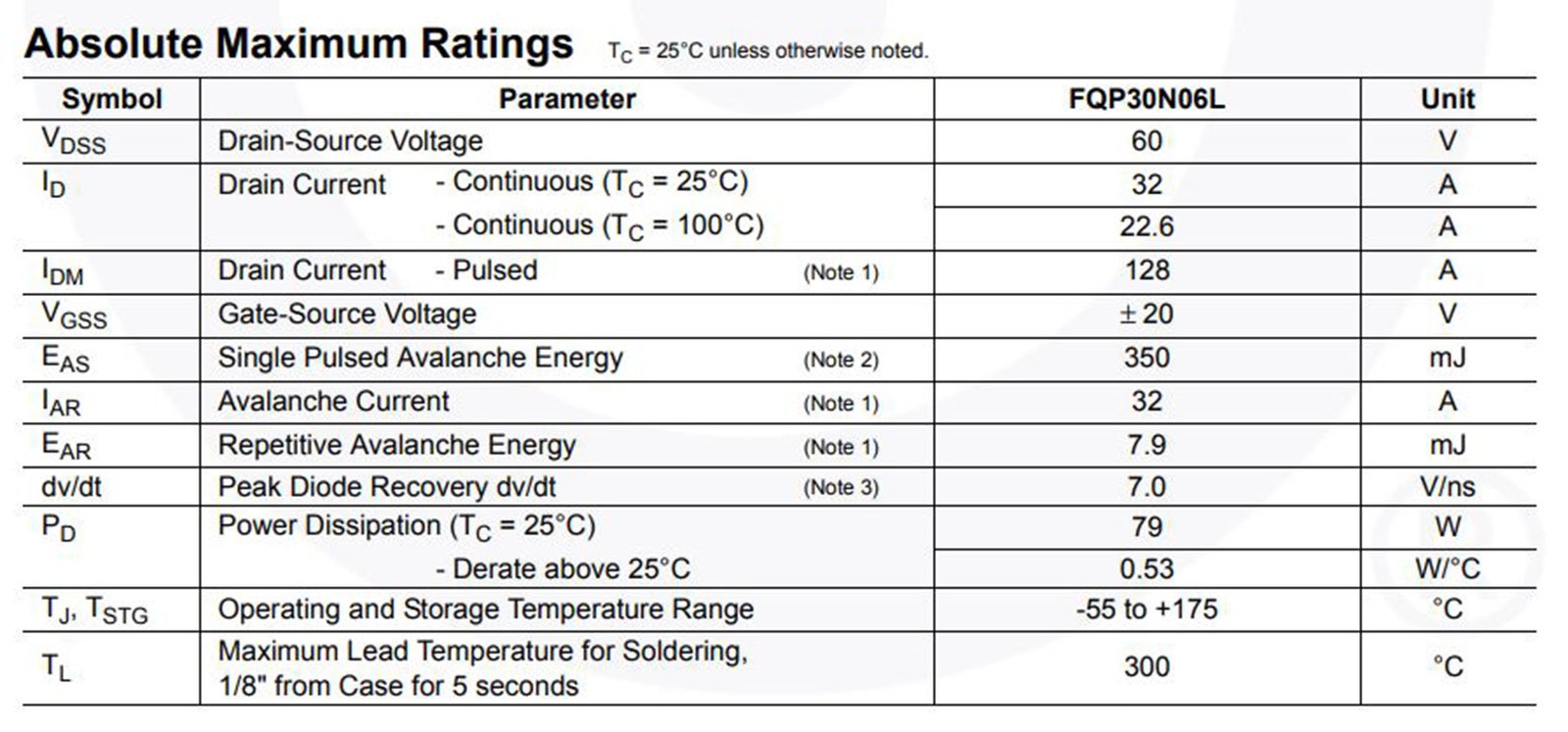

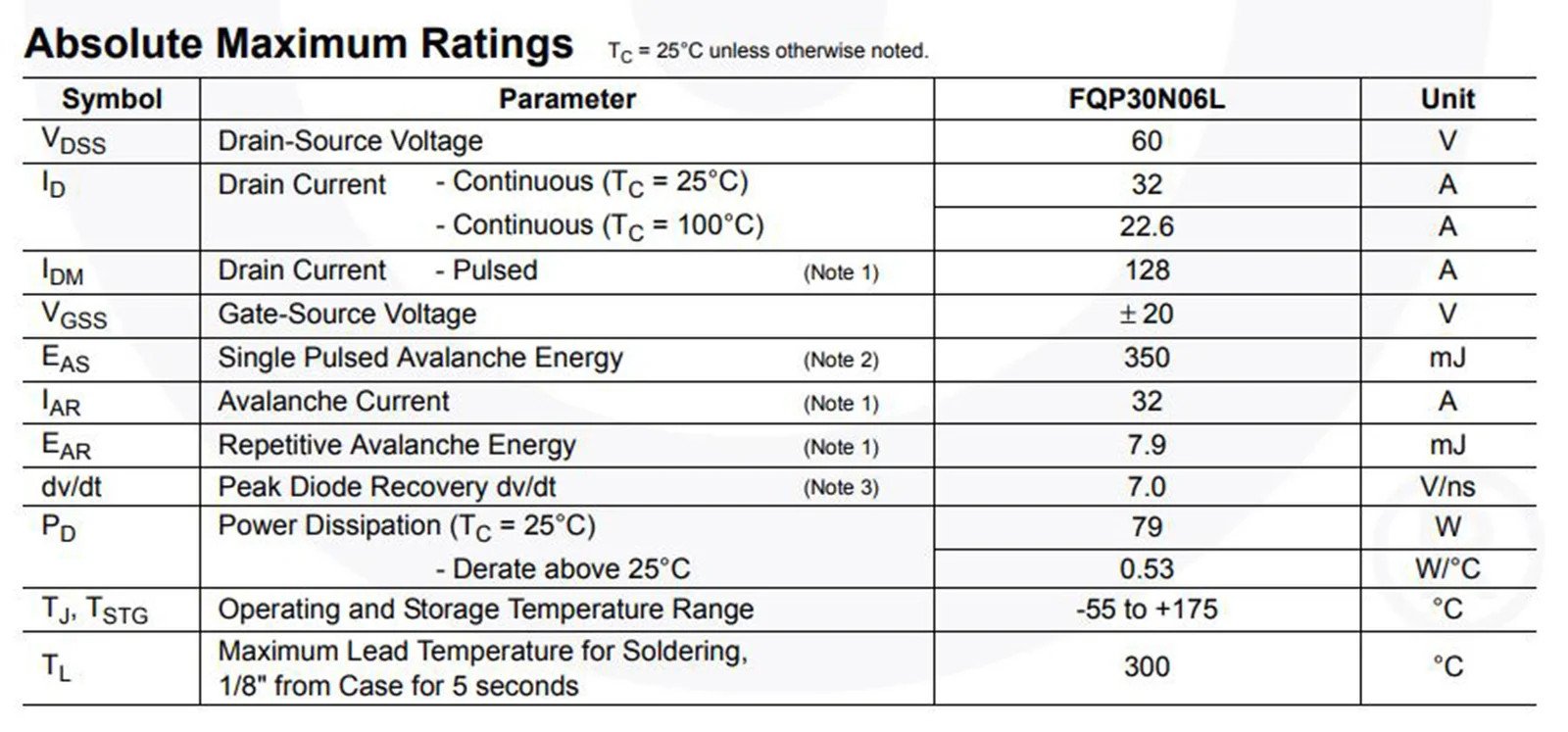

• Type: N-Channel Enhancement Mode Power MOSFET
• Package: TO-220 Through-Hole
• Drain-Source Voltage (Vds): 60V
• Gate Threshold Voltage (Vgs(th)): 1V to 2.5V (Logic-Level Compatible)
• Continuous Drain Current (Id): 32A
• Pulsed Drain Current (Id, pulse): 120A
• Gate-Source Voltage (Vgs): ±20V Max
• RDS(on): < 0.035Ω @ Vgs = 10V
• Total Gate Charge (Qg): 71nC
• Rise Time (tr): 60ns
• Technology: Planar Stripe & DMOS
• Mounting: Through-Hole TO-220

What’s Included:

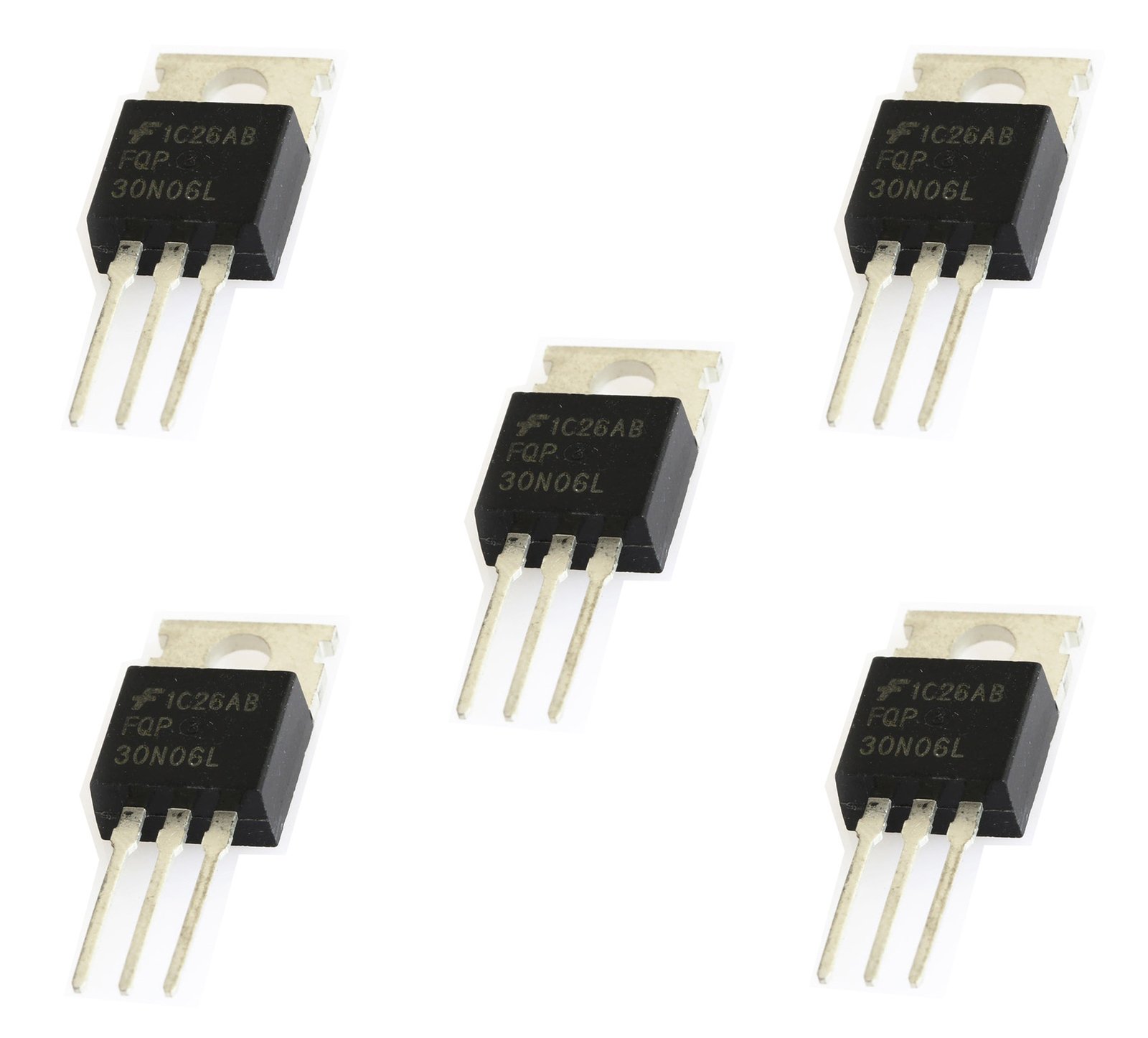

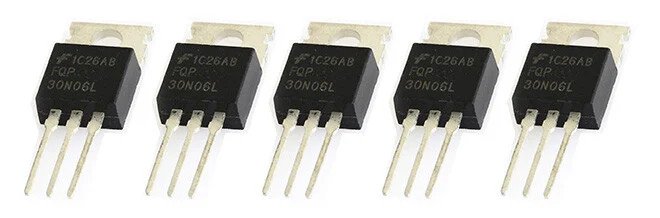

• 5 x FQP30N06L Logic-Level N-Channel MOSFETs (TO-220)

Ideal For:

• Microcontroller-driven switching (Arduino, Pi, ESP8266, STM32, etc.)
• DC motor and solenoid control
• LED strips and high-current loads
• Audio amplifiers and power converters
• Hobby electronics and prototyping
• Robotics and automation systems

Usage Tips:

• Can be directly driven by 3.3V or 5V logic signals
• Ensure adequate heat sinking for high-current applications
• Suitable for switching voltages up to 60V and currents up to 32A
• Compatible with breadboards and perfboards using TO-220 form factor
