Description
A pack of 5 high performance FQP30N06 N-Channel enhancement mode power MOSFETs in TO-220 packages.
Designed using advanced planar stripe and DMOS technology, these transistors deliver low on resistance, fast switching, and high energy handling capabilities.
Perfect for use in power electronics, audio amplifiers, DC motor control, and switching power supplies.
- Product: FQP30N06 N-Channel Power MOSFET
- Model: P30N06 / FQP30N06
- Quantity: 5 Pieces

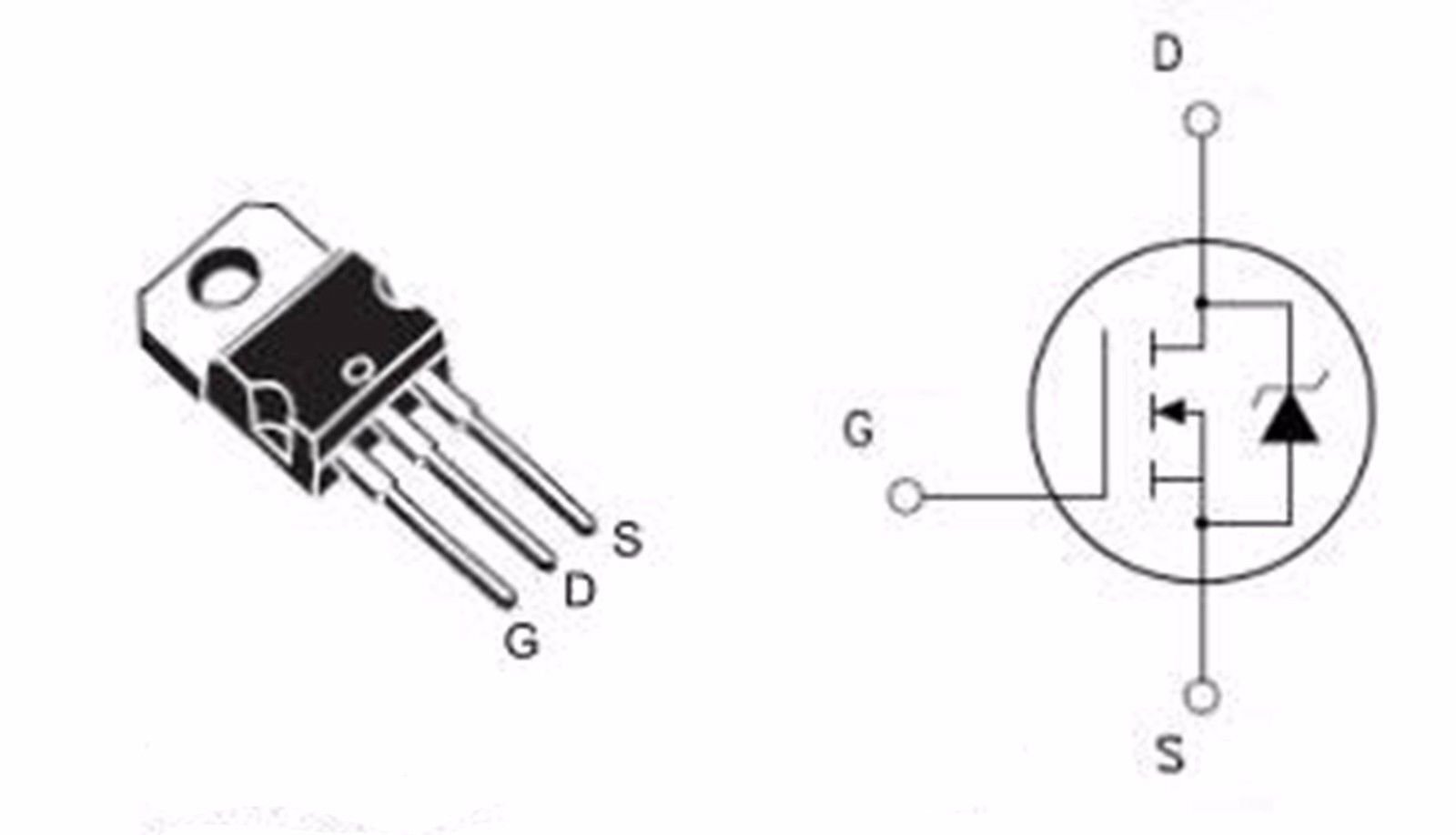

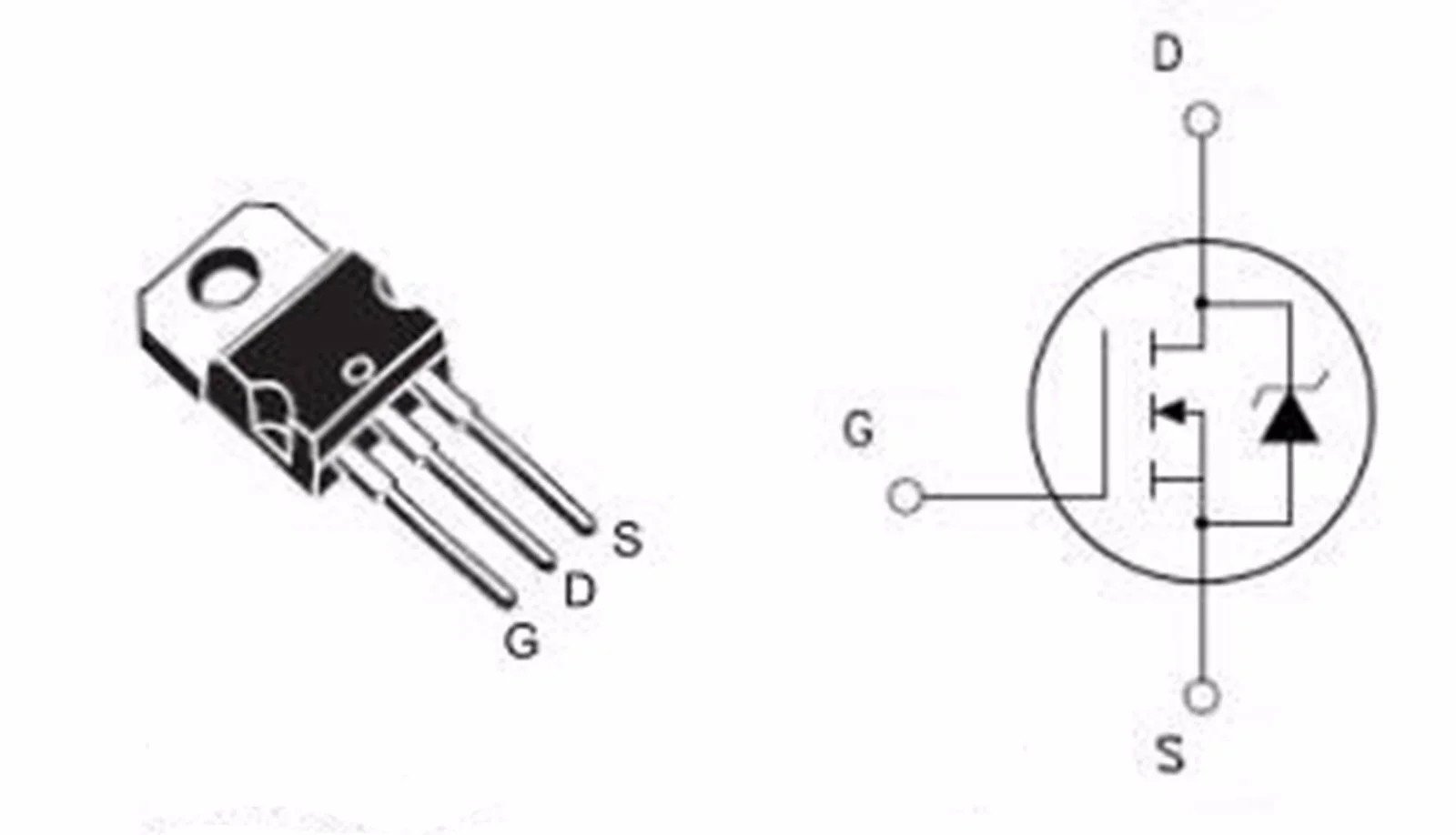

- Package Type: TO-220
- Channel Type: N-Channel

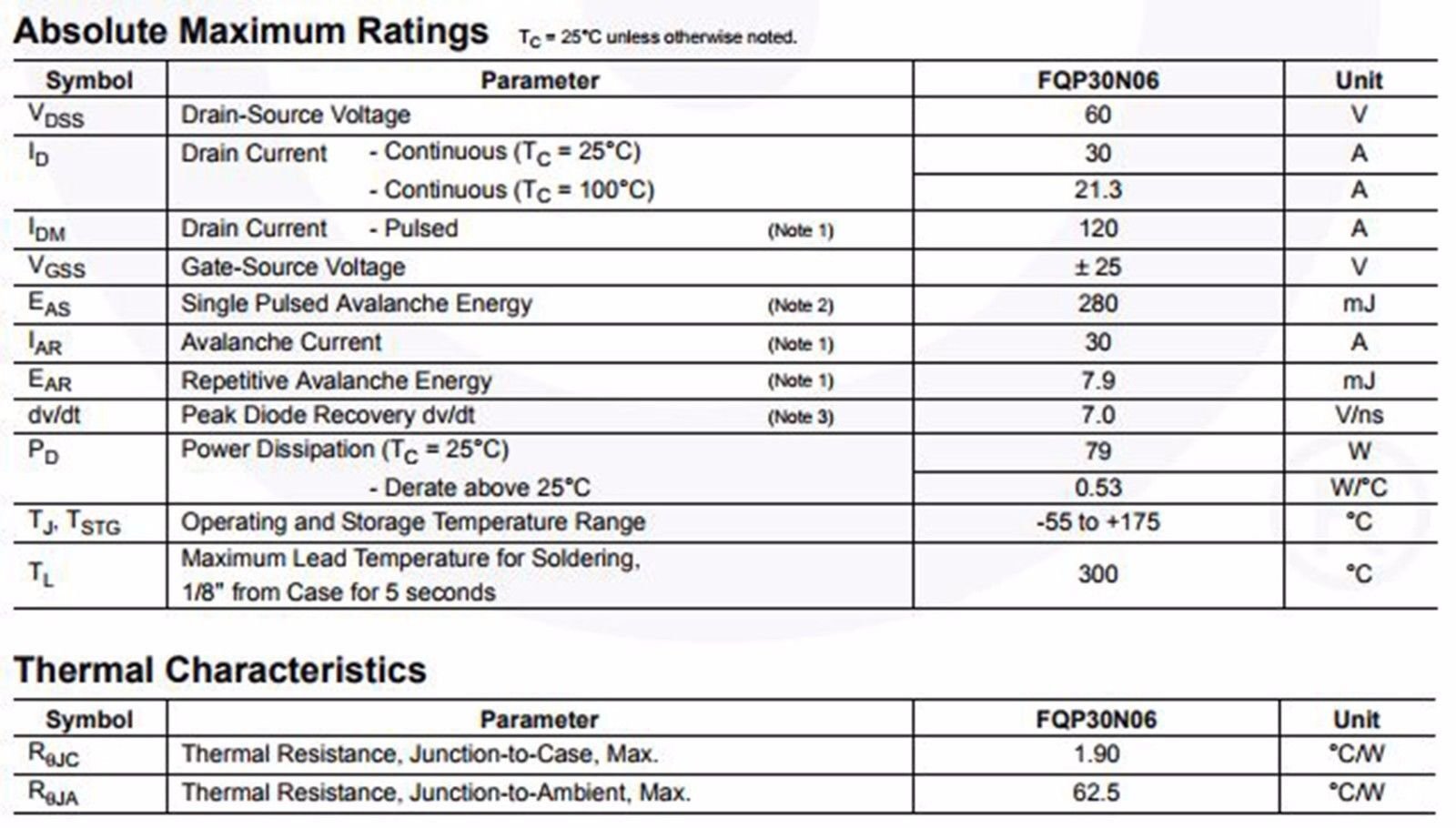

- Maximum Drain-Source Voltage (Vds): 60V
- Continuous Drain Current (Id): 32A
- Gate Threshold Voltage (Vgs(th)): 2.0 – 4.0V
- RDS(on): < 0.035 Ohm @ Vgs = 10V
- Technology: DMOS / Planar Stripe
Key Features:
- N-Channel enhancement mode MOSFET
- Low RDS(on) for efficient power handling
- High switching speed and low gate charge
- TO-220 package with easy heatsink mounting
- Superior avalanche energy rating for demanding loads
What’s Included:

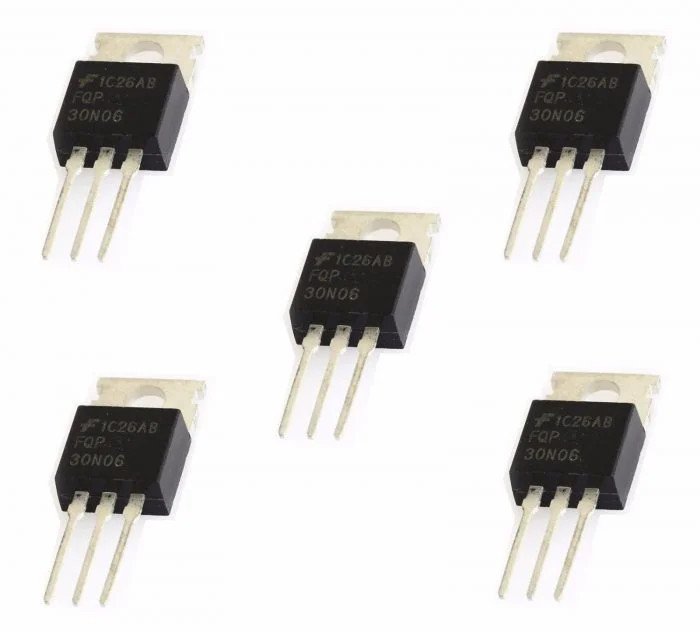

- 5 x FQP30N06 N-Channel Power MOSFETs (TO-220)
Great For:
- Switched-mode power supplies (SMPS)
- DC motor drivers and control circuits
- Audio amplifier output stages
- Inverters and battery management systems
- General-purpose switching and load control
Usage Tips:
- Use appropriate gate drive voltage (typically 10V) for full enhancement
- Ensure proper heatsinking for high current applications
- Suitable for breadboard prototyping or permanent installation
