Description

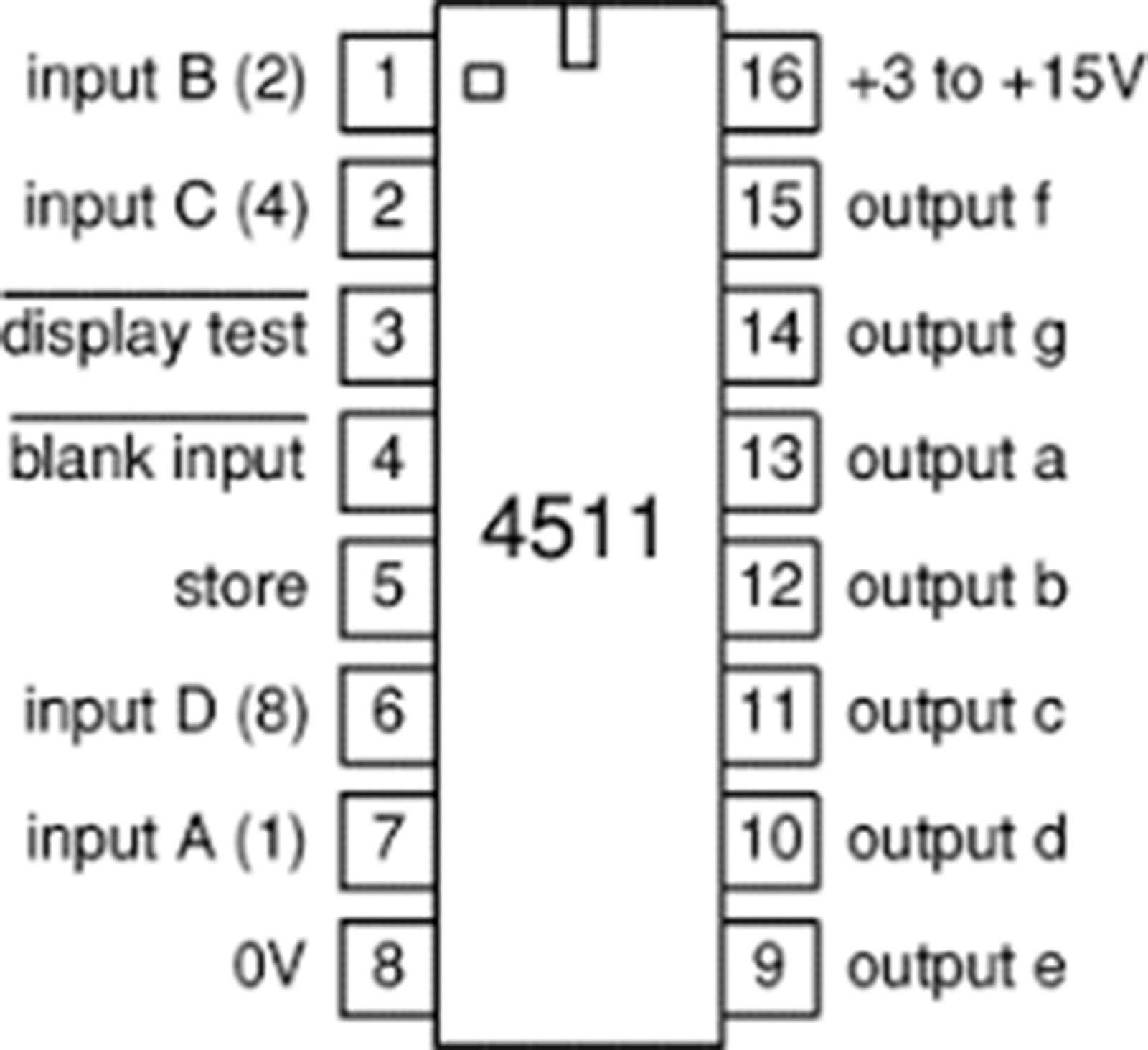

This pack includes 5 x CD4511 BCD to 7 segment latch/decoder/driver ICs in DIP16 through-hole format, ideal for driving LED or other segment displays in digital counter, clock, and display applications.
The CD4511 integrates a 4-bit BCD storage latch, a BCD to 7-segment decoder, and high current NPN bipolar output drivers in a single CMOS device.
Designed for direct or buffered drive of LED, LCD, gas discharge, or incandescent displays.
- IC Type: CD4511
- Package: DIP16 Through Hole
- Function: BCD to 7-Segment Display Latch/Decoder/Driver
- Output Type: NPN Bipolar High Current (up to 25mA)
- Logic Family: CMOS
- Lamp Test (LT), Blanking (BI), Latch Enable (LE) Inputs
- Readout Blanking on Illegal Combinations
- Multiplexing & Brightness Modulation Capable
- Low Logic Power Dissipation
- Motorola MC14511 Equivalent
What’s Included:
- 5 x CD4511BE BCD to 7-Segment Display Driver ICs (DIP16)
Great For:
- 7-Segment LED Display Control
- Digital Counters and Clocks
- Display Multiplexing Projects
- Arduino & Microcontroller Interfaces
- Electronic Educational Kits
- DIY Electronics & Prototyping
Usage Tips:
- Use LE to latch display values
- Use LT and BI to test and control brightness
- Connect directly to common cathode 7-segment LEDs
- Use with a BCD counter like CD4510 or CD4029 for display driving
