Description
The CD4017BE is a versatile decade counter/divider IC ideal for LED chasers, timers, frequency dividers, and sequential control circuits.
This DIP16 through hole package features a 5 stage divide by 10 Johnson counter with 10 decoded outputs and a carry out pin for cascading multiple ICs.
The counter advances on the positive edge of the clock signal and resets to zero on a logic high at the reset pin.
Each output pulses high for one full clock cycle, making this IC perfect for one at a time sequential applications.

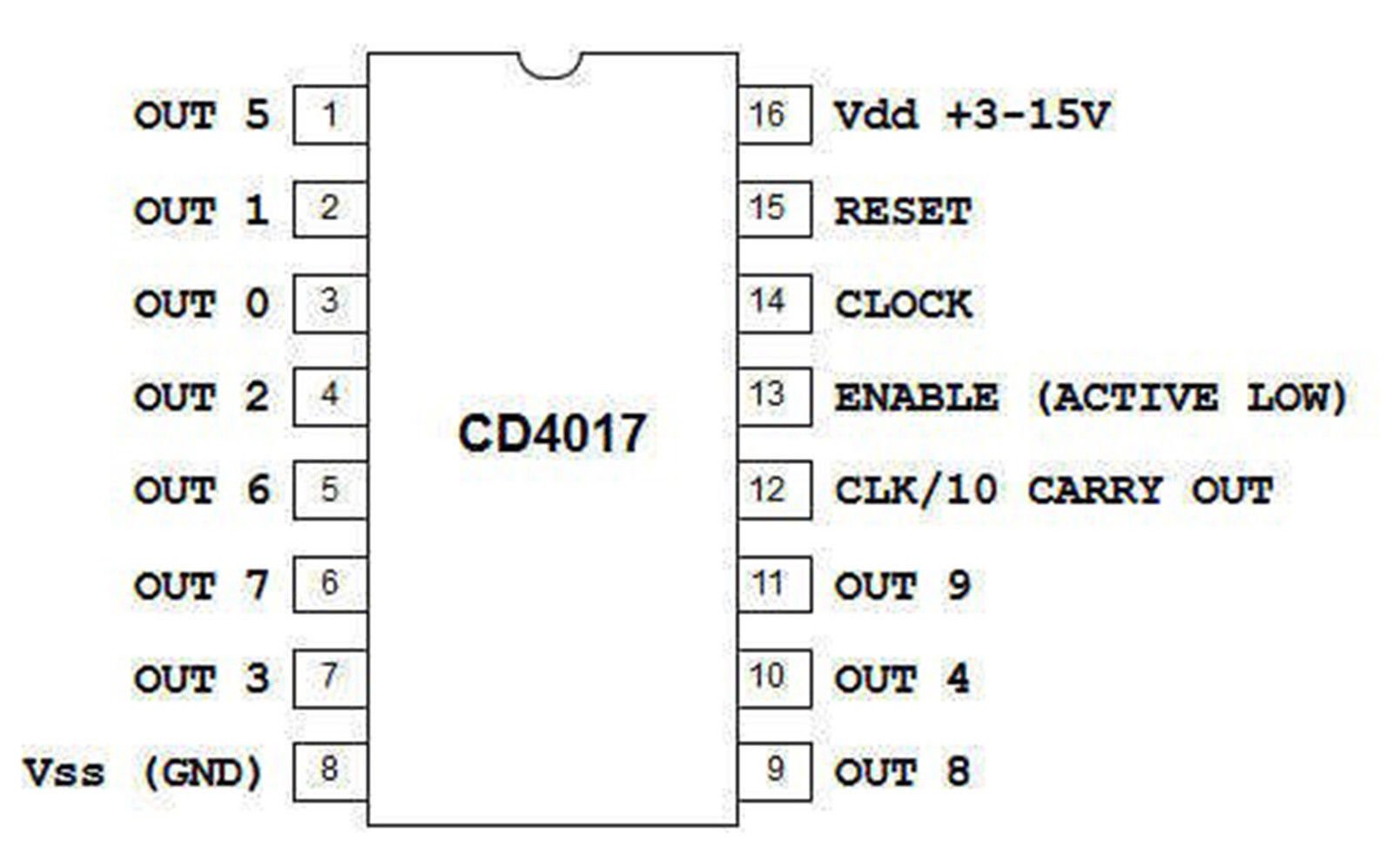

- IC Type: CD4017BE Decade Counter / Divider
- Package: DIP16 – Through Hole
- Stages: 10 decoded outputs (Q0 to Q9)
- Operation: Divide-by-10 Johnson counter
- Clock Input: Positive-edge triggered
- Reset Pin: Logic high resets count to zero
- Carry-Out Pin: High for every 10th clock pulse – ideal for cascading
- Supply Voltage Range: 3V to 15V
- Noise Immunity: 0.45 VDD (typical)
- Speed: Medium-speed operation – up to 5 MHz @ 10V
- Low Power Consumption: ~10μW (typical)
- Fully Static Operation: Retains state with no clock
What’s Included:

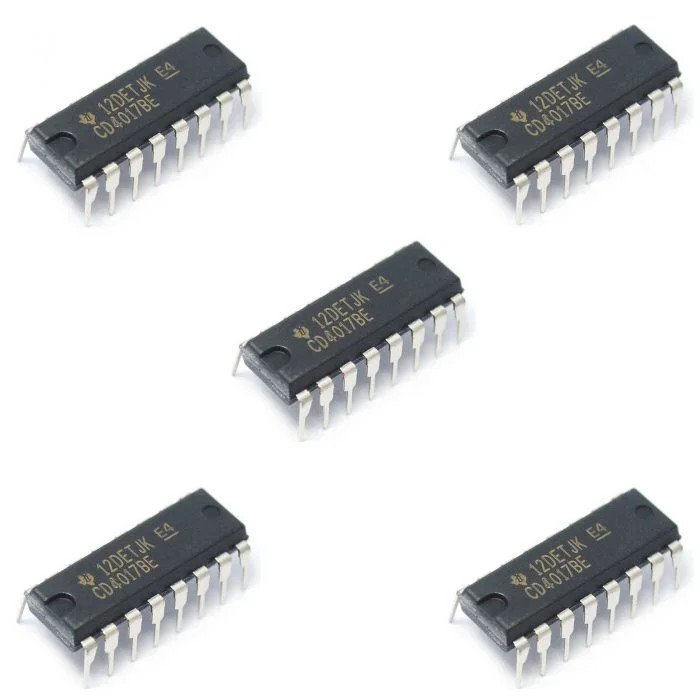

- 5 x CD4017BE Decade Counter ICs (DIP16 Package)
Great For:
- LED Chasers and Light Sequencers
- Frequency Division and Timing Circuits
- Digital Clocks and Displays
- Logic-Based Sequential Control
- Educational and DIY Electronics Projects
Usage Tips:
- Connect a stable clock source to the CLK pin
- Use RESET to return the counter to zero manually or via logic
- Use the CARRY OUT pin to cascade multiple counters for longer sequences
