Description
A pack of 5 A3144 series Hall Effect Sensor Switches, perfect for detecting magnetic fields in electronics projects, automation systems, and Arduino based applications.
These sensors integrate a Hall voltage generator, amplifier, Schmitt trigger, and an open collector output for reliable magnetic detection with excellent noise immunity.
When a magnetic field exceeds the operating threshold (Bop), the output switches LOW.
The state remains until the magnetic field falls below the release point (Brp), switching the output HIGH.
- Product: A3144 / OH3144 / Y3144 Hall Effect Sensor IC
- Type: Digital Magnetic Field Detector – Unipolar Hall Sensor
- Quantity: Set of 5 Sensors
- Wide supply voltage: 4.5V to 24V
- Digital open-collector output (25mA max)
- Compatible with Arduino and digital logic circuits
- Built-in Schmitt trigger for noise rejection
- Internal bandgap regulator for temperature stability
- Reverse polarity protection
- Solid-state reliability and long service life
- Detects north pole magnetic fields
What’s Included:
- 5 x A3144 Series Hall Effect Sensor Switches (any model: A3144 / OH3144 / Y3144)
Great For:
- Detecting magnets and magnetic motion
- RPM counters and fan/tachometer sensors
- Robotics and automation projects
- DIY electronics and microcontroller input
- Security and door-sensing systems
- Prototyping with Arduino, ESP32, Raspberry Pi, etc.
Usage Tips:

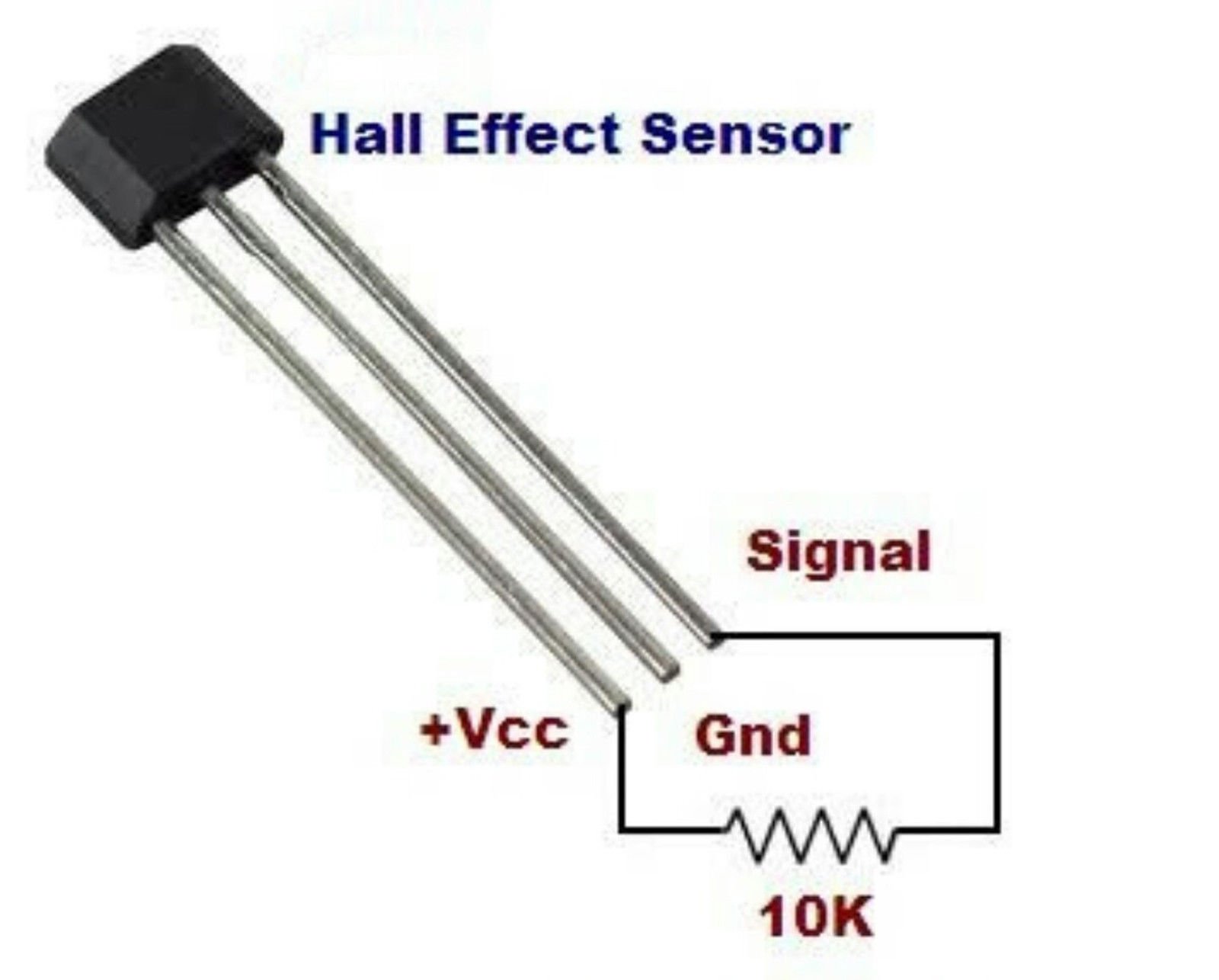

- Connect pull-up resistor (e.g., 10kΩ) to output for digital logic use
- Ensure correct orientation and pinout (VCC, GND, OUT)
- Use with permanent magnets for detection
- Ideal for low-speed rotating object sensing or proximity switches
