Description

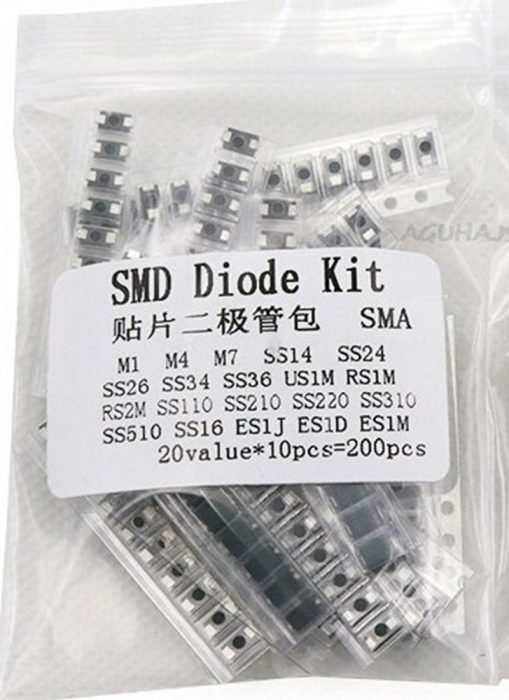

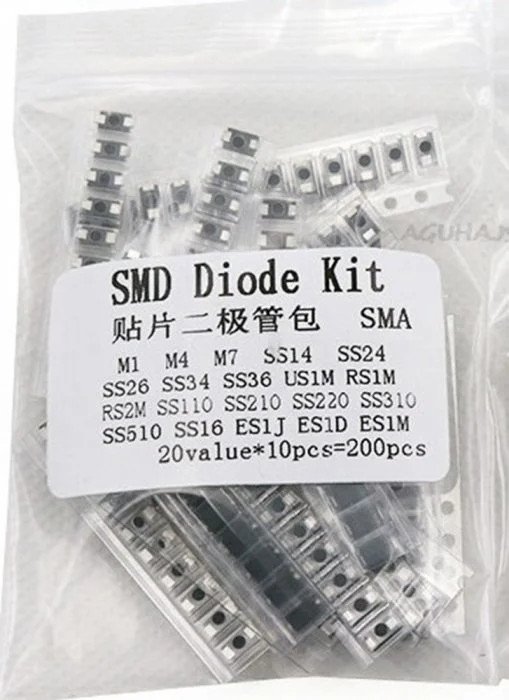

This SMD Diode Assorted Kit includes 20 popular surface-mount diode types, 10 pieces of each, totalling 200pcs ideal for electronics prototyping, repairs, and component stocking.
Perfect for hobbyists, engineers, and technicians working with SMT designs, the kit covers a wide selection of rectifier, Schottky, and fast recovery diodes for use in power supply circuits, signal rectification, and voltage clamping.
- Kit Contents:
- Total Quantity: 200pcs
- Package Style: SMD
- Value Breakdown:
- M1, M4, M7
- SS14, SS24, SS26, SS34, SS36
- US1M, RS1M, RS2M
- SS110, SS210, SS220, SS310, SS510
- SS16, ES1J, ES1D, ES1M
- Quantity per Value: 10pcs
Key Features:
- 20 commonly used SMD diode models
- Includes Schottky, rectifier, and ultrafast recovery types
- Ideal for power rectification, voltage protection, and switching circuits
- Organised and clearly labelled for easy identification
- Suitable for rework, prototyping, and repair of consumer electronics
What’s Included:
- 1x 200pcs SMD Diode Kit (20 types, 10pcs each)
Applications:
- Power Supply Modules
- DC-DC Converters
- LED Drivers
- Reverse Polarity Protection
- General Circuit Prototyping
Great For:
- Electronics Engineers & Hobbyists
- Surface Mount Circuit Repair
- PCB Prototyping & Development
- STEM Learning & Educational Labs
