Description

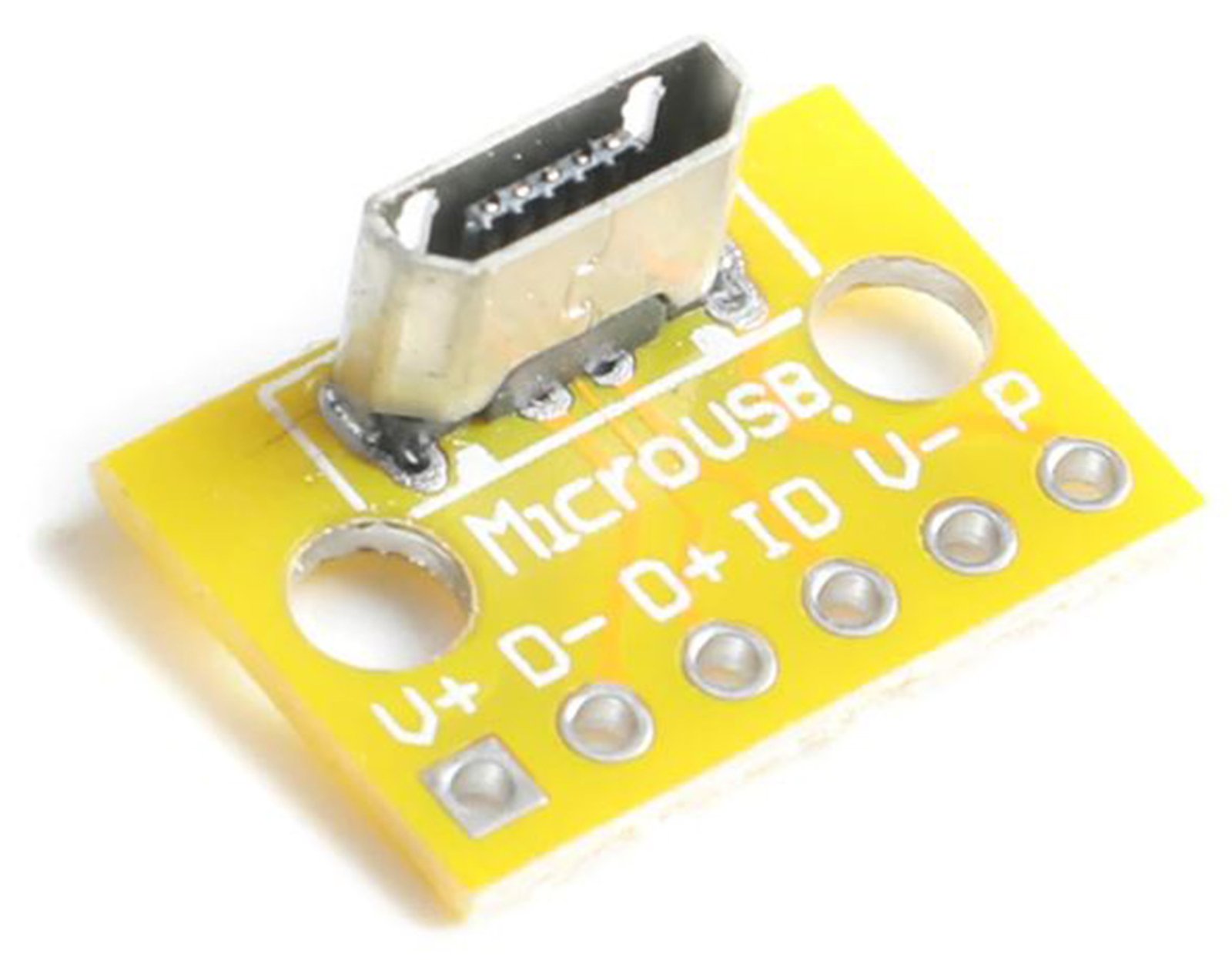

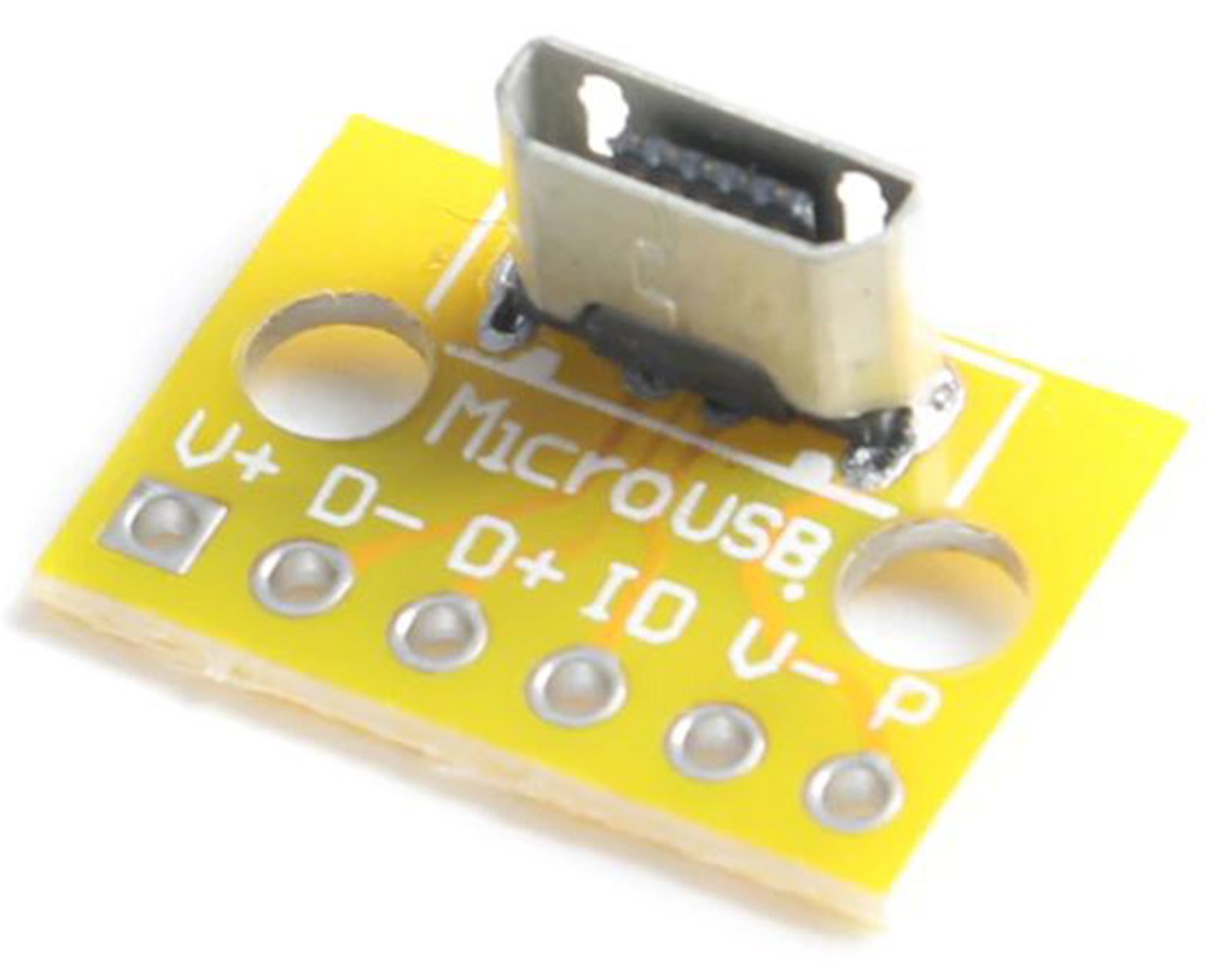

This compact and convenient USB Micro Female Breakout Board features a vertically mounted micro USB socket with all 5 pins broken out to a standard 2.54mm (0.1”) pitch DIP header perfect for breadboarding and prototyping.
Ideal for adding USB 5V power or data connections to microcontroller projects using Arduino, ESP32, STM32, Raspberry Pi Pico, and other USB-capable boards.
- Connector Type: USB Micro-B Female (Vertical Mount)
- USB Standard: USB 2.0
- Pin Pitch: 2.54mm (0.1″) – Breadboard & Perfboard Compatible

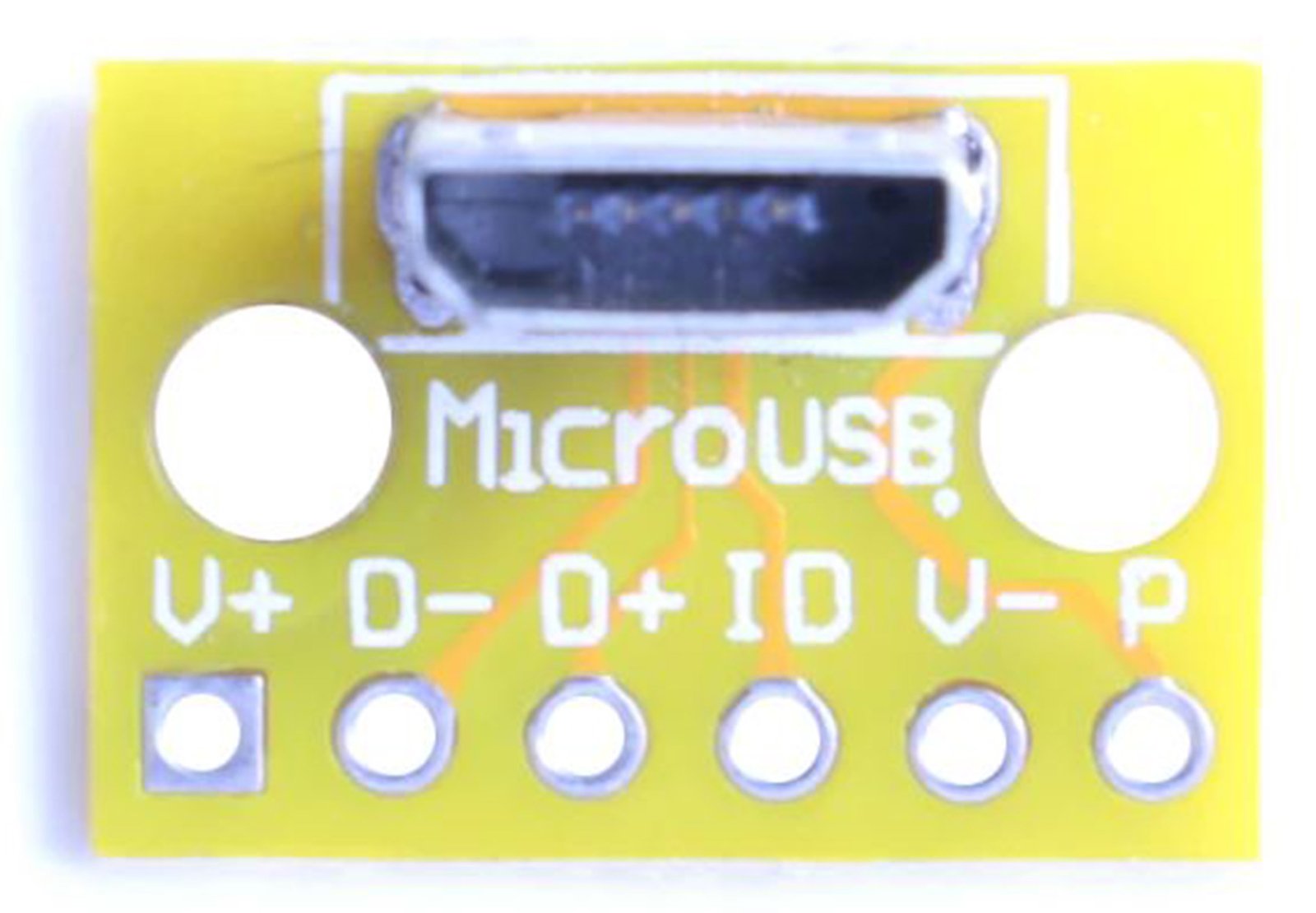

- Header Format: DIP5 – VBUS, D–, D+, ID, GND
- Board Size: 11mm x 16mm
- Quantity: 2x Breakout Boards
- Durable PCB with clear pin labels
What’s Included:

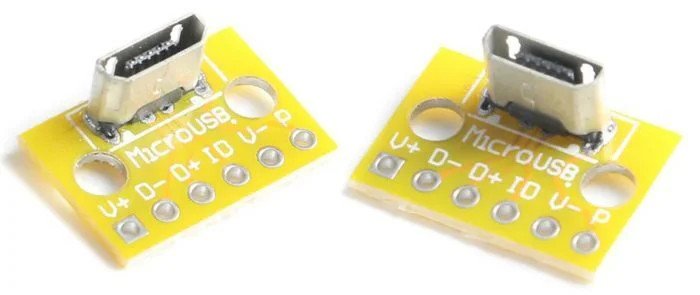

- 2x USB Micro Female Vertical Breakout Boards – 5-Pin DIP
Great For:
- Supplying 5V USB power to DIY circuits
- Prototyping USB-enabled microcontroller projects
- USB communication with ESP8266, ESP32, Arduino Pro Micro, STM32, etc.
- Adding USB charging or power input options
- Embedded device testing or custom USB projects
Usage Tips:
- Breadboard-friendly spacing for quick prototyping
- Use with USB cables to provide clean, modular connections
- Connect VBUS and GND for power, or use all 5 pins for full USB communication
- Can be used for charging, USB OTG, or data logging projects
