Description

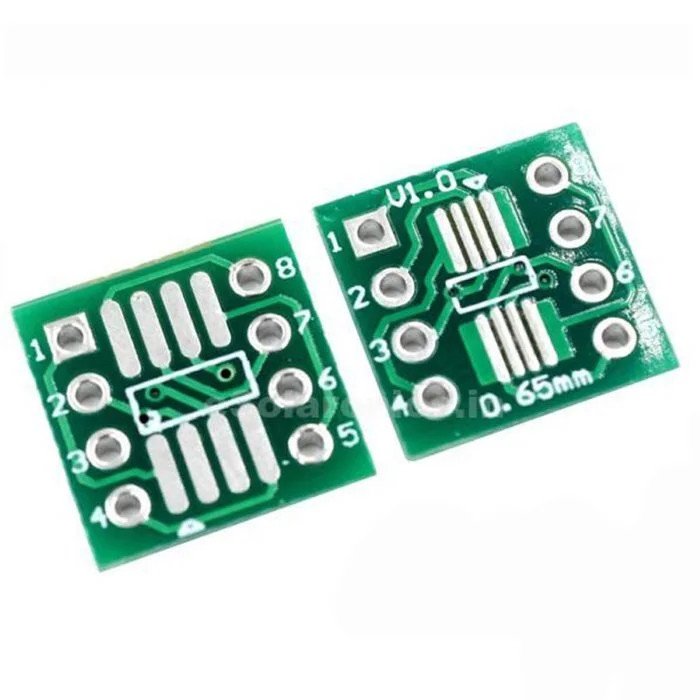

A set of 2 compact breakout adapter boards for converting 8 pin SMD ICs to a standard 2.54mm DIP8 footprint ideal for prototyping, repairs, and adapting surface-mount components for breadboards and DIP sockets.

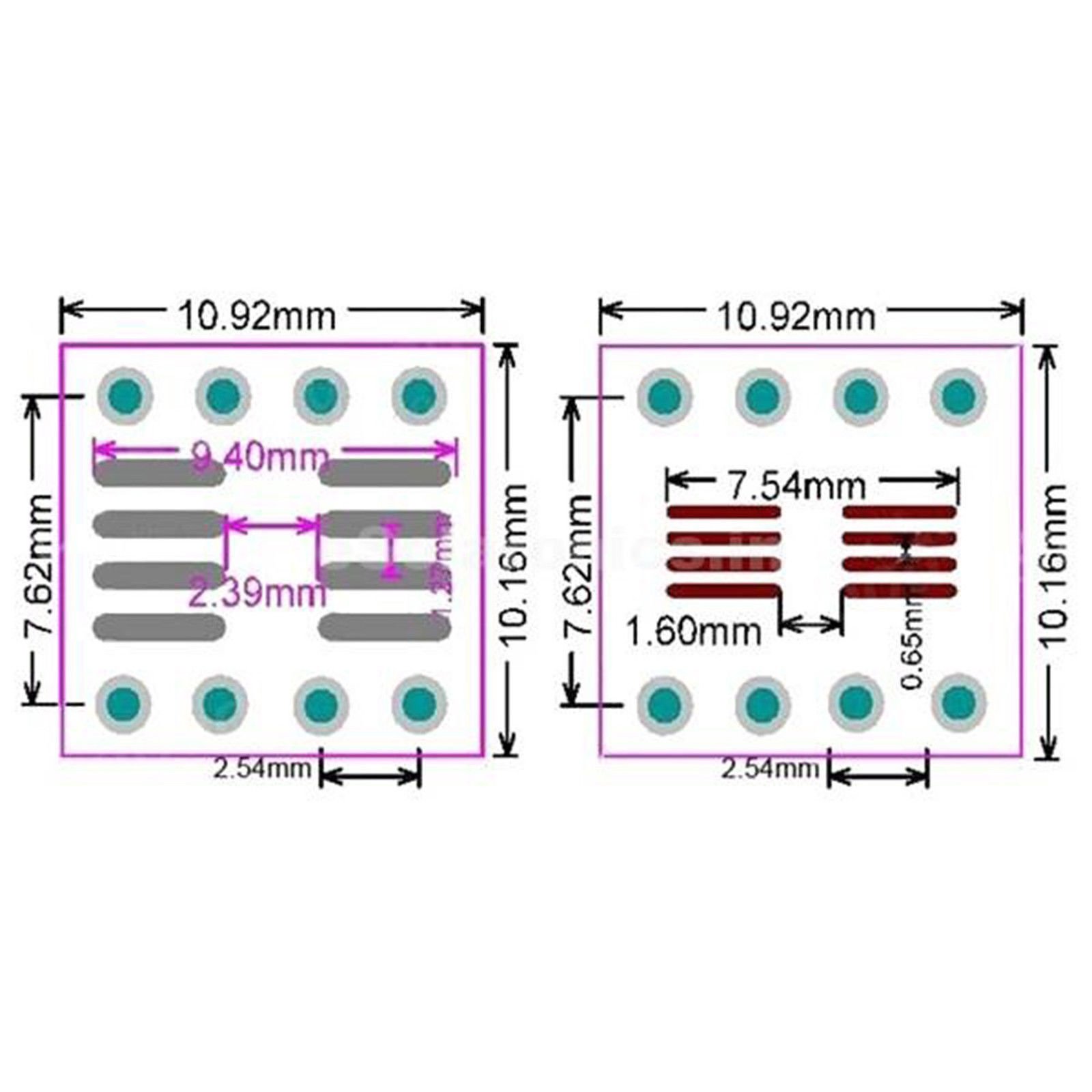

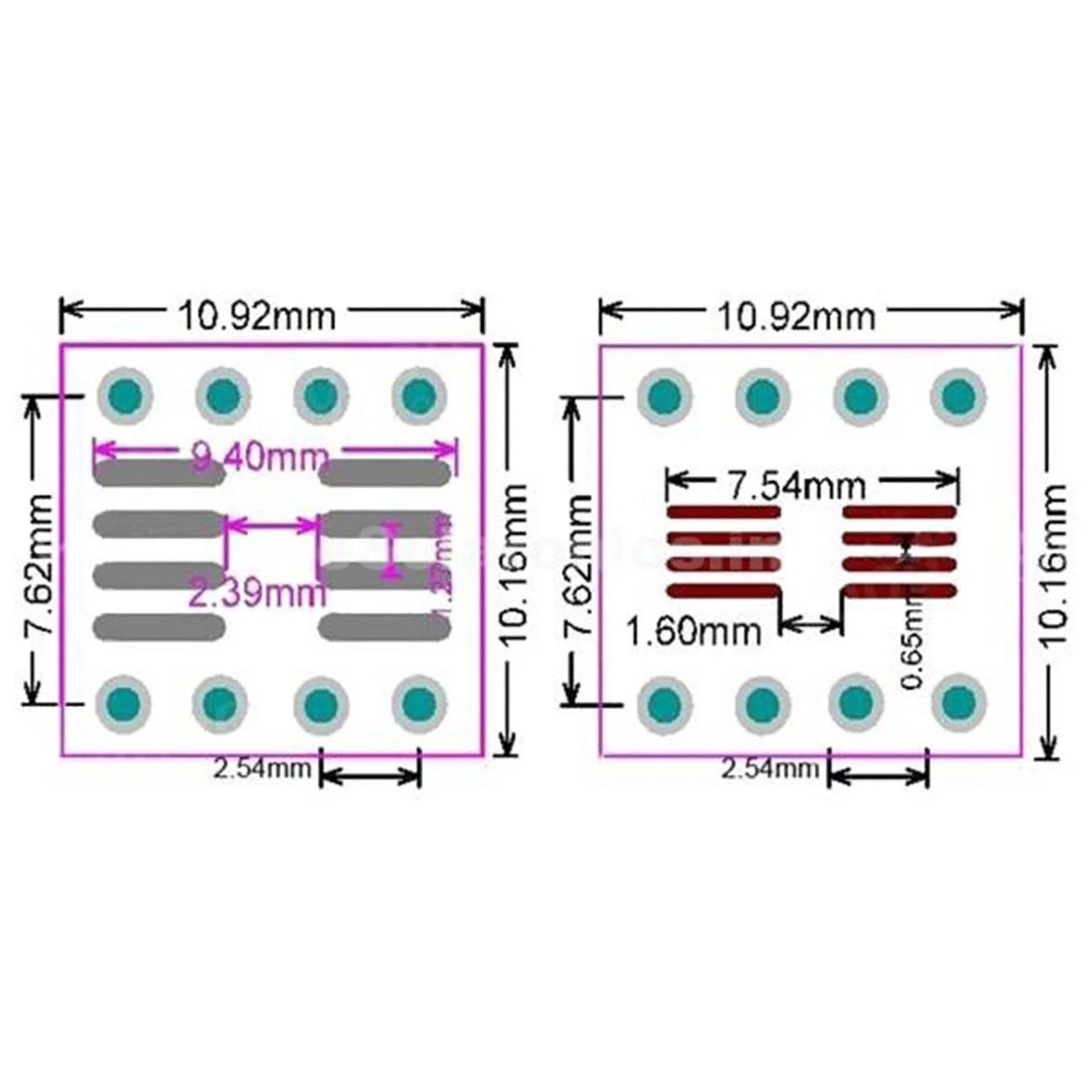

Each board is double-sided:

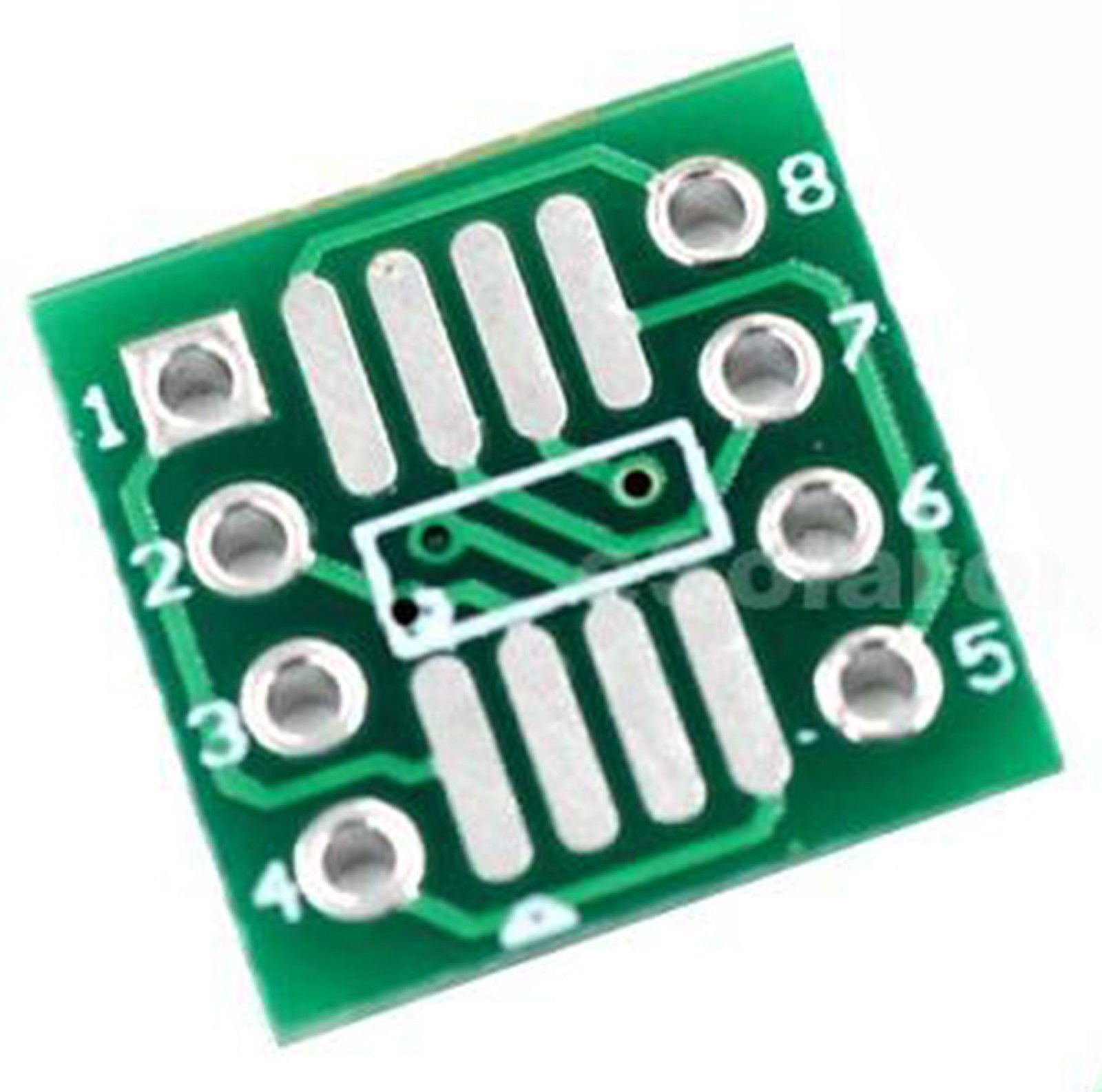

Side A features a 1.27mm pitch suitable for SO, SOP, and SOIC ICs.

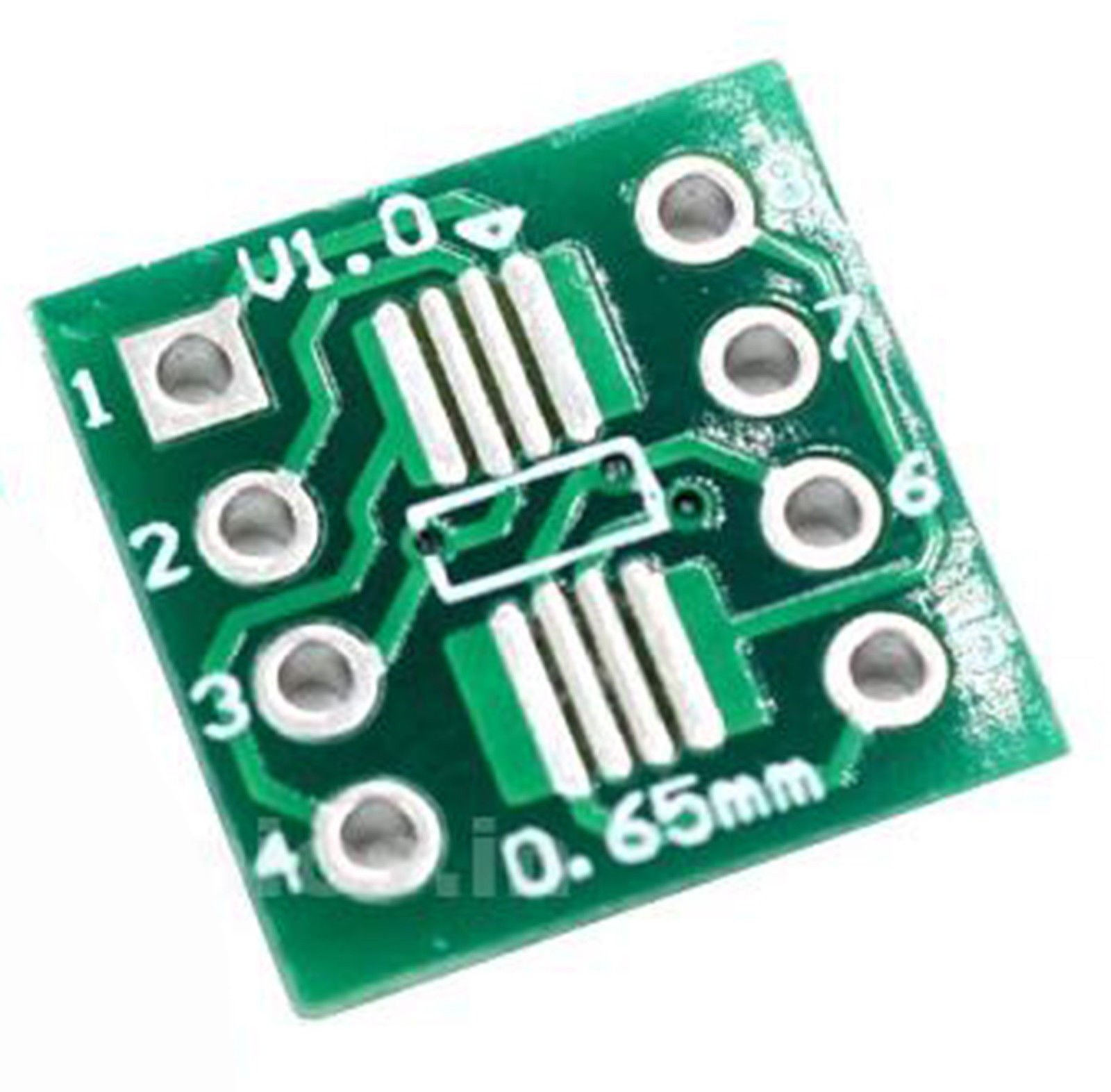

Side B features a 0.65mm pitch designed for SSOP, TSSOP, and MSOP packages.
Perfect for electronics hobbyists and engineers working with modern SMD devices.
- Product: Double-Sided SOP8 to DIP Adapter Board
- Type: SMD to DIP Breakout – SOP/SOIC/TSSOP/MSOP (8-Pin)
- Quantity: Set of 2 Boards
- Double-sided PCB for SOP8/SOIC8 and TSSOP8/MSOP8
- A side: 1.27mm pitch for SOP, SOIC
- B side: 0.65mm pitch for TSSOP, SSOP, MSOP
- Converts SMD ICs to standard 2.54mm DIP layout
- Clearly labelled pin numbers for easy identification
- Compact design, breadboard and socket compatible
What’s Included:
- 2 x Double-Sided SOP8 to DIP Adapter Boards
Great For:
- Adapting 8-pin SMD ICs to DIP format
- Breadboarding and prototyping
- Electronics repairs and mods
- DIY and custom circuit builds
Usage Tips:
- Choose the correct side for your IC pitch (A: 1.27mm / B: 0.65mm)
- Carefully solder SMD ICs and add 2.54mm header pins
- Compatible with standard breadboards and DIP sockets
- Always check orientation and pin alignment before use
