Description

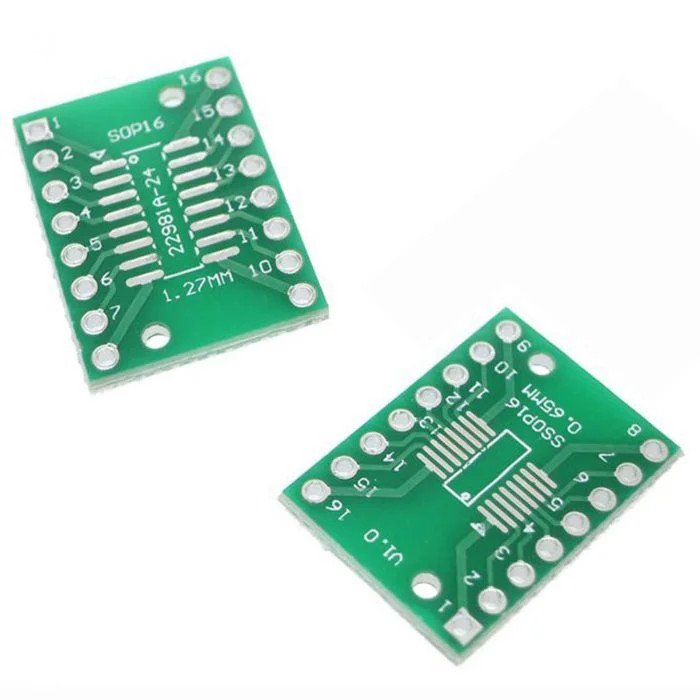

A set of 2 double-sided breakout adapter boards for converting various SMD packages to a standard 2.54mm DIP footprint ideal for prototyping, repairs, and DIY electronics projects.
Each adapter features two sides:

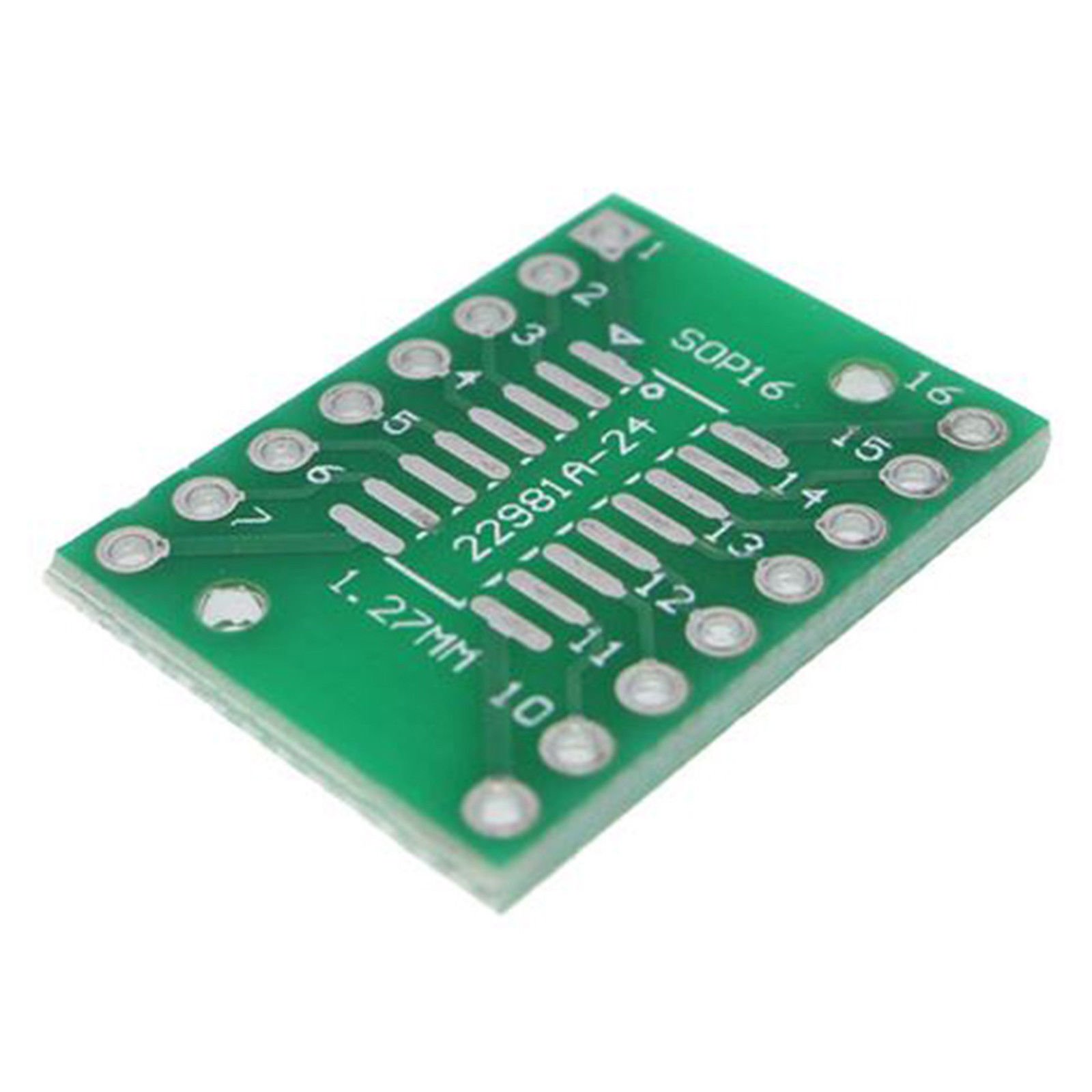

Side A is compatible with SOP/SOIC 1.27mm pitch devices.

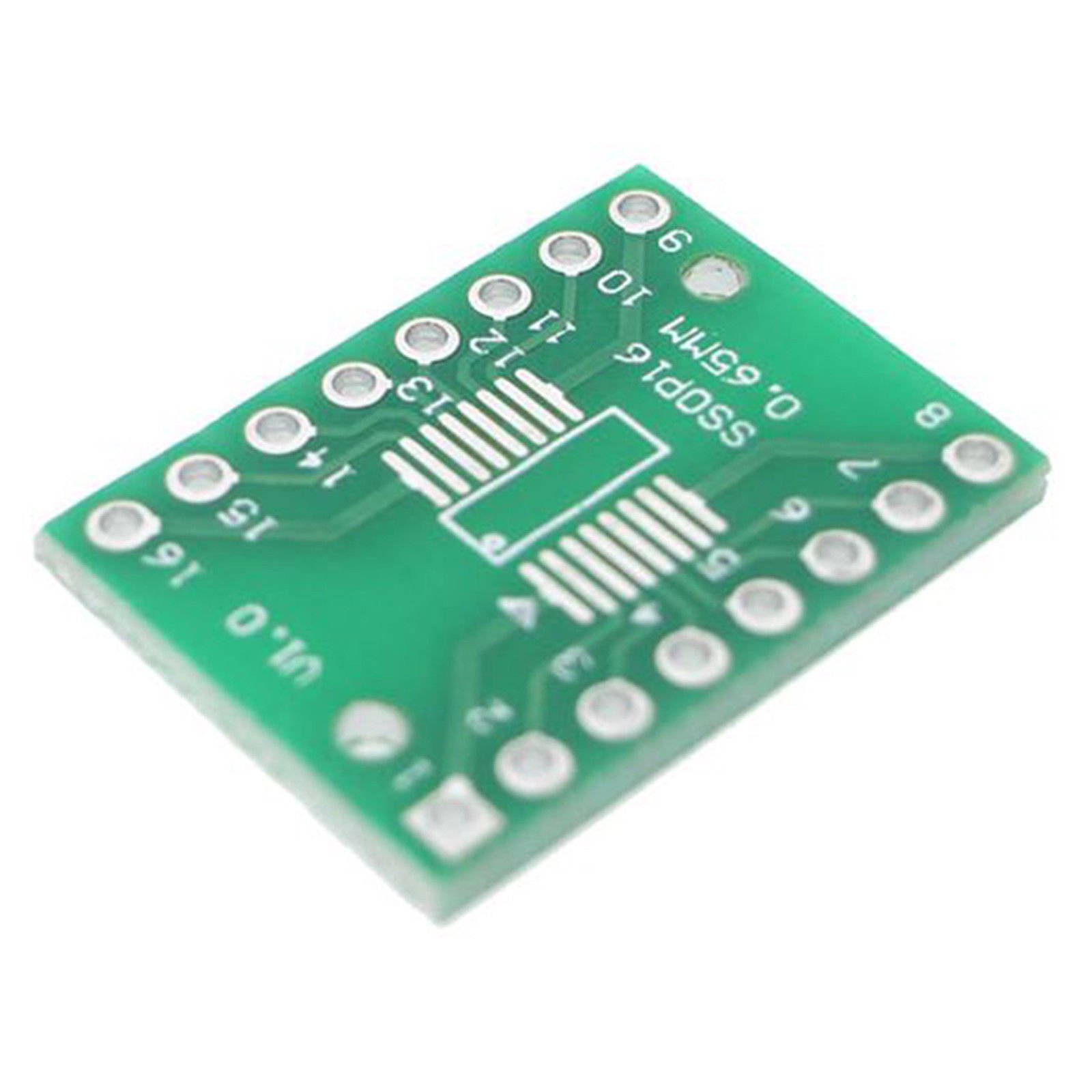

Side B is suitable for TSSOP/SSOP/MSOP 0.65mm pitch devices.
Perfect for upgrading or adapting SMD components for use on breadboards or through hole PCBs.
- Product: Double-Sided SOP16 to DIP Adapter Board
- Type: SMD to DIP Breakout – SOP/SOIC/TSSOP/MSOP
- Quantity: Set of 2 Boards
- Double-sided adapter board for SOP16/SSOP16/SOIC16/MSOP16
- A side: 1.27mm pitch for SOP, SOIC
- B side: 0.65mm pitch for SSOP, TSSOP, MSOP
- Breaks out to 2.54mm DIP format
- High-quality PCB with labelled pins
- Ideal for breadboarding and prototyping
What’s Included:
- 2 x Double-Sided SOP16 to DIP Adapter Boards
Great For:
- Converting SMD to DIP for prototyping
- Repairing or upgrading electronics
- DIY and custom electronics builds
- Breadboard and through-hole PCB compatibility
Usage Tips:
- Solder SMD chips to correct side (A: 1.27mm / B: 0.65mm)
- Connect to breadboards or DIP sockets via 2.54mm headers
- Ideal for use with logic ICs, op-amps, microcontrollers, etc.
- Always double-check pin pitch and orientation before soldering
