Description
The SN754410NE is a high performance quadruple half-H driver IC designed for driving inductive loads such as relays, solenoids, DC motors, and bipolar stepper motors.
Ideal for robotics, automation, and motor control projects, it delivers up to 1A per channel over a wide voltage range of 4.5V to 36V.
Built for robustness and versatility, this DIP16 through hole package device supports TTL and CMOS logic inputs, features thermal shutdown, internal ESD protection, and minimises power dissipation for reliable long-term operation.
- Product: SN754410NE Quadruple Half-H Driver IC
- Package: DIP16 Through Hole
- Quantity: 2 ICs
- Output Current: 1A per driver channel
- Voltage Range: 4.5V to 36V supply voltage
- Logic Input: TTL and CMOS compatible
Features:
- Four half-H drivers forming two full-H bridges
- Bidirectional drive with 3-state outputs
- Thermal shutdown protection
- Internal diode clamps for inductive load protection
- Input hysteresis for improved noise immunity
- Separate logic supply to reduce power dissipation
- Sink/source interlock to prevent simultaneous conduction
- No output glitches during power-up/power-down
Ideal For:
- Driving DC motors and stepper motors
- Relay and solenoid control
- Robotics and automation projects
- High current, high voltage switching applications
What’s Included:

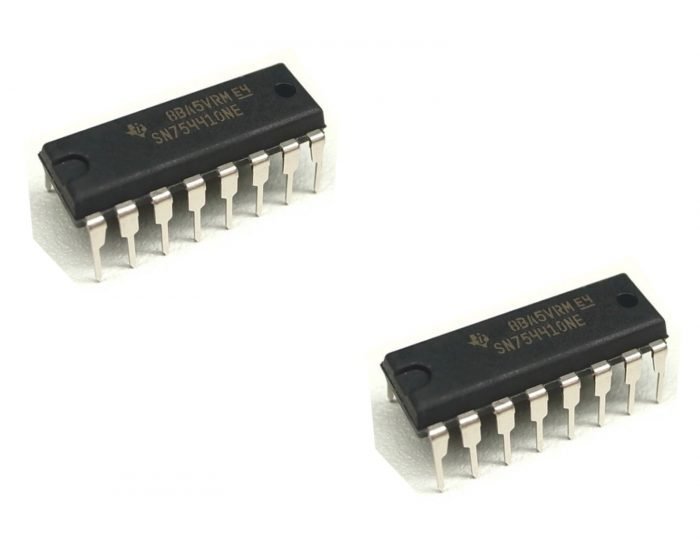

- 2 x SN754410NE Quad Channel Half-H Driver ICs (DIP16)
Usage Tips:

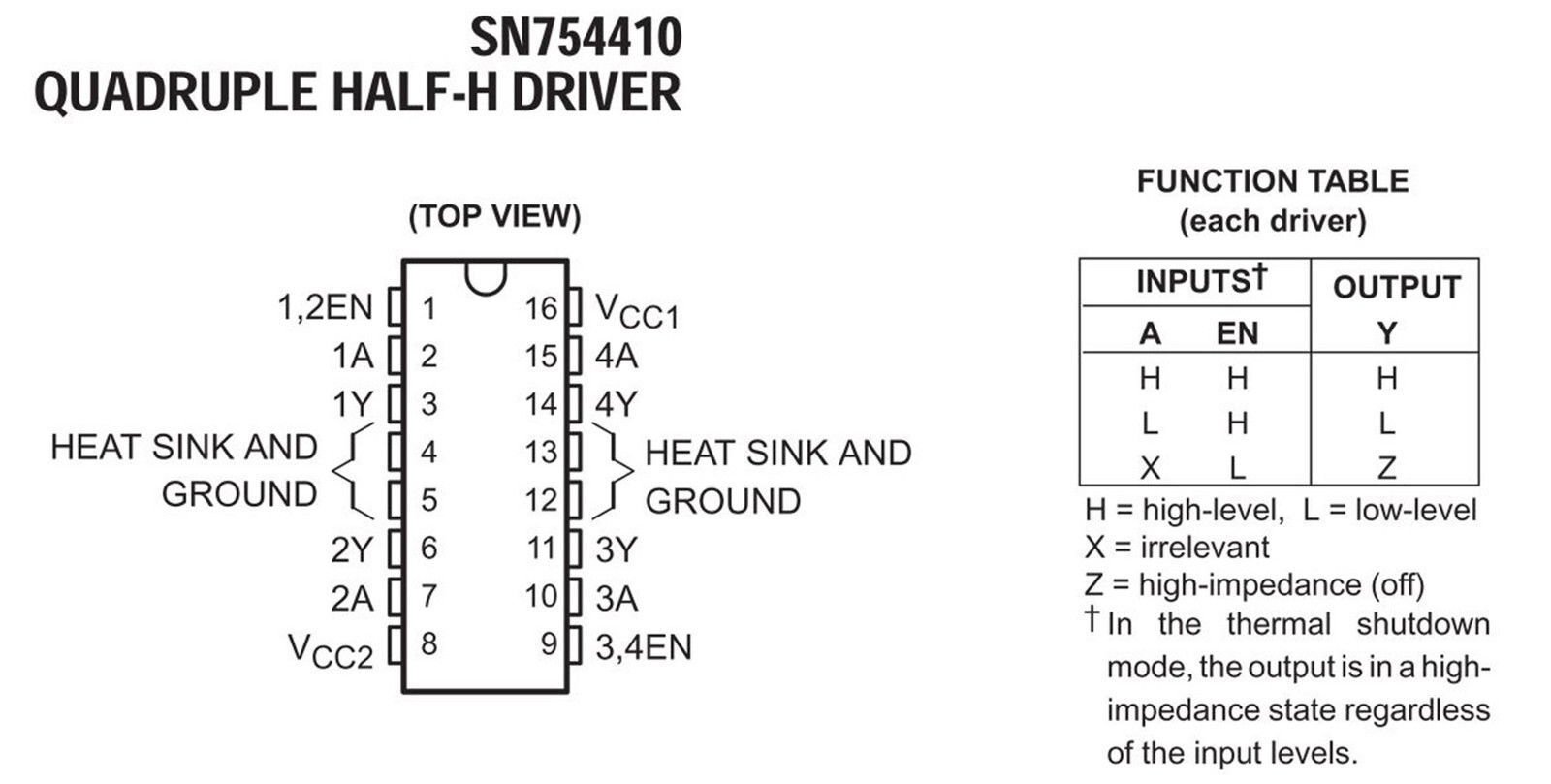

- Use enable pins (1,2EN and 3,4EN) to activate drivers in pairs
- Connect motor or solenoid loads to outputs Y1-Y4
- Provide appropriate supply voltages to VCC1 (logic) and VCC2 (motor) pins
- Ensure proper heat dissipation for high current operation
