Description

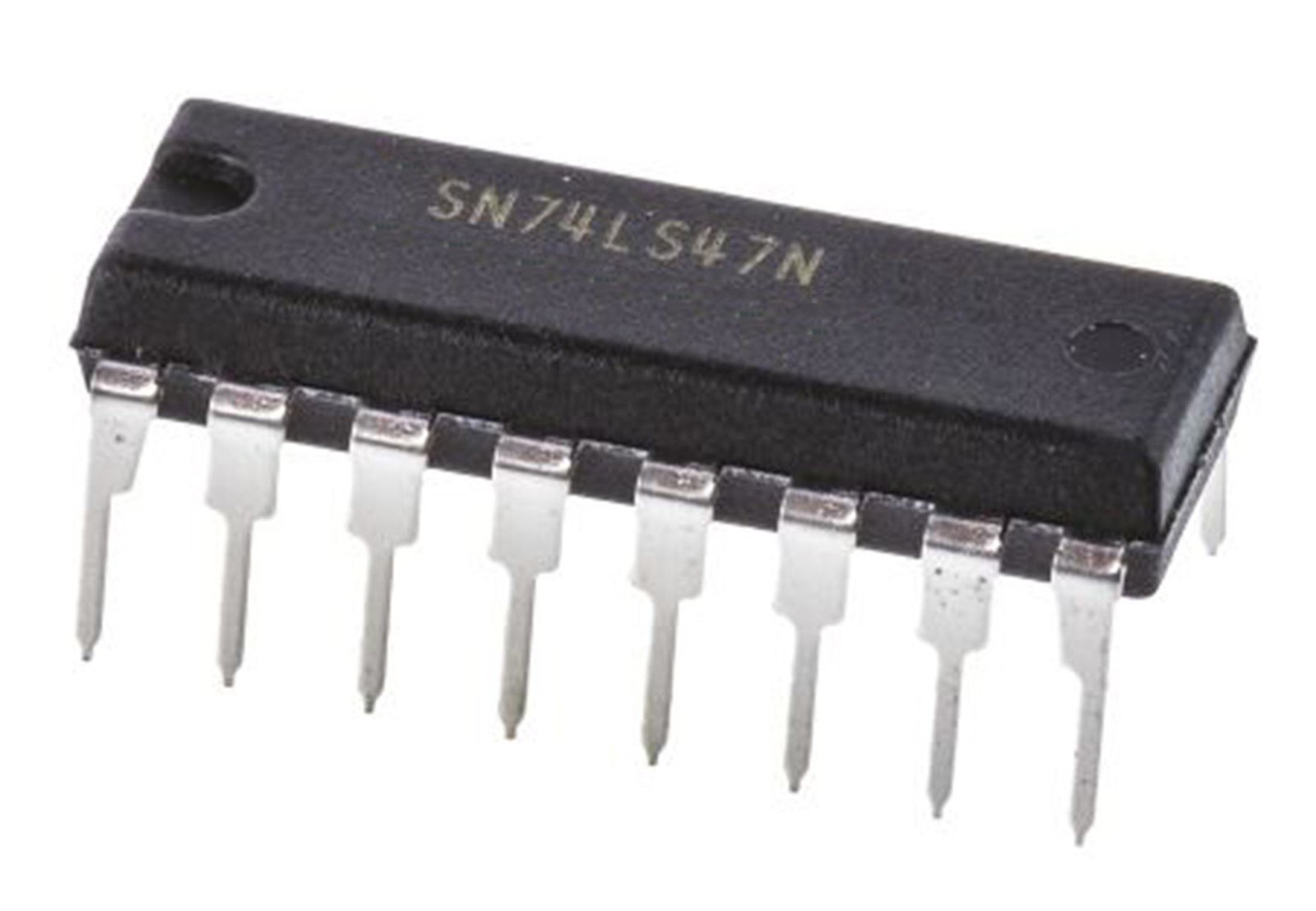

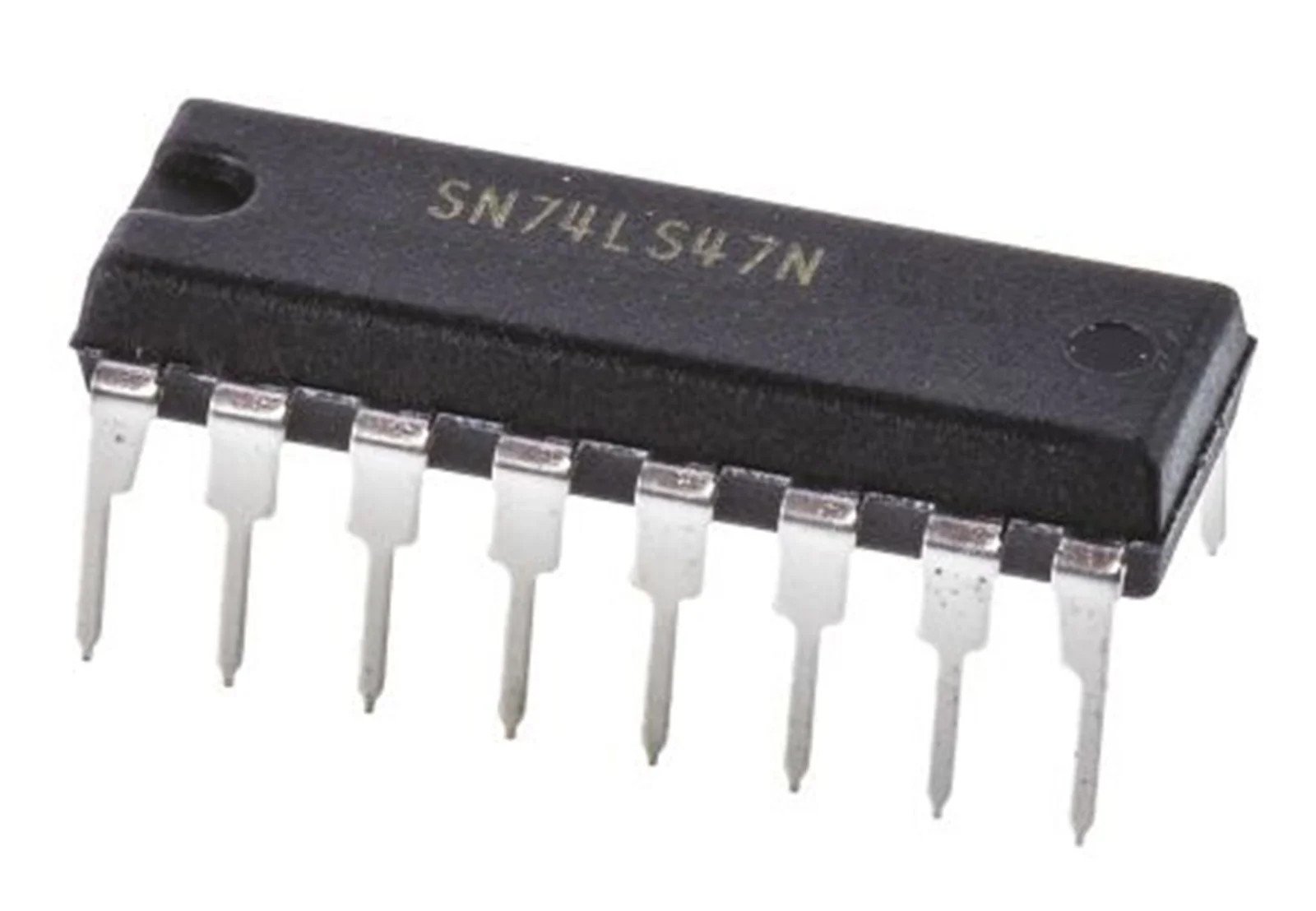

A set of 2 x SN74LS47N BCD to 7-segment decoder/driver integrated circuits in a standard DIP-16 package.
These SN74LS47N TTL chips are designed to drive common anode 7-segment LED displays from binary-coded decimal (BCD) inputs.
Ideal for electronics repairs, projects, or prototyping digital display circuits.
Perfect for replacing faulty ICs, upgrading projects, or building custom LED display systems.
- Product: SN74LS47N BCD to 7-Segment Decoder/Driver IC – DIP-16
- Type: TTL Logic IC – Common Anode 7-Segment Display Driver

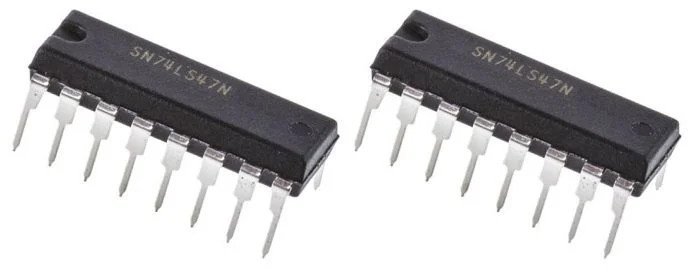

- Quantity: Set of 2 Chips

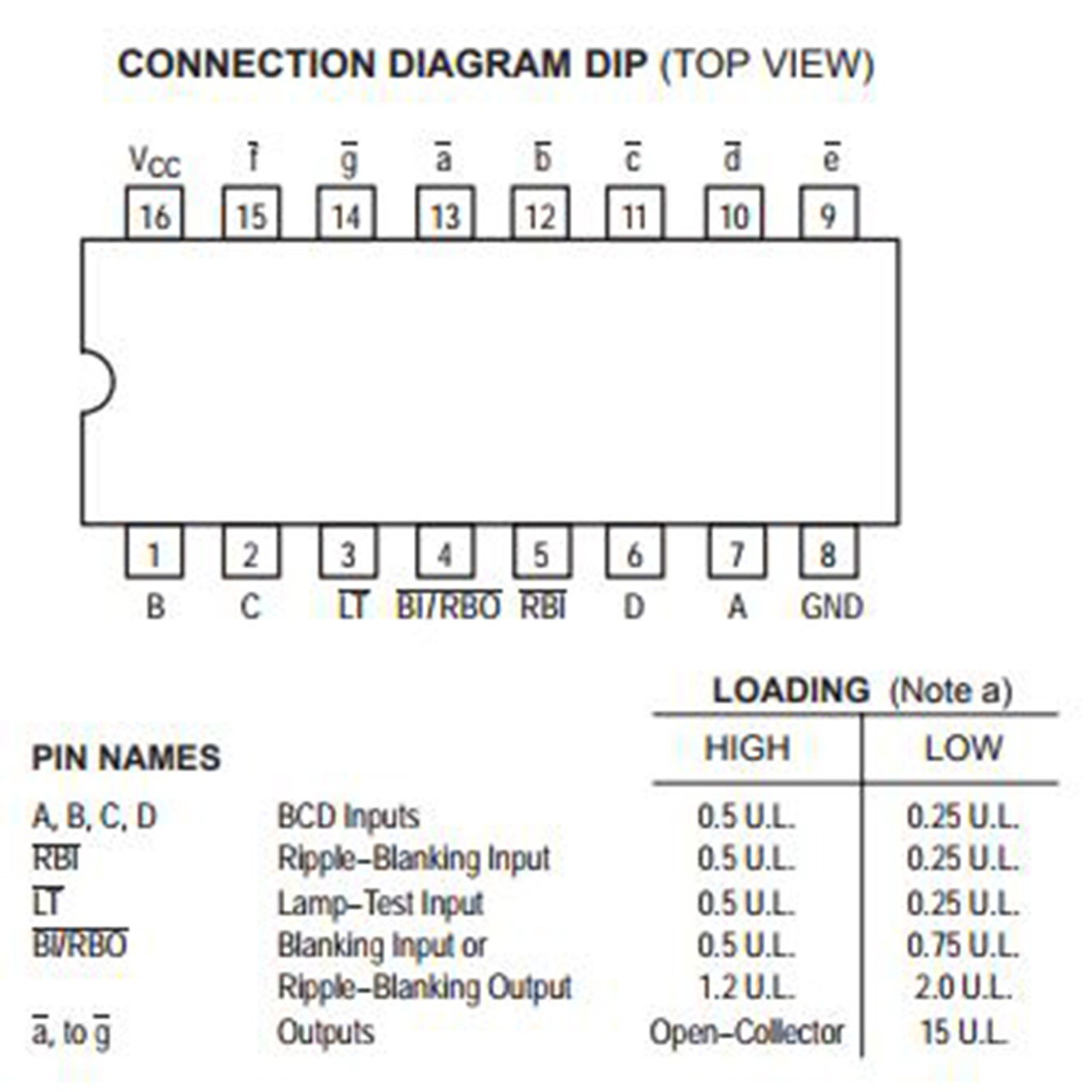

- Standard 74LS47 TTL pinout
- Drives common anode 7-segment LED displays
- Built-in open-collector outputs for segment driving
- Lamp test, ripple-blanking, and blanking input features
- DIP-16 through-hole package
What’s Included:
- 2 x SN74LS47N BCD to 7-Segment Decoder/Driver ICs (DIP-16)
Great For:
- Replacing damaged display driver ICs
- Building LED display counters, timers, and clocks
- Restoring vintage electronics and test equipment
- Educational electronics projects and TTL prototyping
Usage Tips:
- Use with a common anode 7-segment LED display
- Follow standard 74LS47 wiring diagrams for connections

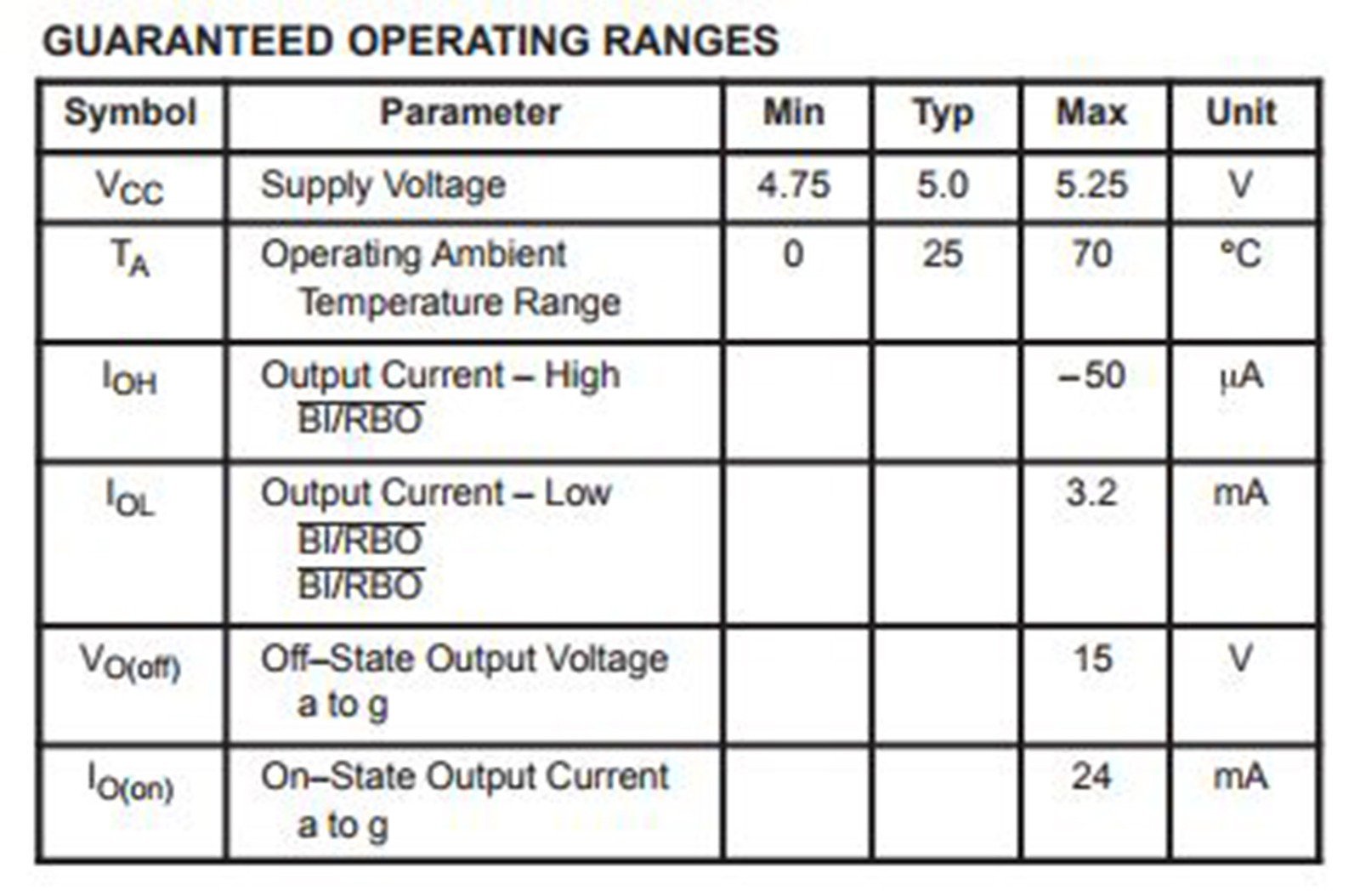

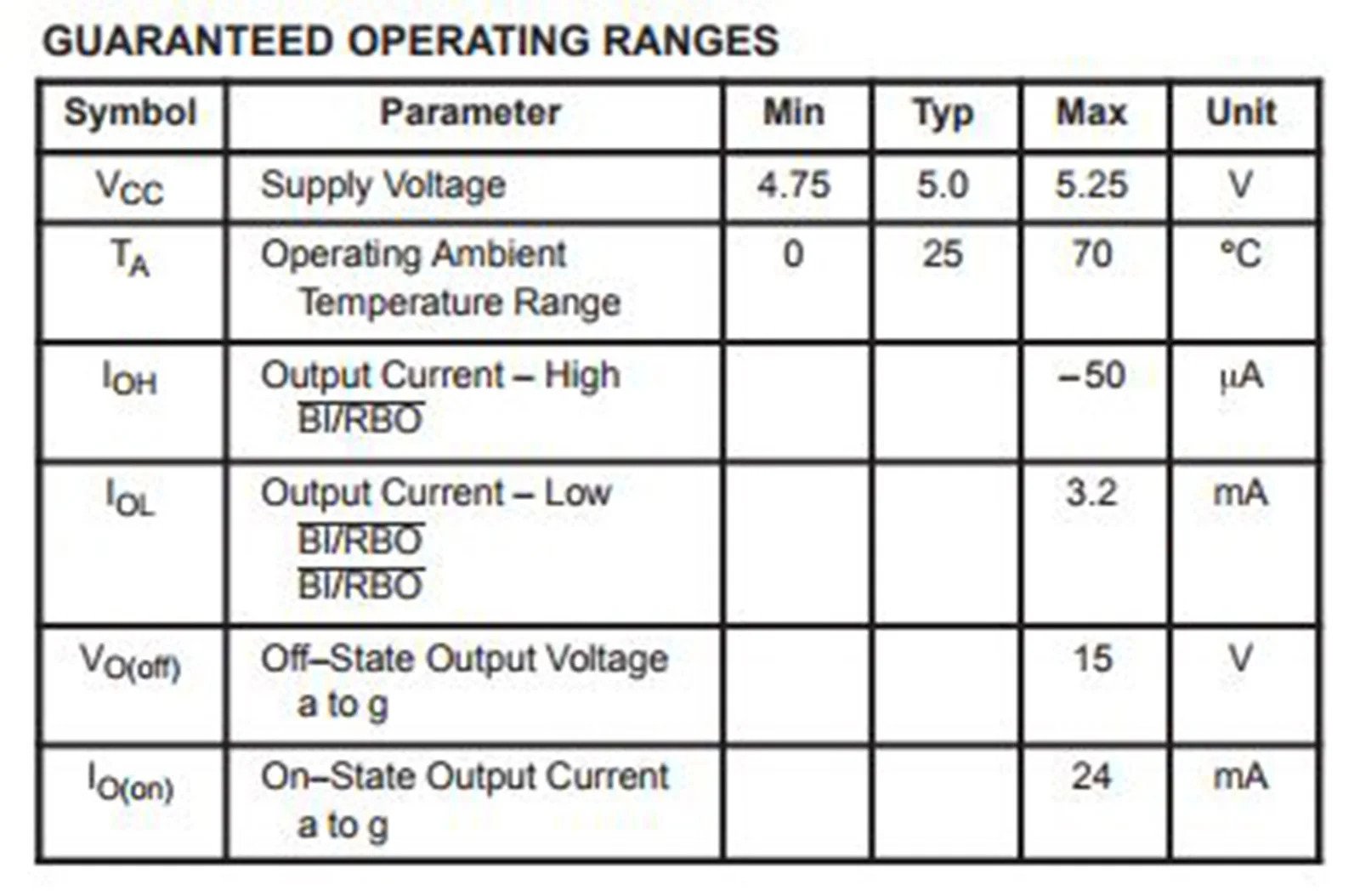

- Ensure correct power supply voltage (typically +5V)
- Ideal for breadboard or PCB mounting
