Description
The MC34063A SOP8 is a compact and efficient DC-DC switching regulator IC designed for a wide range of applications including Boost (Step-Up), Buck (Step-Down), and Voltage-Inverting power supply designs.
Ideal for space-constrained surface mount projects, it includes all necessary functions to build efficient power converters with minimal external components.
- Model: MC34063A (Surface Mount – SOP8 Package)
- Input Voltage Range: 3V to 40V
- Output Current (Switch): Up to 1.5A
- Adjustable Output Voltage
- Standby Current: Low Power Consumption

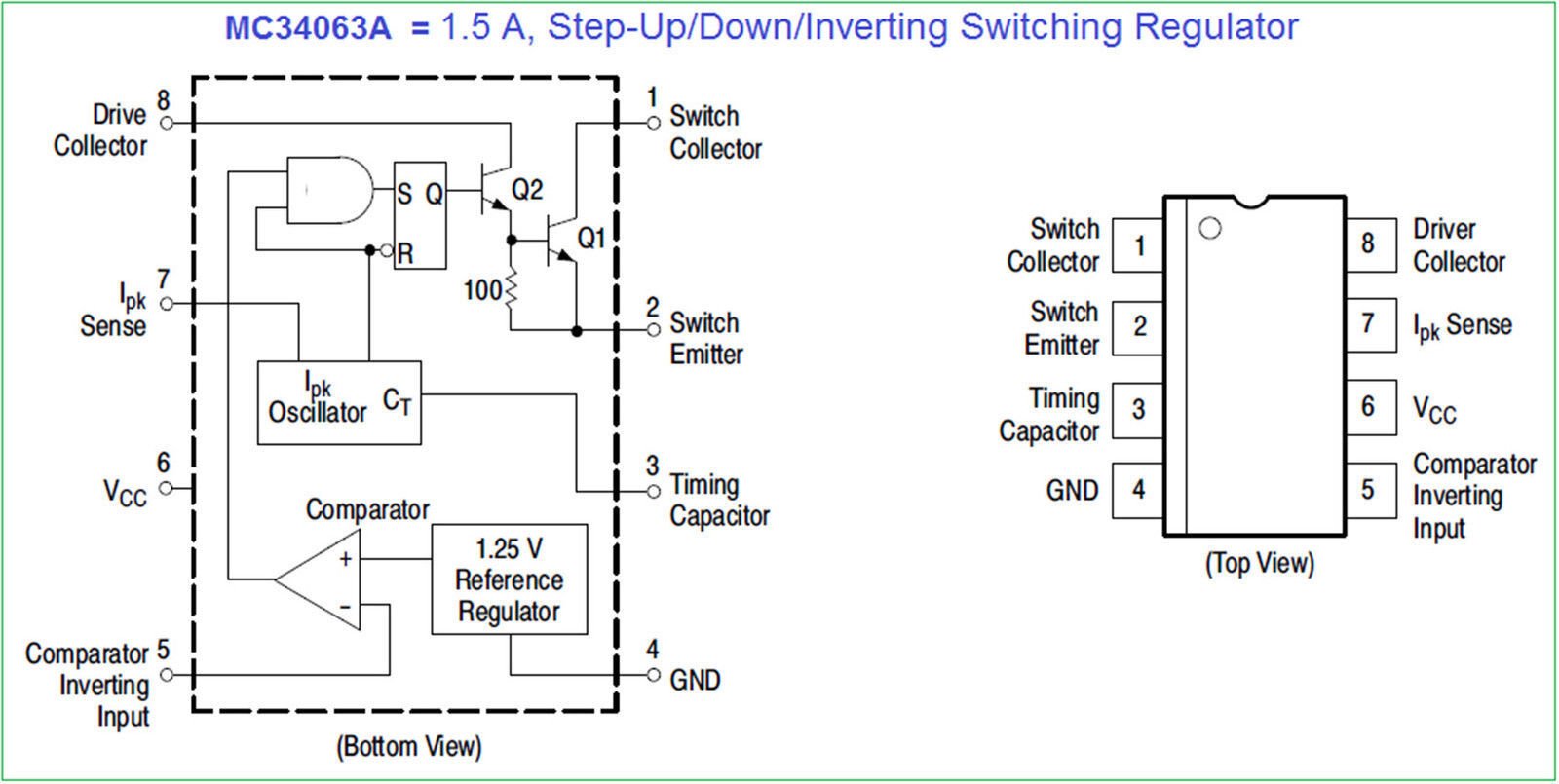

- Integrated Features:
- Internal Precision 2% Reference
- Comparator
- Oscillator (up to 100kHz)
- Current Limiting
- Output Driver and High Current Switch
- Switching Frequency: Up to 100kHz
- Applications: Boost, Buck, and Inverting DC-DC converters
What’s Included:
- 2x MC34063A Switching Regulator ICs (SOP8 – Surface Mount)
Great For:
- Custom Power Supply Designs
- Embedded and IoT Projects
- Robotics and Automation
- Battery-Powered Devices
- Hobby Electronics and Prototyping
Usage Tips:
- Ideal for designing small, efficient converters with minimal components
- Can be used to step-up, step-down or invert voltages in one IC
- Use standard calculation formulas from datasheet to set output voltage and frequency
- Ensure proper heat dissipation when working near maximum current
